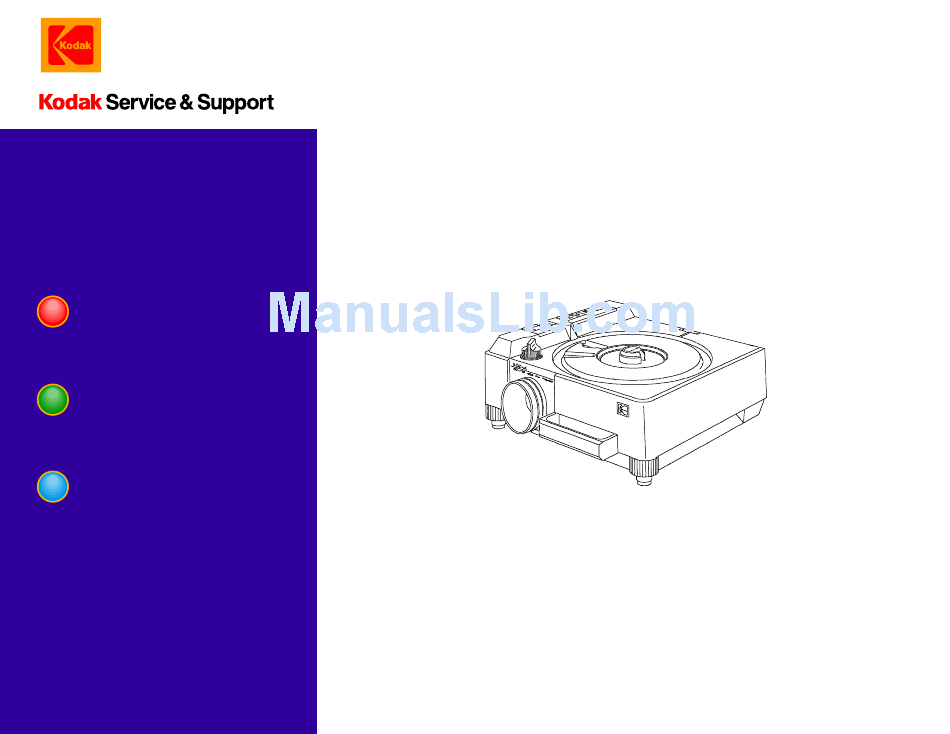

{IllustratedPartsList}{Production}{KodakServiceSupport}
Publication No. IP2547-1
5/97
ILLUSTRATED PARTS LIST
for the
Kodak Ektapro SLIDE PROJECTOR
Model 3020, 4020, 5020, 7020, and 9020
with ACCESSORIES
Kodak Home Page
on Internet
Intranet
Table of Contents
A028_0009AC
© Eastman Kodak Company, 1999

Advertisement

loading

Related Manuals for Kodak Ektapro 3020

Summary of Contents for Kodak Ektapro 3020

  • Page 1 {IllustratedPartsList}{Production}{KodakServiceSupport} Publication No. IP2547-1 5/97 ILLUSTRATED PARTS LIST for the Kodak Ektapro SLIDE PROJECTOR Model 3020, 4020, 5020, 7020, and 9020 with ACCESSORIES Kodak Home Page on Internet Intranet Table of Contents A028_0009AC © Eastman Kodak Company, 1999...
  • Page 2 Eastman Kodak Company reserves the right to change this information without notice, and makes no warranty, express or implied, with respect to this information. Kodak shall not be liable for any loss or damage, including consequential or special damages, resulting from any use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.

  • Page 3: Section 1: Illustrated Parts List

    Illustrated Parts List Section 1: Illustrated Parts List IP2547-1 – 5/97...
  • Page 4 ILLUSTRATED PARTS LIST Figure 1 A028_0030DC 5/97 – IP2547-1...
  • Page 5 Illustrated Parts List Figure 1 Item Part No. Description Qty. Notes 6200701 KNOB 1 Models: 3020, 4020, 5020, 7020, and 9020 6202254 HOUSING, UPPER 1 Models: 3020, 4020, 5020, 7020, and 9020 4901411 LABEL, MODEL 1 Models: 3020, 4020, 5020, 7020, and 9020 6203031 LABEL, MODEL 1 Model 3020...
  • Page 6 ILLUSTRATED PARTS LIST Figure 2 A028_0029DC 5/97 – IP2547-1...
  • Page 7 Illustrated Parts List Figure 2 Item Part No. Description Qty. Notes 6202071 PLATE, COVER 1 Models: 3020, 4020, and 7020 6205102 PLATE, COVER 1 Model 5020 6208102 PLATE, COVER 1 Model 9020 6202181 BUTTON 1 Models: 3020, 4020, 5020, 7020, and 9020 6202191 BUTTON, TRAY SWITCH 1 Models: 3020, 4020, 5020, 7020, and 9020...
  • Page 8 ILLUSTRATED PARTS LIST Figure 3 A028_0028DC 5/97 – IP2547-1...
  • Page 9 Illustrated Parts List Figure 3 Item Part No. Description Qty. Notes 6200824 RING, DRIVE 1 Models: 3020, 4020, 5020, 7020, and 9020 6200804 HOUSING, CENTER-with CLIP 1 Models: 3020, 4020, 5020, 7020, and 9020 4719391 ROLLER, SHAFT 3 Models: 3020, 4020, 5020, 7020, and 9020 6200871 ROLLER, BEARING 3 Models: 3020, 4020, 5020,...
  • Page 10 ILLUSTRATED PARTS LIST Figure 4 A028_0027DC 5/97 – IP2547-1...
  • Page 11 Illustrated Parts List Figure 4 Item Part No. Description Qty. Notes 6200751 RETAINER, AF 1 Models: 3020, 4020, 5020, 7020, and 9020 4301881 SCREW 2 Models: 3020, 4020, and 7020 4301881 SCREW 3 Models: 5020 and 9020 4302541 SCREW 1 Models: 3020, 4020, 5020, 7020, and 9020 6200741 ABSORBER, SHOCK 1 Models: 3020, 4020, 5020,...
  • Page 12 ILLUSTRATED PARTS LIST Figure 5 A028_0026DC Figure 5 Item Part No. Description Qty. Notes 6205061 COVER, PRISM 2 Models: 5020 and 9020 6150131 PRISM 2 Models: 5020 and 9020 6210854 BOARD, AF II 1 Models: 5020 and 9020 6205753 RETAINER AF III AY 1 Models: 5020 and 9020 5/97 –...
  • Page 13 Illustrated Parts List Figure 6 A028_0025DC IP2547-1 – 5/97...
  • Page 14 ILLUSTRATED PARTS LIST Figure 6 Item Part No. Description Qty. Notes 4282851 SCREW 2 Models: 3020, 4020, 5020, 7020, and 9020 6217094 CAM AND SHUTTER SENSOR AY 1 Models: 3020, 4020, 5020, 7020, and 9020 6200354 PAD, PRESSURE 1 Models: 3020, 4020, 5020, 7020, and 9020 6201541 SPRING 1 Models: 3020, 4020, 5020,...
  • Page 15 Illustrated Parts List Figure 7 A028_0024DC IP2547-1 – 5/97...
  • Page 16 ILLUSTRATED PARTS LIST Figure 7 Item Part No. Description Qty. Notes 6201491 SPRING 1 Models: 3020, 4020, 5020, 7020, and 9020 6200453 CAM 1 Models: 3020, 4020, 5020, 7020, and 9020 6200401 LIFTER, SIDE 1 Models: 3020, 4020, 5020, 7020, and 9020 6200371 SPRING 1 Models: 3020, 4020, 5020, 7020, and 9020...
  • Page 17 Illustrated Parts List Figure 8 A028_0023EC IP2547-1 – 5/97...
  • Page 18 ILLUSTRATED PARTS LIST Figure 8 Item Part No. Description Qty. Notes 6210314 BOARD 1 Models: 3020, 4020, and 7020 6210414 BOARD 1 Model 5020 6210394 BOARD 1 Model 9020 6200953 LAMP HOUSING AY 1 Models: 3020, 4020, 5020, 7020, and 9020 4282921 SCREW 1 Models: 7020 and 9020 6217804 SOCKET...
  • Page 19 Illustrated Parts List Figure 9 A028_0022EC IP2547-1 – 5/97...
  • Page 20 ILLUSTRATED PARTS LIST Figure 9 Item Part No. Description Qty. Notes 6217191 SINGLE SOCKET AY 1 Model 3020 6217391 DUAL SOCKET AY 1 Models: 4020, 5020, 7020, and 9020 6217674 FAN 1 Models: 3020, 4020, 5020, 7020, and 9020 6200041 PAD, FOCUSING MOTOR RUBBER 1 Models: 3020, 4020, 5020, 7020, and 9020 6217344 MOTOR, FOCUS...
  • Page 21 Illustrated Parts List Figure 10 A028_0021DC IP2547-1 – 5/97...
  • Page 22 ILLUSTRATED PARTS LIST Figure 10 Item Part No. Description Qty. Notes 4535021 FUSE HOLDER AY 2 Models: 3020, 4020, 5020, 7020, and 9020 4541051 FUSE, T1.25A 1 Models: 3020, 4020, 5020, 7020, and 9020 4539891 FUSE, T1.25A-U.S. and Canada 1 Models: 7020 and 9020 4515691 FUSE, T2, A 1 Models: 3020, 4020, 5020, 7020, and 9020...
  • Page 23 Illustrated Parts List Figure 11 A028_0020DC IP2547-1 – 5/97...
  • Page 24 ILLUSTRATED PARTS LIST Figure 11 Item Part No. Description Qty. Notes 4513990 CORD, POWER-German 1 Models: 3020, 4020, 5020, 7020, and 9020 6217861 CORD, POWER-Australia 1 Models: 3020, 4020, 5020, 7020, and 9020 6217851 CORD, POWER-UK 1 Models: 3020, 4020, 5020, 7020, and 9020 6004060 CORD, POWER-France 1 Models: 3020, 4020, 5020,...
  • Page 25 Illustrated Parts List Figure 12 A028_0019EC IP2547-1 – 5/97...
  • Page 26 ILLUSTRATED PARTS LIST Figure 12 Item Part No. Description Qty. Notes 6214394 MICROCONTROLLER, V 2.34 1 Model 3020 6215144 MICROCONTROLLER, V 4.8 1 Model 4020 6215154 MICROCONTROLLER, V 4.8 1 Model 5020 6251741 MICROCONTROLLER, V 4.7 1 Model 7020 6215184 MICROCONTROLLER, V 4.7 1 Model 9020 6210034 MASTER CIRCUIT BOARD AY 1 Model 3020...
  • Page 27 Illustrated Parts List Figure 13 A028_0018EC IP2547-1 – 5/97...
  • Page 28 ILLUSTRATED PARTS LIST Figure 13 Item Part No. Description Qty. Notes 6200091 FOOT, ELEVATOR 2 Models: 3020, 4020, 5020, 7020, and 9020 6203261 LABEL, RATING, STANDARD 1 Model 3020 6204261 LABEL, RATING, STANDARD 1 Model 4020 6205281 LABEL, RATING, STANDARD 1 Model 5020 6207261 LABEL, RATING, STANDARD 1 Model 7020...
  • Page 29 Illustrated Parts List Figure 14 A028_0017EC IP2547-1 – 5/97...
  • Page 30 1 Models: 3020, 4020, 5020, 7020, and 9020 None LAMP, 35h, 70h, and 200h 1, 2 Models: 3020, 4020, 5020, 7020, and 9020, Listed in the Kodak Price Catalog 6201101 EJECTOR 1,2 Models: 3020, 4020, 5020, 7020, and 9020 6217154 LAMP SOCKET AY, single...
  • Page 31 Illustrated Parts List Figure 15 A028_0016EC IP2547-1 – 5/97...
  • Page 32 1 Models: 4020, 5020, 7020, and 9020 6201941 LABEL, extra bright 1 Models: 4020, 5020, 7020, and 9020 1 Listed in the Kodak Price * MODULE, complete single lamp Catalog ** MODULE, complete dual lamp 1 Listed in the Kodak Price...
  • Page 33 Illustrated Parts List Figure 16 Kodak Ektapro 80 SLIDE TRAY A028_0015DCA A028_0015DC Figure 16 Item Part No. Description Qty. Notes 6036312 PLATE 1 Accessory 6036331 SPRING 1 Accessory 6036321 LEVER 1 Accessory None TRAY, SLIDE 1 Accessory, Listed in the...
  • Page 34 ILLUSTRATED PARTS LIST Figure 17 Kodak Ektapro CABLE REMOTE KODAK EKTAPRO Cable Remote LASER TRAY STANDBY FOCUS A028_0014DCA A028_0014DC Figure 17 Item Part No. Description Qty. Notes None REMOTE, CABLE - Accessory, Listed in the Kodak Price Catalog 6220224 TOP...
  • Page 35 Illustrated Parts List Figure 18 Kodak Ektapro IR REMOTE SYSTEM RA, RA / LP and IR REMOTE RECEIVER RA KODAK EKTAPRO IR Remote Transmitter RA KODAK EKTAPRO IR Remote Receiver RA LASER TRAY STANDBY FOCUS A028_0013DCA A028_0013DC Figure 18 Item Part No.
  • Page 36 ILLUSTRATED PARTS LIST Figure 19 Kodak Ektapro 7/12 PIN MODULE and 7/12 PIN ADAPTER CABLE A028_0012DC Figure 19 Item Part No. Description Qty. Notes 6207331 PLATE 1 Accessory None MODULE, 7 / 12 PIN 1 Accessory, Listed in the Kodak Price Catalog...
  • Page 37 Illustrated Parts List Figure 20 Kodak Ektapro TWIN SOCKET ADAPTER KODAK EKTAPRO Twin Socket Adapter A028_0011DCA A028_0011DC Figure 20 Item Part No. Description Qty. Notes None ADAPTER, TWIN SOCKET - Accessory, Listed in the Kodak Price Catalog 6220174 COVER, front...
  • Page 38 ILLUSTRATED PARTS LIST Figure 21 CABLE AY and WIRES for the Kodak Ektapro PROJECTORS, Model 3010 - 9010 Figure 21 Item Part No. Description Qty. Notes 6217391 DUAL SOCKET AY, STANDARD-Japan, Korea 1 Models: 4020, 5020, 7020, and 9020 6217191 SINGLE SOCKET AY, STANDARD-Japan...
  • Page 39 Figure 22 NOTE For the KODAK EKTAPRO Carrying Case and for the KODAK EKTAPRO SELECT Projections Lenses no parts are planned. Possible repairs of the SELECT Projections Lenses should be settled via KODAK AG. Exception Sleeve PN G9903955 Manufacturer of Lenses: Docter-Optics GmbH Prof.
  • Page 40 ILLUSTRATED PARTS LIST 5/97 – IP2547-1...

  • Page 41: Section 2: Alphabetical Index

    Alphabetical Index Section 2: Alphabetical Index Alphabetical Index Part No. Description Figure No. 6200741 ABSORBER, SHOCK 6207101 ADAPTER None ADAPTER, TWIN SOCKET 6201311 BAFFLE, LIGHT 6220134 BASE 6220134 BASE, for RA and RA / LP 6220411 BATTER CONTACT, short 6220401 BATTERY CONTACT, long 6210314 BOARD...
  • Page 42 ILLUSTRATED PARTS LIST Alphabetical Index Part No. Description Figure No. 6220364 COVER, front 6200262 COVER, MECHANISM FRAME 6205061 COVER, PRISM 6201881 DISK, CODER Serial No. 118 500 and above 6217391 DUAL SOCKET AY 6217391 DUAL SOCKET AY, STANDARD-Japan, Korea 6201861 ECCENTRIC 6201101 EJECTOR...
  • Page 43 Alphabetical Index Alphabetical Index Part No. Description Figure No. 6204261 LABEL, RATING, STANDARD 6205281 LABEL, RATING, STANDARD 6207261 LABEL, RATING, STANDARD 6208061 LABEL, RATING, STANDARD 6205861 LABEL, RATING-Japan 6208321 LABEL, RATING-Japan 6207691 LABEL, RATING-Korea 6207881 LABEL, RATING-U.S. and Canada 6208421 LABEL, RATING-U.S.
  • Page 44 ILLUSTRATED PARTS LIST Alphabetical Index Part No. Description Figure No. 6207331 PLATE 6201111 PLATE, AIR, exhaust 6202100 PLATE, BACK 6205300 PLATE, BACK 6207300 PLATE, BACK 6207710 PLATE, BACK-Korea 6207901 PLATE, BACK-U.S., LABEL FUSE 2.8A 6202062 PLATE, COVER 6202071 PLATE, COVER 6205102 PLATE, COVER 6208102...
  • Page 45 Alphabetical Index Alphabetical Index Part No. Description Figure No. 6217191 SINGLE SOCKET AY 6217191 SINGLE SOCKET AY, STANDARD-Japan G9903955 SLEEVE, EXCEPTION 6220144 SLIDE COVER, for RA and RA / LP 6217024 SOCKET AND SWITCH AY 6217842 SOCKET AND SWITCH AY-Korea 6217804 SOCKET 6036331...

  • Page 46: Section 3: Numerical Index

    ILLUSTRATED PARTS LIST Section 3: Numerical Index Numerical Index Part No. Description Figure No. MODULE, complete single lamp MODULE, complete dual lamp 4282501 SCREW 4282851 SCREW 4282921 SCREW 4283671 SCREW 4301881 SCREW 4301911 SCREW 4301921 SCREW 4302361 SCREW 3, 12 4302381 SCREW 4302411...
  • Page 47 Numerical Index Numerical Index Part No. Description Figure No. 6200031 SHIELD, POWER SUPPLY 6200041 PAD, FOCUSING MOTOR RUBBER 6200051 ELEVATOR, right 6200061 KNOB, right 6200071 ELEVATOR, left 6200081 KNOB, left Elevator 6200091 FOOT, ELEVATOR 6200131 FOOT, RUBBER 6200141 BUFFER 6200202 COVER 6200262 COVER, MECHANISM FRAME...
  • Page 48 ILLUSTRATED PARTS LIST Numerical Index Part No. Description Figure No. 6201190 SPRING, black coated 6201211 CLIP 6201311 BAFFLE, LIGHT 6201352 PLATE, GRILL 6201361 LATCH, RELEASE 6201381 LABEL, LAMP MODULE, single 6201461 SPRING 6201491 SPRING 6201521 LEVER, ZERO-new style 6201541 SPRING 6201674 SHUTTER 6201731...
  • Page 49 Numerical Index Numerical Index Part No. Description Figure No. 6207022 LABEL, MODEL 6207101 ADAPTER 6207261 LABEL, RATING, STANDARD 6207300 PLATE, BACK 6207321 COVER 6207331 PLATE 6207691 LABEL, RATING-Korea 6207710 PLATE, BACK-Korea 6207722 PLATE, COVER-Korea 6207771 LABEL, LAMP MODULE, dual-Korea 6207881 LABEL, RATING-U.S.
  • Page 50 ILLUSTRATED PARTS LIST Numerical Index Part No. Description Figure No. 6217391 DUAL SOCKET AY, STANDARD-Japan, Korea 6217471 CABLE AY 6217564 TRANSFORMER 6217584 MOTOR 6217591 CABLE AY 6217614 TRANSFORMER 6217624 MAGNET 6217634 TRANSFORMER-Japan 6217674 6217751 HOLDER, FUSE 6217804 SOCKET 6217842 SOCKET AND SWITCH AY-Korea 6217851 CORD, POWER-UK 6217861...
  • Page 51 Numerical Index This page is intentionally blank. IP2547-1 – 5/97...
  • Page 52 Kodak and Ektapro are trademarks. Printed in U.S.A. • ip2547_1.fm EASTMAN KODAK COMPANY Rochester, NY 14650...

This manual is also suitable for:

Ektapro 4020Ektapro 5020Ektapro 7020Ektapro 9020
