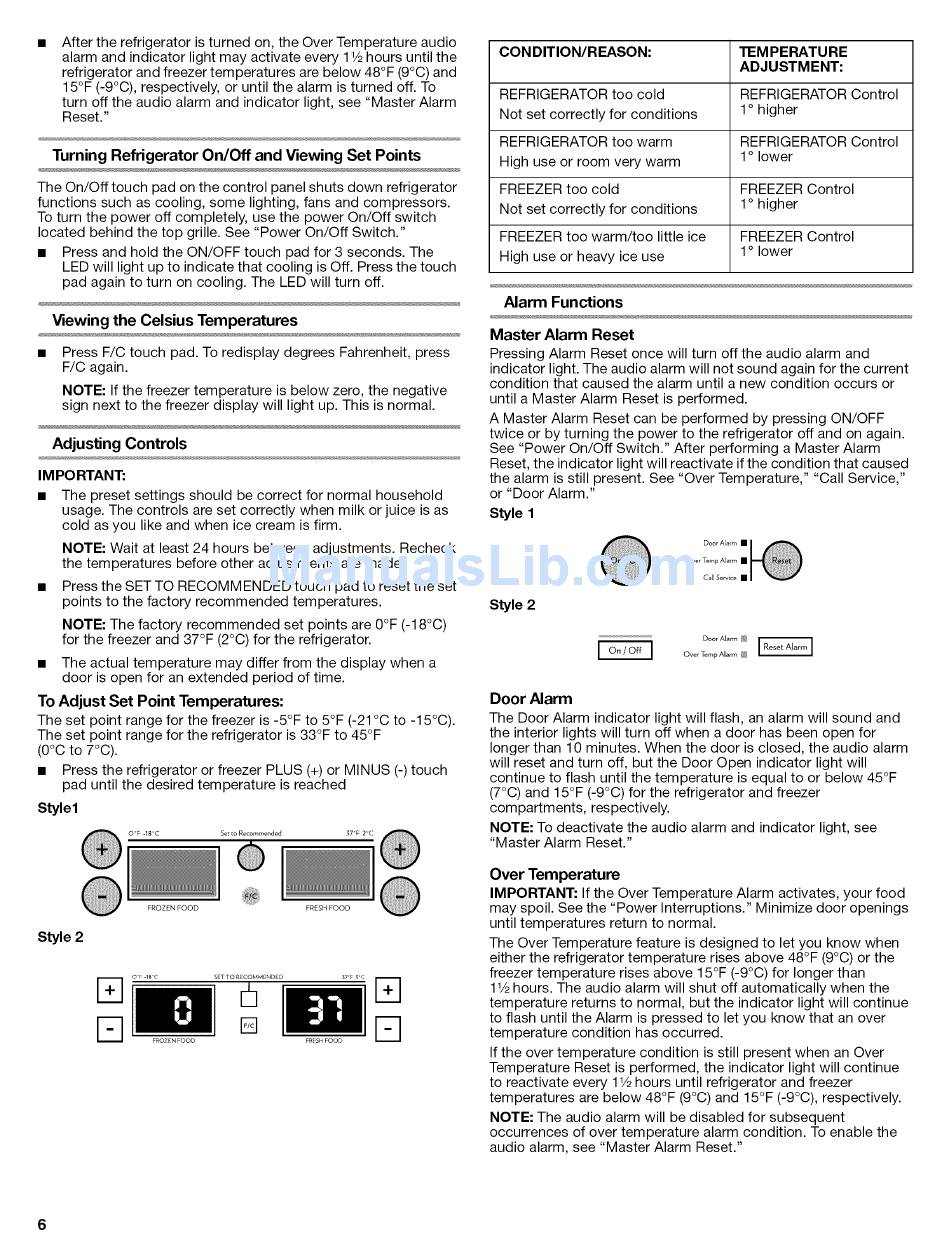

Jenn-Air JS42NXFXDW01 Use & Care Manual page 6

After t herefrigerator isturned on,the Over T emperature audio
alarm andindicator light m ay activate every 1
V2hours until the
refrigerator and freezer temperatures are below 48°F (9°C) and
15°F (-9°C), respectively, or until the alarm is turned off. To
turn off the audio alarm and indicator light, see "Master Alarm
Reset."
Turning Refrigerator On/Off and Viewing Set Points
The On/Off touch pad on the control panel shuts down refrigerator
functions such as cooling, some lighting, fans and compressors.
To turn the power off completely, use the power On/Off switch
located behind the top grille. See "Power On/Off Switch."
• Press and hold the ON/OFF touch pad for 3 seconds. The
LED will light up to indicate that cooling is Off. Press the touch
pad again to turn on cooling. The LED will turn off.
Viewing the Celsius Temperatures
Press F/C touch pad. To redisplay degrees Fahrenheit, press
F/C again.
NOTE: If the freezer temperature is below zero, the negative
sign next to the freezer display will light up. This is normal.
Adjusting Controls
IM PO RTANT:
• The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
NOTE: Wait at least 24 hours between adjustments. Recheck
the temperatures before other adjustments are made.
Press the SET TO RECOMMENDED touch pad to reset the set
points to the factory recommended temperatures.
NOTE: The factory recommended set points are 0°F (-18°C)
for the freezer and 37°F (2°C) for the refrigerator.
The actual temperature may differ from the display when a
door is open for an extended period of time.
To Adjust Set Point Temperatures:
The set point range for the freezer is -5°F to 5°F (-21°C to -15°C).
The set point range for the refrigerator is 33°F to 45°F
(0°C to 7°C).
• Press the refrigerator or freezer PLUS (+) or MINUS (-) touch
pad until the desired temperature is reached
Style1
Style 2
FROZEN FOOD
SEI TO RECOMMENDED 57F 3"C
IDil]
D ........... [] ........... D
CONDITION/REASON: TEMPERATURE
ADJUSTMENT:
REFRIGERATOR too cold REFRIGERATOR Control
Not set correctly for conditions 1o higher
REFRIGERATOR too warm REFRIGERATOR Control
1° lower
High use or room very warm
FREEZER too cold FREEZER Control
Not set correctly for conditions 1° higher
FREEZER too warm/too little ice FREEZER Control
High use or heavy ice use 1° lower
Alarm Functions
Master Alarm Reset
Pressing Alarm Reset once will turn off the audio alarm and
indicator light. The audio alarm will not sound again for the current
condition that caused the alarm until a new condition occurs or
until a Master Alarm Reset is performed.
A Master Alarm Reset can be performed by pressing ON/OFF
twice or by turning the power to the refrigerator off and on again.
See "Power On/Off Switch." After performing a Master Alarm
Reset, the indicator light will reactivate if the condition that caused
the alarm is still present. See "Over Temperature," "Call Service,"
or "Door Alarm."
Style 1
Door Alerm •
Over Temp Alarm •
C_ll Semite •
Style 2
Door Alarm _
Over Temp Alam_ _
Door Alarm
The Door Alarm indicator light will flash, an alarm will sound and
the interior lights will turn off when a door has been open for
longer than 10 minutes. When the door is closed, the audio alarm
will reset and turn off, but the Door Open indicator light will
continue to flash until the temperature is equal to or below 45°F
(7°C) and 15°F (-9°C) for the refrigerator and freezer
compartments, respectively.
NOTE: To deactivate the audio alarm and indicator light, see
"Master Alarm Reset."
Over Temperature
IMPORTANT: If the Over Temperature Alarm activates, your food
may spoil. See the "Power Interruptions." Minimize door openings
until temperatures return to normal.
The Over Temperature feature is designed to let you know when
either the refrigerator temperature rises above 48°F (9°C) or the
freezer temperature rises above 15°F (-9°C) for longer than
11/2hours. The audio alarm will shut off automatically when the
temperature returns to normal, but the indicator light will continue
to flash until the Alarm is pressed to let you know that an over
temperature condition has occurred.
If the over temperature condition is still present when an Over
Temperature Reset is performed, the indicator light will continue
to reactivate every 11/2hours until refrigerator and freezer
temperatures are below 48°F (9°C) and 15°F (-9°C), respectively.
NOTE: The audio alarm will be disabled for subsequent
occurrences of over temperature alarm condition. To enable the
audio alarm, see "Master Alarm Reset."
6
