Cub Cadet CC 2000 Operator's Manual page 20

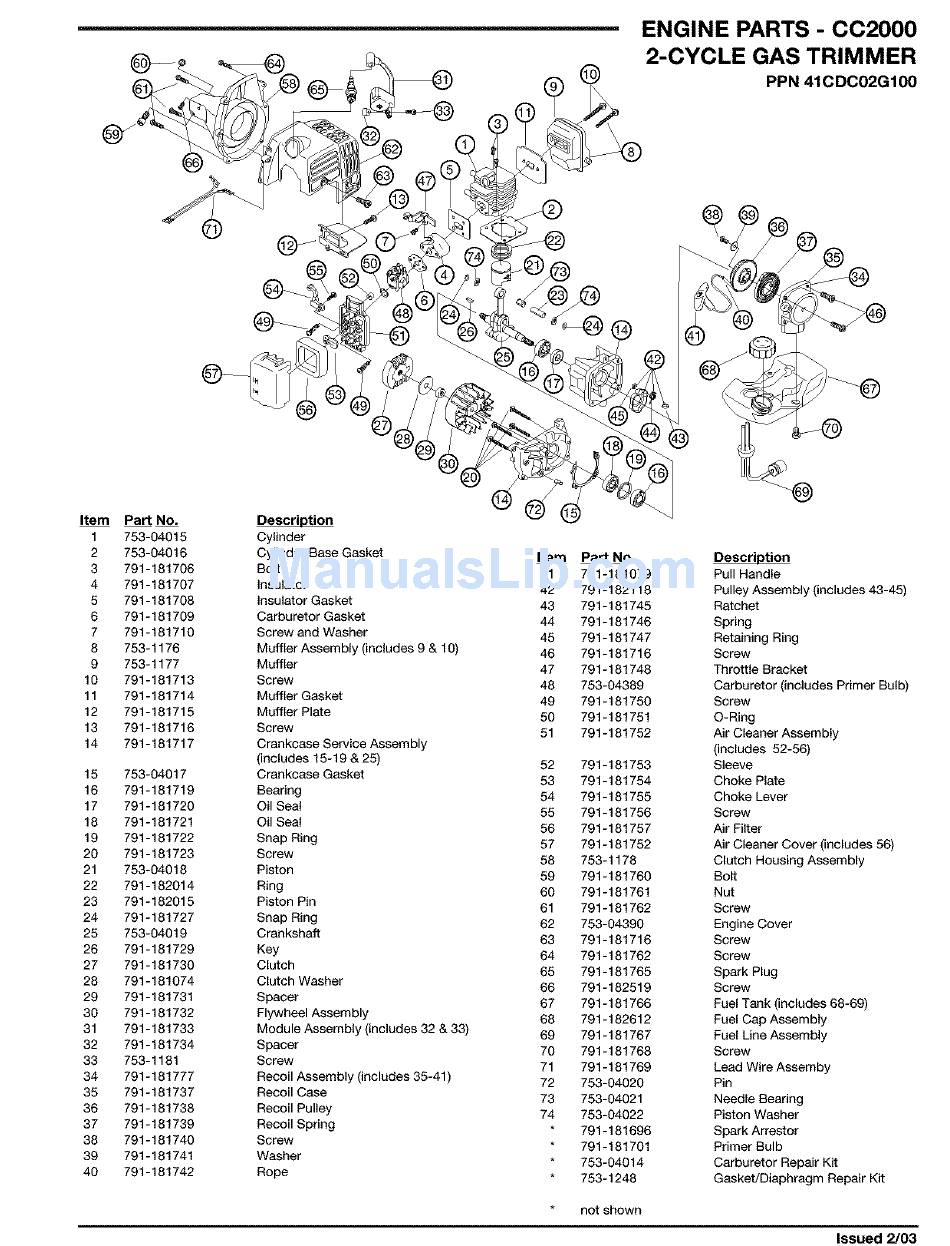

ENGINE PARTS - CC2000
2-CYCLE GAS TRIMMER
PPN 410DC02G100
Item Part No. Description
1 753-04015 Cylinder
2 753-04016 Cylinder Base Gasket Item Part NO.
3 791-181706 Bolt 41 791-181079
4 791-181707 Insulator 42 791-182118
5 791-181708 Insulator Gasket 43 791-181745
6 791-181709 Carburetor Gasket 44 791-181746
7 791-181710 Screw and Washer 45 791-181747
8 753-1176 Muffler Assembly (includes 9 & 10) 46 791-181716
9 753-1177 Muffler 47 791-181748
10 791-181713 Screw 48 753-04389
11 791-181714 Muffler Gasket 49 791-181750
12 791-181715 Muffler Plate 50 791-181751
13 791-181716 Screw 51 791-181752
14 791-181717 Crankcase Service Assembly
(includes 15-19 & 25) 52 791-181753
15 753-04017 Crankcase Gasket 53 791-181754
16 791-181719 Bearing 54 791-181755
17 791-181720 Oil Seal 55 791-181756
18 791-181721 Oil Seal 56 791-181757
19 791-181722 Snap Ring 57 791-181752
20 791-181723 Screw 58 753-1178
21 753-04018 Piston 59 791-181760
22 791-182014 Ring 60 791-181761
23 791-182015 Piston Pin 61 791-181762
24 791-181727 Snap Ring 62 753-04390
25 753-04019 Crankshaft 63 791-181716
26 791-181729 Key 64 791-181762
27 791-181730 Clutch 65 791-181765
28 791-181074 Clutch Washer 66 791-182519
29 791-181731 Spacer 67 791-181766
30 791-181732 Flywheel Assembly 68 791-182612
31 791-181733 Module Assembly (includes 32 & 33) 69 791-181767
32 791-181734 Spacer 70 791-181768
33 753-1181 Screw 71 791-181769
34 791-181777 Recoil Assembly (includes 35-41) 72 753-04020
35 791-181737 Recoil Case 73 753-04021
36 791-181738 Recoil Pulley 74 753-04022
37 791-181739 Recoil Spring 791-181696
38 791-181740 Screw 791-181701
39 791-181741 Washer 753-04014
40 791-181742 Rope 753-1248
not shown
@
Descri#tion
Pull Handle
Pulley Assembly (includes 43-45)
Ratchet
Spring
Retaining Ring
Screw
Throttle Bracket
Carburetor (includes Primer Bulb)
Screw
O-Ring
Air Cleaner Assembly
(includes 52-56)
Sleeve
Choke Plate
Choke Lever
Screw
Air Filter
Air Cleaner Cover (includes 56)
Clutch Housing Assembly
Bolt
Nut
Screw
Engine Cover
Screw
Screw
Spark Plug
Screw
Fuel Tank (includes 68-69)
Fuel Cap Assembly
Fuel Line Assembly
Screw
Lead Wire Assemby
Pin
Needle Bearing
Piston Washer
Spark Arrestor
Primer Bulb
Carburetor Repair Kit
Gasket/Diaphragm Repair Kit
Issued 2/03
