ACHJ E CO PART E T

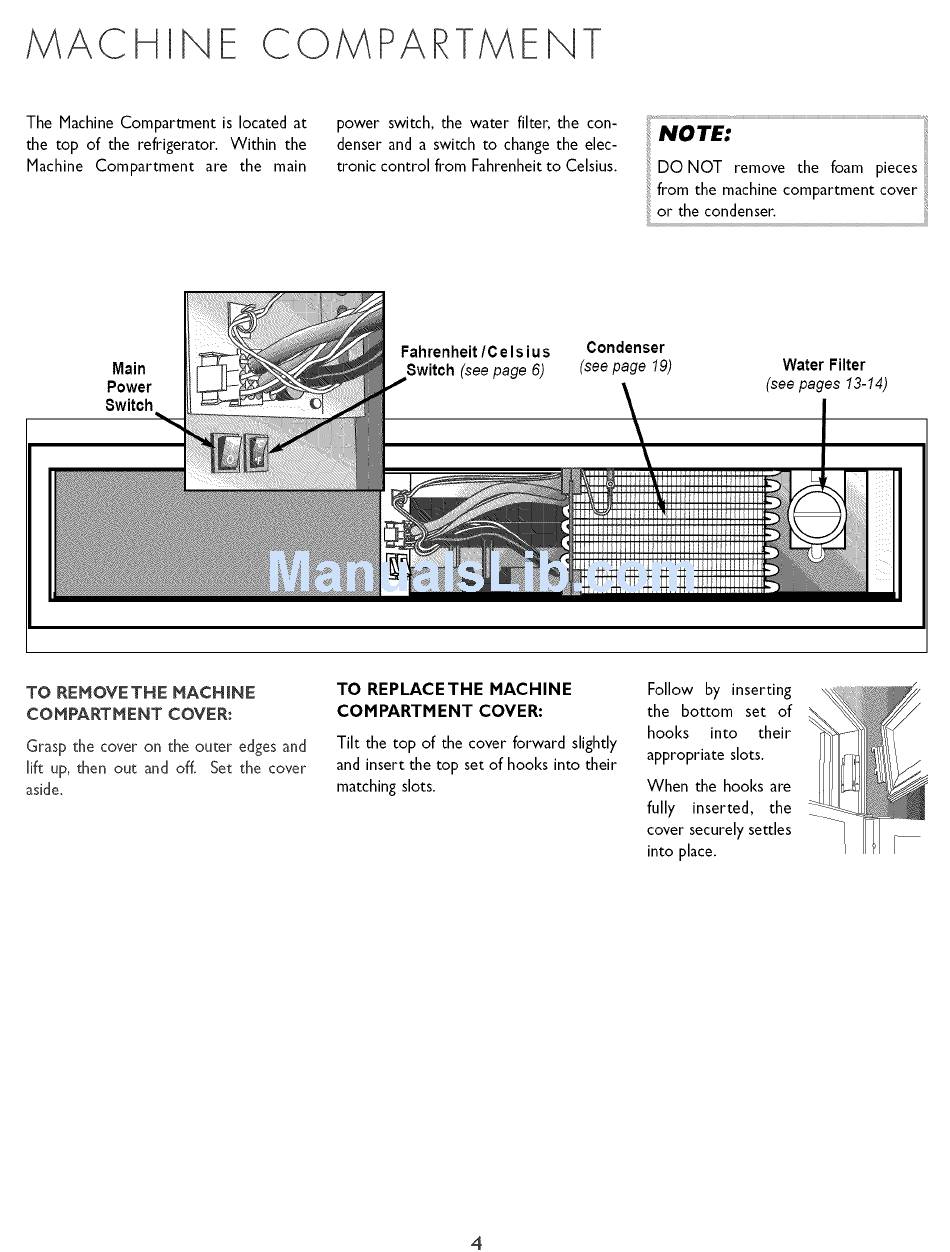

The Machine Compartment is located at
the top of the refrigerator. Within the
Machine
Compartment are
the main
power switch, the water filter, the con-
denser and a switch to change the elec-
tronic control from Fahrenheit to Celsius.
from the machine compartment cover
or the condenser.
Main
Power
Switch
Fahrenheit/Celsius
Switch (see page 6)
Condenser
(see page 19)
Water Filter
(see pages 13-14)
TO REHOVETHE HACHJNE
COHPARTHENT COVER:
Grasp the cover on the outer edges and
lift up, then out and off. Set the cover
aside.
TO REPLACETHE HACHINE
COHPARTHENT COVER:
Tilt the top of the cover forward slightly
and insert the top set of hooks into their
matching slots.
Follow by inserting
the bottom set of
hooks into their
appropriate slots.
When the hooks are
fully inserted, the
cover securely settles
into place.
4
