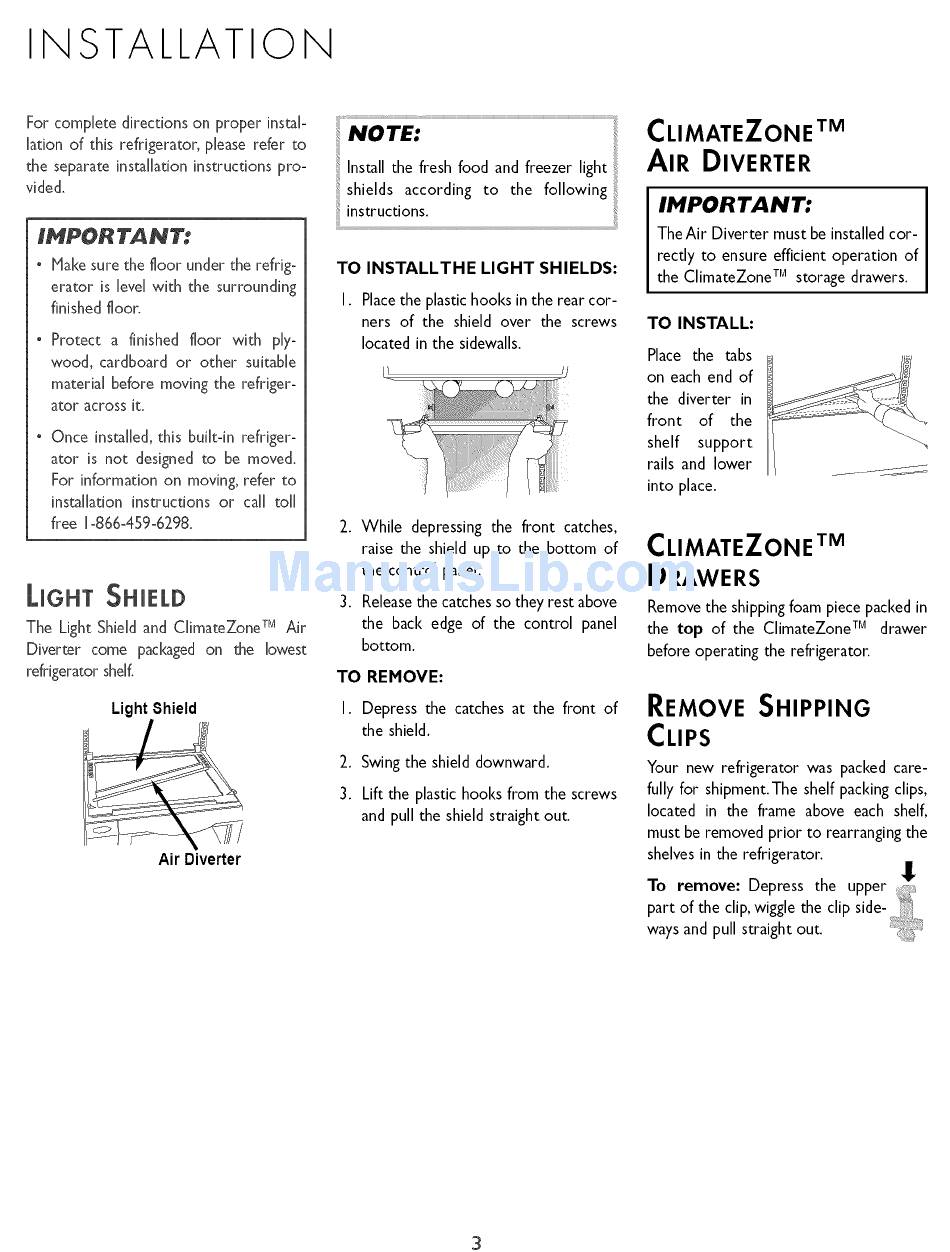

INSTALLATION
For complete directions on proper instal-
lation of this refrigerator, please refer to
the separate insr_[[ation instructions pro-
vided.
° Make sure the noor under the refrig-
erator is [eve[ with the surrounding
finished floor.
° Protect a finished floor with ply-
wood, cardboard or other suitable
material before moving the refriger-
ator across it.
° Once installed, this buik-in refriger-
ator is not designed to be moved.
For information on moving, refer to
installation instructions or call toll
free [-866-459-6298.
LGHT SHIELD
The Light Shield and C[imateZone
TM
Air
Diverter come packaged on the lowest
refrigerator shall.
Light Shield
Air Diverter
iii •
NOTE•
Install the fresh food and freezer light
shields according to the following
instructions.
TO INSTALLTHE LIGHT SHIELDS:
I. Placethe plastic hooks in the rear cor-
ners of the shield over the screws
located in the sidewalls.
ii /]
2. While depressing the front catches,
raise the shield up to the bottom of
the control panel.
3. Releasethe catches so they rest above
the back edge of the control panel
bottom.
TO REMOVE:
I. Depress the catches at the front of
the shield.
2. Swing the shield downward.
3. Lift the plastic hooks from the screws
and pull the shield straight out.
CLIMATEZONE TM
AIR DIVERTER
IMPORTANT:
TheAir Diverter must be installed cor-
rectly to ensure efficient operation of
the ClimateZone
TM
storage drawers.
TO INSTALL:
Place the tabs
on each end of
the diverter in
front of the
shelf support
rails and lower
into place.
CLIMATEZONE TM
DRAWERS
Remove the shippingfoam piece packed in
the top of the ClimateZone
TM
drawer
before operating the refrigerator.
REMOVE SHIPPING
CLIPS
Your new refrigerator was packed care-
fully for shipment.The shelf pacldng clips,
located in the frame above each shelf,
must be removed prior to rearranging the
shelves in the refrigerator.
To remove: Depress the upper
part of the clip, wiggle the clip side-
ways and pull straight out. _
