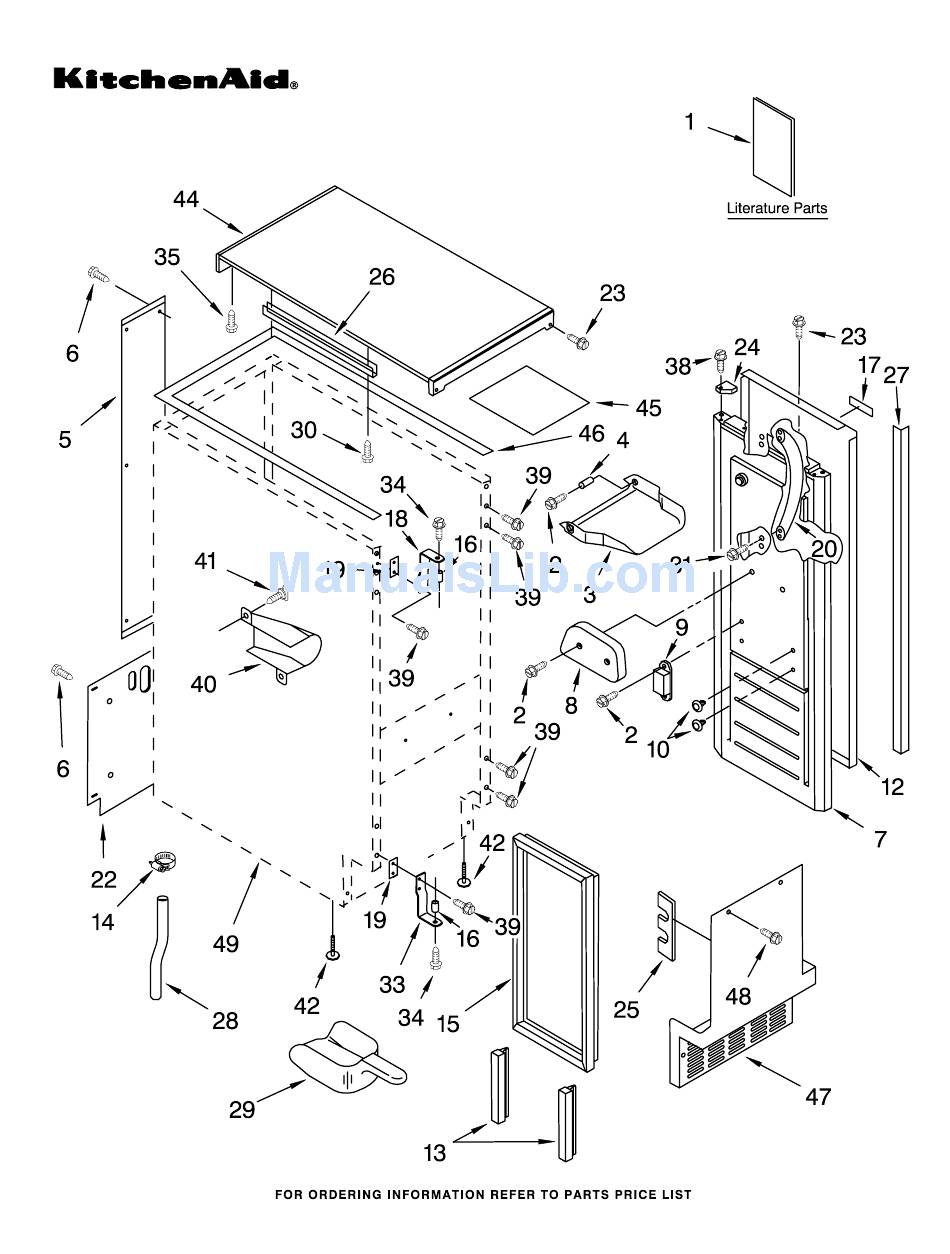

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS155HLS4 (STAINLESS STEEL) 5−09 Litho In U.S.A. (ebk) (psw) Part No. 8198398...
- Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2185756 Pad, Foam Parts Not Illustrated and LIT2217246 Use & Care Guide 2185691 Channel, Wiring Optional Parts (Not Included) LIT2217232 Service &...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) 8198398...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 5 W10218037 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill 488660 Nut, Speed 836667 Spacer 2208539 Fastener,...
-
Page 5: Pump Parts
PUMP PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly 8198398... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness Grid/ Light 745362 Bulb 2185788 Clamp 2187286 Wiring Harness, Complete Unit... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) 8198398... - Page 8 UNIT PARTS For Models: KUIS155HLS4 (STAINLESS STEEL) Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan Wiring Harness, Complete Unit (See #11 On Control Panel Parts Page) 304392 Screw 8−18 X 1/2 2208370 Compressor A201435 Clip, Mounting A201441 Shim (4) 2185960 Clamp (Power Cord)
