Page 1 HP StorageWorks MPX200 Multifunction Router User Guide This user guide describes the MPX200 Multifunction Router, which supports the EVA and XP families of Fibre Channel storage systems for integrated iSCSI connectivity, FCIP, FCoE (EVA only), and data migration. The MPX200 hardware is integrated with up to four EVA or XP24000/20000 storage systems and HP Command View EVA (EVA only) to deliver multi-protocol capabilities, including Fibre Channel, iSCSI, FCIP, and FCoE.
Page 2 Legal and notice information © Copyright 2009-2010 Hewlett-Packard Development Company, L.P. Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S.
Page 3: Table Of Contents
CHAP security .......................... 26 2 Installing the MPX200 ..............27 MPX200 components ........................ 27 3 Managing the MPX200 using HP Command View EVA ......35 Setting up the MPX200 management port ..................35 Fibre Channel zoning ........................ 35 Open zoning ........................35 Fibre Channel switch-based zoning ..................
Page 4 MPX200 CHAP modes ....................106 Enabling single-direction CHAP during discovery session and normal session ......107 Enabling CHAP for the MPX200-discovered iSCSI initiator entry ..........108 Enabling CHAP for the Microsoft iSCSI initiator ..............108 Enabling CHAP for the open-iscsi iSCSI initiator ..............109...
Page 5 3-site configuration with six MPX200 routers ..............126 3-site configuration with eight MPX200 routers .............. 127 3-site configuration with six MPX200 routers and full inter-site connectivity ......128 FCIP configuration rules and guidelines ................129 General FCIP configuration rules .................. 129 Operating system and multipath support ...............
Page 6 HP Command View EVA does not discover MPX200 ............. 158 Initiator cannot log in to MPX200 iSCSI target ..............158 Initiator logs in to MPX200 iSCSI target, but EVA-assigned LUNs do not appear on initiator ..159 EVA-presented virtual disk not seen by initiator ..............159 Windows initiators may display Reconnecting if NIC MTU changes after connection has logged in ...........................
Page 7 Shutdown ........................208 Target ..........................208 Traceroute ........................209 B Command Line Interface usage ............211 Logging on to an MPX200 ....................... 211 Understanding the guest account ....................212 Working with MPX200 router configurations ................213 Modifying a configuration ....................213 Saving and restoring router configurations ................
Page 8 Generic notification ......................233 D Log messages ................235 E HP StorageWorks mpx100/mpx100b to MPX200 Upgrade ....259 To upgrade from mpx100/mpx100b to the MPX200 Multifunction Router: ........259 F Regulatory compliance and safety ............ 261 Regulatory compliance notices ....................261 Federal Communications Commission notice for Class A equipment ........
Page 9 Slovenian notice ....................... 270 Spanish notice ......................... 270 Swedish notice ......................... 270 G Saving and restoring the MPX200 configuration ........ 271 Saving the configuration using MPX200 CLI ................271 Restoring the configuration using MPX200 CLI ................272 Glossary ..................273 Index ....................
Page 10 MPX200 single-blade multi-EVA configuration ............. 20 MPX200 dual-blade multi-EVA configuration ............... 20 MPX200 dual-blade direct connect to one EVA configuration ........21 MPX200 single-blade direct connect to one EVA configuration ........21 MPX200 dual-blade direct connect to two EVA configuration ........21 MPX200-XP single-blade fabric-attached configuration ..........
Page 11 Firewall Properties dialog box ................... 84 General Properties dialog box .................. 85 Add Send Target Server dialog box ................86 Rescan dialog box ....................87 iSCSI Initiator MPIO properties ................. 97 Microsoft iSCSI Initiator Installation page ..............98 MPX200 Multifunction Router User Guide...
Page 12 MPX200 simultaneous iSCSI and FCIP, both local and remote ........124 MPX200 iSCSI and FCIP dedicated blades, both local and remote ......125 HP Continuous Access EVA 3 site configuration with four MPX200 routers ....126 HP Continuous Access EVA 3 site configuration with six MPX200 routers ..... 127 HP Continuous Access EVA 3 site configuration with eight MPX200 routers ....
Page 13 Management port IP address conflict blink pattern ............ 155 Over-temperature blink pattern ................155 Using the beacon on command to locate an MPX200 blade ........156 Using HP Command View EVA to locate a hardware device ........156 FCIP route ping command ..................157 iSCSI controller properties ..................
Page 14 MPX200 supported configuration maximums .............. 25 Supported MPX200 iSCSI maximums ................ 54 Support for EVA storage system software with MPX200 iSCSI ........56 EVA operating system and multipath software support ..........56 MPX200-XP operating system and multipath support ............ 57 Supported IP network adapters .................

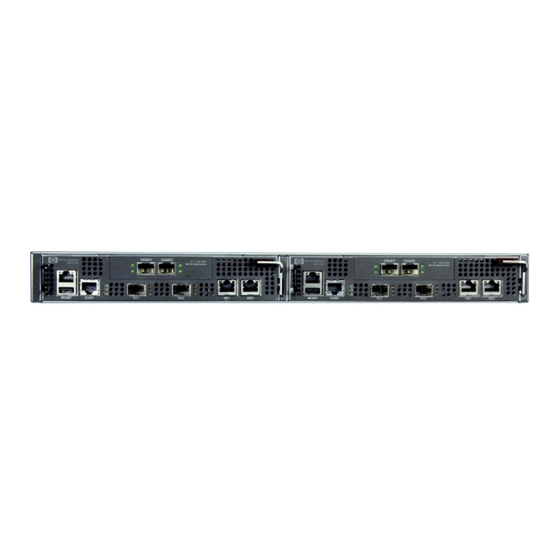

Page 15: Mpx200 Multifunction Router Overview
Each PCM has three variable-speed fans that provide power and cooling. You can remove and replace a PCM at any time. To ensure that the MPX200 chassis remains operational, there must be at least one functioning PCM. Each PCM is capable of powering two blades. The PCM cools the corresponding blade;...
Page 16: Mpx200 Part Numbers And Options
Table 1 lists the MPX200 part numbers and describes each option. Table 1 MPX200 part numbers and options Part number Option Option includes Order with • one chassis • one 1-GbE blade with four 1-GbE iSCSI ports and two Up to four EVA storage...
Page 17 Includes the license to mi- HP Storage Works MPX200 grate data from or to a TA765A Full Chassis 3 Array Data Mi- single array on three gration License unique migration jobs us- ing an MPX200. MPX200 Multifunction Router User Guide...
Page 18: Mpx200 Configuration Options For Eva
You can configure an EVA storage system for simultaneous connectivity to iSCSI and FC attached hosts. Support for iSCSI to an EVA is provided through the MPX200 and an FC switch fabric port (fabric attach) or the MPX200 directly connected to the EVA.
Page 19: Mpx200 Single-Blade Fabric-Attached Configuration
Figure 1 MPX200 single-blade fabric-attached configuration Figure 2 illustrates an MPX200 dual-blade fabric-attached configuration. This configuration provides high availability with failover between blades. NOTE: A dual-blade configuration may require reconfiguration of device mappings. Figure 2 MPX200 dual-blade fabric-attached configuration Figure 3 illustrates a multi-EVA configuration with connectivity for up to four EVA storage systems from a single MPX200 blade.
Page 20: Mpx200 Single-Blade Multi-Eva Configuration
Figure 3 MPX200 single-blade multi-EVA configuration Figure 4 illustrates a multi-EVA configuration with connectivity for up to four EVA storage systems from dual MPX200 blades. This configuration provides high availability with failover between blades. Figure 4 MPX200 dual-blade multi-EVA configuration Figure...
Page 21: Mpx200 Configurations For Xp24000/20000
MPX200 configurations for XP24000/20000 An XP storage system can be configured for simultaneous connectivity to iSCSI and FC attached hosts. Support for iSCSI to an XP storage system is provided through the MPX200 and an existing FC switch fabric port (fabric-attached).
Page 22: Mpx200-Xp Single-Blade Fabric-Attached Configuration
Figure 8 shows an MPX200-XP single-blade fabric-attached configuration. This is the lowest-cost configuration and is used when high availability for iSCSI hosts is not required. Figure 8 MPX200-XP single-blade fabric-attached configuration Figure 9 shows an MPX200-XP dual-blade fabric-attached configuration. This configuration provides high availability with failover between blades.
Page 23: Mpx200-Xp Multi-Xp Fabric-Attached Configuration
Figure 10 MPX200-XP multi-XP fabric-attached configuration MPX200 Multifunction Router User Guide...
Page 24: Planning The Mpx200 Installation
MPX200 multifunction usage. You should consider present and future needs as they relate to the following MPX200 configuration attributes: • Simultaneous operation You can configure the MPX200 chassis with a single blade or dual blades to run up to two oper- ations simultaneously per blade as shown in Table •...
Page 25: Total Number Of Initiators
(a total of eight). Use of iSNS The MPX200 presents one iSCSI target for each virtual port group (VPG) (a total of four). Each initiator, therefore, discovers four times the number of FC targets. HP recommends that you use iSNS to present to the initiator only the required iSCSI targets.
Page 26: 10-Gbe Initiators
MPIO for iSCSI provides a mechanism to allocate FC bandwidth to each function. 10-GbE initiators HP recommends that you map servers with 10-GbE NICs for login to the 10-GbE ports on the MPX200. CHAP security You can configure the Challenge Handshake Authentication Protocol (CHAP) on the MPX200. CHAP is a security protocol that supports the bidirectional (mutual) authentication option and the one-way (target) authentication option.
Page 27: Installing The Mpx200
This chapter describes how to rack mount the MPX200. WARNING! Mount the MPX200 in the rack so that the weight is evenly distributed. An unevenly loaded rack can become unstable, possibly resulting in equipment damage or personal injury. This product is supplied with a 3 wire cable and plug for the user's safety. Use this power cable in conjunction with a properly grounded outlet to avoid electrical shock.
Page 28: Mpx200 Components
6. Screw, panhead, 10 32 x 3/8 in. (10) 7. Washer, centering (10); for use on racks with square holes only Figure 11 MPX200 components Rack mounting the MPX200 NOTE: Use a crosshead screwdriver to perform the rack mount procedure. To rack mount the MPX200: Installing the MPX200...
Page 29: Chassis Rails
Attach the two chassis rails to the MPX200 chassis using three 10-32 x 1/4 in. screws for each rail. Make sure that the end with the flange is facing the rear of the chassis (Figure 12). The MPX200 has multiple mounting holes to allow for adjustable setback. Secure the chassis rails in the desired position if additional room is needed.
Page 30: Inner Rack View
Fasten the rail flanges to the rack on both ends using two 10-32 x 3/8 in. screws in the upper and lower holes (Figure 14). 1. Screw, flathead, 6-32 x 1/4 in. 2. Screw, panhead, 10-32 x 3/8 in. 3. Washer Figure 14 Inner rack view Installing the MPX200...
Page 31: Rear View
Install the chassis in the rack: Starting from the back of the rack, slide the MPX200 chassis and rail assembly into the rack rails. Fasten the chassis to the rack using two 10-32 x 3/8 in. screws in the middle hole on each...
Page 32: Power Cord
Route the power cord: Starting from the front of the rack, connect the power cord to the MPX200. For the left blade, route the cord by following the gap between the chassis and the chassis rail (see Figure 16). Repeat for the right blade.
Page 33: Bezel View
Remove the four 10-32 x 3/8 in. screws that secure the rack rails to the front of the rack. Position the bezel support plate in front of the MPX200 chassis, with the arrows pointing Replace the four 10-32 x 3/8 in. screws, two on each side of the bezel support plate.
Page 34 Installing the MPX200...
Page 35: Managing The Mpx200 Using Hp Command View Eva
Because the MPX200 can be a fabric-connected device, it is important to understand the zoning requirements. Open zoning When using an open zone configuration, each FC port on each MPX200 must be connected to a separate fabric (see Figure 18 on page 36).
Page 36: Fibre Channel Switch-Based Zoning
Figure 18 Open zone configuration Fibre Channel switch-based zoning Each FC port on the MPX200 uses N_Port ID Virtualization (NPIV) to create a total of four unique, virtual world wide node names (WWNNs) per physical FC port. To create proper zoning, you must understand the use of VPGs.
Page 37: Hp Command View Eva Discovery
Once the management port IP address is set and the router FC ports are visible to the EVA, you can perform the MPX200 discovery. You discover the MPX200 iSCSI controllers using the Discover iSCSI Devices button or the Add iSCSI Device button (see Figure 20).
Page 38: Host Properties
HP recommends that you set a static IP address on the management port to ensure connectivity. After the discovery is complete, the MPX200s appear in the iSCSI Devices folder as iSCSI Controller 01 and iSCSI Controller 02. The four iSCSI MPX200 hosts appear in the Hosts folder (see Figure 21).
Page 39: Setting Up The Iscsi Ip Ports
Each iSCSI IP port must have an IP address—IPv4, IPv6, or both. Set the IP address on the IP Ports tab on the iSCSI Controller Properties page (see Figure 23). NOTE: A target portal is created for each IP address that you set. MPX200 Multifunction Router User Guide...
Page 40: Setting The Date And Time On The Mpx200
Figure 23 iSCSI controller properties: IP Ports tab Setting the date and time on the MPX200 Setting the date and time on the MPX200 ensures the synchronization of events and assists in troubleshooting. You have three options for setting the date and time (see Figure 24).
Page 41: Code Load
Figure 24 Set iSCSI controller time Code load NOTE: HP recommends that you load the latest MPX200 firmware. Check http://www.hp.com/go/mpx200 for updates. You load the firmware from the Code Load page for the iSCSI controller. Firmware is loaded for the selected controller only;...
Page 42: Shutting Down And Restarting The Mpx200
Saving or restoring the MPX200 configuration After initial setup of the MPX200, it is a good practice to save the configuration. The FRU Save function allows you to save the configuration to a file that can be used later as a restoration point. The FRU...
Page 43: Locating The Mpx200
To save or restore the MPX200 configuration: Select the desired blade. Click the Set Options button.
Page 44: Removing An Iscsi Controller
To remove an iSCSI controller: Select the desired iSCSI controller. Click the Set Options button. Click the Remove controller button (see Figure 30). Click the Remove button on the dialog box. Managing the MPX200 using HP Command View EVA...
Page 45: Iscsi Controller Options: Remove Controller
Figure 30 iSCSI controller options: Remove controller MPX200 Multifunction Router User Guide...
Page 46 Managing the MPX200 using HP Command View EVA...
Page 47: Managing The Mpx200 For Xp 24000/20000
4 Managing the MPX200 for XP 24000/20000 Setting up the MPX200 management port Access to the MPX200 CLI is required for initial setup. Connect to the CLI through one of the following: • RS-232 serial port (115200/8/n/1) • Telnet •...
Page 48: Set Up The Iscsi Ports
35 and “Fibre Channel switch-based zoning” on page 36 for zoning information. World Wide Names used in zoning can be found in the MPX200 using the show vpgroups command (see Figure 35). Managing the MPX200 for XP 24000/20000...
Page 49: Lun Management
Figure 35 The show vpgroup command LUN management LUN masking for MPX200 connectivity to XP is accomplished by executing the following procedure. The MPX200 is treated as if it were a Windows FC host to the XP. MPX200 Multifunction Router User Guide...
Page 50: Lun Management Window
To identify which WWNs belong to a VPG see the fourth bit (circled in the Figure 36). You can create up to four groups, each containing WWNs from each VPG from each MPX200 blade. LUNs can be created and assigned to the groups at this time. Figure 36 LUN management window Install the Microsoft iSCSI Initiator software.
Page 51: Lun Selection Window
The LUN Presentation Wizard will display the XP target ports (see Figure 37). Figure 37 LUN Selection window Expand the desired ports and select the same LUN from each (see Figure 38). Figure 38 Expanded ports MPX200 Multifunction Router User Guide...
Page 52: Select The Initiators
Select the initiator and finish (see Figure 39). Figure 39 Select the Initiators Follow the steps beginning with “Step 3” on page 65 to log in to the target. Managing the MPX200 for XP 24000/20000...
Page 53: Mpx200 Iscsi Configuration Rules And Guidelines
This chapter describes the iSCSI configuration rules and guidelines for the MPX200. iSCSI rules and supported maximums The MPX200 chassis can be configured with one or two blades. Dual-blade configurations provide for high availability with failover between blades, and are supported as redundant pairs only.
Page 54: Eva Storage System Rules And Guidelines
Each EVA controller host port can connect to a maximum of two MPX200 Fibre Channel ports. • A maximum of one MPX200 chassis (two blades) can be zoned with up to four EVA storage systems. • An EVA storage system can present LUNs to iSCSI initiators and Fibre Channel hosts concurrently.
Page 55: Eva Storage System Software
CLI support to enter replication commands from iSCSI hosts Features not supported for iSCSI hosts LUNs that are presented to iSCSI hosts through the MPX200, and that require a host agent on the iSCSI initiator, do not support advanced replication features because there are no iSCSI replication host agents available.
Page 56: Xp Storage System Rules And Guidelines
Each XP storage system can connect to a maximum of one MPX200 chassis (two blades). • A maximum of one MPX200 chassis (two blades) can be zoned with up to four XP storage systems. • XP and EVA storage systems can connect to the same MPX200, The total allowable number of storage systems is four per MPX200 chassis.
Page 57: Iscsi Initiator Rules And Guidelines
Linux, Solaris, and VMware. General iSCSI initiator rules and guidelines follow: • iSCSI initiators and MPX200 iSCSI ports can be in different IP subnets. This requires setting the MPX200 iSCSI gateway feature. For more information, see “MPX200 configuration options for EVA”...
Page 58: Linux Iscsi Initiator Rules And Guidelines
Host-mode setting—Microsoft Windows 2008 or Windows 2003 • Tcp1323Opts parameter (registry)—Must have a value of DWord=2 under the setting NOTE: The Tcp1323Opts parameter is set automatically by the HP StorageWorks MPX200 for Enterprise Virtual Array Windows software kit, which is available at http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html CAUTION: Using the Registry Editor incorrectly can cause serious problems that may require reinstallation of the operating system.
Page 59 Multi-initiator access to the same LUN via VMFS • VMware ESX server 4.0/3.5 native multipath solution based on NIC teaming iSCSI initiator operating system considerations follow: • Host-mode setting—VMware • Hardware iSCSI initiator (iSCSI HBA)—Not supported MPX200 Multifunction Router User Guide...
Page 60: Supported Ip Network Adapters
• Jumbo frames NOTE: If you configure IPv6 on any MPX200 iSCSI port, you must also configure IPv6 on the HP Command View management server. Setting up the iSCSI initiator This section explains how to set up the iSCSI initiator.
Page 61: Installing The Windows Server 2003 Kit
Install the HP StorageWorks MPX200 iSCSI kit. Start the installer by running Launch.exe. (If you are using a CD-ROM, the installer should start automatically.) Click Install iSCSI software package (Figure 40). Figure 40 Installing the Windows Server 2003 kit For Windows Server 2003, the Microsoft iSCSI initiator installation presents an option for installing MPIO using the Microsoft generic DSM (Microsoft MPIO Multipathing Support for iSCSI check box).
Page 62: Installation Wizard
Select the Discovery tab (Figure 42). Figure 42 iSCSI initiator properties: Discovery tab In the Target Portals section, click Add. A dialog box opens. Enter the iSCSI port IP address. Click OK. The discovery is complete. MPX200 iSCSI configuration rules and guidelines...
Page 63: Adding A Host
In HP Command View EVA, set up the iSCSI host and virtual disks. Click the EVA Storage Systems icon to start the iSCSI storage presentation. Figure 43, MPX200-XL is the target EVA storage system. Figure 43 Adding a host Select the Hosts folder.
Page 64: Virtual Disk Properties
Figure 44 Virtual disk properties Figure 45 Host details MPX200 iSCSI configuration rules and guidelines...
Page 65: Targets Tab
HP recommends using the Advanced button to choose the Local Adapter, Source IP, and Target Portal. The Target Portal IP Address is the iSCSI port that this initiator connection is defined. Depending on the operating system, open Server Manager or Computer Management. Select Disk Management. MPX200 Multifunction Router User Guide...
Page 66: Multipathing
Software Initiator 2.x includes MPIO and must be selected for installation. Setting up redundant paths properly ensures high availability of the target disk. Ideally, the paths would use separate network interface cards (NICs) and a separate network infrastructure (cables, switches, and MPX200 blades). HP recommends using separate target ports.
Page 67: Installing The Mpio Feature For Windows Server 2008
To install the MPIO feature for Windows Server 2008: Select the Multipath I/O check box on the Select Features page (Figure 47). Figure 47 Select Features page Click Next, and then click Install. MPX200 Multifunction Router User Guide...
Page 68: Mpio Properties Page Before Reboot
You must present a virtual disk to the initiator to enable the Add support for iSCSI devices check box (see Figure 48). Figure 48 MPIO Properties page before reboot Figure 49 MPIO Properties page after reboot Reboot the system to MPIO the devices. MPX200 iSCSI configuration rules and guidelines...
Page 69: Installing The Mpio Feature For Windows Server 2003
Receive Side Scaling feature, which allows receive packet processing to scale across multiple CPUs. The HP NC3xxx Multifunction Gigabit server adapters use SNP to support TCP off-load functionality. For support details, see the latest HP adapter information at http://h18004.www1.hp.com/products/ servers/networking/index.html. MPX200 Multifunction Router User Guide...
Page 70: Setting Up Snp For The Hp Nc3Xxx Multifunction Gigabit Server Adapter
The EVA4400 and EVA connectivity option supports ATTO Technology's Xtend SAN iSCSI Initiator for Mac OS X . For details, see http://www.attotech.com. Setting up the iSCSI initiator for Apple Mac OS X Install the Xtend SAN iSCSI Initiator 3.10. MPX200 iSCSI configuration rules and guidelines...
Page 71: Discover Targets
Enter the static IP address of the mpx iSCSI port in the Address box, and then click Finish (Figure 52). Figure 52 Add static IP address Select a target from the Discovered Targets list and then click Add (Figure 53). MPX200 Multifunction Router User Guide...
Page 72: Discovered Targets List
The mpx iSCSI port may present several iSCSI targets to the Xtend SAN iSCSI Initiator. Select only one target from the list. For ISNS discovery Select Initiator and then enter the iSNS name or IP address in the box (Figure 54). Figure 54 iSNS discovery and verification MPX200 iSCSI configuration rules and guidelines...
Page 73: Discovered Targets
Select the Visible check box to allow the initiator to display the target status (Figure 56). Select the Auto Login check box to configure the initiator to automatically log in to the iSCSI target at system startup. MPX200 Multifunction Router User Guide...
Page 74: Selecting The Newly Added Target
Click Status, select the network node, and then click Login to connect to the MPX target (Figure 57). The target status is Connected and the target status light turns green. Figure 57 Select status MPX200 iSCSI configuration rules and guidelines...
Page 75: Setting Up Storage For Apple Mac Os X
In HP Command View EVA, present the LUNs. Verify that the EVA LUNs are presented to the Xtend SAN iSCSI Initiator: Open the Xtend SAN iSCSI application. Select the MPX200 target entry under the host name. Click LUNs. A list of presented EVA LUNs is displayed (Figure 58).
Page 76: Configure The Iscsi Initiator And Targets
Center under Network Services), and then set the initiator to start at boot time (Figure 59). Figure 59 Configure the iSCSI initiator and targets Select the Discovered Targets tab and enter the iSCSI target IP address (Figure 60). Figure 60 Discovered Targets tab MPX200 iSCSI configuration rules and guidelines...
Page 77: Log In To The Target
Log in to the target (Figure 61). Figure 61 Log in to the target MPX200 Multifunction Router User Guide...
Page 78: Connected Targets Tab
To install and configure the iSCSI driver for Red Hat 5: Use the iscsiadm command to control discovery and connectivity: # iscsiadm –m discovery –t st –p 10.6.0.33:3260 Edit the initiator name: # vi /etc/iscsi/initiatorname.iscsi Start the iSCSI service: # service iscsi start MPX200 iSCSI configuration rules and guidelines...
Page 79 If you are upgrading from a previous version of an iSCSI driver, HP recommends that you remove the /etc/<initiatorname>.iscsi file before installing the new driver. For the latest version of the Linux driver for EVA iSCSI connectivity, see: http://sourceforge.net/projects/linux-iscsi MPX200 Multifunction Router User Guide...
Page 80: Assigning Device Names
The symbolic link cd maps to the SCSI CD-ROM device node, if any, for the LUN (for example, /dev/scd0). • The symbolic link generic maps to the SCSI generic device node, if any, for the LUN (for example, /dev/sg0). MPX200 iSCSI configuration rules and guidelines...
Page 81: Target Bindings
• Mount the /dev/iscsi symlink tree. • Mount the file system UUIDs or labels (see the man pages for mke2fs, mount, and fstab). • Use the Logical Volume Manager (see Linux LVM). MPX200 Multifunction Router User Guide...
Page 82: Unmounting File Systems
Initiator setup for VMware The software iSCSI Initiator is built into the ESX server VMkernel and uses standard 10GigE/GigE NICs to connect to the MPX200. To set up software-based iSCSI storage connectivity: Install the appropriate license from VMware to enable iSCSI software driver using the VMware instructions.
Page 83: Configuration Tab
Configure the VMKernel TCP/IP networking stack for iSCSI support. Configure the VMkernel service console with dedicated virtual switch with a dedicated NIC for iSCSI data traffic. Follow the instructions from VMware. Figure 63 on page 83 shows an example of a configuration. Figure 63 Configuration tab MPX200 Multifunction Router User Guide...
Page 84: Firewall Properties Dialog Box
Click the Properties link. The Firewall Properties dialog box is displayed. See Figure 64 on page 84. Select the check box for Software iSCSI to enable iSCSI traffic. Click OK. Figure 64 Firewall Properties dialog box MPX200 iSCSI configuration rules and guidelines...
Page 85: General Properties Dialog Box
The iSCSI Initiator Properties dialog box is displayed. Click Configure. The General Properties dialog box is displayed. See Figure 65 on page 85. Select the Enabled check box. Click OK. Figure 65 General Properties dialog box MPX200 Multifunction Router User Guide...
Page 86: Add Send Target Server Dialog Box
Click Add to add a new iSCSI target. The Add Send Target Server dialog box is displayed. See Figure 66 on page 86. Enter the iSCSI IP address of the MPX200. Click OK. Figure 66 Add Send Target Server dialog box MPX200 iSCSI configuration rules and guidelines...
Page 87: Configuring Multipath With The Solaris 10 Iscsi Initiator
Configuring multipath with the Solaris 10 iSCSI initiator This section explains how to configure multipath with the Solaris 10 iSCSI initiator to the MPX200. For details on managing and troubleshooting Solaris iSCSI multipath devices, see the Solaris System Administration Guide: Devices and File Systems, available at http://dlc.sun.com/pdf/817-5093/...
Page 88: Mpxio Overview
Because MPxIO is independent of transport, it can multipath a target that is visible on both iSCSI and FC ports. This section describes only the iSCSI implementation of MPxIO with the MPX200. For more information about MPxIO, see the Solaris Fibre Channel and Storage Multipathing Administration Guide, available at http://docs.sun.com/source/819-0139.
Page 89 To configure MPxIO for HP storage arrays, you must add information to the /kernel/drv/ scsi_vhci.conf file: Use a text editor to modify the configuration file. For example: # vi /kernel/drv/scsi_vhci.conf Change load balancing to none: load-balance="none"; Change auto-failback to disable: auto-failback="disable"; MPX200 Multifunction Router User Guide...
Page 90 To ensure that the HP storage arrays are recognized by Solaris as SCSI controllers, you must add information to the /kernel/drv/sgen.conf file: Use a text editor to modify the configuration file. For example: # vi /kernel/drv/sgen.conf MPX200 iSCSI configuration rules and guidelines...
Page 91 Creating an sgen driver alias The HP storage array is a self-identifying SCSI device and must be bound to the sgen driver using an alias. Execute the following procedure to create an sgen driver alias: MPX200 Multifunction Router User Guide...
Page 92 Verify that SendTargets is enabled: # iscsiadm list discovery The MPX200 has multiple iSCSI ports available to the Solaris iSCSI initiator. To discover the targets available, enter the following command for each iSCSI port IP address that the iSCSI initiator accesses: #iscsiadm add discovery-address ‘iscsi port IP address’...
Page 93 TPGT: 0 ISID: 4000002a0000 Connections: 1 NOTE: The iSCSI initiator must discover all targets presented by each MPX200 iSCSI port that will be used in a multipath configuration. Create the iSCSI device links for the local system: # devfsadm -i iscsi...
Page 94 Use the following example to verify the target setting: # iscsiadm list target-param Target: iqn.1986-03.com.hp:fcgw.mpx200.0834e00028.b1.01.50014380025c417d #iscsiadm modify target-param –p maxrecvdataseglen=65536 iqn.1986-03.com.hp:fcgw.mpx200. 0834e00028.b1.01.50014380025c417d # iscsiadm list target-param -v iqn.1986-03.com.hp:fcgw.mpx200.0834e00028.b1.01. 50014380025c417d Target: iqn.1986-03.com.hp:fcgw.mpx200.0834e00028.b1.01.50014380025c417d Alias: - Bi-directional Authentication: disabled Authentication Type: NONE Login Parameters (Default/Configured):...
Page 95 This command displays the total and operational path count for each logical unit. It displays both the controller and device path counts. Example: #mpathadm list lu /scsi_vhci/array-controller@g50014380025c4170 Total Path Count: 2 Operational Path Count: 2 /dev/rdsk/c5t600508B4000B15A200005000038E0000d0s2 Total Path Count: 2 MPX200 Multifunction Router User Guide...
Page 96: Configuring Microsoft Mpio Iscsi Devices
LUN load-balance policy (Figure 68): Start the Microsoft iSCSI Control Panel applet. Select the Target tab. Click Details. Click Devices. Highlight a LUN device name, and then click Advanced. Select the MPIO check box. MPX200 iSCSI configuration rules and guidelines...
Page 97: Microsoft Mpio For Iscsi Load-Balancing Policies
For raw disk access, the MPIO load-balancing policy must be Failover Only. For file system disk access, all MPIO load-balancing policies are supported. Failover policies are set on a LUN-by-LUN basis. MPIO does not support global failover settings. MPX200 Multifunction Router User Guide...
Page 98: Microsoft Mpio With Qlogic Iscsi Hba
Access the Microsoft iSCSI Initiator Installation page of the Software Update Installation Wizard (Figure 69). Figure 69 Microsoft iSCSI Initiator Installation page IMPORTANT: Do not select the Software Initiator check box. The QLogic initiator resides on the iSCSI HBA. Reboot the system. MPX200 iSCSI configuration rules and guidelines...
Page 99: Configuring The Qlogic Iscsi Hba
Configuring the QLogic iSCSI HBA To configure the QLogic iSCSI HBA: Launch the QLogic SMS from the desktop icon or through Start > Programs, and connect to the local host (Figure 70). MPX200 Multifunction Router User Guide...
Page 100: Connect To Host Window
• Configure the HBA Port DNS settings (optional). • Configure the SLP Target Discovery settings (optional). • Configure the iSNS Target Discovery settings (optional). Figure 70 Connect to Host window Figure 71 Start general configuration wizard MPX200 iSCSI configuration rules and guidelines...
Page 101: Adding Targets To The Qlogic Iscsi Initiator
72). Enter the first iSCSI target port IP address. Figure 72 HBA Port Target Configuration window Repeat steps 1 and 2 for each MPX200 you want to add. Click Next. To activate the changes, enter the SMS password: config. Select the Target Settings tab. Verify that the HBA state is Ready, Link Up and that each target...
Page 102: Presenting Luns To The Qlogic Iscsi Initiator
Follow the procedure in the Installation and Reference Guide, available at http://h20000.www2.hp.com/bizsupport/TechSupport/DocumentIndex.jsp?contentType=SupportManual& lang=en&cc=us&docIndexId=64179&taskId=101&prodTypeId=18964&prodSeriesId=421492. After installing the HP MPIO Full Featured DSM for EVA, open Computer Management to view and control the iSCSI LUNs (Figure 75). MPX200 iSCSI configuration rules and guidelines...
Page 103: Microsoft Windows Cluster Support
Figure 75 HP MPIO DSM Manager with iSCSI devices Microsoft Windows Cluster support Microsoft Cluster Server for Windows 2003 iSCSI Failover clustering is supported on the HP StorageWorks MPX200 Multifunction Router. For more information, see http://www.microsoft.com/windowsserver2003/technologies/storage/iscsi/ iscsicluster.mspx. Requirements • Operating system: Windows Server 2003 Enterprise, SP2, R2, x86/x64 •...
Page 104: Microsoft Cluster Server For Windows 2008
For more information on the HP DSM, see http://h20000.www2.hp.com/bizsupport/TechSupport/DocumentIndex.jsp?contentType=SupportManual& lang=en&cc=us&docIndexId=64179&taskId=101&prodTypeId=18964&prodSeriesId=421492 Microsoft Cluster Server for Windows 2008 iSCSI Failover clustering is supported on the HP StorageWorks MPX200 Multifunction Router. For more information, see http://technet.microsoft.com/en-us/library/cc754482.aspx. MPX200 iSCSI configuration rules and guidelines...
Page 105: Setting Up Authentication
• RFC 1994 (PPP Challenge Handshake Authentication Protocol, August 1996) • RFC 2433 (Microsoft PPP CHAP Extensions, October 1998) • RFC 2759 (Microsoft PPP CHAP Extensions version 2, January 2000) Restrictions The CHAP restrictions are: MPX200 Multifunction Router User Guide...
Page 106: Microsoft Initiator Chap Secret Restrictions
CHAP is enforced on both discovery and normal sessions. MPX200 CHAP modes The MPX200 supports two CHAP modes. Once CHAP is enabled, it is enforced for both discovery sessions and normal sessions. You can choose only the CHAP mode: MPX200 iSCSI configuration rules and guidelines...
Page 107: Enabling Single-Direction Chap During Discovery Session And Normal Session
Single-direction—The target authenticates the identity of the initiator with the user-provided CHAP secret. To enable single-direction CHAP, you must enable CHAP for a specific initiator record on the MPX200 and enter a corresponding CHAP secret from the iSCSI host. •...
Page 108: Enabling Chap For The Mpx200-Discovered Iscsi Initiator Entry
Enter the CHAP secret for the MPX200-discovered iSCSI initiator in the Target Secret box (for example, CHAPsecret01). Click OK. The initiator completes target discovery. • To use iSNS to discover iSCSI target portals: Click Add under iSNS Servers. Enter the IP address of the iSNS server.
Page 109: Enabling Chap For The Open-Iscsi Iscsi Initiator
Enter the IP address of the iSCSI port of the MPX200. Click Advanced. Select the CHAP Login Information check box. Enter the CHAP secret for the MPX200-discovered iSCSI initiator in the Target Secret box (for example, CHAPsecret01). Click OK and the initiator completes Target discovery. Using iSNS for target discovery: •...
Page 110 = iqn.1994-05.com.redhat:fc813cac13.sanergy3 #discovery.sendtargets.auth.password = password discovery.sendtargets.auth.password = CHAPSecret01 # To set a discovery session CHAP username and password for target(s) # authentication by the initiator, uncomment the following lines: #discovery.sendtargets.auth.username_in = username_in #discovery.sendtargets.auth.password_in = password_in MPX200 iSCSI configuration rules and guidelines...
Page 111: Enabling Single-Direction Chap During Discovery Session And Bidirectional Chap During Normal Session
These are examples of secret settings. Configure CHAP using settings that apply to your network environment. Enable CHAP for the MPX200 discovered iSCSI initiator entry (CHAP can be enabled via CLI only). If the iSCSI initiator is not listed under the set chap command, do one of the following: •...
Page 112: Enabling Bidirectional Chap During Discovery Session And Single-Direction Chap During Normal Session
Select the appropriate target for login. Click Log On. Click Advanced. Select the CHAP Login Information check box. Enter the CHAP secret for the MPX200 discovered iSCSI initiator in the Target Secret box (for example: CHAPsecret01). Select the Mutual Authentication check box. m. Click OK.
Page 113 These are examples of secret settings. Configure CHAP using settings that apply to your network environment. Enable CHAP for the MPX200 discovered iSCSI initiator entry (CHAP can be enabled via CLI only). If the iSCSI initiator is not listed when you execute the set chap command, do one of the following: •...
Page 114 Select the appropriate target for login. Click Log On. Click Advanced. Select the CHAP Login Information check box. Enter the CHAP secret for the MPX200 discovered iSCSI initiator in the Target Secret box (for example, CHAPsecret01). m. Select the Mutual Authentication check box. Click OK.
Page 115: Enabling Bidirectional Chap During Discovery Session And Bidirectional Chap During Normal Session
These are examples of secret settings. Configure CHAP using settings that apply to your network environment. Enable CHAP for the MPX200 discovered iSCSI initiator entry (CHAP can be enabled via CLI only): If the iSCSI initiator is not listed when you execute the set chap command, do one of the following: •...
Page 116 Select the appropriate target for login. Click Log On. Click Advanced. Select the CHAP Login Information check box. Enter the CHAP secret for the MPX200 discovered iSCSI initiator in the Target Secret box (for example: CHAPsecret01). m. Select the Mutual Authentication check box. Click OK.
Page 117: Mpx200 Fcip
IP network. Used in conjunction with the EVA and XP storage system families and the HP Continuous Access software, the MPX200 enables long-distance remote replication for disaster tolerance. A base FCIP configuration consists of a minimum of two MPX200 blades, one for the local site and one for the remote site.
Page 118: Redundant Fcip Network Structure Example
The redundant configuration can be either a single HP StorageWorks MPX200 Multifunction Router 1 GbE Base Chassis with an HP StorageWorks MPX200 Router 1 GbE Upgrade Blade, or an HP StorageWorks MPX200 Multifunction Router 10 1 GbE Base Chassis with an HP StorageWorks MPX200 Router 10 1 GbE Upgrade Blade.
Page 119: Single Fabric Per Blade
For existing iSCSI configurations, there are two configuration cases to consider: one with a single FC fabric (see Figure 79) connected to an MPX200 blade and one with dual FC fabrics (see Figure connected to an MPX200 blade. In the single FC fabric case (see...
Page 120: Fcip And Iscsi Performance
In the dual FC fabric case, the impact is higher because after adding an FCIP Route there is only one remaining FC port available for iSCSI. Therefore, only the targets from one fabric or the other will be available to iSCSI initiators connected to that MPX200 blade; access to targets on the other fabric are through another MPX200 blade.
Page 121 • Figure 92 on page 126 HP Continuous Access EVA 3 site configuration with four MPX200 routers • Figure 93 on page 127 HP Continuous Access EVA 3 site configuration with six MPX200 routers • Figure 94 on page 128 HP Continuous Access EVA 3 site configuration with eight MPX200 routers •...
Page 122 Figure 83 MPX200 FCIP with C-series IVR Figure 84 MPX200 high-availability configuration with one or two long-distance links Figure 85 MPX200 high-availability configuration with fully-redundant long-distance links MPX200 FCIP...
Page 123: Mpx200 Highly-Redundant Configuration With One Or Two Long-Distance Lists
Figure 86 MPX200 configuration with remote IP Distance gateway (mpx110) Figure 87 MPX200 highly-redundant configuration with one or two long-distance lists Figure 88 MPX200 highly redundant pairs of gateways with fully-redundant long-distance links MPX200 Multifunction Router User Guide...
Page 124: Mpx200 Simultaneous Iscsi And Fcip, Both Local And Remote
Figure 89 MPX200 simultaneous iSCSI and FCIP with remote dedicated FCIP blade Figure 90 MPX200 simultaneous iSCSI and FCIP, both local and remote MPX200 FCIP...
Page 125: Hp Continuous Access Eva 3 Site Configurations
Figure 91 MPX200 iSCSI and FCIP dedicated blades, both local and remote HP Continuous Access EVA 3 site configurations This section describes the following HP Continuous Access EVA 3-site configurations: • HP Continuous Access EVA 3-site configuration with four MPX200 routers •...
Page 126: 3-Site Configuration With Four Mpx200 Routers
3-site configuration with four MPX200 routers The configuration in Figure 92 provides long-distance link redundancy between all three sites. Figure 92 HP Continuous Access EVA 3 site configuration with four MPX200 routers 3-site configuration with six MPX200 routers The configuration in Figure 93...
Page 127: 3-Site Configuration With Eight Mpx200 Routers
Figure 93 HP Continuous Access EVA 3 site configuration with six MPX200 routers 3-site configuration with eight MPX200 routers The configuration in Figure 94 provides the highest 3-site redundancy, with a dedicated MPX200 pair for all long-distance links to all three sites.
Page 128: 3-Site Configuration With Six Mpx200 Routers And Full Inter-Site Connectivity
Figure 94 HP Continuous Access EVA 3 site configuration with eight MPX200 routers 3-site configuration with six MPX200 routers and full inter-site connectivity Figure 95 provides long-distance link redundancy and full connectivity between all three sites. MPX200 FCIP...
Page 129: Fcip Configuration Rules And Guidelines
Figure 95 HP Continuous Access EVA 3 site configuration with six MPX200 router full peer-to-peer connectivity FCIP configuration rules and guidelines This section defines the FCIP configuration rules for using the MPX200 Multifunction Router. General FCIP configuration rules The following general configuration rules apply: •...
Page 130: Operating System And Multipath Support
HP StorageWorks SAN Design Reference Guide, available at http://www.hp.com/go/ SDGManuals. Storage system rules and guidelines • The MPX200 Multifunction Router configured for FCIP is supported for use with the following HP Continuous Access storage systems: • EVA4400/4400 with embedded switch • EVA4000/4100/6000/6100/8000/8100 • EVA6400/8400 •...
Page 131: Ip Performance Tuning
Storage system rules and guidelines, page 130. • For MPX200 IP data—Local and remote pairs are supported for up to 100 ms of IP network delay one-way, or 200 ms round-trip for HP Continuous Access. HP requires dedicated IP bandwidth (see Table 17).
Page 132: Distance
Bandwidth is a measure of the volume of data that can be transmitted at a given transmission rate. WAN data rates typically range from 1.5 Mb/s (T1) to 1 Gb/s. The proper MPX200 bandwidth setting is determined based on the bandwidth that is available for each FCIP route, irrespective of the total bandwidth and physical speed of the link.
Page 133: Compression
Jumbo frames are not supported for use with HP Continuous Access EVA. Compression The MPX200 integrates a software compression option. This option can be set to disable, enable, or auto. When set to auto, the MPX200 continually assesses data compressibility and automatically enables or disables compression based on data compressibility.
Page 134: Modifying The Window Size And Scaling Factor
Modifying the window size and scaling factor The MPX200 window size can be set to a maximum of 32 KB. The scaling factor is used as a multiplier to increase the window size above 32 KB. Modify the window size and scaling factor in the MPX200 Multifunction Router pairs based on the WAN RTT and link speed.
Page 135: T3/Ds-3 45 Mb/Sec (Bandwidth = 43 Mb)
Scaling factor (2 512K 256K 128K 128K 128K 1 or less Table 21 OC-1 50 Mb/Sec (Bandwidth = 50 Mb) Round trip time (RTT) in ms Window size (bytes) Scaling factor (2 512K 256K 128K 128K 128K MPX200 Multifunction Router User Guide...
Page 136: Oc-3 150 Mb/Sec (Bandwidth = 148 Mb)
Round trip time (RTT) in ms Window size (bytes) Scaling factor (2 512K 512K 256K 256K 128K 1 or less Table 24 OC-12 621 Mb/Sec (Bandwidth = 699 Mb) Round trip time (RTT) in ms Window size (bytes) Scaling factor (2 MPX200 FCIP...
Page 137: Configuring An Fcip Route
117): • HP StorageWorks MPX200 Multifunction Router 1 GbE Base Chassis or HP StorageWorks MPX200 Multifunction Router 10 1 GbE Base Chassis. Note that FCIP is currently supported only on MPX200 1 GbE ports. • HP Storage Works MPX200 Half Chassis FCIP License •...
Page 138: Step 2. Pre-Installation Checklist
HP StorageWorks MPX200 Multifunction Router 1 GbE Upgrade Blade (MPX200 blade for re- dundancy) • HP StorageWorks MPX200 Multifunction Router 10 1 GbE Upgrade Blade. Note that FCIP is currently supported only on MPX200 1 GbE ports. • HP Storage Works MPX200 Full Chassis FCIP License...
Page 139: Step 5. Set The Mpx200 Management Port Parameters
MPX200 configuration parameters. You can connect the MPX200 management port to an IP switch, a hub, or directly to the workstation using an Ethernet crossover cable. If you are using the MPX200 serial port, the settings are 115,200 baud, 8 bit, 1 stop bit, no parity, and no flow control.
Page 140: Step 6. Configure The Mpx200 Fcip Route Parameters
The management port is now configured with the appropriate IP address and network parameters. IMPORTANT: If you are using Telnet to configure the MPX200, the Telnet session is terminated. To restart the Telnet session, use the IP address you just assigned to the management port.
Page 141: Critical Fcip Performance Settings
Critical FCIP Performance settings The following four parameters are critical to ensure optimal performance of the MPX200. Configuring the FCIP Route to match the actual link characteristics is the only way to ensure the best utilization of the available bandwidth.
Page 142: Step 7. Configure Fc Switch Settings For The Mpx200
• B-Switch#aptpolicy [1 or 3] • B-Switch#portcfgislmode [ slot/ port ], 1 (Must be set for all MPX200 FCIP FC ports regardless of storage types) • B-Switch# portcfggport [ slot/ port ] ,1 (set for all MPX200 FCIP FC ports) •...
Page 143: Step 9. Verify Fcip Links And Firmware Version
NOTE: Use a standard Cat 5e straight network cable to connect MPX200 GE ports to an IP switch port. Use a Cat 5e crossover network cable to directly connect two MPX200s through their respective GE ports without an IP switch.
Page 144 MPX200 FCIP...
Page 145: Mpx200 Fcoe Feature Description
7 MPX200 FCoE feature description The HP StorageWorks MPX200 Multifunction Router provides FCoE target functionality. Used with the HP StorageWorks arrays, the MPX200 enables FCoE connectivity over a 10-GbE link at no additional cost. FCoE features include: • 10-GbE model only •...
Page 146: Setting Up For Fcoe Connectivity
For information regarding switch setup, see the Fibre Channel Over Ethernt Application Note at the website: http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c01764474/ c01764474.pdf. The MPX200 10-GbE ports must be connected to the FCoE switch, as described in the section “FCoE configurations” on page 145. Set up the Converged Network Adapter (CNA). For more information regarding CNA configuration, see the Converged Network Adapter Installation Guide at: http://bizsupport1.austin.hp.com/bc/docs/support/SupportManual/c02018539/...
Page 147: Hp Command View Fcoe Ports
Create an FCoE zone. Zone the WWNN from the MPX200 FCoE port from each blade and the host CNA. If multiple fabrics exist, create zones where redundancy requires it. There are two ways to identify the FCoE ports on the MPX200: •...
Page 148: Fcoe Show Fc Command
Figure 101 FCoE show fc command MPX200 FCoE feature description...
Page 149: Host Type
Name the host. In the Type field, select the FCoE radio button. Select the WWNN that belongs to the host. Select the appropriate operating system. Click the Add host button (see Figure 102). Figure 102 Host type MPX200 Multifunction Router User Guide...
Page 150: Host Properties
Create a virtual disk and assign it to the FCoE host. Note that the host has its own icon. Each host entry has only one WWPN associated with it, so any host with multiple port CNAs must have an entry for each (see Figure 103). Figure 103 Host properties MPX200 FCoE feature description...
Page 151: Host Details Display
FCoE targets and how they map to the EVA ports. These FCoE WWNNs must be added to the FCoE zone created in Step 3 on page 147. NOTE: This step is not required for subsequent Vdisk/LUN assignments for the same or additional hosts. Figure 104 Host Details display MPX200 Multifunction Router User Guide...
Page 152 MPX200 FCoE feature description...
Page 153: Diagnostics And Troubleshooting
Figure 105 MPX200 chassis diagnostic LEDs Input Power LED is extinguished The Input Power LED is illuminated when the MPX200 logic circuitry is receiving the proper voltage. If the Input Power LED is not illuminated: Inspect the power cord and connectors on the back of the chassis (Figure 105).
Page 154: System Fault Led Is Illuminated
The Heartbeat LED indicates the operational status of the MPX200. When the POST completes with no errors, the Heartbeat LED blinks at a steady rate of once per second. When the MPX200 is in maintenance mode, the Heartbeat LED blinks continuously. The blink patterns that indicate critical errors are described in the following sections.
Page 155: Locating The Mpx200 Blade
If the condition persists, power down the MPX200. Contact your authorized maintenance provider. Locating the MPX200 blade A flashing blue LED indicates that the MPX200 blade beacon is ON. There are two ways to identify the location of an MPX200 blade:...
Page 156: Mpx200 Log Data
Figure 111 Using HP Command View EVA to locate a hardware device MPX200 log data The MPX200 maintains a log that can be displayed through the CLI. The log is persistent through reboots or power cycles. To view the log, use the CLI command show logs.
Page 157: Mpx200 Ping Command
Troubleshooting using HP Command View EVA You can use HP Command View EVA to display the properties for each iSCSI controller. At a glance, you can check the controller’s serial number, temperature, and power/cooling status (Figure 113). MPX200 Multifunction Router User Guide...
Page 158: Issues And Solutions
Solution 1: Ensure that a DHCP server is available. Solution 2: Use the CLI to set a static IP address on each MPX200 blade. Solution 3: Ensure that the HP Command View EVA station is on the same subnet as the management ports.
Page 159: Initiator Logs In To Mpx200 Iscsi Target, But Eva-Assigned Luns Do Not Appear On Initiator
Figure 114 iSCSI controller properties: IP Ports tab Initiator logs in to MPX200 iSCSI target, but EVA-assigned LUNs do not appear on initiator Solution 1: The initiator must log in to the target to which the EVA LUN was assigned.
Page 160: Windows Initiators May Display Reconnecting If Nic Mtu Changes After Connection Has Logged In
Figure 115 Virtual disk properties: Host details Figure 116 iSCSI initiator properties: Targets tab Windows initiators may display Reconnecting if NIC MTU changes after connection has logged in Solution. Log out of the sessions and log in again to re-establish the Connected state. Diagnostics and troubleshooting...
Page 161: Communication Between Hp Command View Eva And Mpx200 Is Down
• If only the IPv6 management port IP address is set, enter a valid IPv6 management IP address under Mgmt Port and click the Save changes button. NOTE: If you configure IPv6 on any MPX200 iSCSI port, you must also configure IPv6 on the HP Command View EVA management server. HP Command View EVA issues and solutions...
Page 162 Unable to process the command at this time. iSCSI Check all FC connections and zoning. controller FC ports are unavailable. Ensure that the correct file is being used to restore the Invalid iSCSI controller configuration file extension. configuration. The firmware file may be invalid or corrupt. Obtain Operation failed.
Page 163: Support And Other Resources
You can also find the documents referenced in this guide on the Manuals page of the HP Business Support Center website: http://www.hp.com/support/manuals For EVA documents, go to Storage and select Disk Storage Systems. For MPX200 documents, go the Storage Category and select Storage Networking. Contacting HP...
Page 164: Subscription Service
To make comments and suggestions about HP StorageWorks Command View EVA, please send a message to: CVfeedback@hp.com. Documentation feedback HP welcomes your feedback. To make comments and suggestions about the MPX200, please send a message to: CVfeedback@hp.com. Related information HP Websites For additional information, see the following HP websites: •...
Page 165: Typographical Conventions
Indicates that failure to follow directions could result in bodily harm or death. CAUTION: Indicates that failure to follow directions could result in damage to equipment or data. IMPORTANT: Provides clarifying information or specific instructions. NOTE: Provides additional information. MPX200 Multifunction Router User Guide...
Page 166: Rack Stability
TIP: Provides helpful hints and shortcuts. Rack stability To reduce the risk of personal injury or damage to equipment: • Extend leveling jacks to the floor. • Ensure that the full weight of the rack rests on the leveling jacks. •...
Page 167: A Command Reference
A Command reference This chapter lists and describes the MPX200 CLI commands in alphabetical order. Command syntax The MPX200 CLI command syntax uses the following format: command keyword keyword [value] keyword [value1] [value2] The command is followed by one or more keywords. Consider the following rules and conventions: •...
Page 168: Commands
Commands This section lists and describes the MPX200 CLI commands in alphabetical order. Admin Opens or closes an administrator (Admin) session. You must be in an Admin session to execute commands that change the router configuration. An inactive Admin session times out after 15 minutes.
Page 169: Beacon
Allows you to select the blade to be managed. This command is valid only at the chassis CLI prompt. The chassis CLI prompt does not include the blade number (for example, MPX200 #>), whereas the blade CLI prompt includes the blade number (for example, MPX200 <1> #>).
Page 170: Date
You must disable NTP before using the date command to set the time. Example: The following example shows how to set and display the date and time: MPX200 <1>(admin) #> date 010214282009 Fri Jan 2 14:28:00 2009 MPX200 <1>(admin) #> date...
Page 171: Fciproute
Modify an existing FCIP route Remove an existing FCIP route Example 1: MPX200 <2> (admin) #> fciproute add A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 172 All attribute values for FCIP Route 1 will now be saved. MPX200 <2> (admin) #> Example 3: MPX200 <2> (admin) #> fciproute rm A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 173: Fru
Example 1: The following is an example of the fru restore command: MPX200 <1>(admin) #> fru restore A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 174 [factory | mappings] show [chassis] Example 2: The following example shows the help command for the blade: MPX200 <1> #> help admin [begin | end | start | stop | cancel] beacon [ on | off ] date [MMDDhhmmCCYY]...
Page 175: History
Displays a numbered list of the previously entered commands. Authority None Syntax history Example: MPX200 <1> (admin) #> history 1: admin start 2: help 3: history MPX200 <1> (admin) #> Image Updates the router’s firmware image and cleans up (removes) the image files in the router’s /var/ ftp directory.
Page 176: Initiator
-------------- ---------- Blade 1 (local) isr-6200-3_0_0_5.bin Example 3: MPX200 <1> (admin) #> image unpack HP_StorageWorks_MPX200-2_0_0_1.bin Unpack Completed. Please reboot the system for FW to take effect. MPX200 <1> (admin) #> reboot Are you sure you want to reboot the System (y/n): y System will now be rebooted...
Page 177: Logout
'Q' and the ENTER key to do so. OS Type (0=MS Windows, 1=Linux, 2=Other) [MS Windows ] All attribute values that have been changed will now be saved. Example 3: MPX200 <1> (admin) #> initiator remove Index Status (WWNN,WWPN/iSCSI Name) ----- ------ ---------------------- 0 LoggedOut test 1 LoggedOut iqn.1991-05.com.microsoft:server1...
Page 178 Please select a LUN to present to the initiator ('q' to quit): 0 All attribute values that have been changed will now be saved. Example 2: The following example shows the lunmask add command with VPGs: MPX200 <1> (admin) #> lunmask add Index Mapped (WWNN,WWPN/iSCSI Name) ----- ------ ---------------------- 0 Yes iqn.1991-05.com.microsoft:server1...
Page 179: Passwd
Example 4: The following example shows the lunmask rm command with VPGs: MPX200 <1> (admin) #> lunmask remove Index (WWNN,WWPN/iSCSI Name) ----- ---------------------- 0 50:06:01:60:c1:e0:0d:a2,50:06:01:60:41:e0:0d:a2 1 50:06:01:60:c1:e0:0d:a2,50:06:01:68:41:e0:0d:a2 Please select a Target from the list above ('q' to quit): 0 Index (LUN/VpGroup) Vendor...
Page 180: Quit
At the chassis management level, quit returns you to the login prompt. The following example shows the quit command for the chassis: MPX200 <1>(admin) #> quit (none) login: At the blade management level, quit returns you to the chassis management level. The following example shows the quit command for the blade: MPX200 <1>(admin) #>...
Page 181: Reset
Clears only the LUN mappings pings Example 1: MPX200 <1>(admin) #> reset factory Are you sure you want to restore to factory default settings (y/n): y Please reboot the System for the settings to take effect Example 2: MPX200 <1>(admin) #> reset mappings Are you sure you want to reset the mappings in the system (y/n): y Please reboot the System for the settings to take effect.
Page 182: Set
Each time it generates dump data, the system adds an event log entry. Example 1: MPX200 <1>(admin) #> save capture Debug capture completed. Package is System_Capture.tar.gz Please use FTP to extract the file out from the System. Example 2: MPX200 <1>(admin) #>...
Page 183: Set Alias
Syntax set alias Example: MPX200 <2> (admin) #> set alias A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 184: Set Chap
Syntax set chap Example: MPX200 <1>(admin) #> set chap A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 185: Set Fc
MPX200 <1>(admin) #> set chassis A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 186: Set Features
The number of the iSCSI port to be configured. Example: MPX200 <1>(admin) #> set iscsi 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 187: Set Mgmt
Syntax set isns Example: MPX200 <2>(admin) #> set isns A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 188: Set Ntp
'q' or 'Q' and the ENTER key to do so. CLI Inactivity Timer (0=Disable, 1=15min, 2=60min) [15min ] CLI Prompt (Max=32 Characters) [HP StorageWorks MPX200 ] All attribute values that have been changed will now be saved. Set SNMP Configures general SNMP) properties and eight trap destinations.
Page 189: Set System
Example 2: The following example shows the set snmp command for configuring an SNMP trap destination: MPX200 <1>(admin) #> set snmp trap_destinations A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 190: Set Vpgroups
Example: MPX200 <1>(admin) #> set system A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 191: Show
Displays initiator information for iSCSI or FC. See initiators [fc or iscsi] “show initiators command” on page 195. Displays initiators and the LUNs to which they are mapped. See “show initiators LUN mask com- initiators_lunmask mand” on page 196. MPX200 Multifunction Router User Guide...
Page 192 Displays iSCSI port and configuration information. iscsi [port_num] “show iSCSI command” on page 196. Displays the router’s iSCSI name server (iSNS) configuration. See “show iSNS com- isns [port_num] mand” on page 197. Displays the router’s logging information. See logs [last_x_entries] “show logs command”...
Page 193: Show Chap
Displays the CHAP configuration for iSCSI nodes. Authority None Syntax show chap Example: MPX200 <1>(admin) #> show chap The following is a list of iSCSI nodes that have been configured with CHAP 'ENABLED': Type iSCSI Node -------- ------------ Init iqn.1991-05.com.microsoft:server1 Show chassis Displays the chassis information and status.
Page 194: Show Fc
Displays the current settings for a particular FCIP route or for all FCIP routes. Authority None Syntax show fciproutes [link_id] Keywords Route number to display [link_id] Example: MPX200 <2> (admin) #> show fciproutes FCIP Route Information ------------------------ FCIP Route FCIP Interfaces Status Enabled Command referencecommand reference...
Page 195: Show Features
Displays SCSI initiator information for iSCSI. Authority None show Syntax iscsi fea- tures Displays FC initiator information. Keywords Displays iSCSI initiator information. iscsi Example: MPX200 <1>#> show initiators Initiator Information ----------------------- Initiator Name iqn.1991-05.com.microsoft:server1 Alias IP Address 0.0.0.0 MPX200 Multifunction Router User Guide...
Page 196: Show Initiators Lunmask
Authority None show Syntax [port_num] iscsi Keywords [port_num] The number of the iSCSI port. Example: MPX200 <1>(admin) #> show iscsi iSCSI Port Information ------------------------ iSCSI Port Port Status Enabled Link Status iSCSI Name iqn.1986-03.com.hp:fcgw.mpx200.0834e00025.b1.0 Firmware Revision 3.00.01.57 Current Port Speed...
Page 197: Show Isns
[port_num] Syntax isns [port_num] Keywords The number of the iSCSI port. Example: MPX200 <2>(admin) #> show isns iSNS Information ---------------- iSNS Disabled IP Address 0.0.0.0 TCP Port No. 3205 Show logs Displays either all or a portion of the router event log.
Page 198: Show Luninfo
01/01/2008 00:00:22 QL4022 3 #0: QLIsrDecodeMailbox: Link up Show LUNinfo Displays detailed information for a specified LUN and target. Authority None Syntax show luninfo Example: MPX200 <1>(admin) #> show luninfo 50:00:1f:e1:50:07:0c:e0,50:00:1f:e1:50:07:0c:e9 50:00:1f:e1:50:07:0c:e0,50:00:1f:e1:50:07:0c:ec Please select a Target from the list above ('q' to quit): Index (LUN/VpGroup) ----- ------...
Page 199: Show Lunmask
Target 50:00:1f:e1:50:07:0c:e0,50:00:1f:e1:50:07:0c:e9 Initiator ----------------- 1 iqn.1991-05.com.microsoft:server1 Show memory Displays free and total physical system memory and GE port connections. It does not display information about free space in the /var/ftp/directory. Authority None Syntax show memory MPX200 Multifunction Router User Guide...
Page 200: Show Mgmt
Show mgmt Displays the blade management port (10/100) configuration. Authority None Syntax show mgmt Example: MPX200 <1>(admin) #> show mgmt Management Port Information ----------------------------- IPv4 Interface Enabled IPv4 Mode Dhcp IPv4 IP Address 172.17.137.129 IPv4 Subnet Mask 255.255.254.0 IPv4 Gateway 172.17.136.1...
Page 201: Show Perf
-------- -------- -------- -------- Example 2: MPX200 <1>#> show perf byte WARNING: Valid data is only displayed for port(s) that are not associated with any configured FCIP routes. Displaying bytes/sec (total)... (Press any key to stop display) -------------------------------- Example 3: MPX200 <1>#>...
Page 202: Show Presented Targets
------------------------------------------------ Example 4: MPX200 <1>#> show perf tgt_wbyte WARNING: Valid data is only displayed for port(s) that are not associated with any configured FCIP routes. Displaying bytes/sec (target mode write)... (Press any key to stop display) -------------------------------- Show presented targets Displays the targets presented by the FC router, iSCSI router, or both.
Page 203: Show Properties
None Syntax show properties Example: MPX200 <1>#> show properties CLI Properties ---------------- Inactivity Timer 15 minutes Prompt String MPX200 Show SNMP Displays the router’s SNMP configuration and any configured traps. Authority None Syntax show snmp MPX200 Multifunction Router User Guide...
Page 204: Show Stats
Example: MPX200 <1>(admin) #> show snmp SNMP Configuration ------------------ Read Community Public Trap Community Private System Location System Contact Authentication traps Disabled System OID 1.3.6.1.4.1.3873.1.5 System Description HP StorageWorks MPX200 Trap Destination 1 ------------------ IP Address 10.0.0.5 Trap Port 1024...
Page 205 Shared Statistics ----------------------- PDUs Xmited 2729500577 Data Bytes Xmited 55036896842234 PDUs Rcvd 2655246170 Data Bytes Rcvd 0 I/O Completed 1815115669 Unexpected I/O Rcvd 0 iSCSI Format Errors 0 Header Digest Errors 0 Data Digest Errors 0 MPX200 Multifunction Router User Guide...
Page 206: Show System
Displays blade product information, including the serial number, hardware and software versions, number of ports, and temperature. Authority None Syntax show system Example: MPX200 <1>#> show system System Information -------------------- Product Name HP StorageWorks MPX200 Symbolic Name Blade-1 System Mode...
Page 207: Show Targets
Displays the targets discovered by the FC router, iSCSI router, or both. Authority None show tar- Syntax iscsi gets Displays FC targets. Keywords Displays iSCSI targets. iscsi Example 1: MPX200 <1>#> show targets fc Target Information -------------------- WWNN 50:00:1f:e1:50:07:0c:e0 WWPN 50:00:1f:e1:50:07:0c:e9 Port ID 02-f7-01 State Online WWNN...
Page 208: Shutdown
MPX200 <1>#> show vpgroups VpGroup Information --------------------- Index VpGroup Name VPGROUP_1 Status Enabled WWPNs 21:00:00:c0:dd:13:16:44 21:00:00:c0:dd:13:16:45 Index VpGroup Name VPGROUP_2 Status Enabled WWPNs 21:01:00:c0:dd:13:16:44 21:01:00:c0:dd:13:16:45 Index VpGroup Name VPGROUP_3 Status Enabled WWPNs 21:02:00:c0:dd:13:16:44 21:02:00:c0:dd:13:16:45 Index VpGroup Name VPGROUP_4 Status Enabled...
Page 209: Traceroute
MPX200 <1>(admin) #> target rm Index State (WWNN,WWPN/iSCSI Name) ----- ----- ---------------------- 0 Offline 20:00:00:14:c3:3d:d2:bf,22:00:00:14:c3:3d:d2:bf 1 Online 20:00:00:14:c3:44:9b:86,22:00:00:14:c3:44:9b:86 2 Online 20:00:00:14:c3:44:9b:9d,22:00:00:14:c3:44:9b:9d 3 Online 20:00:00:14:c3:44:9a:fa,22:00:00:14:c3:44:9a:fa Please select an OFFLINE Target from the list above ('q' to quit): 0 All attribute values for that have been changed will now be saved.
Page 210 Command referencecommand reference...
Page 211: B Command Line Interface Usage
B Command Line Interface usage The CLI enables you to perform a variety of MPX200 management tasks through an Ethernet or serial port connection. Logging on to an MPX200 You can use either Telnet or Secure Shell (SSH) to log on to a router, or you can log on to the switch through the serial port.
Page 212: Understanding The Guest Account
[ chassis ] Account name: guest Password: password MPX200 #> show chassis Chassis Information --------------------- Product Name HP StorageWorks MPX200 Chassis Name Router Chassis Name Serial Number 0834E00019 HW Version 20697-03 A Fan Speed Normal Blade 1 Information (Left Slot)
Page 213: Working With Mpx200 Router Configurations
MPX200 #>blade 1 MPX200 <1>#> Working with MPX200 router configurations Successfully managing routers with the CLI depends on effective router configurations. Key router management tasks include modifying configurations, backing up configurations, and restoring configurations. Modifying a configuration The router has the following major areas of configuration: •...
Page 214: Restoring Router Configuration And Persistent Data
ftp> get HP_StorageWorks_MPX200_FRU.bin 200 PORT command successful. 150 Opening BINARY mode data connection for 'HP_StorageWorks_MPX200_FRU.bin' (6168 bytes). 226 Transfer complete. ftp: 6168 bytes received in 0.00Seconds 6168000.00Kbytes/sec. ftp> quit 221 Goodbye. Restoring router configuration and persistent data Transfer the saved data from a workstation to the router by executing an FTP utility on the workstation.
Page 215: C Simple Network Management Protocol Setup
64 characters, excluding the number sign (#), semicolon (;), and comma System contact (,). The default is undefined. Enables or disables the generation of authentication traps in response to authentication Authentication failures. The default is disabled. traps MPX200 Multifunction Router User Guide...
Page 216: Snmp Trap Configuration Parameters
SNMP trap configuration parameters SNMP trap configuration lets you set up to eight trap destinations. Choose from Trap 1 through Trap 8 to configure each trap. Table 29 describes the parameters for configuring an SNMP trap. Table 29 SNMP trap configuration parameters Parameter Description Enables or disables trap n.
Page 217 Syntax 2 = DHCP 3 = Bootp 4 = RARP Access Read-only Description Method by which the port gets its IP address. qsrIPAddressType Syntax InetAddressType Access Read-only Description IP address type: ipv4 or ipv6. qsrIPAddress MPX200 Multifunction Router User Guide...
Page 218: Fc Port Table
Syntax InetAddress Access Read-only Description IP address of the port. qsrNetMask Syntax InetAddress Access Read-only Description Subnet mask for this port. qsrGateway Syntax InetAddress Access Read-only Description Gateway for this port. qsrMacAddress Syntax IMacAddress Access Read-only Description MAC address for this port. qstNwLinkStatus Syntax QsrLinkStatus...
Page 219 Operational role of this port: FCP mode or frame shuttle mode. qsrFcPortIndex Syntax Unsigned32 Access Not accessible Description A positive integer indexing each FC port in a given role. qsrFcPortNodeWwn Syntax PhysAddress Access Read-only Description World Wide Name of the node that contains this port. MPX200 Multifunction Router User Guide...
Page 220: Initiator Object Table
qsrFcPortWwn Syntax PhysAddress Access Read-only Description World Wide Name for this port. qsrFcPortId Syntax PhysAddress Access Read-only Description Interface's 24-bit FC address identifier. qsrFcPortType Syntax Unsigned32 Access Read-only Type of FC port, as indicated by the use of the appropriate value as- Description signed by IANA.
Page 221 An arbitrary positive integer denoting each iSCSI initiator discovered Description by the router. qsrIsInitName Syntax SnmpAdminString Access Not accessible Description iSCSI name of the initiator. qsrIsInitAlias Syntax SnmpAdminString Access Read-only Description Alias for the iSCSI initiator. qsrIsInitAddressType Syntax InetAddressType Access Read-only MPX200 Multifunction Router User Guide...
Page 222: Lun Table
Description Type of iSCSI initiator’s IP address (IPv4 or IPv6). qsrIsInitAddress Syntax InetAddress Access Read-only Description IP address of the iSCSI initiator. qsrIsInitStatus Integer: 1 = unknown, Syntax 2 = loggedIn, 3 = loggedOut, 4 = recovery Access Read-only Status of the iSCSI initiator, that is, whether or not it is logged in to the Description router.
Page 223 The world wide unique LUN name (WWULN) for the LUN. qsrLunVendorId Syntax SnmpAdminString Access Read-only Description Vendor ID for the LUN. qsrLunProductId Syntax SnmpAdminString Access Read-only Description Product ID for the LUN qsrLunProdRevLevel Syntax SnmpAdminString MPX200 Multifunction Router User Guide...
Page 224: Vp Group Table
Access Read-only Description Product revision level for the LUN qsrLunSize Syntax Unsigned32 Access Read-only Description Size of the LUN (in megabytes) qsrLunState Integer 1 = online, Syntax 2 = offline, 3 = reserved Access Read-only Description State of the LUN (online or offline) qsrLunVPGroupid Syntax Integer...
Page 225 VP group index. qsrVPGroupId Syntax Integer Access Read-only Description VP group ID. qsrVPGroupName Syntax SnmpAdminString Access Read-only Description VP group name or host group name. qsrVPGroupWWNN Syntax VpGroupWwnnAndWwpn Access Read-only Description Worldwide port number (WWPN) MPX200 Multifunction Router User Guide...
Page 226 qsrVPGroupStatus Integer: 0 = enabled; 1 = disabled Syntax Access Read-only Description Maintain the status of the VP group (enabled/disabled) Simple Network Management Protocol setup...
Page 227: Sensor Table
INTEGER Syntax Temperature = 1 Access Not accessible Description Type of data being measured by this sensor. qsrSensorIndex Syntax Unsigned32 Access Not accessible Description A positive integer identifying each sensor of a given type. MPX200 Multifunction Router User Guide...
Page 228: Notifications
Normal = The sensor Description value is within normal operational limits. Warning = The sensor value is approaching a threshold. Critical = The sensor value has crossed a threshold. Notifications This section describes the MPX200 notification types. Simple Network Management Protocol setup...
Page 229: System Information Objects
Read-only Description System software (firmware) version number. qsrNoOfFcPorts Syntax Unsigned32 Access Read-only Description Quantity of FC ports on the system. qsrNoOfGbEPorts Syntax Unsigned32 Access Read-only Description Quantity of gigabit Ethernet ports on the system. qsrAgentVersion MPX200 Multifunction Router User Guide...
Page 230: Notification Objects
Syntax SnmpAdminString Access Read-only Description Version number of the agent software on the system. Notification objects This section defines the objects used in notifications. qsrEventSeverity Syntax INTEGER Access Accessible for notify Indicates the severity of the event. The value clear specifies that a Description condition that caused an earlier trap is no longer present.
Page 231: Fc Port Down Notification
• Blade number (1 or 2) Target presentation (mapping) The target presentation notification indicates that the specified target has been presented (mapped) or unpresented (unmapped). qsrPresTgtMapped uses the following objects: • qsrBladeSlot • qsrEventTimeStamp • qsrPresTgtMapped MPX200 Multifunction Router User Guide...
Page 232: Vp Group Notification
• qsrPresTgtUnmapped • qsrEventSeverity Target presentation notifications are sent for the following event: • Target Presentation • State: Presented (mapped) or unpresented (unmapped) • Target name • Blade number (1 or 2) VP group notification The VP group notification indicates that the specified VP group is enabled or disabled. It also represents change in the name of the VP group.
Page 233: Generic Notification
• Blade number (1 or 2) • Router configuration change • Blade number (1 or 2) • Management port configuration change • Blade number (1 or 2) • Firmware upgrade complete • Blade number (1 or 2) • Reboot blade MPX200 Multifunction Router User Guide...
Page 234 • Blade number (1 or 2) Simple Network Management Protocol setup...
Page 235: D Log Messages
The ID column specifies the message identification numbers in ascending order. • The Log Message column indicates the message text displayed in the MPX200 CLI. Note that: • Log messages for the iSCSI driver module are common to both iSCSI ports. Log messages be- ginning with #0 denote iSCSI port 1 (GE1) and log messages beginning with #1 denote iSCSI port 2 (GE2).
Page 236 Unable to create an object for the QLBA_CreateTargetDeviceOb- 41058 Error target device; exceeded the max- ject: Too many devices imum number of target devices. Unable to create an object for the QLBA_CreateTargetNodeObject: 41060 Error target node; exceeded the maxim- Too many devices um number of target devices.
Page 237 TPB status 0x%x cess. Pass-Through command for Inquiry command for page 83 failed. The QLBI_GetLunInfo: INQUIRY 41629 Error Inquiry command was issued by failed, TPB status 0x%x the router as part of its discovery process. MPX200 Multifunction Router User Guide...
Page 238 Pass-Through command for Read Capacity command failed. The QLBI_Passthru: Invalid data 41635 Error Read Capacity command was is- length %d bytes sued by the router as part of its discovery process. Read Capacity command failed. The Read Capacity command was QLBI_GetLunInfo: INQUIRY 41636 Error...
Page 239 Failed to allocate memory for TPB QLUT_AllocateTpbExtension: 43265 Error extension. TPB allocation failed QLUT_AllocateTpbExtension: Failed to allocate data segment 43267 Error Alloc of DSD failed for buf- descriptor (DSD) (buffer length %d). fer len %d MPX200 Multifunction Router User Guide...
Page 240 QLUT_AllocateTpbExtension: Failed to allocate data buffer 43268 Error Data buffer allocation (length %d). failed (length %d) 53254 Info Router is booting up. System Booting Up. QLBA_ProcessTpb: De-compres- Decompression failed. Disabling 53357 Info sion failed. Disabling com- compression temporarily. pression temporarily QLIS_LoginPduContinue: 53584 Info...
Page 241 #%d: QLProcSrblessiSNS- 70224 iSCSI Fatal handle. Response: Invalid handle %x #%d: QLInitializeDevice: QL- 70400 iSCSI Fatal Start iSCSI processor failed. StartAdapter failed iSCSI processor firmware initializ- #%d: QLInitializeAdapter: 70417 iSCSI Fatal ation failed. QLInitializeFW failed MPX200 Multifunction Router User Guide...
Page 242 #%d: QLDoInterruptService- Routine: PortFatal inter- 70432 iSCSI Fatal iSCSI processor port fatal error. rupt. PortFatalErrorStatus %08x CSR %08x AS %x AF %x #%d: QLStartAdapter: QLRe- Start iSCSI processor reboot timer 70448 iSCSI Fatal bootTimer failed AF %x RS %x failed. Time %d #%d: QLIsrDecodeMailbox: System Error 8002 MB[1-7]...
Page 243 Driver timed out an iSCSI pro- 74663 iSCSI Error %04x %04x %04x %04x %04x cessor mailbox command. %04x %04x %04x timed out Driver timed out while attempting #%d: QLReadyTimer: QLiSNS- 74665 iSCSI Error to reconnect with the iSNS. Reenable failed. MPX200 Multifunction Router User Guide...
Page 244 #%d: QLProcessSystemError: 74705 iSCSI Error iSCSI processor was restarted. Restart RISC #%d: QLInitializeFW: iSCSI processor rejected the firm- MBOX_CMD_INITIALIZE_FIRMWARE 74746 iSCSI Error ware initialize command. failed %04x %04x %04x %04x %04x %04x Driver’s initiator database is full. The driver is capable of storing #%d: QLUpdateInitiatorData: 74784 iSCSI...
Page 245 106589 Error IOCTL request to the driver. disabled FC processor firmware failed initial- ization. The request to initialize #%d: QLIoctlEnable: Initial- 106590 Error was received by the driver in an ize FW error IOCTL request. MPX200 Multifunction Router User Guide...
Page 246 #%d: QLIoctlRunDiag: Dia- FC processor failed the external 106592 Error gnostic loopback command loopback test. failed %x % %x %x FC processor failed to re-initialize #%d: QLIoctlDisable: Re-ini- 106593 Error in response to an IOCTL disable tialize adapter failed request. FC processor reported a link down #%d: QLIsrEventHandler: Link 106803...
Page 247 (%x) rscnInfo: %x information. FC port update. Event status is re- ported, as is the contents of the FC #%d: QLIsrEventHandler: Port 119097 Info processor’s mailbox 1, 2, and 3 update (%x) mb1-3 %x %x %x registers. MPX200 Multifunction Router User Guide...
Page 248 RPC (remote procedure call) server 139265 User Error QBRPC_Initialize: Entered initialization entry point. Get System API memory allocation QBRPC_Initialize:GetBridge 139266 User Error failed. Mem Allocation error QBRPC_Initialize:Get- Get System Advanced API memory 139267 User Error BridgeAdv Mem Allocation er- allocation failed. Get Management API memory al- QBRPC_Initialize:GetMgmt Mem 139268...
Page 249 #%d: qapisetisns_1_svc:iSNS 151891 User Info iSNS configuration has changed. configuration changed qapisetntpparams_1_svc: NTP 151892 User Info NTP configuration has changed. configuration changed #%d: qapisetvlan- 151893 User Info VLAN configuration has changed. params_1_svc: VLAN configur- ation changed MPX200 Multifunction Router User Guide...
Page 250 qapisetlunmask_1_svc: Lun- 151894 User Info LUN mask was added for LUN %d. mask added for LUN %d LUN mask was removed for LUN qapisetlunmask_1_svc: Lun- 151895 User Info mask removed for LUN %d qapisetmgmintfc- Management port configuration 151896 User Info params_1_svc:Management port has changed.
Page 251 5 secs\ message. n" Attempt to register the interrupt "Failed to register inter- 233474 System Fatal handler failed. rupt handler!\n" Failed class_simple_create "%s class_simple_create 233475 System Fatal system call from memory monitor failed\n" initialization routine. MPX200 Multifunction Router User Guide...
Page 252 "Failed to kill sys killer 237572 System Error Failed to kill system task. %d\n" Router temperature has exceeded Temperature over high 237573 System Error the high temperature threshold. threshold %d Router temperature has returned to Temperature is back to nor- 249862 System Info...
Page 253: Dm Log Messages
Migration job being added for a LUN that is masked to an Selected Lun is Masked, It 56868 Info Initiator on the router. cant be used for Offline Mapped LUNs cannot be used Migration for offline migration jobs. MPX200 Multifunction Router User Guide...
Page 254 Migration job being added for a LUN for which no Read Read Capacity is not avail- 56869 Info Capacity Information is avail- able for the Lun able. Migration add will fail. Failed to allocate memory for QLDM_CreateMigrationObject: 56870 Info the source LUN of a Migration Failed to create Source Lun job.
Page 255 152108 User Info Previous time %ld New time last serial schedule job was removed. addMigration: Creating migra- Failed to Create a Migration 152109 User Info tion Job Failed with error Job. MPX200 Multifunction Router User Guide...
Page 256: Fcip Log Messages
Table 32 FCIP log messages Module Log Message Description type type #%d: QLTimer: VP %d discover A VP logs in to a device, but the 119144 Info a reject device PID device rejects the login. %02x%02x%02x #%d: QLFlashGetNvram: Inval- Update Nvram for the invalid Serial 120278 Info id Serial Link Control 0x%x...
Page 257 FC cabling and FC switch or drive FcipRoute#%d: FCIP Link Down statistics. The TCP link went down. Check the 172250 FCIP Error Ethernet cabling and Ethernet switch FcipRoute#%d: TCP Link Down or peer device statistics. MPX200 Multifunction Router User Guide...
Page 258 A TCP client attempted to connect to the router, but the IP address did not match the address of the remote FcipRoute#%d: Remote Peer 172253 FCIP Error router specified in the route defini- IP Address Validation Failed tion. Check the route definition, check for network rogues fishing for open TCP ports.
Page 259: E Hp Storageworks Mpx100/Mpx100B To Mpx200 Upgrade
Remove the iSCSI Controllers in HP Command View EVA. This succeeds after all LUNs have been unpresented. Physically disconnect and remove the mpx100/mpx100b. Connect MPX200 to SAN Switches or directly to EVA ports as shown in “MPX200 configuration options for EVA”...
Page 260 NOTE: Ensure that the latest firmware is installed. Boot all Hosts. Configure each iSCSI initiator to perform a discovery of the MPX200 target portals. Create an iSCSI host entry for each initiator using HP Command View EVA or SSSU. Represent LUNs with the HP Command View EVA GUI or SSSU to MPX200 iSCSI Hosts.
Page 261: F Regulatory Compliance And Safety
Hewlett-Packard could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.
Page 262: Laser Safety Warning
Laser safety warning WARNING! To reduce the risk of exposure to hazardous radiation: Do not try to open the laser device enclosure. There are no user-serviceable components inside. Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein.
Page 263: International Notices And Statements
This Class A Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. BSMI notice Japanese notice MPX200 Multifunction Router User Guide...
Page 264: Korean Notices
Korean notices Safety notices Battery replacement notice Your switch is equipped with a lithium manganese dioxide, a vanadium pentoxide, or an alkaline internal battery or battery pack. There is a danger of explosion and risk of personal injury if the battery is incorrectly replaced or mistreated.
Page 265: Taiwan Battery Recycling Notice
Pay particular attention to the plug, electrical outlet, and the point where the cords exit from the product. Japanese power cord statement Waste Electrical and Electronic Equipment directive English notice Disposal of waste equipment by users in private households in the European Union MPX200 Multifunction Router User Guide...
Page 266: Dutch Notice
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for recycling of waste electrical and electronic equipment.
Page 267: French Notice
Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben. Greek notice MPX200 Multifunction Router User Guide...
Page 268: Hungarian Notice
Hungarian notice Italian notice Smaltimento delle apparecchiature da parte di privati nel territorio dell’Unione Europea Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche.
Page 269: Polish Notice
HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido. Slovakian notice MPX200 Multifunction Router User Guide...
Page 270: Slovenian Notice
Slovenian notice Spanish notice Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la Unión Europea Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos en un "punto limpio"...
Page 271: G Saving And Restoring The Mpx200 Configuration
Using the MPX200 CLI to save the configuration information places the file in the MPX200’s FTP directory. You must then move the file using FTP from the MPX200 (an FTP client accesses the file and moves it to any desired location).
Page 272: Restoring The Configuration Using Mpx200 Cli
Enter the following command to set the FTP transfer type to binary: ftp> bin Enter the following command to put the HP_StorageWorks_MPX200_FRU.bin file: ftp> put HP_StorageWorks_MPX200_FRU.bin Log in to the MPX200 using a Telnet session to the management port or console port: Username: guest Password: password Enter the following command: MPX200>...
Page 273: Glossary
Fibre Channel over Ethernet. An encapsulation of Fibre Channel frames over Ethernet networks. This allows Fibre Channel to use 10 Gigabit Ethernet networks while preserving the Fibre Channel protocol. For more information, visit www.fcoe.com. Fibre Channel See FC. MPX200 Multifunction Router User Guide...
Page 274 Fibre Channel over See FCoE. Ethernet iSCSI Internet small computer system interface. Transmits native SCSI over the TCP/IP stack. In a system supporting iSCSI, a user or software application issues a command to store or retrieve data on a SCSI storage device. The request is processed by the operating system and is converted to one or more SCSI commands that are then passed to software or to a card.
Page 275 83 and page 80 of your SCSI block device as based on the SCSI standard. zoning Configuring a set of Fibre Channel device ports to communicate across the fabric. Through switches, traffic within a zone can be physically isolated from traffic outside the zone. MPX200 Multifunction Router User Guide...
Page 276 Glossary...
Page 277: Index
Apple Mac OS X iSCSI initiator, Apple Mac iSCSI initiator, array, authority requirements, bandwidth, battery replacement notice, beacon command, blade command, CHAP, chassis diagnostics, clear command, CLI usage, cluster support, Windows, command reference, command syntax, MPX200 Multifunction Router User Guide...
Page 278 commands show targets, admin, show vpgroups, beacon, show fc, blade, show presented_targets, clear, shutdown, date, target, exit, traceroute, fciproute, configuration fru, blades, help, dual-blade multi-EVA, history, dual-blade fabric-attached, image, maximums, initiator, modifying, logout, single-blade fabric-attached, lunmask, single-blade multi-EVA, ping, configuration options, quit, configuring reboot,...
Page 279 MPIO features, network port table, Microsoft Windows initiator, notices Solaris initiator, battery replacement, supported maximums, Japanese power cord, use of the ports, Taiwan battery recycling, VMware initiator, Windows Server 2003 initiator, MPX200 Multifunction Router User Guide...
Page 280 notifications set alias command, agent shutdown, set chap command, agent startup, set chassis command, FC port down, set command, generic, set fc command, network port down, set features command, sensor, set iscsi command, VP group, set isns command, set mgmt command, set ntp command, set properties command, pages...
Page 281 VP group notification, VP group table, websites HP Subscriber's choice for business, product manuals, Windows Server 2003 iSCSI initiator, Windows Cluster support, Windows Server 2003 Scalable Networking Pack, WWNN, WWPN, WWULN, MPX200 Multifunction Router User Guide...

This manual is also suitable for:

Xp20000/xp24000

HP StorageWorks MPX200 User Manual

MPX200 Multifunction Router Overview

Installing the MPX200

Managing the MPX200 Using HP Command View EVA

Managing the MPX200 for XP 24000/20000

MPX200 Iscsi Configuration Rules and Guidelines

Mpx200 Fcip

MPX200 Fcoe Feature Description

Diagnostics and Troubleshooting

Quick Links

Troubleshooting

Related Manuals for HP StorageWorks MPX200

Summary of Contents for HP StorageWorks MPX200
