Cable Routing Procedures for Dell™ PowerEdge™ R310 & R410 Systems
Section 2: Cabling a Dell™ PowerEdge™ R310 or R410 System Without a
CMA
NOTE: The CMA on Dell™ PowerEdge™ R310 & R410 systems is optional. Without the CMA installed,
the system must be powered down and all cables disconnected before it can be removed from the
rack.

2.1 Routing the Cables

1. Connect all applicable cables to the rear of the system and verify that all connections are secure.
2. Using the hook and loop straps supplied with the rail kit, bundle the cables and secure them to
either the left or right CMA attachment brackets as described in the
See Figure 8 for an example of data cables secured to the left CMA bracket and power cables
secured to the right CMA bracket.
It is recommended that the cables be secured to the outer brackets, but cables may be secured to
3.
the inner brackets as well if desired.

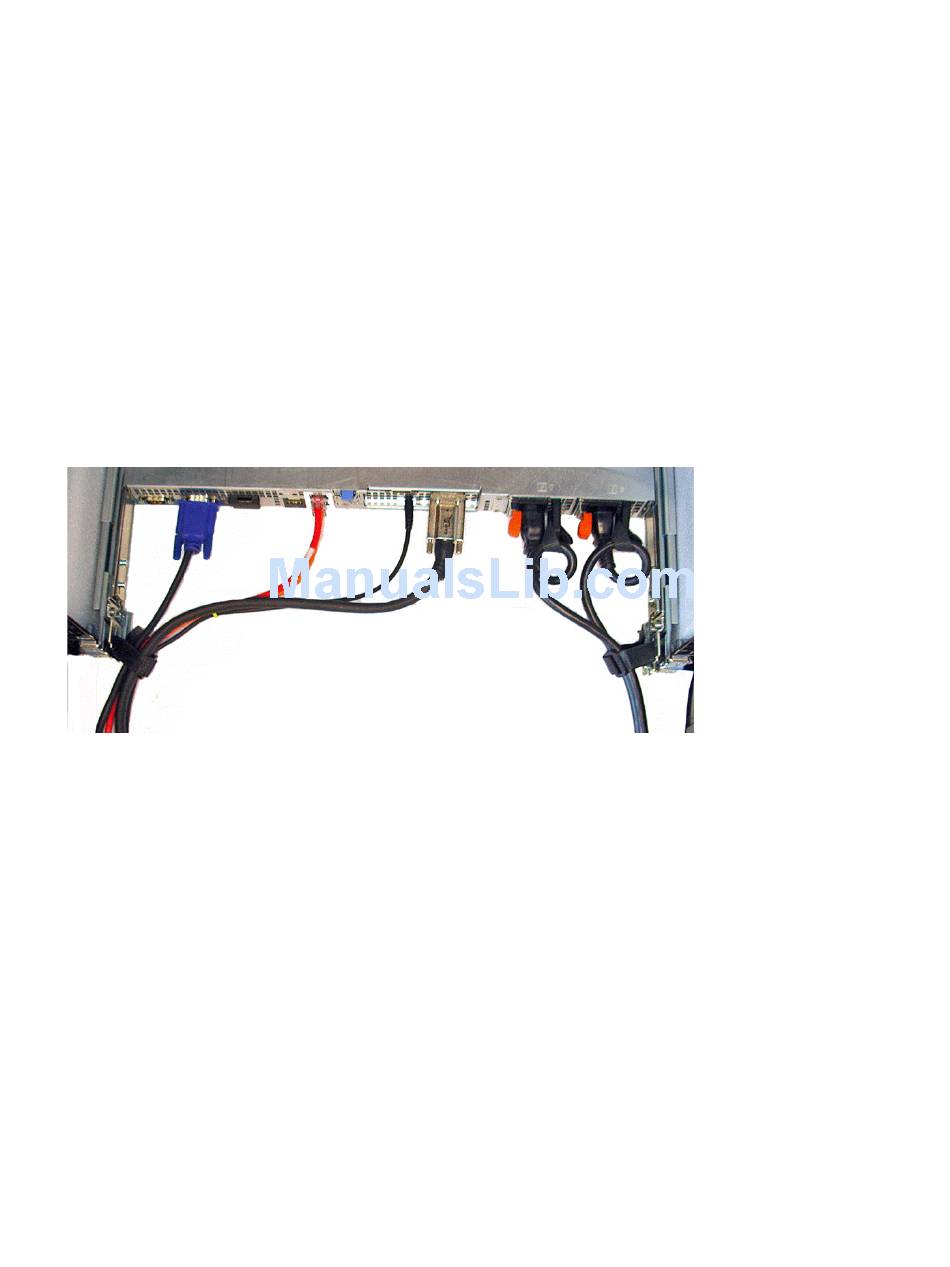

Figure 8: Cable Routing Without a CMA

2.2 Removing the CMA Brackets for Shallow Racks

If you are installing the system into a shallow rack (less than 1 meter deep) and you will not be
installing a CMA, the outer CMA brackets may be removed if necessary in order to allow the rails to fit
properly into the rack. Remove the brackets by using a #2 Phillips screwdriver to remove the screws
used to attach them to the rails as shown in Figure 9.
