Owner's Manual
20 inch COLOR TV/DVD
Owner's
Manual
5
F
G
0
00000_
SUPPLIED
ACCESSORIES
This unit comes with the following accessories. Please confirm that
all the accessories
are included.
ooooo&
t<o_o
%
[] Remote Control
[] AA batteries x 2
(NF100UD)
[]
Owner's Manual
(1EMN21313)
INSTRUCCIONES
EN ESPANOL INCLUDAS
FEATURES
,, Auto Channel
Programming
o Screen
Saver
,, Auto Power Off
• Parental
Lock
,, Resume
Play
,, Closed
Caption
Decoder
• Virtual
Surround
PLEASE READ BEFORE USING THIS EQUIPMENT
I
Advertisement
Table of Contents
Related Manuals for Sylvania 6520FDG
Summary of Contents for Sylvania 6520FDG

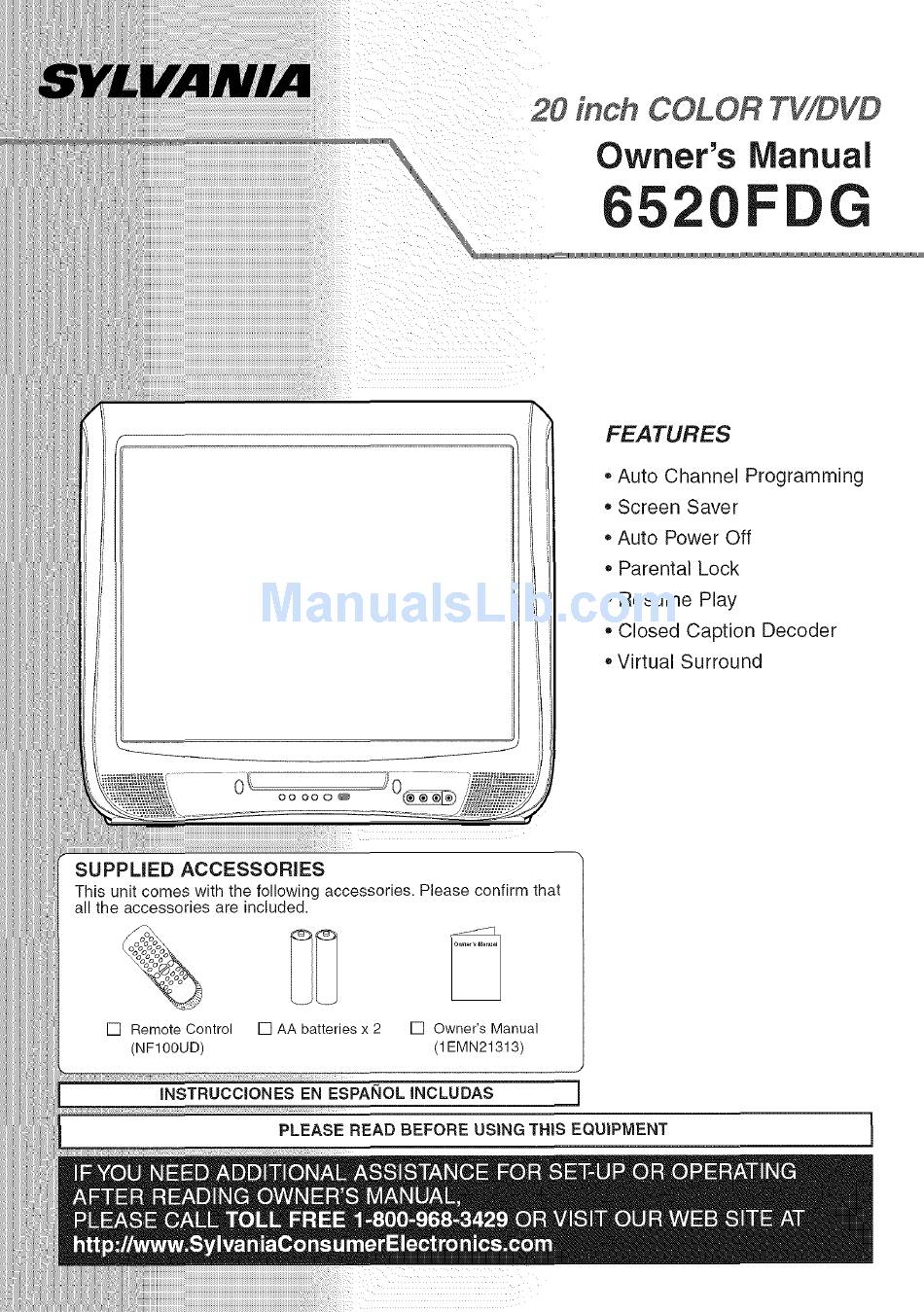

- Page 1 20 inch COLOR TV/DVD Owner's Manual FEATURES ,, Auto Channel Programming o Screen Saver ,, Auto Power Off • Parental Lock ,, Resume Play ,, Closed Caption Decoder • Virtual Surround 00000_ SUPPLIED ACCESSORIES This unit comes with the following accessories. Please confirm that all the accessories are included.
- Page 2 ii i_i WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THIS SYMBOL INDICATES THAT ,& ,& DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENTWlTHIN THIS UNIT. THIS SYMBOL INDICATES THAT CAUTION:...
- Page 3 14. Lightning - For added protection for this unit receiver during a. When the power-supply cord or plug is damaged or frayed. a lightning storm, or when it is left unattended and unused b. If liquid has been spilled, or objects have fallen into the unit. for long periods of time, unplug it from the wall outlet and c.
- Page 4 LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
-
Page 5: Table Of Contents
,BLE OF CONTENTS PRECAUTIONS ......PLAYING A DiSC ....... BASIC PLAYBACK ......IMPORTANT SAFEGUARDS ....DISC MENU/TITLE MENU ....TABLE OF CONTENTS ....SYMBOLS USED IN THIS MANUAL .... SPECIAL PLAYBACK FUNCTIONS & SETTINGS., FUNCTION TABLE ......PREPARATION FOR USE ....AUDIO MENU ...... - Page 6 ii i_i FOR USE Plug the incoming cable into the ANT. jack on the rear of the unit. If your cable service supplies you with a converter box or if you use a satellite system, connect the box with this unit as shown below. Antenna o _.
-
Page 7: Precautions
You canconnect thisunit t oa digital audio device t oenjoy thedigital audio ofDVD. Connect toanamplifier equipped withdigital input jacks, such asMDdeck or DAT deck. Toplay a DVD discina Dolby Digital Multi- channel surround format inthisunit, c onnect toa Dolby D igital decoder. Use anaudio coaxial digital cable (commercially available) fortheaudio connections. - Page 8 i l ill ili!iiii!i!i! ERATING CONTROLS AND FUNCTIONS - FRONT PANEL 10 11 -REMOTE CONTROL- [REMOTE CONTROL] 12 POWER Button [TV R9/DVD £15] 13 PICTURE/SLEEP Button [TV El0] 14 Number Buttons [TV R9/DVD R18] 15 DISPLAY Button [DVD £20] 16 SKiP I_/I_1 Buttons [DVD £18] 17 PLAY _ Button...
- Page 9 OPERATION AND SETTINGS When you turn on the power for the first time, Press [POWER] to turn on the unit. the INITIAL LANGUAGE screen is displayed. NOTES: HELPFUL HINTS Select the language for screen display and perform I PLEASE CHECK T OSEEI_ If the TV screen shows snow THE ANTENN_¢ABLD auto...
-
Page 10: Tv Operation And Settings
TV OPERATION AND SETTINGS can set Sleep Timer and picture You can view specially labeled (cc) TV pro- adjustment with [PICTURE / SLEEP]. grams, movies, news and pre-recorded tapes with either a dialogue caption or text display. ,, The menu changes as described below every time you press [PICTURE / SLEEP]. -
Page 11: Channel Set Up
• Refer to page 9 on how to use the Number but- tons. Channel presetting is necessary at the start or in case you moved the TV to a different area. 4 Press [ENTER] repeatedly. The channel number AUTO CHANNEL PROGRAMMING changes to red (deleted) or blue (added) every time you press the button. -
Page 12: V-Chip Set Up
TV OPERATION AND SETTINGS []TV RATING SET UP 4UseE ..ltose,ectarat,ng This feature enables parents to prevent their that you wish to block. I'_ TV-Y7( IVIEW] TV G [WEW] children from watching inappropriate material on Press [ENTER] repeatedly to Tv..PG<<)) Ev,EW]Ev,Ew] TV. - Page 13 []MPAA RATING SET UP desired item, then press _,,Ew_ [ENTER] to select "BLOCK" _G _ Lv,Ev_Ev'_w_ 4 Use [A / T] to point to your "] [BLOCK] or "VIEW". _o_7 EBLOOK_EBLOO"_ Selection Rating Category Explanations General Audience Parental Guidance suggested. PG-13 Unsuitable for children under 13 Restricted;...
-
Page 14: Playable Discs
JT THE DISCS Region Recorded Disc :: Playable Mark (logo) code signals , size , Disc types discs @or@ DVD-Video!i "1,2,4,6,10,11 v i D E o Digital 12cm ..)Example T el T e2 DVD-R " video .........."1,3,4,5,6, 7,9,10 DVD+R_ DVD+R "1,3,4,5,6,8,9,10... - Page 15 FAST FORWARD / FAST REVERSE ,, During playback, press 1 Press [POWER] to turn on the [FWD I_1_] for fast forward or unit. [REV .,_t-,_] f or fast reverse. ,, Every time you press the button, I" Press [OPEN/CLOSE i_]. playback speeds up and the level Place the disc in the tray, with _f_/_./"...
-
Page 16: Audio Menu
Setting menu switches as below every time you press [MODE] during playback, lID,_,_-..VJ I,_[_J See the reference page for how to set each menu. Some functions are not available in specific modes, but this is not a malfunction. Press [MODE] Press [MODE] AUDIO MENU (R17) - Page 17 Some DVD discs contain scenes which |D,_,_ AUDIO LANGUAGE have been shot from various angles and you can change them as you like. You can select audio language during DVD playback (if multi languages are available). 1 During playback, press I_,, ..
- Page 18 SPECIAL PLAYBACK FUNCTIONS & SETTINGS You can begin playback at a specific track, title, You can adjust the Black Level to make the black parts of the picture brighter. chapter or from a specific point on a disc. TRACK SEARCH [G_,J_ 1 During playback, press [MODE] repeatedly until...
-
Page 19: Repeat Playback
TiME S EARCH 1 During playback, press [MODE] repeatedly until REPEAT TRACK L_J_ SEARCH menu appears. 1 During playback, press Use [A/V] repeatedly to [MODE] repeatedly until display TIME SEARCH menu. REPEAT menu appears. Use [A / y] to select your desired repeat mode. Within 60 seconds, use the Number buttons enter a desired disc time. -
Page 20: On-Screen Information
SPECIAL PLAYBACK FUNCTIONS & SETTINGS 5 Press [STOP m] to temporarily stop the playback. You can determine the playing order of tracks. You can resume the playback by pressing [PLAY _]. 1 In the stop mode, press [MODE]............. Press [STOP Im] twice to cancel the pro- grammed playback. - Page 21 DVD SET UP ITEMS You can change the DVD player's settings by pressing [SET-UP] in DVD mode. The set up items are shown in the diagram below. Press [SET-UP] twice QUICK CUSTOM INITIALIZE SUBTITLE LANGUAGE(R21)j_ AUDIO DISC MENU --TV MODE DISPLAY (R22) TV MODE...
-
Page 22: Changing The Dvd Set Up Items
CHANGING THE DVD SET UP iTEMS []AUDIO SETTING []DISPLAY SETTIN G 4 Use [A / Y] to select an item, Choose the appropriate Audio settings for your then press [ENTER]. equipment as it only affects during the playback of DVD discs. ,,TV MODE: 4 Use [A / Y] to select an item, You can change certain aspects of the DVD display... -
Page 23: Initialize
[]OTHER SETTING 6 Use [A / T] to select the 4 Use [A / Y] to select an item, desired level, then press then press [ENTER] repeated- [ENTER]. ly to set the feature "ON" or "OFF". 7 Press [SET-UP] to exit the menu. ,,ANGLE ICON: CONTROL LEVELS... - Page 24 {OUBLESHOOTING GUIDE ]If the unit does not perform properly when operated as instructed in this Owner's Manual, check the following guide for the possible remedy of a problem before contacting the Customer Service. Sometimes a perfor- mance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. It could save your time and money.
- Page 25 SYMPTOM POSSIBLE REMEDY PAGE No picture ,,This unit cannot play DVD-RAM/CD-i/Photo CD/Video CD/DVD with region codes other than "1" and "ALL". Disc cannot be played ,, Clean the disc. ,, Place the disc correctly, with the label side up. ,, Cancel the parental setting or change the control level. No sound ,, Correct the audio output settings.
- Page 26 !iMA..TE.A.OE DEGAUSSING IR SIGNAL CHECK A degaussing circuit in this unit clears up color Use the AM radio or the digital camera to check if errors on the TV screen. Color errors occur when the remote control properly sends out the infrared there is any excess magnetism close to the unit.
- Page 27 PENDIX If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations. CATV channel TV Display CATV channel...
-
Page 28: Specifications
GENERAL SPECIFICATIONS OTHER SPECIFICATIONS TV ] Terminals VH F/U H F/CATV Antenna input: CRT: 20 inch in-line gun, 75 ohm unbalanced 90 ° deflection tube (F-type) NTSC-M Television system: RCA connector x 1 Video input: Closed caption system: §15.119/FCC RCA connector x 2 Audio L/R input: Tuner channel Headphone:... - Page 29 ili;_i!ii_ii;ji_i;iiiiiiiiiiiiiiiiiiiiiii!iiill PREPARATIVES PARA EL use .... CONEXIONES DE ANTENA/CABLE ... CONEXION A UN DISPOSITIVO EXTERNO (FRONTAL) ......REPRODUCCION BASICA ....CONEXION A UN DISPOSITIVO DE AUDIO DIGITAL MEN0 DE DISCO/MEN0 DE TfTuLo ..(TRASERA) ......FUNCIONAMIENTO Y AJUSTES TELEVISOR ......INSTALACION INICIAL .....
- Page 30 PREPARATIVOS PARA EL USO Cuando vea un programa grabado en otra fuente (videograbadora o videocb, mara), utilice las tomas de entrada AUDIO/VIDEO en la parte frontal de la unidad. Conecte las tomas de salida de Audio/Vfdeo de otra fuente alas tomas AUDIO L/R y VIDEO de esta unidad.
- Page 31 JNCIONAMIENTO Y AJUSTES DEL TELEVISOR Cuando se enciende la unidad per primera 1 Presione [POWER] para encender vez, se muestra la pantalla de IDIOMA unidad. INICIAL. Seleccione el idioma de visualizaci6n NOTES: SU_EREN¢IAS 0TILES 1 VERIFIQUE ANTEN_CABLS pantalla y ejecute la autoprogramaci6n del canal.
- Page 32 FUNCIONAMIENTO Y AJUSTES DEL TELEVISOR Puede seleccionar el idioma del men0 Es necesario preseleccionar el canal al principio o en case de haber movido el de pantalla entre ingles, espa_ol y televisor a una zona distinta. frances. AUTOPROGRAMACION DEL CANAL Utilice [A / V] para ir hasta _J_",1# 1 Presione [SET-UP].
- Page 33 AVANCE RAPIDO / RETROCESO RAPIDO " Durante la reproducci6n, mantenga 1 Presione [POWER] para presionado [FWD I1_] para avarice encender la unidad. rApido o [REV .,_qli]para retroceso rb, p ido. ,, Cada vez que mantenga Presione [OPEN/CLOSE presionado el bot6n, la reproducciSn se acelera y el Coloque el disco en la nivel de velocidad aparece en la pantalla.
-
Page 34: Warranty
SYLVANIA LiMiTED WARRANTY FUNAI CORR will repair this product, free of charge in the USA in the event of defect in materials or work- manship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
