Figure 4-2Safety Ground Reference Check - Single Power Source - HP rp8400 Series Installation Manual

AC Power
Wiring and Voltage Checks
Safety Ground Verification (Single Power Source)
This procedure measures the voltage level between A0 and A1. The voltage level between B0 and
B1 will also be verified. All measurements will be taken between ground pins. Refer to Figure 4-2
for ground reference points when performing these measurements.

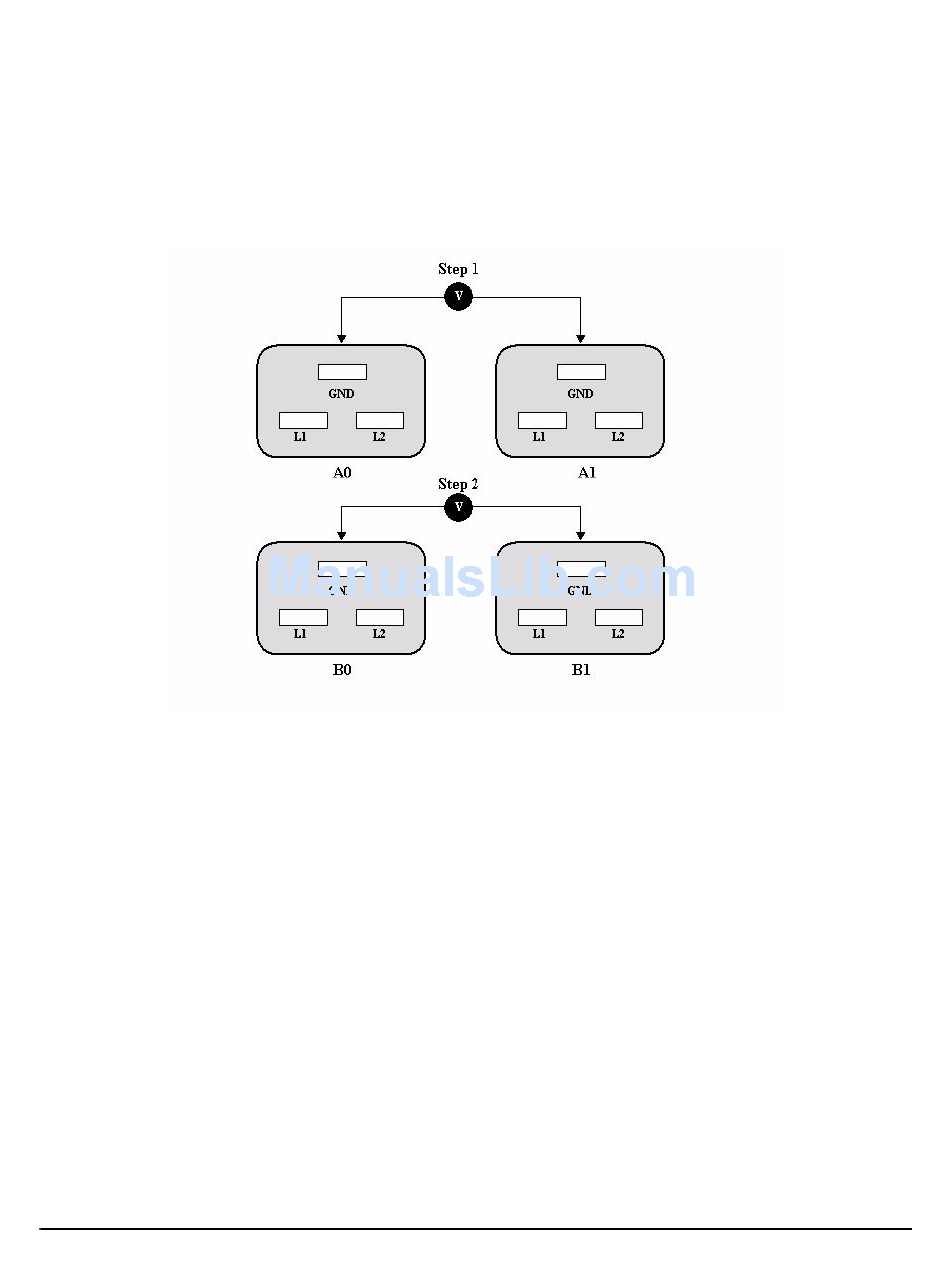

Figure 4-2Safety Ground Reference Check - Single Power Source

Step 1. Measure the voltage between A0 and A1. Take the AC voltage down to the lowest scale on the volt
meter. One probe will be inserted into the ground pin for A0. The other probe will be inserted into
the ground pin for A1. Verify that the measurement is between 0 - 5 volts AC. If the measurement
is 5V or greater, escalate the situation. Do not attempt to plug the power cords into the server
cabinet.
Step 2. Measure the voltage between B0 and B1. Take the AC voltage down to the lowest scale on the volt
meter. One probe will be inserted into the ground pin for B0. The other probe will be inserted into
the ground pin for B1. Verify that the measurement is between 0 - 5 volts AC. If the measurement
is 5V or greater, escalate the situation. Do not attempt to plug the power cords into the server
cabinet.
