QuickSpecs

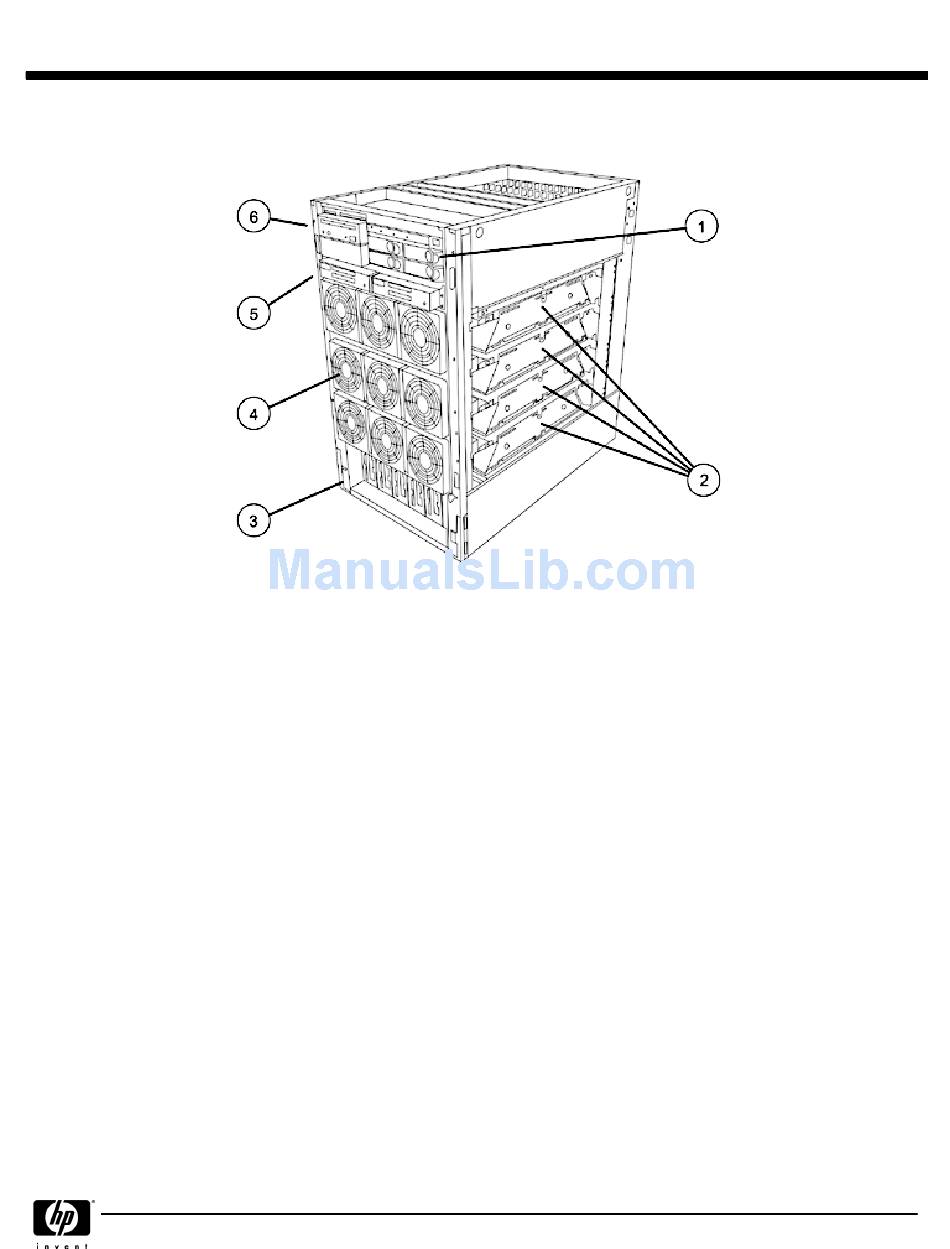

Overview
1. Hot-plug Disks
2. Cell Boards
3. Redundant Hot-swap Power
DA - 11894
Worldwide — Version 25 — March 1, 2007
4. Redundant Hot-swap Fans
5. PCI Power Supplies
6. Removable Media DVD/DAT
HP 9000 rp8420 Server
HP 9000 rp8420 Server
HP 9000 rp8420 Server
HP 9000 rp8420 Server
Page 1

Advertisement

loading

Related Manuals for HP rp8420

Summary of Contents for HP rp8420

  • Page 1 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Overview 1. Hot-plug Disks 4. Redundant Hot-swap Fans 2. Cell Boards 5. PCI Power Supplies 3. Redundant Hot-swap Power 6. Removable Media DVD/DAT DA - 11894 Worldwide —...
  • Page 2 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Overview 1. System Backplane 4. Hot-swap Redundant Fans 2. Core I/O 5. Hot-plug PCI Slots 3. 2N Redundant Power Inputs DA - 11894 Worldwide —...

  • Page 3: Standard Features

    Standard System Features Standard System Features Standard System Features 64 bit HP UX 11i v1, 11i v2 and 11i v3 operating system External Ultra3 LVD SCSI channel Four Internal Ultra SCSI channels, one channel to each internal disk 10/100/1000Base-T LAN (with auto speed sensing)
  • Page 4 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Standard Features High Availability High Availability High Availability High Availability N+1 Hot-swap cooling Redundant and hot-swap power supplies Hot-plug disks 2N power inputs...
  • Page 5 Cell Boards A minimum of one and a maximum of four cells can be ordered in an HP 9000 rp8420 Server. Each cell can be purchased with up to four active dual core PA-8900 processor modules (eight cores), or in combination with Instant Capacity processors.
  • Page 6 Memory Configuration Memory Configuration The memory DIMMs used in the HP 9000 rp8420 Server is sold in quads and is custom designed by HP. Each DIMM contains 36×4 SDRAM memory chips qualified to run at 125 MHz, with full ECC protection.
  • Page 7 I/O card slots. With one cell board, access to eight slots is enabled. The HP 9000 rp8420 Server can be purchased with either one or two core I/O boards (If an SEU is added, then 4 core I/O boards with 2 Core I/O in the SEU). Both core I/O boards are identical and provides console, SCSI, serial, and Management Processor (MP) functionality.
  • Page 8 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Configuration I/O Card I/O Card Product Number Product Number First HP UX First HP UX Connector Connector Hot Plug / Hot Plug /...
  • Page 9 Integrated Multifunction Integrated Multifunction The HP 9000 rp8420 Server chassis supports either one or two Core I/O cards (AB306A). Core I/O slots are located along the right rear vertical edge of the chassis. A minimum of one core I/O card must be ordered with each system.
  • Page 10 Access to internal peripheral bay: Access to internal peripheral bay: Access to internal peripheral bay: The first core I/O card enables half of the HP 9000 rp8420 Server peripheral bay, which includes one removable media and two low profile disks. The second core I/O card enables the remaining internal peripherals, two disks and one removable media bays.
  • Page 11 The SEU must be installed in the same cabinet and directly above the host HP 9000 rp8420 Server for factory racked installations. For field installations, the SEU can be installed in an adjacent rack at the same height as the server if there is space limitations.
  • Page 12 A minimum of two power cords must be used to maintain normal operation of the HP 9000 rp8420 Server. A second set of two cords can be used to improve system availability by protecting, for example, against power grid failures or accidentally tripped circuit breakers. The HP 9000 rp8420 Server hardware is capable of receiving AC input from two different AC power sources.
  • Page 13 The measured maximum worst case power consumption. This number represents the larges power consumption that HP engineers were able to produce for the server with any combination of hardware under laboratory conditions using aggressive software applications designed specifically to work the system at maximum load.
  • Page 14 A 60 amp Power Distribution Unit (PDU) has been developed for HP 9000 customers that prefer to use fewer, higher amperage connections into their wall electrical infrastructure. This PDU is sold separately and can be ordered with any HP Server solution. For more details on PDU's, please refer to the PDU sales collateral.
  • Page 15 I/O slots in partition 0 and four I/O slots in partition 1. Please refer to the "HP Server Expansion Unit" section in this guide or more specific details.
  • Page 16 Ballasts for HP Rack Ballasts for HP Rack Ballasts for HP Rack Due to the weight of the HP 9000 rp8420 Server, ballast kits have been developed to add stability to HP System E cabinets System E cabinets System E cabinets System E cabinets (not cabinets while the system is being serviced.
  • Page 17 When field racking for the mid-range servers in any rack (10K G2, System E or 3rd party), the customer will have to order the appropriate service product (HP PN: HA124A1 Opt. 570 - HP Startup Field Racked Mid Server Service).
  • Page 18 HP 9000 rp8420 HP 9000 rp8420 HP 9000 rp8420 HP 9000 rp8420 The HP 9000 rp8420 Servers were designed to be easily upgradeable to Intel Itanium 2 and PA RISC Upgrades to HP Integrity Upgrades to HP Integrity Upgrades to HP Integrity Upgrades to HP Integrity processors.

  • Page 19: Technical Specifications

    QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Technical Specifications Server model number Server model number Server model number Server model number rp8420 Server product numbers Server product numbers Server product numbers...
  • Page 20 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Technical Specifications Core I/O Core I/O Core I/O Core I/O Ultra3 SCSI-LVD Ultra3 SCSI-LVD Ultra3 SCSI-LVD Ultra3 SCSI-LVD 10/100/1000Base-T 10/100/1000Base-T (RJ- 10/100/1000Base-T 10/100/1000Base-T...
  • Page 21 QuickSpecs HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server HP 9000 rp8420 Server Technical Specifications Site Preparation Site Preparation Site Preparation Site Preparation Site planning and Site planning and Site planning and Site planning and installation included...
  • Page 22 Intel and Itanium are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
