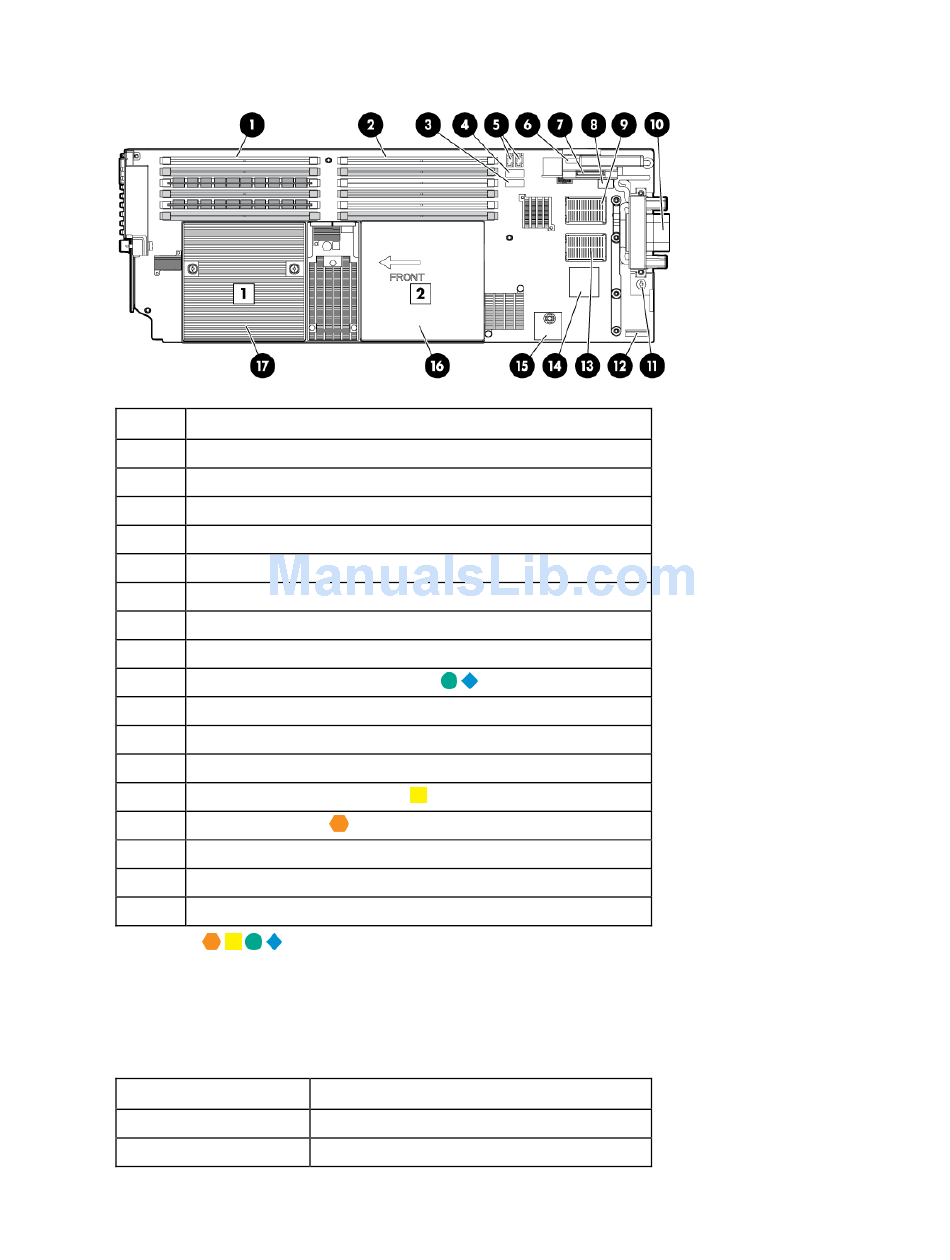

System board components

Item Description
1 Processor 1 DIMMs (6)
2 Processor 2 DIMMs (6)
3 SATA connector 2
4 SATA connector 1
5 Hard drive power connectors (2)
6 USB connector
7 SD card slot
8 System maintenance switch
9 Mezzanine connector 2 (Type I or II)
10 Enclosure connector
11 System board thumbscrew
12 System battery
13 Mezzanine connector 1 (Type I)
14 Embedded NICs (2)
15 TPM connector
16 Processor socket 2 (with blank)
17 Processor socket 1 (populated)
The symbols
HP ProLiant BL280c G6 Server Blade Installation Instructions that ship with the server blade.

Mezzanine connector definitions

A PCIe x8 mezzanine connector supports x16 cards at up to x8 speeds.
Item
Mezzanine connector 1
Mezzanine connector 2
correspond to the symbols located on the interconnect bays. For more information, see the
PCIe
x8, Type I mezzanine card only
x8, Type 1 or II mezzanine card
