Lightolier LYTESPOT Instructions

To lytespan track

Advertisement

Quick Links

/

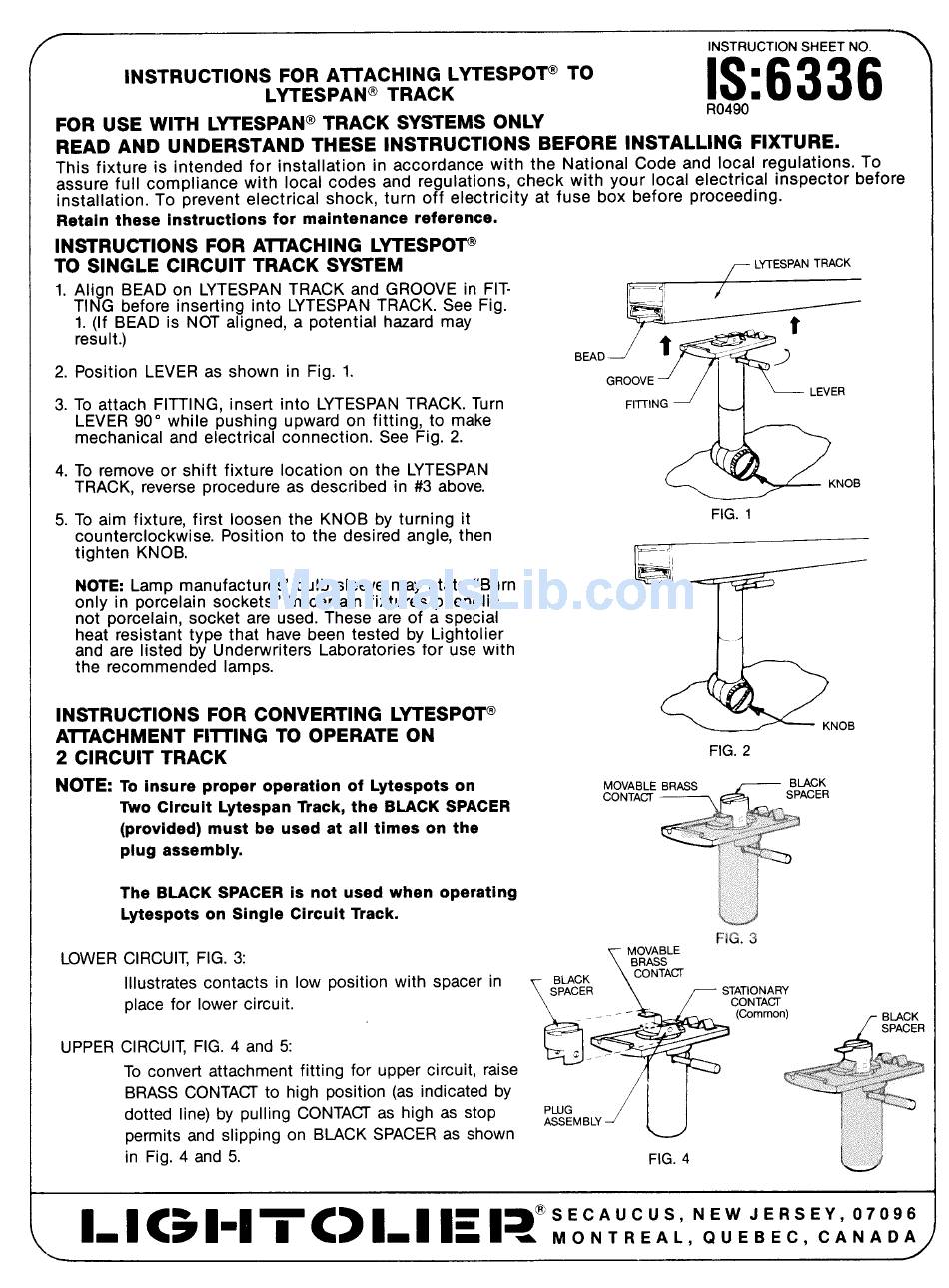

INSTRUCTION
SHEET NO.
INSTRUCTIONS
FOR AITACHING
LYTESPOT"
TO
LYTESPAN"
TRACK
IS:6336
FOR USE WITH
LWESPAN"
TRACK
SYSTEMS
ONLY
R0490
READ
AND UNDERSTAND
THESE INSTRUCTIONS
BEFORE INSTALLING
FIXTURE.
This fixture
is intended
for installation
in accordance
with
the National
Code and local
regulations.
To
assure
full compliance
with
local codes
and regulations,
check
with your local electrical
inspector
before
installation.
To prevent
electrical
shock,
turn off electricity
at fuse box before
proceeding.
Retain these instructions for maintenance reference.
INSTRUCTIONS
FOR AITACHING
LYTESPO~
TO SINGLE
CIRCUIT
TRACK
SYSTEM
1.Align
BEAD on LYTESPAN TRACK and GROOVE
in FIT-
TiNG before
inserting
into LYTESPAN TRACK. See Fig.
1. (if BEAD is NOT aligned,
a potentiai
hazard may
result.)
2. Position
LEVER as shown
in Fig. 1.
3. To attach
FiTTi NG, insert
into LYTESPAN TRACK. Turn
LEVER 90° whiie
pushing
upward
on fitting,
to make
mechanical
and electrical
connection.
See Fig. 2.
4. To remove or shift
fixture
location
on the LYTESPAN
TRACK,
reverse procedure
as described
in #3 above.
5. To aim fixture,
first
loosen
the KNOB by turning
it
counterclockwise.
Position
to the desired
angle, then
tighten
KNOB.
NOTE:
Lamp manufactures'
bulb sleeve may state "Burn
oniy in porcelain
sockets."
in certain
fixtures
phenoiic,
not porcelain,
socket
are used. These are of a speciai
heat resistant
type that have been tested
by Lightolier
and are listed
by Underwriters
Laboratories
for use with
the recommended
lamps.
INSTRUCTIONS
FOR CONVERTING
LYTESPOT@
Attachment
FllTING
TO OPERATE ON
2 CIRCUIT TRACK
NOTE:
To insure proper operation of Lytespots on
Two Circuit Lytespan Track, the BLACK SPACER
(provided) must be used at aii times on the
piug assembiy.
The BLACK SPACER is not used when operating
Lytespots on Singie Circuit Track.
.m.m
GROOVE
m
FllTING
– LEVER
&KNoB
FIG. 1
&
KNOB
FIG.
2
LOWER
UPPER
CIRCUi~
FIG. 3:
Illustrates
contacts
in low position
with spacer in
place for lower circuit.
CIRCUIT, FiG. 4 and 5:
To convert attachment
fitting
for upper circuit,
raise
BRASS CONTACT to high position
(as indicated
by
dotted
line) by pulling
CONTACX as high as stop
permits
and slipping
on BLACK SPACER as shown
in Fig. 4 and 5.
