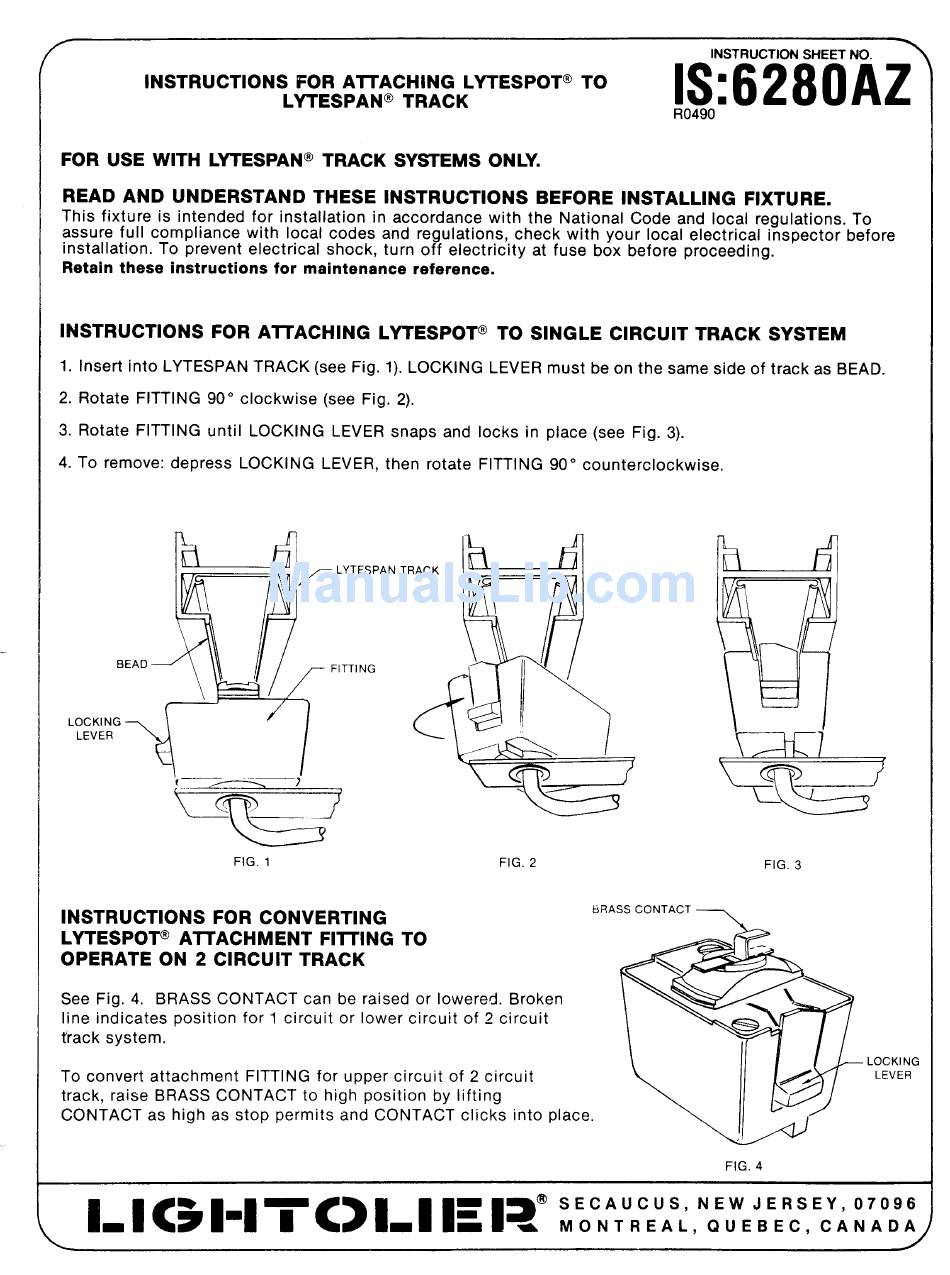

Lightolier LYTESPOT Instructions

[
instruction SHEET NO. >
INSTRUCTIONS FOR AITACHING LYTESPOT" TO
LYTESPAN@ TRACK
IS:6280AZ
R0490
FOR USE WITH LYTESPAN@ TRACK SYSTEMS ONLY.
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTIONS FOR AITACHING LYTESPOT@ TO SINGLE CIRCUIT TRACK SYSTEM
1. Insert into LYTESPAN TRACK (see Fig. 1). LOCKING LEVER must be on the same side of track as BEAD.
2. Rotate FITTING 90° clockwise (see Fig. 2).
3. Rotate FITTING until LOCKING LEVER snaps and locks in place (see Fig. 3).
4. To remove:
BEAD
LOCKING >
depress LOCKING LEVER, then rotate FITTING 90° counterclockwise.
LYTESPAN
ITTING
FIG. 1
FIG. 2
FIG. 3
INSTRUCTIONS FOR CONVERTING
t!RASS CONTACT
LYTESPOT@ Attachment FITTING TO
OPERATE ON 2 CIRCUIT TRACK
See
Fig. 4. BRASS CONTACT can be raised or lowered. Broken
line indicates position for 1 circuit or lower circuit of 2 circuit
track system.
To convert attachment FITTING for upper circuit of 2 circuit
track, raise BRASS CONTACT to high position by lifting
CONTACT as high as stop permits and CONTACT clicks into place.
~@
FIG. 4
LOCKING
LEVER
