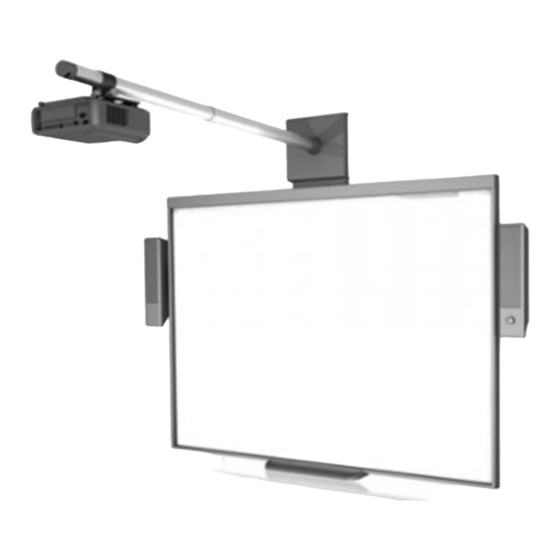

Smart Technologies SMART Board 480iv Specifications

Interactive whiteboard system
Hide thumbs Also See for SMART Board 480iv:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

Specifications

SMART Board™ interactive
whiteboard system
Model 480iv
Physical specifications
SMART Board™ 480iv interactive whiteboard
160.5 cm W × 127.2 cm H × 13 cm D
Size
(63 1/4" × 50" × 5 1/8")
156.5 cm W × 117.2 cm H
Active screen area
(61 5/8" × 46 1/8")
(maximum
interactive projected
195.6 cm (77") diagonal
image)
23.2 kg (51 lb.)
Weight
178 cm W × 136 cm H × 11 cm D
Shipping size
(70" × 53 1/2" × 4 1/2")
28.7 kg (63 lb. 3 oz.)
Shipping weight
SMART V25 projector system
Projector
47 cm W × 39.4 cm H × 130.2 cm D (18 1/2" × 15 1/2" × 51 1/4")
Remote control
4 cm W × 8.6 cm H × 0.7 cm D (1 5/8" × 3 3/8" × 1/4")
Weight
6.7 kg (14 lb. 8 oz.)
Shipping size
Mounting kit box
72.5 cm W × 45.5 cm H × 17 cm D (28 1/2" × 18" × 6 5/8")
Projector box
45 cm W × 32.6 cm H × 16.1 cm D (17 3/4" × 12 7/8" × 6 3/8")
Shipping weight
9.3 kg (20 lb. 8 oz.)
All dimensions +/- 0.3 cm (1/8"). All weights +/- 0.9 kg (2 lb.).

Advertisement

loading

Related Manuals for Smart Technologies SMART Board 480iv

Summary of Contents for Smart Technologies SMART Board 480iv

  • Page 1: Specifications

    Specifications SMART Board™ interactive whiteboard system Model 480iv Physical specifications SMART Board™ 480iv interactive whiteboard 160.5 cm W × 127.2 cm H × 13 cm D Size (63 1/4" × 50" × 5 1/8") 156.5 cm W × 117.2 cm H Active screen area (61 5/8"...

  • Page 2: Standard Features

    S P E C I F I C A T I O N S SMART Board interactive whiteboard system – Model 480iv Standard features System Windows® operating systems and Linux® operating systems. See the SMART Notebook™ requirements collaborative learning software release notes for Windows operating systems (smarttech.com/kb/126571), or Linux operating systems (smarttech.com/kb/146487) for a complete list of system requirements.
  • Page 3 S P E C I F I C A T I O N S SMART Board interactive whiteboard system – Model 480iv Wall-mount Includes a 81.3 cm (32") wide bracket, five screws and five concrete or brick anchors to bracket support your wall-mounted interactive whiteboard Computer 12 Mbps USB connection (full-speed USB 1.1 or USB 2.0) connection...
  • Page 4 S P E C I F I C A T I O N S SMART Board interactive whiteboard system – Model 480iv Video interface Composite, S-video, and VESA® RGB, with additional interface support for Component compatibility YPbPr and Component YCbCR inputs with the proper adapters (not included) Video format Native 4:3 aspect ratio XGA resolution.

  • Page 5: Optional Accessories

    S P E C I F I C A T I O N S SMART Board interactive whiteboard system – Model 480iv Temperature 5°C to 35°C (41°F to 95°F) from 0 m to 1800 m (0' to 6000') 5°C to 30°C (41°F to 86°F) from 1800 m to 3000 m (6000' to 9800') Fan mode Automatic from 0 m to 2000 m (0' to 6500') Manually set to High using the service menu from 2000 m to 3000 m (6500' to 9800')

  • Page 6: Physical Dimensions

    S P E C I F I C A T I O N S SMART Board interactive whiteboard system – Model 480iv Physical dimensions Right side view Front view 130 .2 cm (51 1 /4") 160 .5 cm (63 1 /4") 156 .5 cm (61 5 /8") "...
