Lightolier Lytespan 83W7 Specification

Page 1 of 2
5
Ordering Information
Catalog No. Finishes
83W7WH Matte White
83W7BK
Matte Black
83W7AL Metallic Aluminum
Features
1. Housing: .10" thick extruded aluminum body with die cast end caps.
2. Vertical Pivot: 0 - 180° vertical adjustment.
3. Horizontal Pivot: Die cast track adapter with positive infinite rotation.
4. Track Attachment Fitting: Molded polycarbonate; rotates into track.
5. Power Connector: 5kv rated with insulated pins, connects to ballast
module. Keyed for polarity.
6. End Caps: Die-cast aluminum.
7. Socket: 5kv rated ceramic body socket with nickel plated lamp contacts.
Accessories
83EW18WH, BK, AL 18" Extension Wand
83EW48WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Extension Cord
83PCWH, BK Pipe Clamp
83MPTWH, BK Mounting Bracket
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • E0610

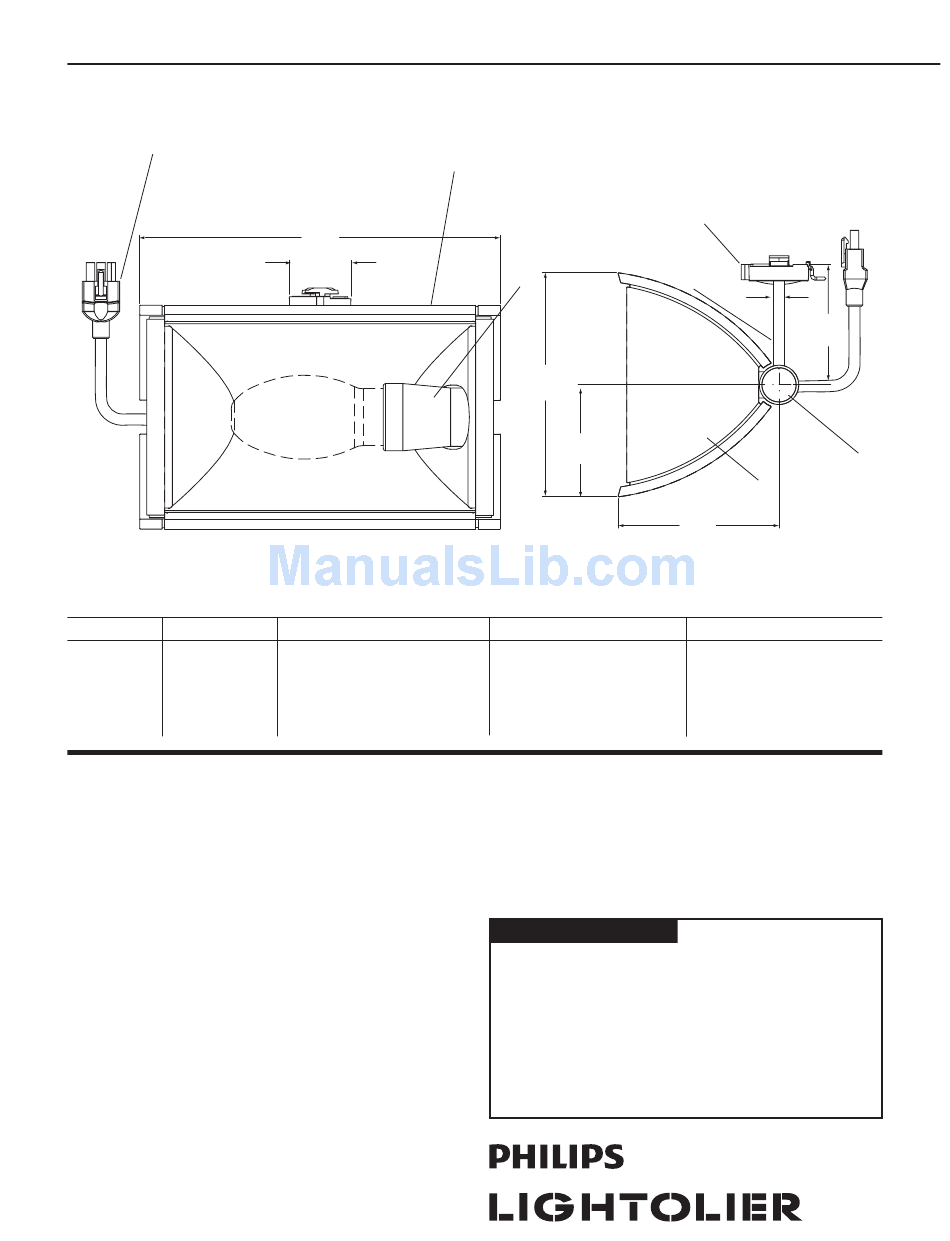

PowerArc Modular ED-17 Metal Halide Wall Washer Open-Rated For Protected Lamp
9 1/8"
(232mm)
1 9/16"
(40mm)
Track Mountings
All Lytespan Track systems and Multi-
®
point. All PowerArc ™ Modular canopies,
extension* wands, mounting brackets
or pipe clamps. Not compatible with
ProSpec or ATOM .
® ®
*Use only w/83CY70E
}
Compatible with
83B70E ballast only
Lytespan Track Lighting System
1
7
5 11/16"
(144mm)
2 7/8"
(73mm)
Ballast Module
Use one of:
83B70SE 83CY70E
83B10E
83B70E
Electrical
See ballast module spec sheet.
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
83W7
4
3
ø 9/32"
(7mm)
3 1/16"
(78mm)
2
6
4 1/8"
(105mm)
Lamp
ED-17 or E-17 Clear, Protected
Ceramic Metal Halide, 100W Max.
(For Open Luminaires)
Type:
