Lightolier Lytespan 83W7U Specification

Page 1 of 2
5
Ordering Information
Catalog No. Finishes
83W7UWH
Matte White
83W7UBK Matte Black
83W7UAL Metallic Aluminum
Features

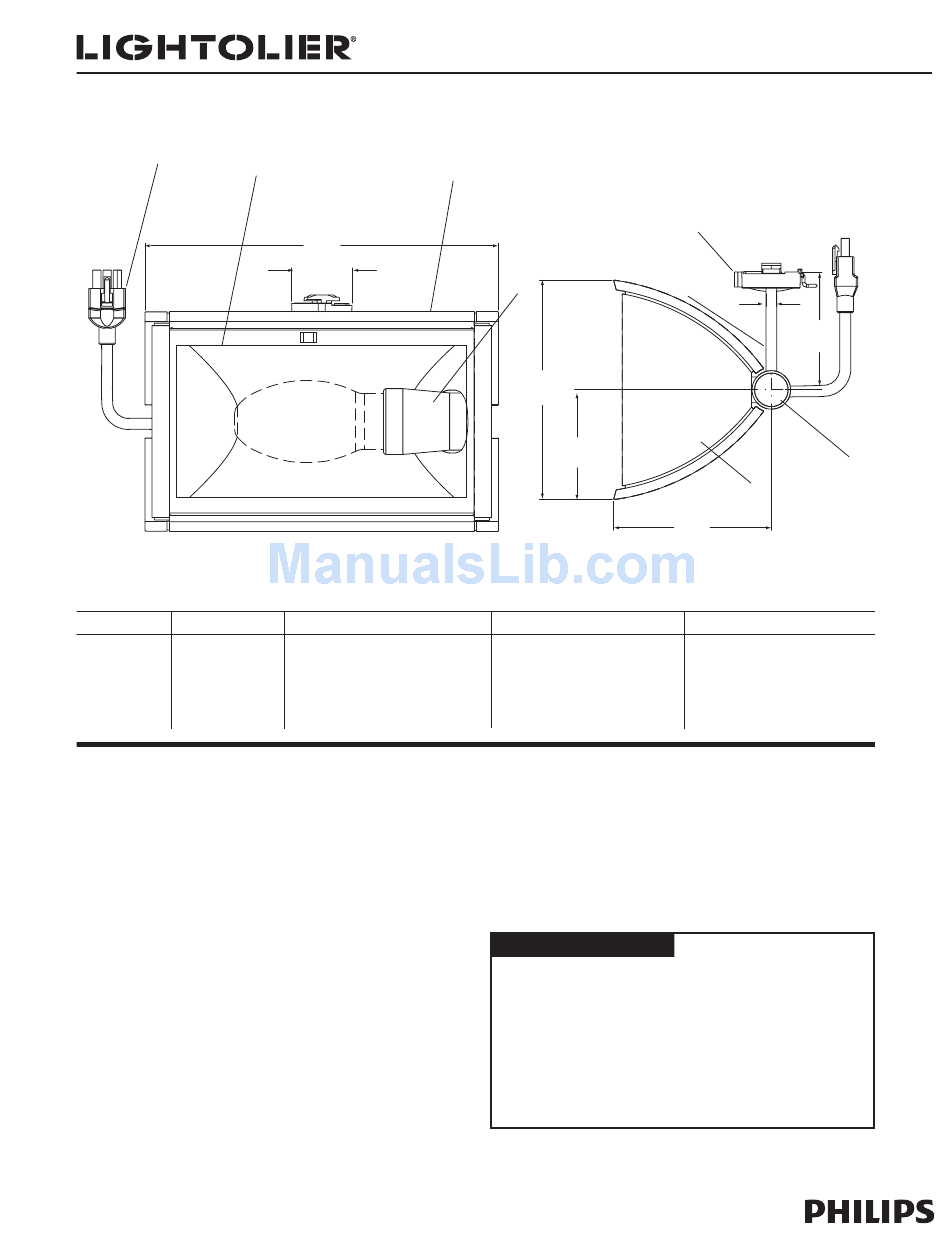

1. Housing: .10" thick extruded aluminum body with die cast end caps.
2. Vertical Pivot: 0 - 180° vertical adjustment.
3. Horizontal Pivot: Die cast track adapter with positive infinite rotation.
4. Track Attachment Fitting: Molded polycarbonate; rotates into track.
5. Power Connector: 5kv rated with insulated pins, connects to ballast
module. Keyed for polarity.
6. End Caps: Die-cast aluminum.
7. Socket: 5kv rated ceramic body socket with nickel plated lamp contacts.
8. Safety Lens Assembly: Tempered 1/8" glass. Pivoting assembly for easy
hands free relamping.
Accessories
83EW18WH, BK, AL 18" Extension Wand
83EW48WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Extension Cord
83PCWH, BK Pipe Clamp
83MPTWH, BK
Mounting Bracket
Lightolier is a Philips group brand
Lytespan
PowerArc
™
8
9 1/8"
(232mm)
1 9/16"
(40mm)
Track Mountings
All Lytespan Track systems and Multi-
®
point. All PowerArc Modular canopies,
™
extension* wands, mounting brackets
or pipe clamps. Not compatible with
ProSpec or ATOM .
® ®
*Use only w/83CY70E, 83B70SE
}
Compatible with 83B70E,
83B10E, 83CY70E, 83B70SE
ballasts only
Track Lighting System
®
Modular ED-17 Metal Halide Wall Washer Unprotected Lamp
1
7
5 11/16"
(144mm)
2 7/8"
(73mm)
Ballast Module
Use one of:
83B70E 83CY70E
83B10E 83B70SE
Electrical
See ballast module spec sheet.
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • E0309
83W7U
Enclosed-Rated For Unprotected Lamp
4
3
ø 9/32"
(7mm)
6
4 1/8"
(105mm)
Lamp
ED-17 or E-17 Clear,
Ceramic Metal Halide, 100W Max.
Type:
3 1/16"
(78mm)
2
