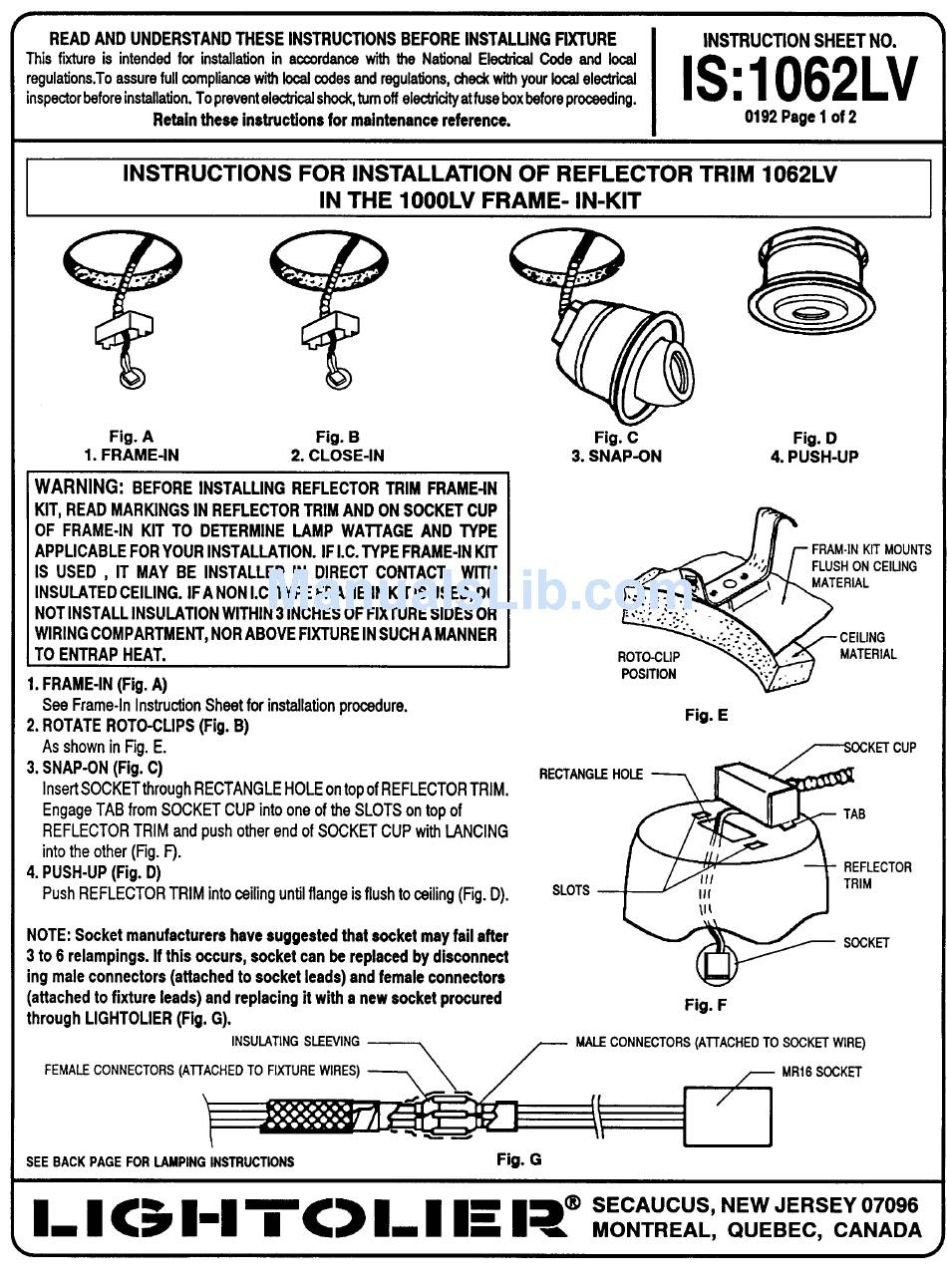

Lightolier IS:1062LV Instruction Sheet

WARNING:
BEFORE INSTALLING REFLECTOR TRIM FRAME4N
KIT, READ MARKINGS IN REFLECTOR TRIM AND ON SOCKET CUP
OF FRAME-IN KIT TO DETERMINE LAMP WAllAGE AND TYPE
APPLICABLE FOR YOUR INSTALLATION. IF I.C. TYPE FRAME-IN KIT
IS USED, IT MAYBE INSTALLED IN DIRECT CONTACT WITH
INSULATED CEILING. IFA NON LC.TYPE FRAME-IN KIT IS USED, DO
NOT INSTALL INSULATION WITHIN 3 INCHES OF FIXTURE SIDES OR
WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH A MANNER
TO ENTRAP HEAT.
w
Y
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALUNG FtXTURE
INSTRUCTION SHEET NO.
This fixture is intendedfor installationin accordancewith the National ElectricalCode and local
regulations.To assurefull compliance with localcafes and regulations, c heckwithyour localelectrical
inspector b eforeinstallation. T opreventelectrical s hock,turnoff electricity atfuseboxbeforeproceeding.
IS:1062LV
Retain these instructions for maintenance reference.
0192 Page 1 of 2
INSTRUCTIONS
FOR INSTALLATION OF REFLECTOR TRIM 1062LV
IN THE 10OOLV FRAME- IN-KIT
?? s
Fig. A Fig. B Fig. C
Fig. D
1. FRAME-IN
2. CLOSE-IN
3. SNAP-ON
4. PUSH-UP
FRAM-INKIT MOUNTS
FLUSHON CEIUNG
.,. . .. :.,- . . . .
ROTO-CUP
1.FRAME-IN (Fig. A)
POSITION
See Frame-In InstructionSheet for installationprocedure.
2, ROTATE ROTO-CLIPS (Fig. B)
Fig.
E
As shown in Fig. E.
3, SNAP-ON (Fig. C)
RECTANGLEHOLE
lnsertSOCKETthrough RECTANGLEHOLEontopof REFLECTORTRIM.
EngageTAB from SOCKET CUP into one of the SLOTS on top of
REFLECTORTRIM and push other end of SOCKET CUP with LANCING
into the other (Fig. F).
4. PUSH-UP (Fig. D)
Push REFLECTORTRIM into ceiling until flange is flush to ceiling (Fig. D).
SLOTS
TRIM
\l (
NOTE: Socket manufacturers have suggested that socket may fail after
3 to 6 relampings. If this occurs, socket can be replaced by disconnect
SOCKET
ing male connectors (attached to socket leads) and female connectors
(attached to fixture leads) and replacing it with a new socket procured
through LIGHTOLIER (Fig, G).
Fig. F
INSULATINGSLEEVING MALE CONNECTORS(AllACHED TO SOCKETWIRE)
FEMALE CONNECTORS(ATTACHEDTO FIXTUREWIRES)
- ~@MR''"KH
SEE BACK PAGE FOR IAMPING INSTRUCTIONS
Fig. G
