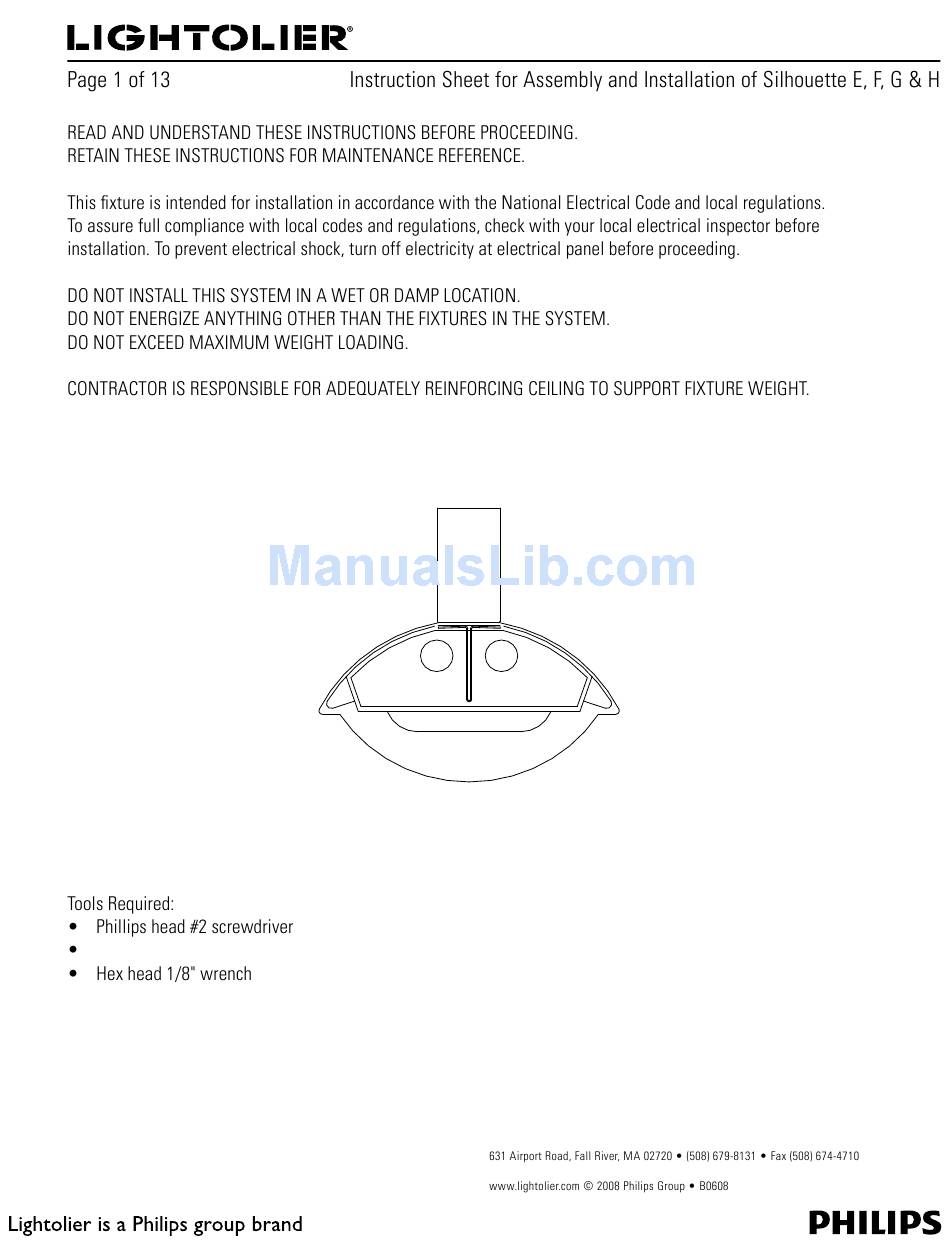

- Page 1 IS-SIL_E-H Lighting Systems Silhouette H fixture shown. Slot head screw driver We reserve the right to change details of design, materials and finish.
- Page 2 IS-SIL_E-H Lighting Systems TABLE OF CONTENTS ...3 ...7 ...11 ...12 ...13 We reserve the right to change details of design, materials and finish.
- Page 3 Ballast Cover Ballast Ballast Bracket Mounting Extrusion Bracket Mounting Plate Socket Socket Bracket End Cap Lighting Systems SAMPLE PART LIST We reserve the right to change details of design, materials and finish. IS-SIL_E-H Housing Extrusion Reflector Louver Socket Sheet Metal Housing...
- Page 4 Ballast Cover Ballast Ballast Bracket Mounting Extrusion Bracket Mounting Plate Socket Socket Bracket Lighting Systems SAMPLE PART LIST We reserve the right to change details of design, materials and finish. IS-SIL_E-H Housing Extrusion End Cap Socket Bracket Socket Diffuser...
- Page 5 Ballast Ballast Bracket Ballast Cover Mounting Extrusion Bracket Mounting Plate Perf Housing Socket End Cap Socket Bracket Lighting Systems SAMPLE PART LIST We reserve the right to change details of design, materials and finish. IS-SIL_E-H Housing Extrusion Diffuser Reflector Louver...
- Page 6 Ballast Cover Ballast Ballast Bracket Mounting Extrusion Bracket Mounting Plate Perf Housing Socket End Cap Socket Bracket Lighting Systems SAMPLE PART LIST We reserve the right to change details of design, materials and finish. IS-SIL_E-H Housing Extrusion Diffuser Reflector Louver...
-
Page 7: Lighting Systems
IS-SIL_E-H Lighting Systems SAMPLE RUNS 5/8” 4’ Joiner 48” 5/8” 1 1/4” 8’ Joiner 96” Power Feed End Set Cable Assembly 48” 96” 96” 8’ Joiner 8’ Joiner 4’ Joiner 20 1/8” We reserve the right to change details of design, materials and finish. -
Page 8: Begin Installation
Assembly with Coupler Detailed in Fig. 1 End Set END CONNECTION Step 1. Quick Connects IS-SIL_E-H Lighting Systems Detailed in Fig. 2 We reserve the right to change details of design, materials and finish. Detailed in Fig. 3 Figure 1... - Page 9 JOINT CONNECTION Step 2. Intermediate Cable Assembly with Coupler Lighting Systems Figure 2a Figure 2c Figure 2e We reserve the right to change details of design, materials and finish. IS-SIL_E-H Color Coded Quick Connects Figure 2b Figure 2d...
- Page 10 Safety Note: Be sure that all wires are not pinched by connection components when sliding parts together. If wires are pinched, the fixture could short or a fire hazard could occur. Lighting Systems END CONNECTION We reserve the right to change details of design, materials and finish. IS-SIL_E-H Figure 3...
- Page 11 CANOPY DETAIL - SLOT TEE Caddy Clip Slot Tee 1/4-20 Stud 1/4-20 Coupling IS-SIL_E-H Lighting Systems Support Cable (By Others) Standard Slot Tee (By Others) Strain Relief Canopy 4-1/2” Ø SJT Power Cord We reserve the right to change details of design, materials and finish.
- Page 12 CANOPY DETAIL - STANDARD 1" TEE Standard 1” Tee Caddy Clip 1/4-20 Stud 1/4-20 Couplings IS-SIL_E-H Lighting Systems Support Cable (By Others) Standard 1” Tee (By Others) Strain Relief Canopy 4-1/2” Ø SJT Power Cord We reserve the right to change details of design, materials and finish.
- Page 13 IS-SIL_E-H Lighting Systems CANOPY DETAIL - JUNCTION BOX Junction Box (By Others) 1/4-20 Stud Strain Relief #8-32 Screws (By Others) Canopy 4-1/2” Ø SJT Power Cord 1/4-20 Coupling We reserve the right to change details of design, materials and finish.
