Lightolier Lytecaster 1062LV Specification

Page 1 of 2
6 5/8"
1062LV/1000LV
Standard MR16
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

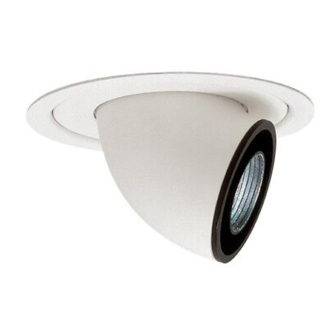

Reflector Trim
1062LV
Matte White
Features
1. Housing: Hydroformed aluminum, .040" thick (18 ga.): matte white trim
flange.
2. Elbow: Seamless; die cast aluminum with stepped conical baffle for low
brightness. Matte white finish outside; matte black inside.
3. Support Ring Assembly: Provides 358° horizontal rotation and 0° to 70°
vertical adjustment. Matte white finish.
4. Frame-In Kit: (1000LV standard frame shown) Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Options & Accessories
Retaining Clips: 1955 - For Installing in Existing Ceiling.
MR16 Framing Projector: 6497 - Attaches to elbow
Extra Wide Trim Flange: 1957 - 7" Outside diameter.
MR16 Replacement Socket: 1975A
Lytecaster
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit Ceiling Type
1000LV Non-IC
1000LVR Non-IC Remodeler
1000LVE1
1000LVE2
1000LVRE1
1000LVNT
Non-IC Remote Trans
1004ICV/N
AirSeal
1000ICV IC
1920LV (1002P1) Conversion Kit
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • G0811
Recessed Downlighting
®
5" Aperture Low Voltage Elbow Reflector Trim
7 1/4"
6 5/8"
Low Voltage
Lamping
42W - 75W MR16
20W - 65W MR16
® IC 20W - 50W MR16
20W- 35W MR16
a Genlyte company
1062LV
6 5/8"
1062LV/1000LVNT
MR16 Remote
Transformer
1062LV/1004ICV/N
0
Insulated Ceiling
1062LV/1000LVR
Remodeler/Non-IC
Height
6 5/8"
6 5/8"
7 1/4"
7 5/16"
Type:
www.lightolier.com
70˚
™ AirSeal ®
