Faceplate

Faceplate
The faceplate covers the DEFINITY AUDIX system's internal hardware
components. Customers and technicians can perform several
administration and maintenance procedures using four simple interfaces
on the faceplate:
Three light-emitting diodes (LEDs) that report the system's status
Two recessed maintenance buttons that can shut down or reset
the system
A slot to insert and remove MO disks
A securing latch that fastens the DEFINITY AUDIX system to the
switch

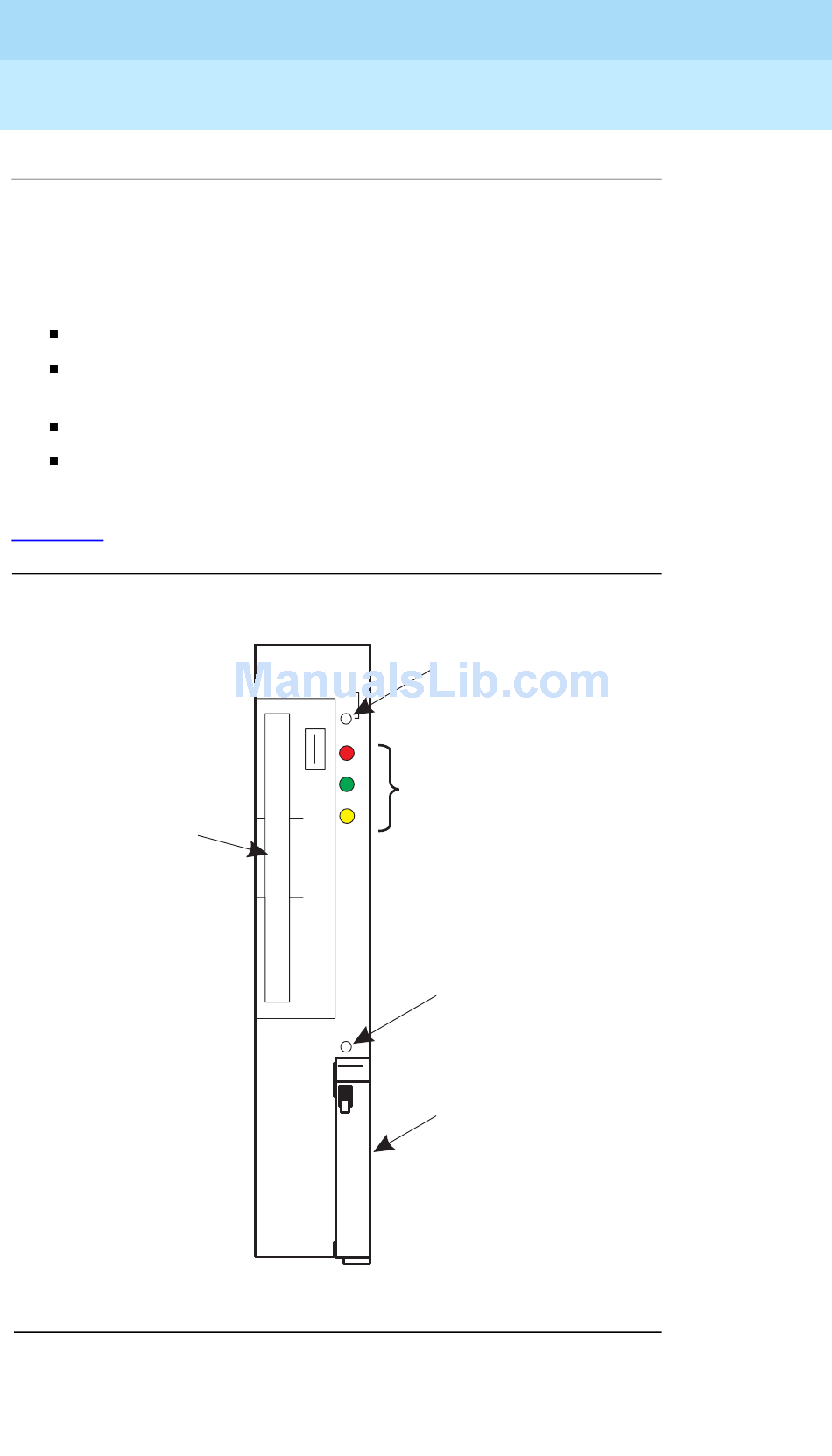

Figure 2-5 shows the system's faceplate.
.
MO disk
drive door
Figure 2-5. Faceplate
Emergency
Reset button
Emer Reset
LEDS
Shutdown
button
Shutdown
Securing latch
fpdx568p KLC 021999
