GAPAB
PERFECT AIR AIR PURIFIER FOR FAN COILS
SIZES 1620, 2020 AND 2420
NOTE:
Read the entire instruction manual before starting the
install.
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION
Congratulations for selecting the Perfect Air Air Purifier for your
home comfort system! The Perfect Air
remove and kill airborne germs and allergens, including viruses,
bacteria, and mold spores. The Perfect Air Air Purifier is a
cornerstone of Bryant's Healthy Home Solutions for providing
healthier, cleaner air in your home.
HOW IT WORKS
The Perfect Air Air Purifier provides extremely high filtration
performance while killing captured contaminants, including
viruses, bacteria, and mold spores. The Perfect Air Air Purifier
treats the entire air- -stream through a state of the art, three- -stage
process, exclusive to Bryant.
In stage one, the particles are electrically charged by a
precision- -point ionization array as they enter the Perfect Air Air
Purifier.
In stage two, the charged particles are electrically attracted to the air
purification cartridge, which is located within an electric field.
In stage three, captured particles are killed by electrical current
flow and ion bombardment.
The Perfect Air Air Purifier is CSA certified for shock and
electrical fire hazard only.
La Perfect Air Air Purifier certification CSA vise uniquement les
risques de choc electrique et.
Installation Instructions
PAGE
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
Air Purifier is proven to
1
1
1
2
3
6
6
8
9
11
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory- -authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. When you see this symbol
the unit and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety- -alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal injury or death. WARNING
signifies hazards, which could result in personal injury or death.
CAUTION is used to identify unsafe practices, which may result
in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.

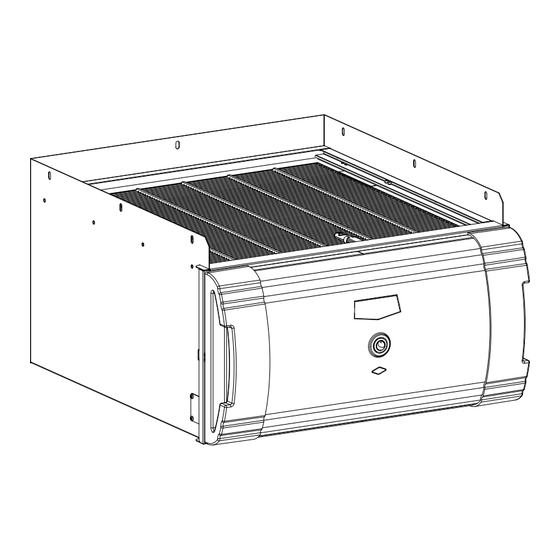

Fig. 1 - - GAPAB Unit
A06367
on
Advertisement
Table of Contents
Related Manuals for Bryant GAPAB
Summary of Contents for Bryant GAPAB
-
Page 1: Table Of Contents
The Perfect Air Air Purifier is a distributor or branch for information or assistance. The qualified cornerstone of Bryant’s Healthy Home Solutions for providing installer or agency must use factory- -authorized kits or accessories healthier, cleaner air in your home. -
Page 2: Application Considerations
Transitions CAUTION If the return air duct or fan coil openings do not fit the Perfect Air Air Purifier cabinet openings, gradual transitions are recommended to reduce air turbulence and maximize efficiency. No more than 20 PERSONAL INJURY HAZARD degrees (about 4 in. per running ft.) of expansion should be used Failure to follow this caution may result in personal injury. -
Page 3: Installation
INSTALLATION c. The location of the Perfect Air Air Purifier should be readily accessible. Enough room should be provided for periodic re- Step 1 — Check Perfect Air Air Purifier Components placement of the air purifier cartridges. CAUTION Step 3 — Mount Cabinet a. - Page 4 c. Connect the power cord and the flow sensor cord to the power supply connector and the flow sensor connector (see Fig. 7 and Fig. 8). A06392 A06414 Fig. 6 - - Use of Return Duct Adapters Fig. 7 - - Flow Sensor Cable Installed WARNING ELECTRIC SHOCK AND UNIT DAMAGE HAZARD Failure to follow this warning could result in personal injury...
- Page 5 NOTICE WARNING ELECTRICAL SHOCK HAZARD AIR FLOW SENSOR CABLE OR AIR FLOW SENSOR BYPASS PLUG MUST BE CONNECTED TO THE Failure to follow this warning could result in personal POWER SUPPLY IN ORDER TO ACTIVATE THE AIR injury or death. PURIFIER Before installing or servicing system, always turn off main power to system.
-
Page 6: Start- -Up And Operation
START- -UP AND OPERATION Purifier cartridge. This maintenance reminder can be based on either the TrueSenset dirty filter algorithm or time. The in- Checking Air Purifier Operation staller should use their discretion to select the most appropriate WARNING option based on the initial system static pressure. Maximizing Performance ELECTRICAL SHOCK... - Page 7 Step 5 — Slide out the enhancement module assembly and safety Step 7 — Gently stroke the ionization pins on the top plane of screen. each bar with enough brush depth to hit front and back tips of the points in the ionization array. Use a gentle back and forth brushing CAUTION motion to clean any small accumulations from the tips of the points.
-
Page 8: Troubleshooting
TROUBLESHOOTING NOTE: A magnet in the door (see Fig. 8) is used to activate a safety switch in the power supply when the door is installed. The CAUTION power supply will not energize the air purifier unless the safety switch is activated. Step 2 —... -
Page 9: Specifications And Dimensions
SPECIFICATIONS AND DIMENSIONS Table 1 – Specifications and Dimensions SPECIFICATIONS GAPABXBB1620 GAPABXBB2020 GAPABXBB2420 Color Taupe Metallic Taupe Metallic Taupe Metallic Cabinet Material 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel Electrical 208/230v/60Hz 208/230v/60Hz 208/230v/60Hz Maximum Airflow (CFM) 1350... -
Page 11: Warranty
Limited Warranty for Air Purifier FOR WARRANTY SERVICE OR REPAIR: Contact the installer. You may find the installer’s name on the equipment or in your Owner’s Packet. For help, contact: CAC / BDP, Consumer Relations, P.O. Box 4808, Syracuse, New York 13221, Phone 1-800-227-7437 PRODUCT REGISTRATION: You can register your product online at www.cac-bdp.com. - Page 12 39004DP452 01/10 Catalog No: IIGAPAB---03 2010 Bryant Corp. D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in China Edition Date: 02/10 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
