American DJ

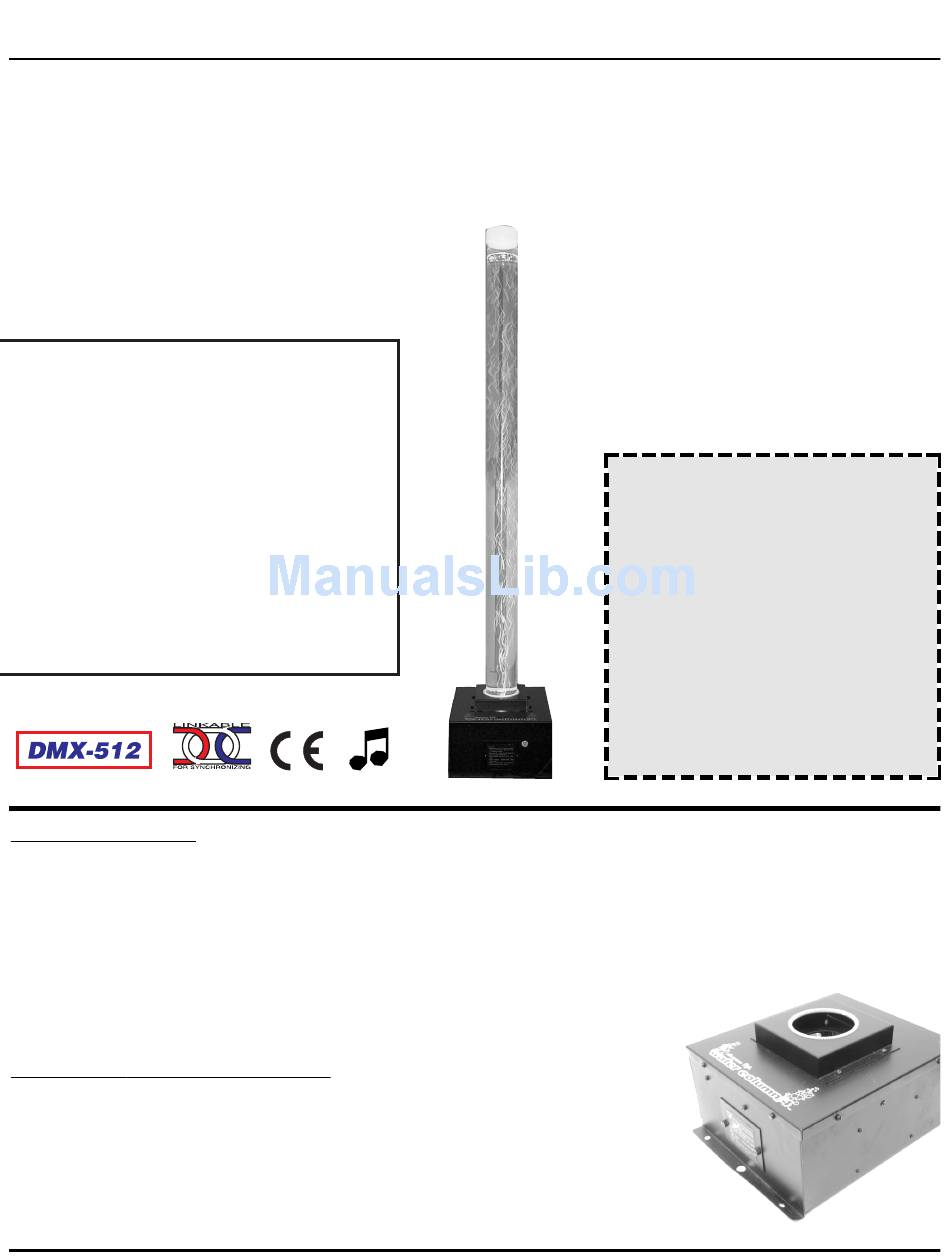

SPECIFICATIONS:
MODEL - Water Column™
Weight:
16 lbs.Without water
Size:
53.5" x 11" x 10"
Lamps:
EXN 12V 50W
Fuse:
3A
Supply Voltage: 120V
Tube capacity: Approx. 2.5 gal
Tube Dimensions: 48" X 3.25"
Colors: 8 plus White
INTRODUCTION

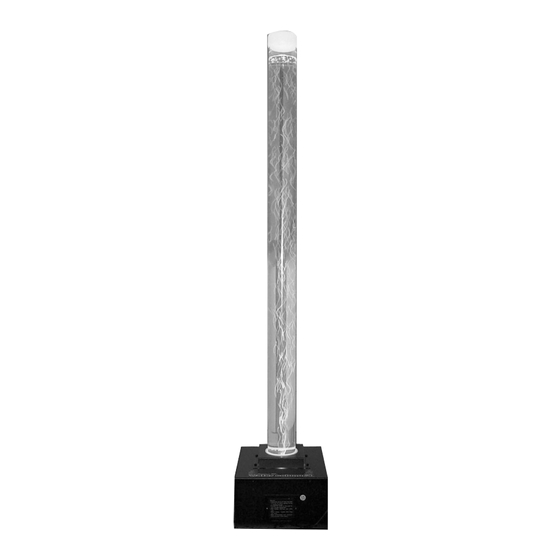

Congratulations on your purchase of the American DJ Water Column/4™. This unique piece adds a
dazzling effect to Clubs, Bars, Bowling Centers, and Roller Rinks. The Water Column/4™ is an intelli-
gent color changer that can be operate with a standard DMX controller or in sound active and stand
alone modes. This unit can be set to scroll through it's 8 colors (plus white), or set to a particular color
through the use of a standard DMX controller such as the American DJ
DMX Operator™. This unit is sound active and the bubble intensity can
be adjusted.
ASSEMBLY INSTRUCTIONS
The Water Column/4™ is shipped in two boxes, one (1) box contains
the water tube and the other contains the water column base (see figure
1), warranty card, and owners manual. Carefully unpack the base and
water tube from their respective boxes.
Affordable Quality Lighting Products from
®
Water Column/4
Assembly Instructions
American DJ
Los Angeles, CA. 90058 USA Page 1
®
™
CAUTION!
Read instructions before installing
or plugging unit in.
HALOGEN LAMP WARNING!
This fixture is fitted with halogen
lamps which are highly suscepti-
ble to damage if improperly han-
dled. Never touch lamp with bare
fingers as the oil from your
hands will shorten lamp life.
Also, never move fixture until
lamp has had ample time to cool.
Remember, lamps are not cov-
ered under warranty conditions.
Figure 1
Advertisement
Related Manuals for American DJ Water Column/4
Summary of Contents for American DJ Water Column/4
- Page 1 INTRODUCTION Congratulations on your purchase of the American DJ Water Column/4™. This unique piece adds a dazzling effect to Clubs, Bars, Bowling Centers, and Roller Rinks. The Water Column/4™ is an intelli- gent color changer that can be operate with a standard DMX controller or in sound active and stand alone modes.
- Page 2 When all the screws have been removed locate the plastic air tube located inside the center hole of the water base and pull it out. (see fig- ure 5). Figure 5 American DJ Affordable Quality Lighting Products from Los Angeles, CA. 90058 USA Page 2 ®...
- Page 3 Carefully replace the tube collar by sliding it through the top of tube. Figure 9 American DJ Affordable Quality Lighting Products from Los Angeles, CA. 90058 USA Page 3 ®...
-
Page 4: Power Supply
Master/Slave: This function allows you to connect up to eight (8) units together and run them to internal programs without the use of an external controller. American DJ Affordable Quality Lighting Products from Los Angeles, CA. 90058 USA Page 4... - Page 5 This function also allows you to use your fixtures as spot lights. This function will allow you to control each individual fixture’s traits with a standard DMX 512 con- troller such as the American DJ DMX Operator™ and Show Designer . The Water Column/4™ uses one (1) DMX channel to operate.
- Page 6 30 min ON/ 10 min OFF duty cycle. Allow the unit to cool before attempting to replace the bulb. Never open the unit when it is in use. Always disconnect the main power before ser- vicing or replacing lamp. Refer all service issue to authorized American DJ dealer. Lamp replacement: Disconnect the units main power supply before attempting any type of service.
- Page 7 1 2 3 9 10 11 12 SLAVE 15 1 2 3 9 10 11 12 SLAVE 16 1 2 3 9 10 11 12 American DJ Affordable Quality Lighting Products from Los Angeles, CA. 90058 USA Page 7 ®...
