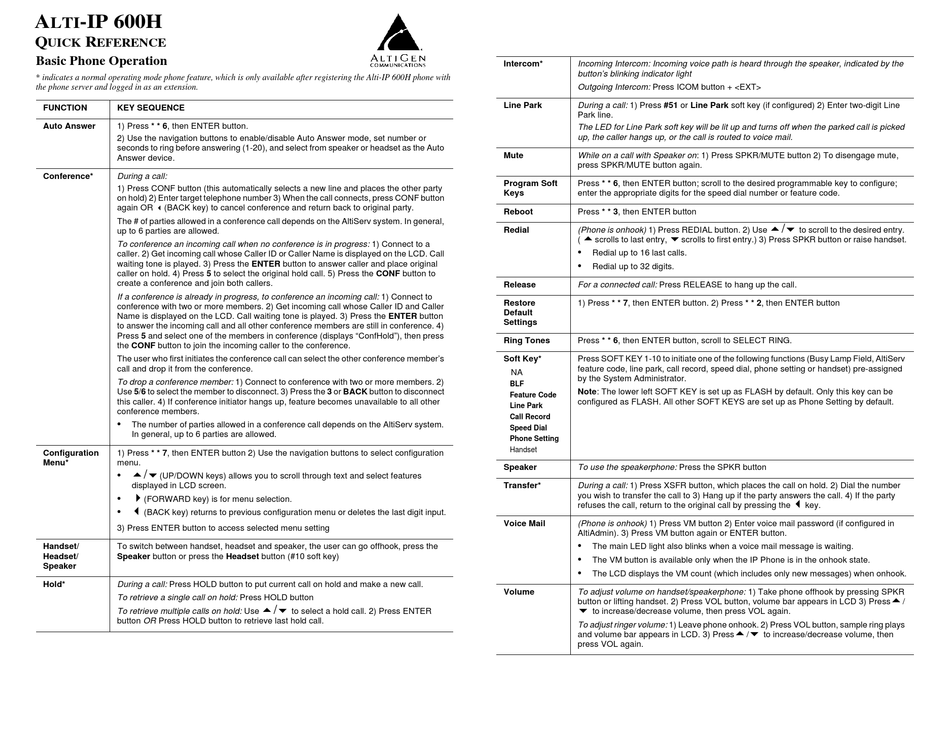

Altigen Alti-IP 600H Quick Reference

A -IP 600H
LTI
Q R
UICK EFERENCE

Basic Phone Operation

* indicates a normal operating mode phone feature, which is only available after registering the Alti-IP 600H phone with
the phone server and logged in as an extension.
FUNCTION KEY SEQUENCE
Auto Answer 1) Press * * 6, then ENTER button.
2) Use the navigation buttons to enable/disable Auto Answer mode, set number or
seconds to ring before answering (1-20), and select from speaker or headset as the Auto
Answer device.
Conference* During a call:
1) Press CONF button (this automatically selects a new line and places the other party
on hold) 2) Enter target telephone number 3) When the call connects, press CONF button
again OR !(BACK key) to cancel conference and return back to original party.
The # of parties allowed in a conference call depends on the AltiServ system. In general,
up to 6 parties are allowed.
To conference an incoming call when no conference is in progress: 1) Connect to a
caller. 2) Get incoming call whose Caller ID or Caller Name is displayed on the LCD. Call
waiting tone is played. 3) Press the ENTER button to answer caller and place original
caller on hold. 4) Press 5 to select the original hold call. 5) Press the CONF button to
create a conference and join both callers.
If a conference is already in progress, to conference an incoming call: 1) Connect to
conference with two or more members. 2) Get incoming call whose Caller ID and Caller
Name is displayed on the LCD. Call waiting tone is played. 3) Press the ENTER button
to answer the incoming call and all other conference members are still in conference. 4)
Press 5 and select one of the members in conference (displays "ConfHold"), then press
the CONF button to join the incoming caller to the conference.
The user who first initiates the conference call can select the other conference member's
call and drop it from the conference.
To drop a conference member: 1) Connect to conference with two or more members. 2)
Use 5/6 to select the member to disconnect. 3) Press the 3 or BACK button to disconnect
this caller. 4) If conference initiator hangs up, feature becomes unavailable to all other
conference members.
•
The number of parties allowed in a conference call depends on the AltiServ system.
In general, up to 6 parties are allowed.
Configuration 1) Press * * 7, then ENTER button 2) Use the navigation buttons to select configuration
Menu* menu.
"/#
•
(UP/DOWN keys) allows you to scroll through text and select features
displayed in LCD screen.
$
•
(FORWARD key) is for menu selection.
!
•
(BACK key) returns to previous configuration menu or deletes the last digit input.
3) Press ENTER button to access selected menu setting
Handset/ To switch between handset, headset and speaker, the user can go offhook, press the
Headset/ Speaker button or press the Headset button (#10 soft key)
Speaker
Hold* During a call: Press HOLD button to put current call on hold and make a new call.
To retrieve a single call on hold: Press HOLD button
To retrieve multiple calls on hold: Use
button OR Press HOLD button to retrieve last hold call.
"/#
to select a hold call. 2) Press ENTER
Intercom* Incoming Intercom: Incoming voice path is heard through the speaker, indicated by the
button's blinking indicator light
Outgoing Intercom: Press ICOM button + <EXT>
During a call: 1) Press #51 or Line Park soft key (if configured) 2) Enter two-digit Line
Line Park
Park line.
The LED for Line Park soft key will be lit up and turns off when the parked call is picked
up, the caller hangs up, or the call is routed to voice mail.
Mute While on a call with Speaker on : 1) Press SPKR/MUTE button 2) To disengage mute,
press SPKR/MUTE button again.
Program Soft Press * * 6, then ENTER button; scroll to the desired programmable key to configure;
Keys enter the appropriate digits for the speed dial number or feature code.
Reboot Press * * 3, then ENTER button
(Phone is onhook) 1) Press REDIAL button. 2) Use
Redial
" #
( scrolls to last entry, scrolls to first entry.) 3) Press SPKR button or raise handset.
•
Redial up to 16 last calls.
•
Redial up to 32 digits.
Release For a connected call: Press RELEASE to hang up the call.
Restore 1) Press * * 7, then ENTER button. 2) Press * * 2, then ENTER button
Default
Settings
Ring Tones Press * * 6, then ENTER button, scroll to SELECT RING.
Soft Key* Press SOFT KEY 1-10 to initiate one of the following functions (Busy Lamp Field, AltiServ
feature code, line park, call record, speed dial, phone setting or handset) pre-assigned
NA
by the System Administrator.
BLF
Note: The lower left SOFT KEY is set up as FLASH by default. Only this key can be
Feature Code
configured as FLASH. All other SOFT KEYS are set up as Phone Setting by default.
Line Park
Call Record
Speed Dial
Phone Setting
Handset
Speaker To use the speakerphone: Press the SPKR button
Transfer* During a call: 1) Press XSFR button, which places the call on hold. 2) Dial the number
you wish to transfer the call to 3) Hang up if the party answers the call. 4) If the party
refuses the call, return to the original call by pressing the
(Phone is onhook) 1) Press VM button 2) Enter voice mail password (if configured in
Voice Mail
AltiAdmin). 3) Press VM button again or ENTER button.
•
The main LED light also blinks when a voice mail message is waiting.
•
The VM button is available only when the IP Phone is in the onhook state.
•
The LCD displays the VM count (which includes only new messages) when onhook.
Volume To adjust volume on handset/speakerphone: 1) Take phone offhook by pressing SPKR
button or lifting handset. 2) Press VOL button, volume bar appears in LCD 3) Press
#
to increase/decrease volume, then press VOL again.
To adjust ringer volume: 1) Leave phone onhook. 2) Press VOL button, sample ring plays
and volume bar appears in LCD. 3) Press
press VOL again.
"/#
to scroll to the desired entry.
!
key.
"
/
" #
/ to increase/decrease volume, then
