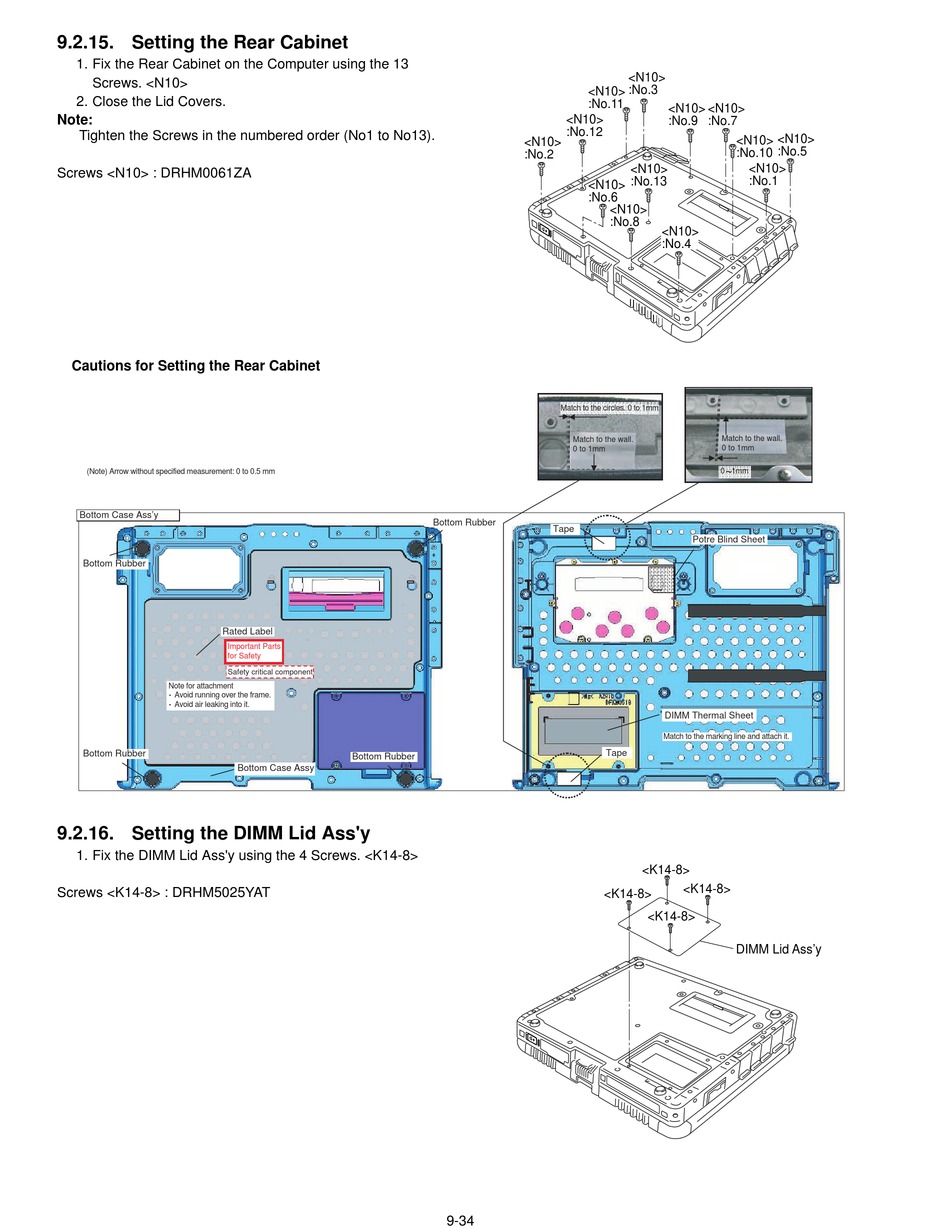

9.2.15. Setting the Rear Cabinet
1. Fix the Rear Cabinet on the Computer using the 13
Screws. <N10>
2. Close the Lid Covers.
Note:
Tighten the Screws in the numbered order (No1 to No13).
Screws <N10> : DRHM0061ZA
n Cautions for Setting the Rear Cabinet
(Note) Arrow without specified measurement: 0 to 0.5 mm
Bottom Case Ass'y
Bottom Rubber
Rated Label
Important Parts
for Safety
Safety critical component
Note for attachment
Avoid running over the frame.
Avoid air leaking into it.
Bottom Rubber
9.2.16. Setting the DIMM Lid Ass'y
1. Fix the DIMM Lid Ass'y using the 4 Screws. <K14-8>
Screws <K14-8> : DRHM5025YAT
Bottom Rubber
Bottom Case Assy
<N10>
:No.11
<N10>
:No.12
<N10>
:No.2
<N10>
:No.6
<N10>
:No.8
Match to the circles. 0 to 1mm
Match to the wall.
0 to 1mm
Bottom Rubber
Tape
Tape
<K14-8>
9-34
<N10>
:No.3
<N10> <N10>
:No.9
:No.7
<N10>
<N10>
:No.5
:No.10
<N10>
<N10>
:No.1
:No.13
<N10>
:No.4
Match to the wall.
0 to 1mm
0 1mm
Potre Blind Sheet
DIMM Thermal Sheet
Match to the marking line and attach it.
<K14-8>
<K14-8>
<K14-8>
DIMM Lid Ass'y
