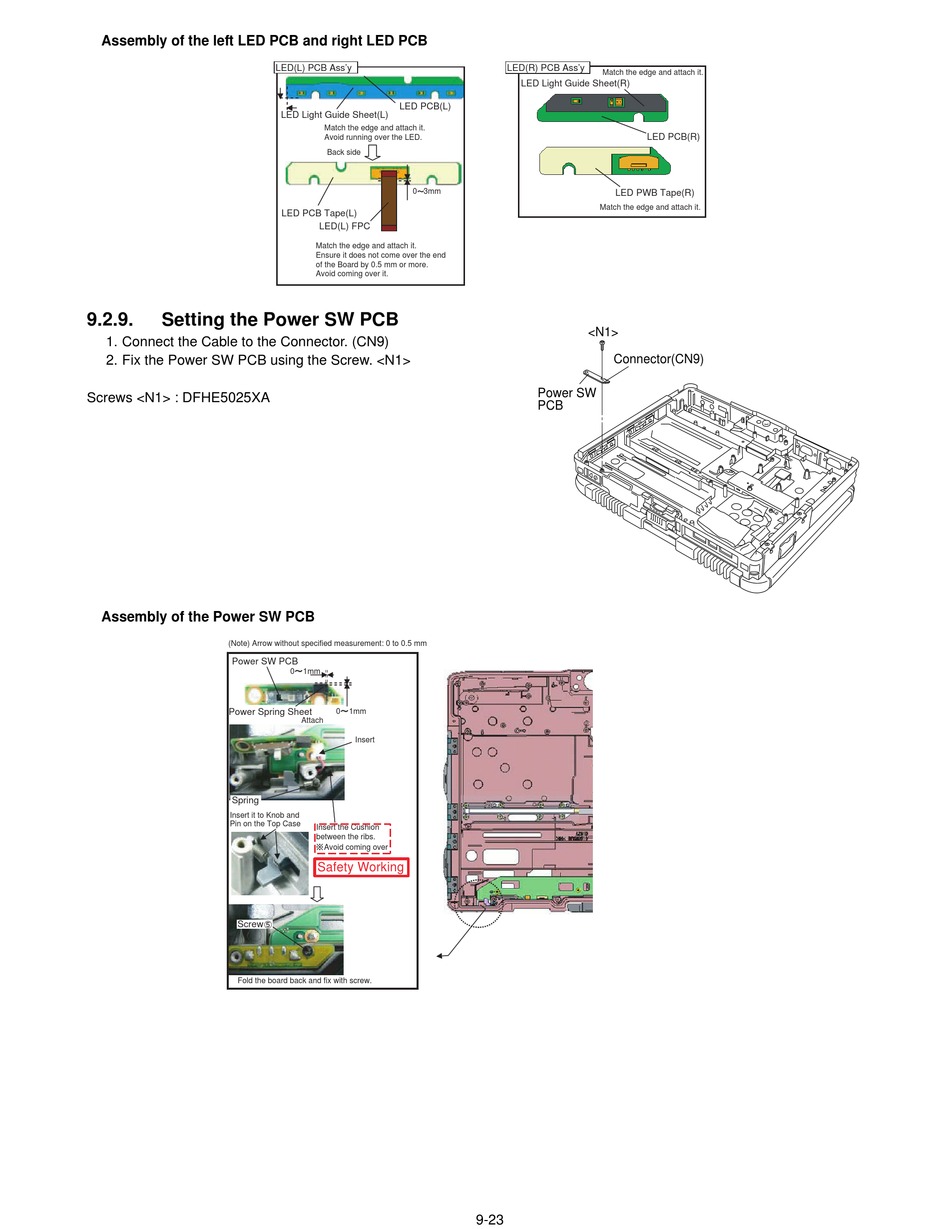

n Assembly of the left LED PCB and right LED PCB
9.2.9. Setting the Power SW PCB
1. Connect the Cable to the Connector. (CN9)
2. Fix the Power SW PCB using the Screw. <N1>
Screws <N1> : DFHE5025XA
n Assembly of the Power SW PCB
(Note) Arrow without specified measurement: 0 to 0.5 mm
Power SW PCB
Power Spring Sheet
Spring
Insert it to Knob and
Pin on the Top Case
Screw
Fold the board back and fix with screw.
LED(L) PCB Ass'y
LED PCB(L)
LED Light Guide Sheet(L)
Match the edge and attach it.
Avoid running over the LED.
Back side
0 3mm
LED PCB Tape(L)
LED(L) FPC
Match the edge and attach it.
Ensure it does not come over the end
of the Board by 0.5 mm or more.
Avoid coming over it.
0 1mm
0 1mm
Attach
Insert
Insert the Cushion
between the ribs.
Avoid coming over
Safety Working
LED(R) PCB Ass'y
Match the edge and attach it.
LED Light Guide Sheet(R)
LED PCB(R)
LED PWB Tape(R)
Match the edge and attach it.
<N1>
Connector(CN9)
Power SW
PCB
