Access Profile List
Access profiles allow you to establish criteria to determine whether the Switch will forward packets based on the information
contained in each packet's header.
The Switch supports four Profile Types, Ethernet ACL, IPv4 ACL, IPv6 ACL, and Packet Content ACL.
Creating an access profile is divided into two basic parts. The first is to specify which part or parts of a frame the Switch will
examine, such as the MAC source address or the IP destination address. The second part is entering the criteria the Switch will use
to determine what to do with the frame. The entire process is described below in two parts.
Users can display the currently configured Access Profiles on the Switch.
To view the following window, click ACL > Access Profile List (one access profile of each type has been created for explanatory
purposes):
To add an entry to the Access Profile List window, click the Add ACL Profile button. To remove all access profiles from this
table, click Delete All.
There are four Add Access Profile windows; one for Ethernet (or MAC address-based) profile configuration, one for IPv6
address-based profile configuration, one for IPv4 address-based profile configuration, and one for packet content profile
configuration.
The window shown below is the Add ACL Profile window for Ethernet:
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch

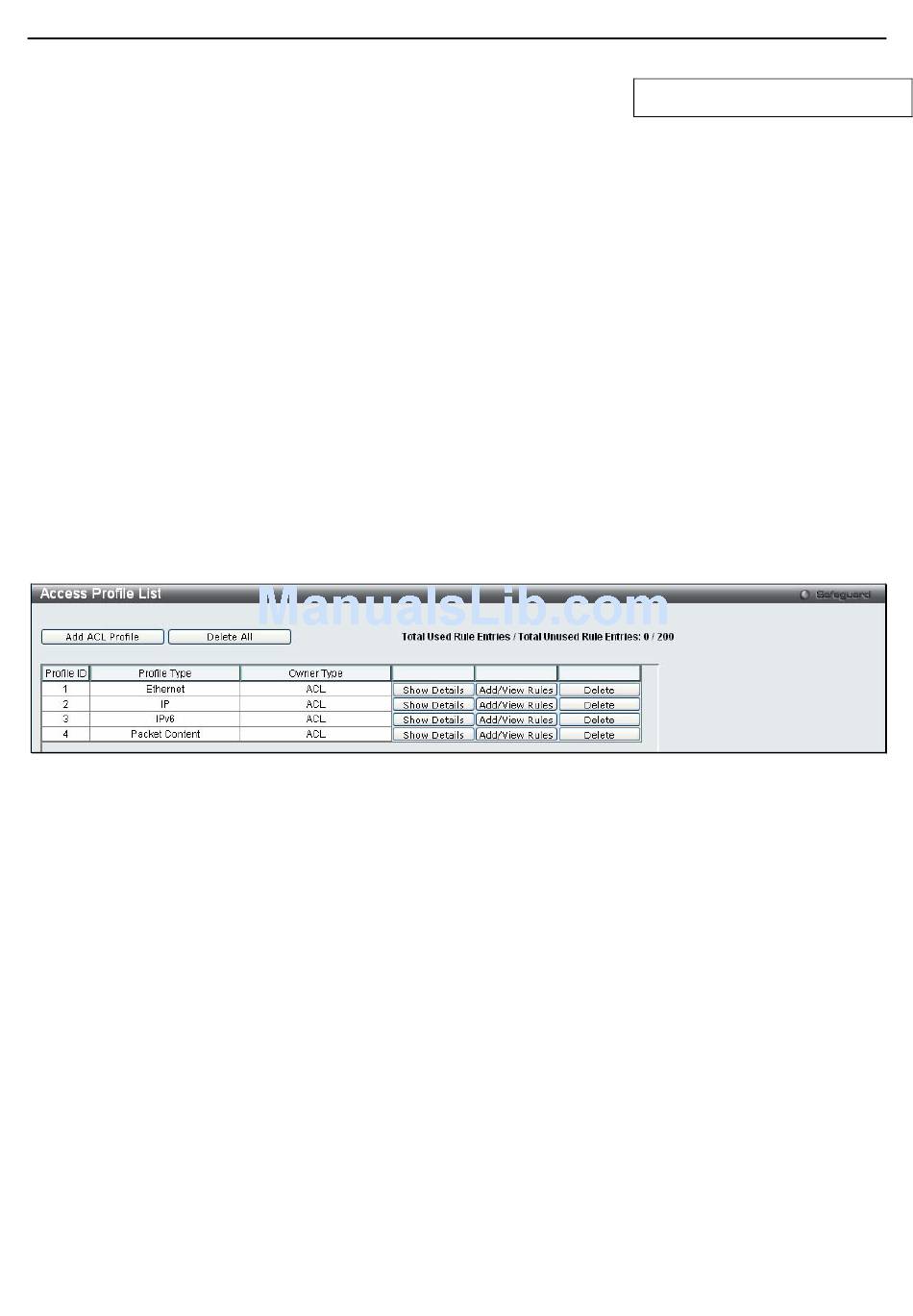

Figure 6 - 1. Access Profile List window
