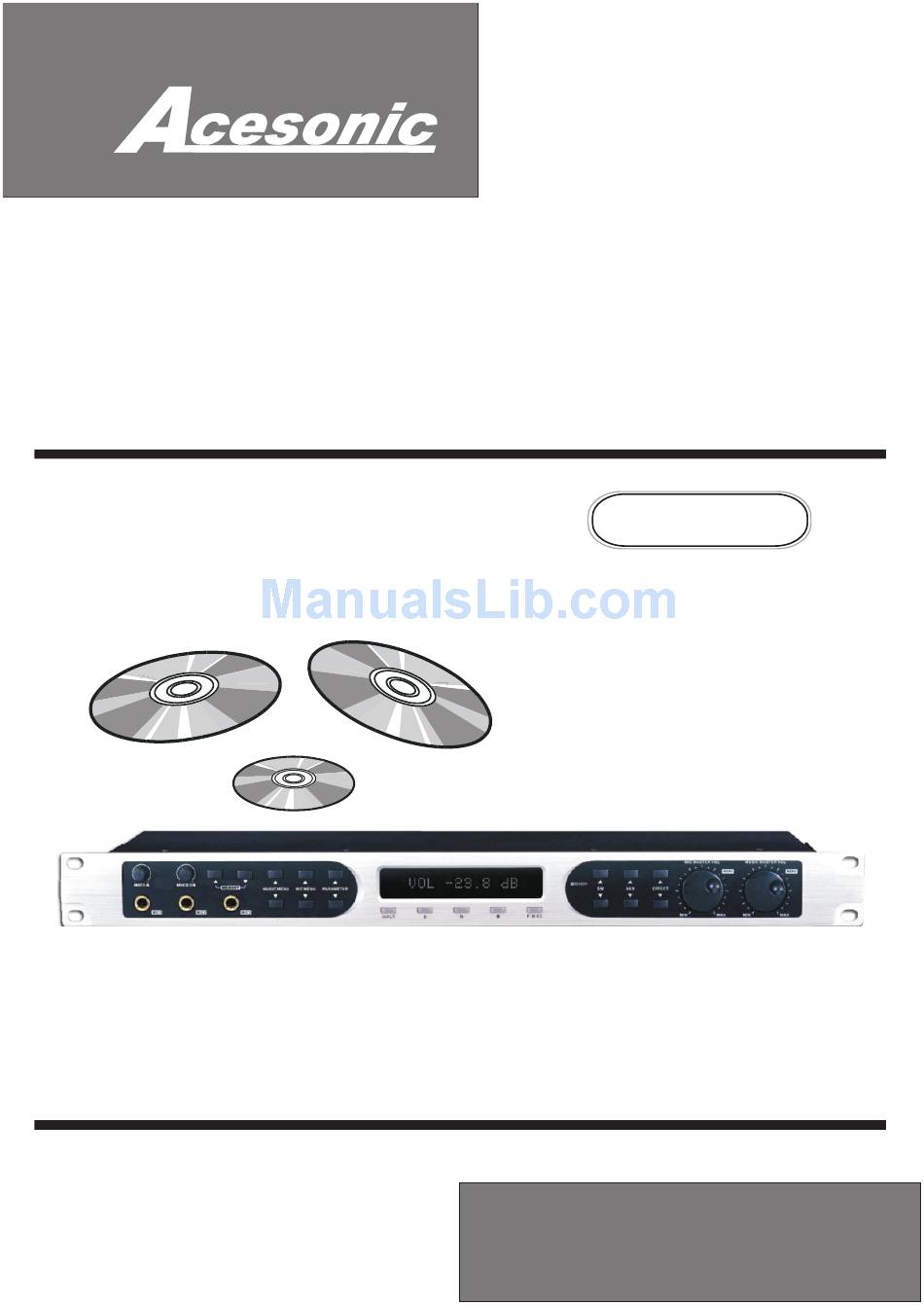

Professional DSP Karaoke Mixer
CAUTION:
To assure this player will work at its best, please
read this user's manual carefully before operation
and keep for future reference.
Acesonic Corp. City of Industry CA,U.S.A
Sale:(626)820-0645
Tech. Support:(626)820-0670
USER'S MANUAL
www.acesonic.com
KM-360
v2
Advertisement
Table of Contents
Related Manuals for Acesonic KM-360
Summary of Contents for Acesonic KM-360
- Page 1 Professional DSP Karaoke Mixer USER’S MANUAL KM-360 CAUTION: To assure this player will work at its best, please read this user’s manual carefully before operation and keep for future reference. www.acesonic.com Acesonic Corp. City of Industry CA,U.S.A Sale:(626)820-0645 Tech. Support:(626)820-0670...
- Page 2 Warnings, Cautions and Others Mises en garde, precautions et indications diverses For Canada/Pour le Canada FCC INFORMATION (U.S.A.) CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE 1.This equipment has been tested and found to SLOT,AND FULLY INSERT. comply with the limits for a Class B digital device, ATTENTION: POUR EVITER LES CHOCS pursuant to part 15 of the FCC Rules.
- Page 3 18. Overloading Important Safety instructions Do not overload wall outlets, extension cords, or integral 1. Read These Instructions. convenience receptacles as this can result in a risk of fire or electric shock. 2. Keep These Instructions. 3. Heed All Warnings. 19.
-
Page 4: Table Of Contents
Control Panel Lock/Unlock-----------------------------------------------Page 17 10.Menu Operation Music Control Menu-------------------------------------------------------Page 18 Microphone Control Menu------------------------------------------------Page 18 11. Troubleshooting ----------------------------------------------------------Page 19 12.Specification---- ----------------------------------------------------------Page 19 Package Includes: 1. Acesonic KM-360 Professional DSP Karaoke Mixer 2. User s Manual 3. Power Cable 4. Remote Control... -
Page 5: Features
FEATURES Feedback Eliminator - KM-360's real-time feedback eliminator processor was designed to provide state-of-the-art feedback elimination processing, while maintaining a simple control interface. You just select one of the 3 room sizes and it will automatically filter out howling feedback noise from the speakers. This is a necessary function for any venue that is looking for a professional sound environment or any KJ who are looking to prolong your speakers' life. -
Page 6: Features
FEATURES S/PDIF Digital Input - KM-360 has a coaxial input to carry digital audio signals from your player to the mixer. Using the S/PDIF connector, you can send the purest audio signal to the mixer without any RF interference noise. ... -
Page 7: Remote Control
Before Opertation Batteries installation of Remote Control Remote Control usage: Remote control will send out an IR signal as a command to control KM- 360. Please always face the front panel of KM-360 when using remote: INPUT FB-EX... -
Page 8: Remote Control
Remote Control Preset Memory Button Preset Memory Button #1 & #3 #2 & #4 Mute Button Feedback Eliminating Button. There are 3 different effect level and OFF to turn the effect off. Input Selecting Button Key Control Button Effect Level Control Button Master Microphone Volume Master Music Volume Control Menu Button... -
Page 9: Front Panel View
Front Panel View 9 10 11 12 INPUT FB-EX [1]Microphone Volume Control- for #1 & #A(rear) [2]Microphone Volume Control- for #2 & #B(rear) [3]Memory- Use these buttons to recall preset effect settings, to save preferred effect settings, or to reset to default settings. [4]Music Menu- To select amount music relative selections, see also P 10~13 &... -
Page 10: Rear Panel View
Rear Panel View [1] Main Power Switch [2] Power plug (AC 110V/50Hz) [3] Rs232 Port - To connect to computer, and use software(sale separately) to control KM-360. [4] Extra Remote Sensor port - To plug an external IR signal receiver(sale separately). -
Page 11: System Setup
System Setup Surrounding Front Left/Right Speakers Speakers Microphones Computer Power Cable Professional Amplifier S/PDIF Digital Input External IR Senser AUDIO OUT VIDEO OUT Power Subwoofer or Amplifier + subwoofer DVD/VOD Television Professional Amplifier... -
Page 12: Basic Operation
Operation Power on KM-360 Plug the power cable, and press the power switch in Pic#1; Power indicator at front panel will turn on, the LED screen shows KARAOKE(Pic#2). Then machine will do an auto detecting from all the inputs(Pic#3). When machine ready to work, Display will show like Pic#4, Mic means microphone volume, E stands for Echo volume, Music means music volume. -
Page 13: Music Menu Operation
Music Menu Operation Music EQ Setting: KM-360 allows to customize the EQ setting in following frequencies: 10KHz/3300Hz/1000Hz/330Hz/100Hz/60Hz Remote Use Up/Down buttons to find the EQ frequency Use Left/Right buttons to adjust the value SCART Key Control: To change music tone for karaoke purpose: &... -
Page 14: Subwoofer Reducer
Music Menu Operation Subwoofer Reducer: This function helps you reduce subwoofer volume when you are singing. This dynamic comes handy when a singer has low vocal range. Select “Subwoofer Reducer” from Music menu. Use parameter buttons to adjust the level(1~20). Use Up/Down buttons to find “Subwoofer Reducer”... -
Page 15: Music Auto Leveling
Music Menu Operation Music Auto Level Setup: When playing audio tracks, some songs are louder than others even though the volume of your system remains the same. When you turn on the "Music Volume Auto Leveling" function KM-360 will automatically adjust music to one of the six preset volume level. -
Page 16: Center Channel Setup
Music Menu Operation Center Channel Setup: There are three center channel modes: Microphone/ Music/ Mic.+Muisc 1. Microphone mode: only microphone signal will be the audio output 2. Music mode: only music signal be the audio output 3. Mic.+Music mode: audio output will be the mixed from both mic. & Music. Surrounding Volume setup: You can use this function to change the audio signal(-10dB~+10dB) of the surrounding audio outputs. -
Page 17: Microphone Menu Operation
Microphone Menu Operation Microphone Preset Max Volume: Presetting a max microphone volume to prevent uncomfortable microphone noise while unappropriated using. Remote Select “Max Mic volume” from MIC MENU buttons, Select “microphone setup” from menu, then use parameter buttons to change the preset go into Max mic volume to change setting. -
Page 18: Reverb Time
Microphone Menu Operation Reverb Time Setting: A reverb is created when a sound is produced in an enclosed space causing a large number of echoes to build up and then slowly decay. Reverb is most noticeable when the sound source stops but the reflections continue, decreasing in amplitude, until they can no longer be heard. -
Page 19: Echo Delay
Microphone Menu Operation Echo Delay Setting: Echo delay function is used to adjust the echo delay timing, range from 0~250ms. You can adjust Echo Delay L and Echo Delay R separately to enhance the stereo sound effect. Remote Up/Down buttons to select “Echo Delay R”... -
Page 20: Other Operation
Other Operation Preset Memory Recall: 4 preset effect settings allow you to store your favorite effect settings. 4 preset memory store factory default effect setting. INPUT FB-EX INPUT FB-EX To store/renew your own setting. To press “Down” button of parameter for about 2 seconds, the LCD screen will shows “SAVE to ?”, then press any of M1~M4 buttons on the remote to assign the memory number to store the settings. -
Page 21: Menu Operation
Menu Operation Music Menu Center channel volume control C V o l u m e Subwoof Volume Subwoofer volume control Preset max music volume control Music Volume Subwoof Reducer Reduce low frequence while singing Low frequence filter Subwoof Music Auto Level Auto level the music loudness Voice cancellation of multiplex tracks... -
Page 22: Troubleshooting
If you are still unable to resolve the problem, please contact our Acesonic tech. service center at 626-820-0670 Problem Solusion...
