User Manual
NOTE: To ensure this system works safely and to its fullest potential, please read the User Manual carefully
before use, and keep it handy for future reference. See important Safety Information on Page 19.
Thank you for purchasing Acesonic's KOD-1100 Ka-
raoke-On-Demand Jukebox. Acesonic takes pride in
providing its customers with only the most advanced
and highest quality products on the market.
With proper care and use you will get many years of
satisfying use from your Acesonic product.
Be sure to keep original packaging in case re-shipping
is required for returns or repairs.
Care and cleaning: Use a slightly damp cloth to clean
the front panel and other surfaces of the KOD-1100.
Do not use the device in areas that are wet or prone
to dampness. Always allow sufficient room around the
device to provide sufficient air flow for cooling.
KOD-1100
®
Karaoke-On-Demand Jukebox

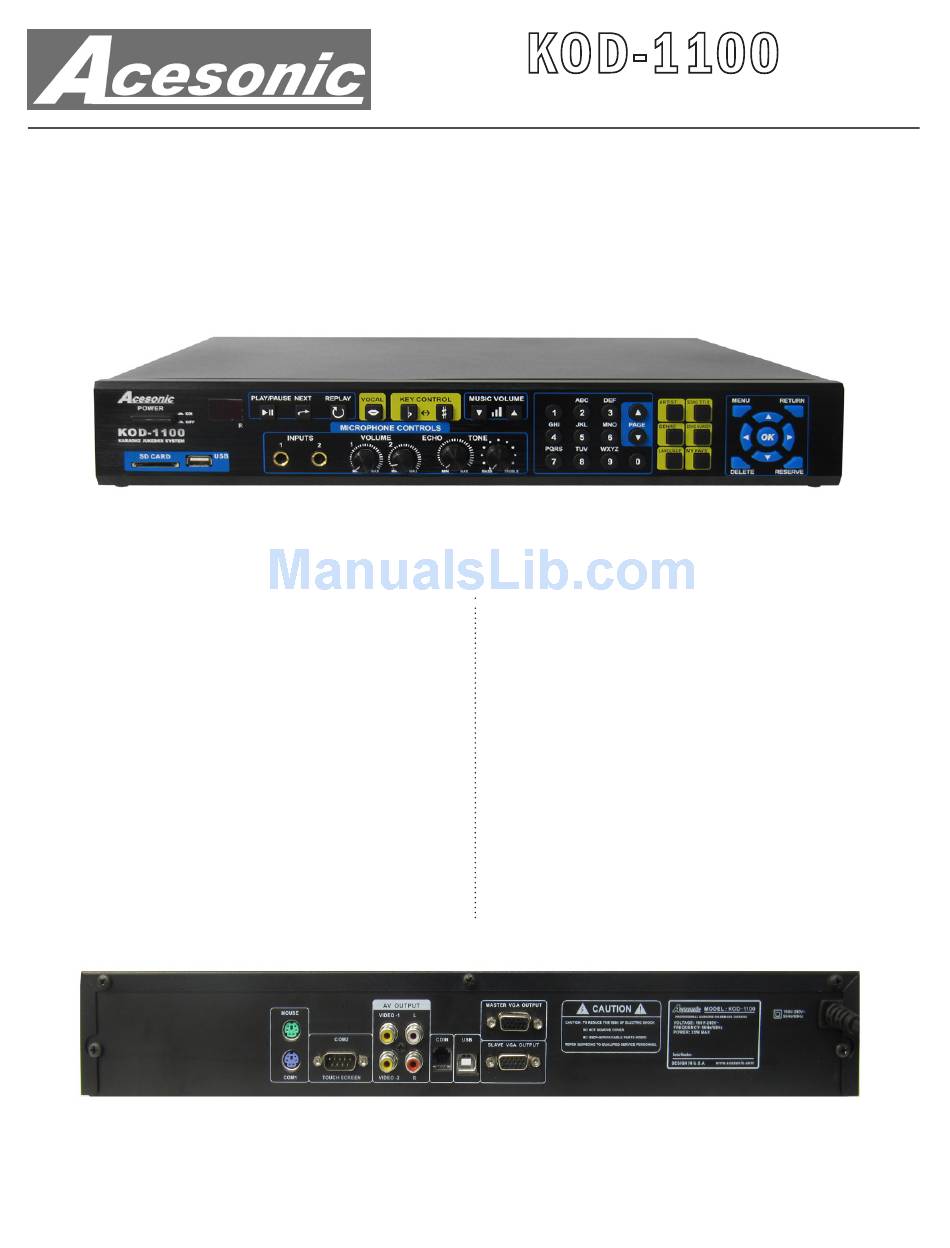

Front Panel
First Things First
Before using your KOD-1100, there are a few things
you should do and know:
• Check to see that your local power outlets supply
the correct voltage for the AC adapter.
• Except for the hard drive compartment, do not open
the device as there are no user-serviceable parts inside.
For repairs, contact the local distributor, an authorized
service center or Acesonic's U.S. headquarters.
• When the system will not be used for a long time,
disconnect the power plug from the wall and remove
all connecting cables for proper storage.
Rear Panel
1

Advertisement

Table of Contents
loading

Related Manuals for Acesonic KOD-1100

Summary of Contents for Acesonic KOD-1100

  • Page 1 See important Safety Information on Page 19. Front Panel First Things First Thank you for purchasing Acesonic’s KOD-1100 Ka- raoke-On-Demand Jukebox. Acesonic takes pride in Before using your KOD-1100, there are a few things...

  • Page 2: Table Of Contents

    Your Acesonic KOD-1100 Karaoke-On-Demand arrives with everything you need to start making music and per- forming except a microphone and speakers. These can be obtained from Acesonic, or you can use any standard audio equipment that conforms to contemporary standards.

  • Page 3: Player Specifications

    If the player fails to operate or if you feel it needs servicing, turn off the player, unplug it and contact an Other features Acesonic dealer or service center. The KOD-1100 is a multi-function professional Player Specifications hard drive Karaoke-On-Demand jukebox. This •...

  • Page 4: Front/Rear Panel Functions And Operation

    Front Panel Functions and Operation 16. TONE CONTROL: Press to adjust the tone of a karaoke singer during their performance. 1. POWER: Press this button to toggle the KOD- 17-18. MUSIC VOLUME: Press to adjust the audio 1100 on and off. Turning off the power on the player’s output of the attached microphone units.

  • Page 5: Remote Control Functions

    4. VIDEO-1 OUTPUT: This connection is for the 11. TOUCH SCREEN VGA OUTPUT: For con- RCA video output. necting a touch screen VGA cable (Touch Screen sold 5. VIDEO-2 OUTPUT: This connection is for the saparately). RCA video output. 13. Power Input: AC 100 ~ 240V / 50~60 Hz 6.

  • Page 6: External Storage Devices

    21. RESERVED LIST: Press this button to list all song selections. reserved songs. 30. DELETE: Press this button to clear any wrong inputs. 22. FWD : Press this button to fast forward scan- 31. RESERVE: Press this button to add selected- ning while playing MTV (DAT,MPG,VOB) files in songs into the playlist.
  • Page 7 1. TV ,Monitor, Mouse, Audio Connection 2. Touch Screen Connection 3. USB Connection...

  • Page 8: Power Connection

    Power Connections cord and an appropriate electrical outlet. Please note that the KOD-1100 uses 100 V to 120 V, When you have completed connecting your KOD- at 50/60 Hz. It is compatible with electrical outlets in 1100 to your video and audio components, refer to the diagram below to connect the player to the power North America and all US states.

  • Page 9: Basic Karaoke Functions

    Basic Karaoke Functions panel. Skipping a Song Random Play To skip a song, press the [NEXT] button on the re- Pressing the [PLAY]/[PAUSE] button after the mote control or on the unit’s front panel. KOD-1100 boots up and it will play the hard drive’s collections of songs randomly.

  • Page 10: Searching Song In Dual Screen Mode

    automatically. ARTIST: Tip: You can also press [TITLE] on remote controller Search songs by artist to enter “Song Title” menu directly too. 1. Touch or click “ ” then it will show a submenu GENRE: of “ARTISTS”. Press [ ] to select “Genre” then press [EN- TER] or [3] directly to enter its menu.
  • Page 11 ample, would be for the letters “A” and “G”. Press SONG NUMBER: “ ” icon to delete wrong entries. * This function is Search songs by Genre only used for Chinese and English songs only. 3. If the songs you search are combined with numer- 1.
  • Page 12 NEW RELEASES: EX: 1=Action, 2=Adventure, 3=Animation, Search Song by New Releases 4=Biography, 5=Comedy, 6=Crime. 1. Touch or click “ ”. The “TITLE” submenu will appear. MY FAVORITE: Store your favorite songs to your own account 1. Press or click “ ”.

  • Page 13: Basic Karaoke Functions (Dual Screen Mode)

    : Play the next song in the PLAYLIST. : Press or click this icon to adjust the key and music volume. 2. Press or Click each icon to access its function. 2-1. Favorite: Please refer to “MY FAVORITE” for : Press or click this icon to chage the more information (See P.12).

  • Page 14: Non-Karaoke Mode (Setup)

    FILE: Please DO NOT rename or delete any system files Press or click to advance or on the hard drive, otherwise, the KOD will not work return to previous pages. properly. Slide Function: This function is the same as “Page 1.
  • Page 15 3. USB To PC Mode: ON, OFF 4. System Upgrade: Start 3-1. Connect the KOD-1100 to a PC via a 4-1. Only needed if there is a new firmware update. provided USB cable and turn on KOD-1100. Put the new updated firmware on an USB devices 3-2.

  • Page 16: Advanced Computer Program Function

    * The program can be found on the root of KOD-1100's hard drive or visit http://www. acesonic.com to download the latest version. 2. Connect the KOD to your computer via a USB cable (See P. 15 for more information).

  • Page 17: Create Usb Song Update Files

    4-1. Connect: Press this button to load all song 4. Input song information: Song number, Song title, information from KOD-1100's hard drive. Language, Artist, and select file path etc.. 4-2. Create New Album: Press this button to create Click “ADD” after inputting all song information. a new album.

  • Page 18: Add Mpeg And Mp3+G Files

    Add MPEG 1, MPEG 2, and MPEG 4 files 1. Click 2. A windows for song information modification will show up. Input all information for the song you are going to add. When done, click find the song you are going to add. 3.

  • Page 19: Troubleshooting

    For common problems, please consult the chart below. If these suggestions do not solve your problem, please • Try the remote out close to the player, pointing call Acesonic Customer Service at (626) 820-0645. directly at the sensor. No Sound KOD-1100 Boots Up to a Blue Screen •...

  • Page 20: Safety, Warnings And Precautions

    Safety, Warnings and Precautions on a different circuit than the one into which the receiver is plugged Mises en garde, precautions et procedures de sûreté • If necessary, consulting the dealer or an The lightning-with-arrowhead symbol inside a experienced radio/TV technician for help triangle alerts the user that potentially dangerous voltage in the product enclosure may constitute a risk 2.
  • Page 21 grounding-type plug. A polarized plug has two blades 14. Do not overload wall outlets or extension cord with one wider than the other, while a grounding-type as this can increase the risk of fire, power outages or plug has two blades and one prong. The wide blade electrical shock.

  • Page 22: Technical Specifications

    Technical Specifications Signal Format System NTSC, PAL Frequency Response 20Hz–20KHz ± 3 dB Signal-to-Noise Ratio > 80 dB Channel Separation > 70 dB (1 KHz) Dynamic Range > 70 dB (1 KHz) Audio Output (Analog) 2V ± 10% / load impedance 75Ω Video Output 1Vp-p ±...
  • Page 23 161 S. 8th Avenue Karaoke-On-Demand Jukebox One (1) Year Manufacturer Warranty City of Industry Lifetime Technical Support CA 91746-3208 Designed in U.S.A. U.S.A. Technical Support: (626) 820-0645 techsupport@acesonic.com © 2011 Acesonic USA, Inc. • All rights reserved Web site: www.acesonic.com...
