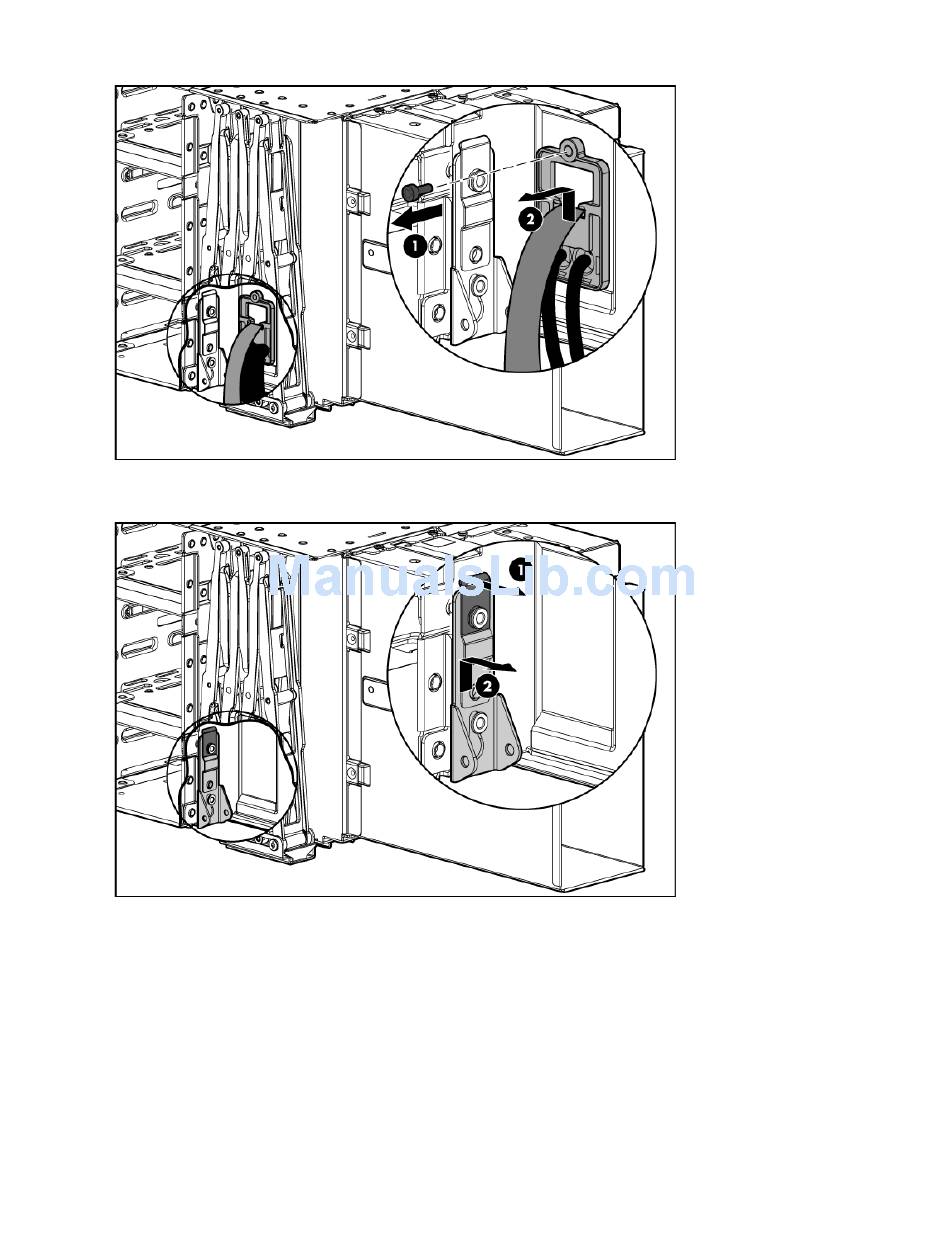

Located behind the cable management arm, remove the T-15 Torx screw that secures the cables to
10.
the hard drive drawer, and then remove the cables.
Located behind the cable management arm, lift up on the tab to release the latch, and then slide the
11.
cable management arm off to remove it.
Lay the drawer on its side with the hard drive bays facing down.
12.
Removal and replacement procedures 45
