3. Disconnect the modem/NIC cable from the modem/NIC
board 1 (Figure 5-16).
4. Pull away the retention clips on each side of the modem/NIC
board 2 . The modem/NIC board tilts upward.
5. Lift the edge of the modem/NIC board and slide it out of the
connector at a 45-degree angle 3 .
6. Place the modem/NIC board in an electrostatic-safe
container.

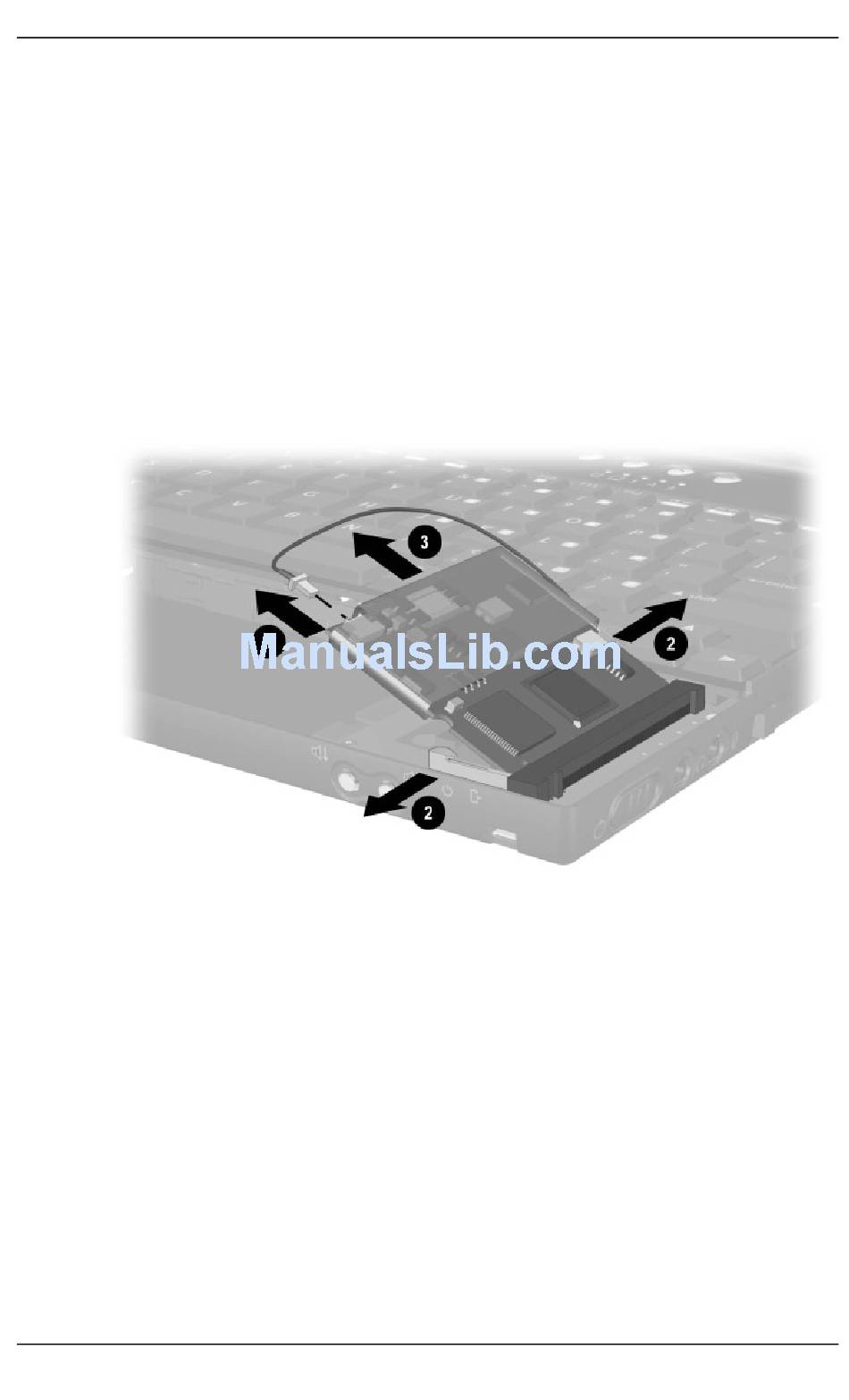

Figure 5-16. Removing the Modem/NIC Board
Reverse the above procedure to install the modem/NIC board.
