QuickSpecs
Overview
W h a t ' s N ew
Mobile Intel Pentium III up to
1.2 GHz-M processor
ATI Mobility Radeon with 16-MB
DDR SDRAM
USB 2.0
Optional External MultiBay
A t A G l a n c e
Weighs only 3.5 lb/1.59 kg
Less than 1 in/2.3 cm thin
12.1-inch XGA TFT display
256-MB SDRAM upgradeable to
1024 MB
Up to 30-GB User removable
SMART hard drives
Integrated mini PCI 56K
V.90/V.92 modem plus 10/100
NIC
Complete set of system ports
Microsoft Windows XP
Professional Edition or Microsoft
Windows 2000 preinstalled
Protected by a Three-year,
Worldwide Limited Warranty
NOTE: Certain restrictions and
exclusions apply. For
details, consult the Product
Information Centre at
1-888-882-6672.
What's Special
Ultra-light weight – 3.5 lb/1.59 kg
Innovative MultiPort
Full sized keyboard
Support for up to four
batteries*
Self-powered External MultiBay,
which provides a cost effective
and travel friendly way to access
MultiBay drives.
Optional Mobile Expansion Unit
providing Multimedia, NIC pass
through, storage and enhanced
security features
Magnesium display enclosure
Industry leading PC lifecycle
solutions
NOTE: * = Requires optional MEU.
DA-11375
Canada — Version 8 — March 20, 2003

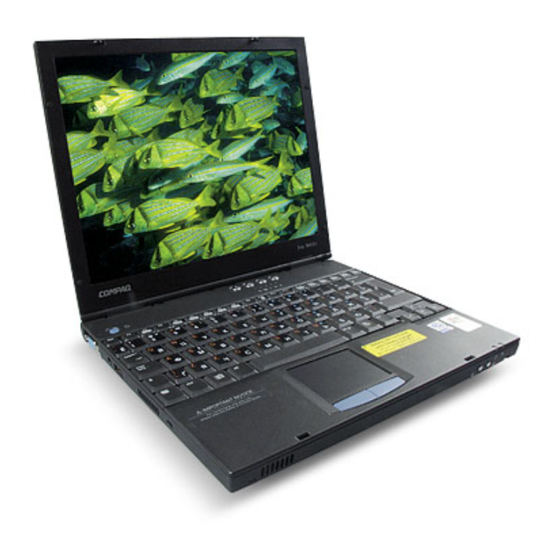

Compaq Evo Notebook N410c
1

Advertisement

Table of Contents
loading

Related Manuals for Compaq EVO N410c

Summary of Contents for Compaq EVO N410c

  • Page 1 Optional Mobile Expansion Unit providing Multimedia, NIC pass through, storage and enhanced security features Magnesium display enclosure Industry leading PC lifecycle solutions NOTE: * = Requires optional MEU. DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c...

  • Page 2: Standard Features

    The Evo Notebook N410c comes with four Easy Access Buttons designed to increase customer productivity by B u t t o n s providing one-touch access to helpful Compaq information, favorite Internet destinations, files, or applications. Touchpad P o i n t i n g D e v i c e...
  • Page 3 DMI and Wired for Management, while pioneering new ground in client manageability. Compaq introduced the industry’s first line of manageable clients in 1995 and has been driving the industry ever since. With Compaq’s lifecycle management philosophy, enterprises have all of the pieces for end- to-end management and proven tools for hassle-free management of PCs.
  • Page 4 The Evo Notebook N410c 4-cell internal (main) Lithium-Ion battery provides over two hours of battery life; over four hours achieved using optional external battery. NOTE: Actual results may vary with product model, configuration, and individual usage. Compaq results of 2:20 NOTE: This test was performed without independent verification by eTesting Labs Inc. eTesting Labs Inc. makes...
  • Page 5 QuickSpecs Compaq Evo Notebook N410c Standard Features N a m i n g C o n v e n t i o n The Etymology of a Model name: DA-11375 Canada — Version 8 — March 20, 2003...

  • Page 6: Warranty

    Modem Graphics Audio Operating System Pointing Device Warranty DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c 12.1-inch colour TFT XGA 1.2 GHz-M Mobile Intel Pentium III 512-KB, L2 Cache Standard 256-MB SDRAM Maximum 1024-MB SDRAM...
  • Page 7 Pointing Device Warranty NOTE: Mobile Intel Pentium III-M processors support enhanced Intel SpeedStep™ technology. DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c 12.1-inch colour TFT XGA 1.0 GHz-M Mobile Intel Pentium III 512-KB, L2 Cache Standard...
  • Page 8 4-cell secondary Lithium-Ion battery (external) 4-cell secondary Lithium-Ion high capacity travel battery (external) DA-11375 Canada — Version 8 — March 20, 2003 we strongly recommend using only Compaq branded memory modules to ensure compatibility. MultiBay to utilize MultiBay Storage Devices. Compaq Evo Notebook N410c...

  • Page 9: Input Devices

    USB EZ Access Keyboard Wireless Keyboard and Mouse Security Biometric PC Card Security Cable Lock Compaq Smart Card PC Card Reader Useful Accessories Compaq iPAQ Microportable Projector MP1200 Compaq iPAQ Microportable Projector MP3800 Compaq iPAQ Microportable Projector MP4800 Lamp Module L20 for MP1200...
  • Page 10 Compaq Professional Case (nylon) Compaq Professional Case (leather) Evo Notebook N410c, N400c, N610c, and Armada M300 and M700 specific DA-11375 Canada — Version 8 — March 20, 2003 Compaq M Series Portfolio Case Compaq Evo Notebook N410c 167336-B21 242359-B25 242360-B25...

  • Page 11: Standard Memory

    512-MB (133-MHz) Memory Upgrade 256-MB (133-MHz) Memory Upgrade 128-MB (133-MHz) Memory Upgrade NOTE: Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only Compaq branded memory modules to ensure compatibility. DA-11375 Canada — Version 8 — March 20, 2003...
  • Page 12 40-GB SMART Hard Drive Up to 2 30-GB SMART Hard Drive Up to 2 DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Hard Drive MultiBay MultiBay External connects via parallel port Hard Drive Bay MultiBay...

  • Page 13: System Unit

    Backlight Character Display Total Power Consumption DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c 12.1-inch TFT panel display 0.89 x 10.5 x 9.5 in/2.2 x 26.6 x 24.2 cm Minimum/Maximum 3.5 lb/1.58 kg Nominal Operating Voltage 14.8 VDC...

  • Page 14: Hard Drives

    Energy Temperature Battery Re-Charge Time DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm Weight 0.15 lb/70 g 0.21 lb/95 g 40 GB 0.374 in/9.5 mm...
  • Page 15 Energy Temperature Battery Re-Charge Time Lifecycle DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c 0.9 x 10.47 x 0.9 in/2.3 x 26.6 x 2.3 cm 0.48 lb/0.21 kg 4-cell Lithium-Ion Voltage 14.4 V Amp-hour capacity 1.96 Ah...

  • Page 16: Dvd/Cd-Rw Combo Drive

    (typical, including settling) Start-up Time Stop Time DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm Weight 0.74 lb/0.34 kg 0.59 in/1.5 cm...

  • Page 17: Dvd-Rom Drive

    Normal PIO Mode 4 (single burst) Start-up Time < 10 seconds Stop Time < 3 seconds Compaq Evo Notebook N410c 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm 0.74 lb/0.33 kg < 150 ms < 225 ms 0.7 Vrms...

  • Page 18: Cd-Rom Drive

    Read/Write heads Access Times Track-to track (high/low) Average (high/low) Settling time Latency average Compaq Evo Notebook N410c 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm 0.50 lb/0.22 kg < 150 ms < 300 ms 0.7 Vrms 2400 KB/s 1500 to 3600 KB/s (10X to 24X) 16.66 MB/s...
  • Page 19 Media Access Protocol OS Support Protocols Supported LED Activity DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Compaq MultiPort 0.22 lb/100 g (maximum) Operating 14 to 149 F/–10 to 65 C Non-operating –40 to 176 F/–40 to 80 C...
  • Page 20 Number of Available Channels 79 (1 MHz) available channels Data Rates and throughput Antenna type Range Profile Support DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Data Rate Operating Distance 11 Mbps 5.5 Mbps 1 Mbps Compaq MultiPort 1.1 Compliant...

  • Page 21: Protocols Supported

    OS Support Protocols Supported LED Activity Certifications DA-11375 Canada — Version 8 — March 20, 2003 Compaq Evo Notebook N410c Service Discovery (determine what Bluetooth devices are within range and support authorization) Synchronization: PDAs to PCs Portable to Desktop File Transfer: File and directory browsing and navigation on another Bluetooth device.
  • Page 22 Type III Mini PCI 56K (V.90/V.92) Form Factor Modem plus 10/100 NIC Combo OS Support (with all released Service Packs) Power Management Support APM Revision 1.2, ACPI, Compaq Power Management Extensions for Microsoft Approvals/Certifications Data Mode Capabilities Fax Mode Capabilities Command Set DA-11375 Canada —...
  • Page 23 Printed in Canada. Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without warranty of any kind and is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products.
