Denon AVR-1613 Owner's Manual

Integrated network av receiver
Hide thumbs Also See for AVR-1613:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Enlarged version
AVR-1613
INTEGRATED NETWORK AV RECEIVER
Owner's Manual
DVD

Advertisement

Table of Contents
loading

Related Manuals for Denon AVR-1613

Summary of Contents for Denon AVR-1613

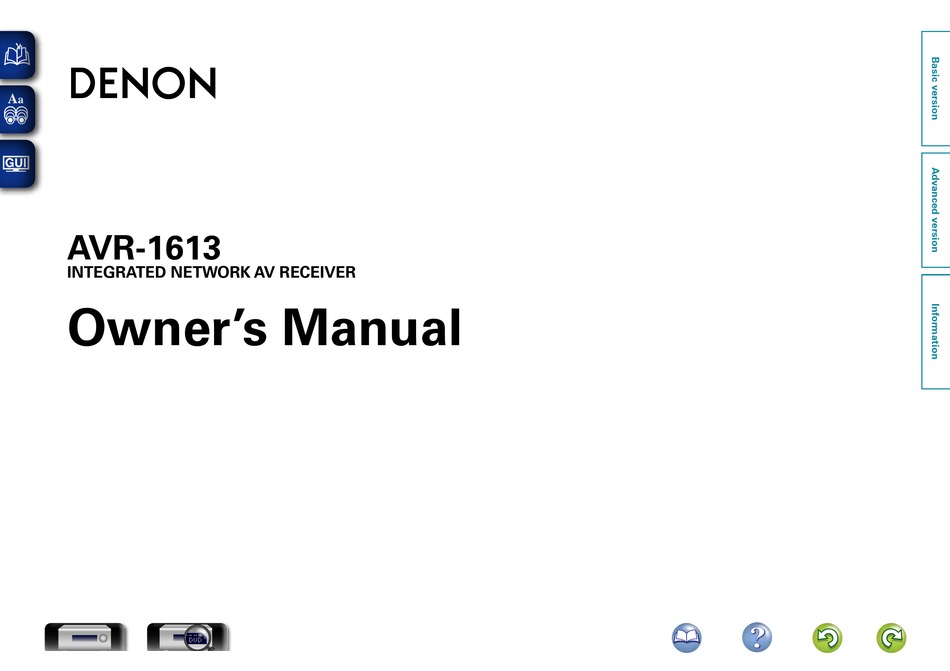

  • Page 1 AVR-1613 INTEGRATED NETWORK AV RECEIVER Owner’s Manual...

  • Page 2: Safety Precautions

    The exclamation point within an equilateral triangle is intended approved by DENON may void your authority, granted by the FCC, to use 10. Protect the power cord from being walked on or pinched particularly at to alert the user to the presence of important operating the product.

  • Page 3: Notes On Use

    n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.

  • Page 4: Table Of Contents

    Getting started Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Advanced version Informations ································································68 ·········································································106 Getting started ··············································································1...

  • Page 5: Accessories

    The TV should support the ARC function. iPad, iPhone or Android smartphone “Denon Remote App” is application software that allows you to perform basic operations with an iPad, iPhone, Android smartphone Direct play for iPod ® and iPhone ® via USB or Android tablet such as turning the unit ON/OFF, controlling the (vpage 16)

  • Page 6: Cautions On Handling

    Cautions on handling • Before turning the power on Check once again that all connections are correct and that there are no problems with the connection cables. • Power is supplied to some of the circuitry even when the unit is set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

  • Page 7: Basic Version

    Basic version Basic version Here, we explain the connections and basic operation methods for this unit. F Connections vpage 5 F Setup vpage 20 F Playback (Basic operation) vpage 27 F Selecting a listening mode (Sound Mode) vpage 64...

  • Page 8: Connections

    Connections Important information Make connections before using this unit. n HDMI-compatible device To create a home theater that can play back higher quality video and audio by fully utilizing the capabilities of this unit and your video devices, connect this unit to each of your video devices with HDMI cables.
  • Page 9 Important information Relationship between video signals and monitor output Resolutions of HDMI-compatible TVs can be checked at “Monitor” GFlow of video signalsH (vpage 103). NOTE This unit HDMI-compatible TV Video device • The menu screen is only displayed on TV connected to this unit via HDMI.

  • Page 10: Connecting An Hdmi-Compatible Device

    Connecting an HDMI-compatible device You can connect up to six HDMI-compatible devices (5-inputs/1-output) to the unit. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections. Connections with an HDMI cable offer the following benefits that can not be achieved with n Before connecting this unit to TV via HDMI connections (vpage 8) other connection methods.
  • Page 11 Connecting an HDMI-compatible device Before connecting this unit to TV via HDMI connections n About ARC (Audio Return Channel) function This function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable. There are 2 methods to connect HDMI-compatible TV to this unit.
  • Page 12 Connecting an HDMI-compatible device Connecting this unit to a TV via HDMI connections • Video signals are not output if the input video signals do not match the monitor’s resolution. In this case, Cables used for connections switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible. • When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with Audio and video cable (sold separately) HDMI audio signal playback, only the video signals are output to the monitor.
  • Page 13 Connecting an HDMI-compatible device Connecting this unit to video devices via HDMI connections Digital camcorder Cables used for connections HDMI Audio and video cable (sold separately) HDMI cable • This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable. Blu-ray Disc Set-top...

  • Page 14: Hdmi Function

    Connecting an HDMI-compatible device HDMI function n Deep Color (vpage 117) When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI This unit supports the following HDMI functions: cable” or “High Speed HDMI cable with Ethernet”. n About 3D function n Auto Lip Sync (vpage 87, 117) This unit supports input and output of 3D (3 dimensional) video signals of HDMI.

  • Page 15: Connecting An Hdmi-Incompatible Device

    Connecting an HDMI-incompatible device For high quality video and surround playback, it is recommended to Cables used for connections Changing the source assigned to use an HDMI cable to connect this unit to TV and other video devices (vpage 7 “Connecting an HDMI-compatible device”). connectors This section describes connections when your device does not Video cable (sold separately)

  • Page 16: Connecting A Tv

    Connecting an HDMI-incompatible device Connecting a TV AUDIO VIDEO • This section describes how to connect when your TV does not support HDMI connections. COAXIAL OPTICAL VIDEO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). • If the TV connected to this unit is equipped with an HDMI connector that supports ARC, digital audio signals from TV can be transmitted to this unit (vpage ...
  • Page 17 Connecting an HDMI-incompatible device Connecting a set-top box (Satellite tuner/cable TV) Satellite tuner/Cable TV AUDIO VIDEO This section describes how to connect when your satellite tuner or cable TV does not support HDMI AUDIO COAXIAL OPTICAL VIDEO connections. For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). n Audio connection The following methods are available for connecting to this unit.
  • Page 18 Connecting an HDMI-incompatible device Connecting a DVD player DVD player AUDIO VIDEO This section describes how to connect when your DVD player does not support HDMI connections. AUDIO COAXIAL OPTICAL VIDEO For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage 7). n Audio connection The following methods are available for connecting to this unit.
  • Page 19 • iPod nano • iPod touch DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, • iPhone...

  • Page 20: Connecting An Fm Antenna

    Connecting an HDMI-incompatible device Connecting an FM antenna Direction of broadcasting station • Connect the FM antenna supplied with the unit to enjoy listening to radio broadcasts. FM outdoor • After connecting the antenna and receiving a broadcast signal (vpage  35 “Listening to FM antenna broadcasts”), fix the antenna with tape in a position where the noise level becomes minimal.

  • Page 21: Connecting To A Home Network (Lan)

    ISP. Contact an ISP or a computer shop for which is available at retailer. To LAN port details. • The normal shielded-type Ethernet cable • DENON assumes no responsibility whatsoever LAN port/ LAN port/ is recommended. If a flat-type cable or To LAN port...

  • Page 22: Connecting The Power Cord

    Connecting the power cord After completing all the connections, insert the power plug into the power outlet. To household power outlet (AC 120 V, 60 Hz) Power cord NOTE • Do not plug in the power cord until all connections have been completed. • Do not bundle power cords together with connection cables.

  • Page 23: Setup

    Setup Here, we explain “Audyssey ® Setup”, which allows you to Set up speakers (Audyssey ® Setup) automatically make the optimal settings for your speakers, and “Network”, which allows you to connect this unit to a home network (LAN). This unit lets you play via your home network (LAN) music files stored The acoustic characteristics of the connected speakers and on a computer and music content such as that from Internet radio.
  • Page 24 Set up speakers (Audyssey ® Setup) Prepare the included setup microphone Set up the subwoofer Preparation Mount the setup microphone on a tripod or stand If using a subwoofer capable of the following and place it in the main listening position. adjustments, set up the subwoofer as shown below.
  • Page 25 Set up speakers (Audyssey ® Setup) Preparation (Continued) Detection & Measurement (Main) • This step automatically checks the speaker configuration and speaker NOTE Select “Start” and then press size, and calculates the channel level, distance, and crossover ENTER If “Caution!” is displayed on TV screen: frequency.
  • Page 26 Set up speakers (Audyssey ® Setup) Measurement (2nd – 6th) Calculation • In this step, you will perform measurements at multiple positions Repeat step 9, measuring positions 3 to 6. Select “Calculation” and then press ENTER (two to six positions) other than the main listening position. When measurement position...
  • Page 27 Set up speakers (Audyssey ® Setup) Check Store Finish Unplug the setup microphone from the unit’s SETUP ENTER to select the item you Select “Store” and then press MIC jack. want to check, and then press Save the measurement results. ENTER Select “Next”...

  • Page 28: Error Messages

    Set up speakers (Audyssey ® Setup) Error messages NOTE • An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures.

  • Page 29: Making The Network Settings (Network)

    Set up speakers (Audyssey ® Setup) Making the network settings Parameter Check (Network) This function enables you to check the measurement results and equalizer characteristics after Audyssey ® This unit can be connected to a home network (LAN) to listen to Internet radio or play back music files and Setup.

  • Page 30: Playback (Basic Operation)

    Playback (Basic operation) Important information Setup (vpage 20) Before starting playback, make the connections between the different Selecting the input source devices and the settings on the unit. n Turning the power on (vpage 27) Press the input source select button n Selecting the input source (vpage 27) NOTE CBL/SAT Blu-ray...

  • Page 31: Playing A Blu-Ray Disc Player/Dvd Player

    Important information Playing a Blu-ray Disc player/DVD Adjusting the master volume player VOLUME df to adjust the The following describes the procedure for playing Blu-ray Disc player/ volume. DVD player. • The volume display method varies Prepare for playback. depending “Scale” setting Turn on the power of the TV, (vpage 83).

  • Page 32: Playing An Ipod

    Playing an iPod You can use the USB cable provided with the iPod to connect the iPod Listening to music on an iPod Operations available through the OPTION button with the unit’s iPod/USB port and enjoy music stored on the iPod. OPTION For information on the iPod models that can be played back with this Press the...
  • Page 33 • Depending on the type of iPod and the software version, some functions may not operate. Press ENTER • Note that DENON will accept no responsibility whatsoever for any Playback starts. problems arising with the data on an iPod when using this unit in conjunction with the iPod.
  • Page 34 Playing an iPod n Performing repeat playback (Repeat) n iPod operation buttons n Performing random playback (Random) Operation buttons Function Press OPTION while in Browse Mode. OPTION Press while in Browse Mode. PAGE df Page search The option menu screen is displayed. The option menu screen is displayed.

  • Page 35: Playing A Usb Memory Device

    Playing a USB memory device Playing back music or still picture (JPEG) files recorded on a USB memory device. Important information • Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol) GCompatible formatsH standards can be played on this unit. Sampling frequency Bit rate Extension...
  • Page 36 NOTE or folder, then press ENTER n Playing back still images in sequential order • Note that DENON will accept no responsibility whatsoever for any (Slideshow) (vpage 61) ENTER to select the file, then press problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.
  • Page 37 Playing a USB memory device n USB memory device operation buttons Operation buttons Function PAGE df Page search Display of information such as the INFO source name, volume, and sound mode name Text Search / Repeat playback / OPTION Random playback / Picture View / Slideshow Cursor operation /...

  • Page 38: Listening To Fm Broadcasts

    Listening to FM broadcasts For antenna connections, see “Connecting an FM antenna” Operations available through the OPTION button Listening to FM broadcasts (vpage 17). OPTION Press the button to display a menu of functions that can be Press to switch the input used on the TV screen.
  • Page 39 Listening to FM broadcasts n Changing the tuning mode (Tune Mode) to select tuning mode, then press ENTER You can change the mode for tuning into FM broadcasts. If you cannot tune in automatically with “Auto” mode, then change the mode to “Manual”...
  • Page 40 Listening to FM broadcasts n Tuning in by entering the radio frequency to select a number and press (Direct Tune) The screen that lets you enter the frequency is displayed. You can enter the receiving frequency directly to tune in. GTV ScreenH Press to switch the input source to “FM”.
  • Page 41 Listening to FM broadcasts Presetting broadcast stations Press ENTER The unit starts to tune in to radio stations automatically and n Tuning in to radio stations and presetting them preset them. automatically (Auto Preset) GTV ScreenH Up to 56 stations can be preset. If “Auto Preset”...
  • Page 42 Listening to FM broadcasts n Presetting the current broadcast station Channel Default Settings to select the channel you want to preset, (Preset Memory) 87.50 / 89.10 / 98.10 / 107.90 / 90.10 / 90.10 / 90.10 / ENTER then press 1 –...
  • Page 43 Listening to FM broadcasts n Specify a name for the preset broadcast station to select the group of the broadcast station uio p to select a name label, then press (Preset Name) ENTER ENTER you want to name, then press You can set the name to the preset broadcast station or change it.
  • Page 44 Listening to FM broadcasts n Skipping preset broadcast stations GTo set the stations you want to skip by groupsH GTo set the stations you want to skip by stationsH (Preset Skip) q Use to select the group of broadcast q Use to select the group of broadcast You can set in advance, the stations you do not want to be stations you want to skip.
  • Page 45 Listening to FM broadcasts Cancelling preset skip n FM operation buttons Operation buttons Function While the Preset Skip screen is displayed, use CHANNEL +, – Preset channel selection to select a group containing a broadcast station to Display of information such as the cancel the skip for.

  • Page 46: Network Contents

    Network contents Listening to internet radio Internet radio refers to radio broadcasts distributed over the Internet. Listening to internet radio to select the item you want to play, then Internet radio stations from around the world can be received. press ENTER Prepare for playback.
  • Page 47 Listening to internet radio n Adjusting the sound quality (Restorer) Operations available through the OPTION button n Playing the last played Internet radio station Make this setting at “Restorer” (vpage 83) in the menu. This unit memorizes the last played Internet radio station. If you OPTION Press the button to display a menu of functions that can be...
  • Page 48 Listening to internet radio n Using vTuner to add Internet radio stations to n Internet radio operation buttons Enter the name of the favorite group, then click favorites “Go”. Operation buttons Function There are many Internet radio stations in the world, and this unit A new favorite group that includes the selected radio station is INTERNET RADIO Last played internet radio station...

  • Page 49: Playing Back Files Stored On A Pc And Nas

    Playing back files stored on a PC and NAS This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached Storage (NAS) that supports DLNA. Important information • The network audio playback function of this unit connects to the server using technologies shown below. GSpecifications of supported filesH • Windows Media Player Network Sharing Service Sampling frequency...

  • Page 50: Applying Media Sharing Settings

    Playing back files stored on a PC and NAS Applying media sharing settings When using Windows Media Player 12 When using Windows Media Player 11 (Windows 7) Here, we apply the settings to share music files stored on a PC and Start up Windows Media Player 11 on the PC.
  • Page 51 Playing back files stored on a PC and NAS Playing back files stored on a PC and NAS Repeat step 4 until the file is displayed. • When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file Use this procedure to play music files, image files or playlists. includes album art data, the album art can be displayed while the ENTER to select the file, then press...
  • Page 52 Playing back files stored on a PC and NAS Operations available through the OPTION button n Media server operation buttons OPTION Press the button to display a menu of functions that can be Operation buttons Function used on the TV screen. Select the function you want to use from this PAGE df Page search menu.

  • Page 53: Using Online Services

    To listen to Pandora you will need a free Pandora account. If you do not have a Pandora account, you can create one at www.pandora.com or from the Pandora smartphone application. It is necessary to associate this machine with a Pandora account by visiting http://www. pandora.com/denon from your PC.

  • Page 54: Viewing Photographs On The Flickr Site

    Using online services Viewing photographs on the Flickr site n Going back to the previous screen In “Contact”, add the screen name (user name you BACK Press want to view) you want to add. You can view photographs shared by particular users, or all of the photographs shared on Flickr.
  • Page 55 Using online services n Viewing all photographs on Flickr n Flickr operation buttons Operation buttons Function to select “All Content”, PAGE df Page search ENTER then press Display of information such as the INFO source name, volume, and sound mode Flickr [1/2] name...

  • Page 56: Listening To Pandora

    When “Cancel input?” is displayed, I am new to Pandora ENTER select “Yes”, then press Please go to http://www.pandora.com/denon and follow the instructions there to create a new account. Your activation code is : zzzzzz Cancel...
  • Page 57 Using online services n Creating a new station n Listening to an existing station to select “Search by Artist” or “Search by You can create up to 100 radio stations. ENTER Track”, then press and select the radio station to select “New Station”, You can search and display a list by track or artist.
  • Page 58 Using online services n Giving Feedback and Managing Stations n Pandora operation buttons NOTE You can personalize your stations by providing feedback. • You can Skip up to 6 Tracks that are being played back within 1 hour. Operation buttons Function • You can create up to 100 Stations (radio stations).

  • Page 59: Listening To Siriusxm Internet Radio

    Using online services Listening to SiriusXM Internet Radio n Going back to the previous screen Select “Sign in”, then press ENTER BACK Press Over 120 channels of the SiriusXM programming you love, including commercial-free music plus sports, talk, news and entertainment. Listen anywhere on your computer or smartphone.
  • Page 60 Using online services n Sign out n SiriusXM operation buttons Disassociate this unit from your SiriusXM account. Operation buttons Function While the SiriusXM top menu is displayed, press PAGE df Page search BACK Display of information such as the INFO source name, volume, and sound mode When the popup menu appears, use to select...

  • Page 61: Convenient Functions

    Convenient functions Here, we explain how to use convenient functions for NETWORK Searching content with keywords n Playing back a search result content sources and USB sources. The source names under the titles of each function’s description are sources that allow use of these functions. (Text Search) to select the content you ENTER...
  • Page 62 Convenient functions Performing repeat playback (Repeat) Performing random playback (Random) The random playback randomly selects a track to play back from all Media Server Media Server tracks every time a track ends. Therefore, the same track may be played back consecutively. OPTION OPTION While content is playing, press...
  • Page 63 Convenient functions Favorites function Playing back content added in “Favorites Memory” FAVORITE STATION Contents that can be added to the button differ There are two ways to add content to favorites: Press NETWORK depending on the input source. q Add to favorites from the Option menu FAVORITE STATION w Add to the button...
  • Page 64 Convenient functions n Deleting content added to favorites Playing back music and a favorite picture Playing back still images in sequential (Remove Favorites) at the same time (Picture View) order (Slideshow) Press NETWORK You can play back still image (JPEG) files stored on a USB memory Internet Radio Media Server device or media server and pictures on Flickr website as a slide show.

  • Page 65: Airplay Function

    My Computer this unit from the list. This Computer • For details, see your device’s manual. DENON:[AVR-1613] Startup iPhone, iPod touch, or iPad music or iPod AirPlay Device app. is displayed on the iPhone, iPod touch or iPad screen. Tap the AirPlay icon v See overleaf Select the speaker you want to use.
  • Page 66 AirPlay function n Perform iTunes playback operations with the remote control unit of this unit • is displayed on the menu screen while With this unit’s remote control unit, you can perform iTunes song AirPlay is being operated. play, pause, and auto search (cue) operations. • Source input will...

  • Page 67: Selecting A Listening Mode (Sound Mode)

    Selecting a listening mode (Sound Mode) This unit allows you to enjoy various kinds of surround and stereo Selecting a listening mode playbacks. Multi-channel audio formats are adopted by many of the contents Play the selected device (vpage 28 – 57). Direct playback including Blu-ray disc and DVD as well as digital broadcasting and Internet-delivered movies and music.
  • Page 68 Selecting a listening mode n Listening mode MOVIE MUSIC GAME PURE • The following listening modes can be selected using the , and buttons. • Adjust the sound field effect with the menu “Surr.Parameter” (vpage 81) to enjoy your favorite sound mode. z1 2-channel also includes analog input. Operation Operation Input signal...
  • Page 69 Selecting a listening mode z1 2-channel also includes analog input. Views on the TV screen or display Operation Input signal Listening mode z2 This mode plays back 2-channel source in 5.1-channel playback. button It cannot be selected when headphones are used, or when only STEREO front speakers are used.
  • Page 70 Selecting a listening mode n Description of listening mode types Dolby listening mode Original listening mode Listening mode type Description Listening mode type Description DOLBY PLg This mode can be selected when a Dolby Pro Logic g decoder is used to play MULTI CH STEREO This mode is for enjoying stereo sound from all speakers.

  • Page 71: Advanced Version

    Advanced version Advanced version Here, we explain functions and operations that let you make better use of this unit. F Installation/connection of speakers (Advanced) vpage 69 F Playback (Advanced operation) vpage 73 F How to make detailed settings vpage 76...

  • Page 72: Speaker Installation

    Installation/connection of speakers (Advanced) Speaker installation Procedure for speaker settings • Determine the speaker system depending on the number of speakers When 5.1ch speakers are installed Speaker installation you are using and install each speaker and subwoofer in the room. Here, we explain how to install the speakers using a typical example. • The speaker impedance should be from 6 to 16 Ω.

  • Page 73: Speaker Connection

    Speaker connection Here, we connect the speakers in the room to this unit. Connecting the speaker cables This section explains how to connect them using a typical example. Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to interconnect the channels and polarities correctly.
  • Page 74 Speaker connection Connecting 5.1-channel speakers Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 70. • For speaker impedance , see page 70.
  • Page 75 Speaker connection Connecting 2.1-channel speakers Cables used for connections Audio cable (sold separately) Speaker cable Subwoofer cable NOTE • For speaker cable connections, see page 70. • For speaker impedance , see page 70.

  • Page 76: Playback (Advanced Operation)

    Playback (Advanced operation) HDMI control function Setup (vpage 20) If you connect the unit and an HDMI control function compatible TV or n Setting procedure Playback (Basic operation) (vpage 27) player with an HDMI cable and then enable the HDMI control function setting on each device, the devices will be able to control each other.

  • Page 77: Sleep Timer Function

    HDMI control function Sleep timer function NOTE You can have the power automatically switched to standby once a set • When “HDMI Control” is set to “On”, it consumes more standby time has elapsed. This is convenient for viewing and listening while power.

  • Page 78: Quick Select Function

    Quick select function Various memory functions You can save settings such as the input source selection, volume n Changing the settings Personal memory plus function QUICK SELECT 1 – 4 level, and sound mode at the buttons. QUICK SELECT You can simply press one of the set buttons for Set the items below to the settings you want to save.

  • Page 79: How To Make Detailed Settings

    How to make detailed settings Menu map For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page. By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences. Setting items Detailed items Description...

  • Page 80: Examples Of Menu Screen Displays

    Examples of menu screen displays Typical examples are described below. GExample 1H GExample 2H Audyssey ® Setup screen (with illustration) Menu selection screen (Top menu) Audyssey Setup Setup Menu Audio Y our AV R c an automatic al ly me as ure t he Video ac ous tic s of you r room and th e op timi ze you r sp e ak ers.

  • Page 81: Examples Of Menu And Front Display

    Examples of menu and front display Below we describe typical examples of displays on the TV screen and on the set’s display window. Menu display Front display Description Top menu display SETUP q Press to display the menu screen. Setup Menu w TV screen: Displays the selected line.

  • Page 82: Inputting Characters

    Inputting characters Keyboard screen On this unit, you can change the name displayed on the following n Input method screens to the names that you prefer. Display the screen for inputting • Text Search (vpage 58) Select a character on the TV screen to input characters. • Preset Name (vpage 40) characters (vpage 76...

  • Page 83: Audio

    Audio Make audio-related settings. Items that can be set with the “Audio” procedure Menu operation Surr.Parameter (vpage 81) SETUP Press Tone (vpage 82) The menu is displayed on the TV screen. to select the menu to be set or operated. Dialogue Level (vpage 82) Subwoofer Level (vpage 83) ENTER Press...
  • Page 84 Audio Surr.Parameter Setting items Setting details Default settings are underlined. Center Image 0.0 – 1.0 (0.3) You can adjust the surround audio sound field effects to match your preferences. Distributes the dialogue The smaller the value, the more dialogue is concentrated on the center The items (parameters) that can be adjusted depend on the signal being input and the currently set output from the center channel.
  • Page 85 Audio Tone Setting items Setting details Default settings are underlined. Delay Time 0ms – 300ms (30ms) Adjust the tonal quality of the sound. Adjust the audio delay time against video to extend the Setting items Setting details sound field image. You can Tone Control On : Allow tone adjustment (bass, treble).

  • Page 86: Subwoofer Level

    Audio Subwoofer Level Audio Delay Default settings are underlined. Default settings are underlined. Sets the subwoofer on/off and its output level. While viewing video, manually adjust the time to delay audio output. Setting items Setting details Setting details Subwoofer On : The subwoofer is used. 0ms –...
  • Page 87 Audio Audyssey Setting items Setting details Default settings are underlined. Dynamic EQ On : Use Dynamic EQ. Set Audyssey MultEQ ® , Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® . These can be Solve the problem of Off : Do not use Dynamic EQ. selected after Audyssey ®...
  • Page 88 Audio Manual EQ Default settings are underlined. Use the graphic equalizer to adjust the tone of each speaker. “Manual EQ” can be set when “MultEQ ® ” setting (vpage 84) is “Manual EQ”. Setting items Setting details Speaker Select All : Adjust the tone of all speakers together. Select whether to adjust Left/Right : Adjust the tone of left and right speakers together.

  • Page 89: Video

    Video Make video-related settings. Items that can be set with the “Video” procedure Menu operation HDMI Setup (vpage 87) SETUP Press The menu is displayed on the TV screen. Volume Display (vpage 87) to select the menu to be set or operated. Info.Display (vpage 88) Press ENTER...

  • Page 90: Hdmi Setup

    Video HDMI Setup Setting items Setting details Default settings are underlined. Standby Source Last : Enters standby with the previously used input source. Make settings for HDMI video/audio output. Sets the HDMI input source CBL/SAT / DVD / Blu-ray / GAME / AUX : Enters standby with each of to put into standby when the input sources assigned to each input terminal.
  • Page 91 Video Info.Display TV Format Default settings are underlined. Default settings are underlined. Displays status of operation temporarily when the sound mode is changed or input source is switched. You Set the video signal format to be output for the TV you are using. can set whether or not to show each of these status displays.

  • Page 92: Inputs

    Inputs Perform settings related to input source playback. Items that can be set with the “Inputs” procedure • You do not have to change the settings to use the unit. Make settings when needed. Menu operation Digital Assign (vpage 90) Press SETUP Source Rename (vpage 91) The menu is displayed on the TV screen.

  • Page 93: Digital Assign

    Inputs Digital Assign Setting items Setting details DIGITAL COAXIAL / OPTICAL : Assign a digital input connector to the selected This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default. Set this to change the digital input source.

  • Page 94: Source Rename

    Inputs Source Rename Source Level Default settings are underlined. Change the display name of the selected input source. • This function corrects the playback level of the selected input source’s audio input. This is convenient when the input source name of your device and the input source name of this unit are • Make this setting if there are differences in the input volume levels between the different sources.
  • Page 95 Inputs Setting items Setting details Decode Mode Auto : Detect type of digital input signal and decode and play automatically. Set the audio decode mode PCM : Decode and play only PCM input signals. for input source. DTS : Decode and play only DTS input signals. CBL/SAT • This item can be set for input sources for which “DIGITAL”...

  • Page 96: Speakers

    Speakers Set when changing Audyssey ® Setup settings. Items that can be set with the “Speakers” procedure • If you change the speaker settings after performing Audyssey ® Setup, it will not be possible to set Audyssey MultEQ ® , Audyssey Dynamic EQ ® and Audyssey Dynamic Volume ® (vpage 84). • Can be used without changing the settings.
  • Page 97 Speakers Manual Setup Setting items Setting details Default settings are underlined. Bass Subwoofer Mode : Select low range signals to be reproduced by Perform when setting the speakers manually or when changing settings made in Audyssey ® Setup. Set subwoofer and LFE subwoofer.
  • Page 98 Speakers Setting items Setting details Setting items Setting details Distances Unit : Set the unit of distance. Levels Test Tone Start : Output test tone. Set distance from listening • Feet / Meters Set the volume of the test • Front L / Center / Front R / Surround R / Surround L / Subwoofer : position to speakers.
  • Page 99 Speakers Setting items Setting details Crossovers Crossover : Set the crossover frequency. Set the maximum frequency • 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / of the bass signal output 250Hz / Individual : Set the crossover frequency for all speakers. See the from each channel to speaker manual for information concerning speaker crossover frequency.

  • Page 100: Network

    Network To use this unit by connecting it to a home network (LAN), you must configure network settings. Items that can be set with the “Network” procedure If you set up your home network (LAN) via DHCP, set “DHCP” to “On” (use the default setting). This allows this unit to use your home network (LAN).

  • Page 101: Friendly Name

    Setting details Friendly Name / DHCP=On or Off / IP Address / MAC Address Edit Name • The default Friendly Name on first use is “DENON:[AVR-1613]”. MAC Address is required to make a vTuner account. Edits Friendly Name. • Up to 63 characters can be input.
  • Page 102 Network Settings Setting details Default settings are underlined. Make settings for wired LAN. • If you are using a broadband router (DHCP function), there is no need to make the settings at “IP Only set “Settings” when connecting to a network without a DHCP function. Address”...
  • Page 103 Network Setting details n Proxy settings Make this setting when connecting to the Internet via a proxy server. Make the proxy settings only when you connect to the Internet via a proxy server that is on your internal network or provided by your provider, etc. Settings Network DHCP...

  • Page 104: General

    General Make various other settings. Items that can be set with the “General” procedure Menu operation Language (vpage 102) Press SETUP The menu is displayed on the TV screen. Quick Sel.Names (vpage 102) to select the menu to be set or operated. Auto Standby (vpage 102) Press ENTER...

  • Page 105: Front Display

    General Language Auto Standby Default settings are underlined. Default settings are underlined. Set the language for display on the menu screen. When you do not perform any operation on this unit with no audio or video input for a specified time, this unit automatically enters the standby mode.
  • Page 106 General Information INFO Press to display current source name, volume and sound mode name at the bottom of the screen. Show information about receiver settings, input signals, etc. Examples of screen display Items Setting details • Status display screen Sound Mode : The currently set surround mode. Audio When the input source is switched.
  • Page 107 General Firmware Setting items Setting details Default settings are underlined. Notifications Update : The notification message is displayed for about 20 seconds when Set whether or not to check for firmware update, update the firmware, and display update and upgrade Displays a notification the power is turned on.
  • Page 108 “Update retry” appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment. • Information regarding the “Update” function and “Add New Feature” will be announced on the DENON web site each time related plans are defined.

  • Page 109: Informations

    Information Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 107 F Other information vpage 112 F Troubleshooting vpage 119 F Specifications vpage 124 F Index vpage 125...

  • Page 110: Part Names And Functions

    Part names and functions Front panel For buttons not explained here, see the page indicated in parentheses ( ). Q3 Q4 Power operation button (X) ··················································· (27) AUX-HDMI connector ····························································· (10) SOURCE SELECT buttons (0 1) ··································· (27, 123) Turns power to this unit on and off (standby). iPod/USB port ·········································································...

  • Page 111: Display

    Display Information display Sleep timer indicator Decoder indicators The input source name, sound mode, setting values and other This lights when the sleep mode is selected (vpage 74). These light when Dolby or DTS signals are input or when the Dolby information are displayed here.

  • Page 112: Rear Panel

    Rear panel See the page indicated in parentheses ( ). FM antenna terminal (ANTENNA) ········································· (17) Network connector (NETWORK) ··········································· (18) NOTE Speaker terminals (SPEAKERS) ······································· (71, 72) Digital audio connectors (DIGITAL AUDIO) ·············· (13, 14, 15) Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

  • Page 113: Remote Control Unit

    Remote control unit For buttons not explained here, see the page indicated in parentheses ( ). SLEEP button ·············································· (74) Input source select buttons ······················· (27) SOUND MODE buttons ······························ (64) • MOVIE button SLEEP POWER • MUSIC button • GAME button • PURE button Information button (INFO) ·······················...
  • Page 114 Remote control unit Inserting the batteries Operating range of the remote control unit Point the remote control unit at the remote sensor when operating it. q Remove the rear lid in the w Load the two batteries properly direction of the arrow and as indicated by the marks in the remove it.

  • Page 115: Other Information

    Other information Trademark information n Trademark information (vpage 112) This product uses the following technologies (Random order): n Surround (vpage 113) n Relationship between video signals and monitor output (vpage 116) “Made for iPod” and “Made for iPhone” mean that an electronic n Explanation of terms (vpage 117) accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to Manufactured under license from Audyssey Laboratories™.

  • Page 116: Surround

    Surround This unit is equipped with a digital signal processing circuit that lets you play program sources in the sound mode to achieve the same sense of presence as in a movie theater. Sound modes and surround parameters This table shows the speakers that can be used in each sound mode and the surround parameters adjustable in each sound mode. Symbols in the table S This indicates the audio output channels or surround parameters that can be set.
  • Page 117 Surround Surr.Parameter (vpage 81) Audyssey z8 (vpage 84) NEO:6 Music mode PRO LOGIC g Music mode only Tone Restorer only Sound Mode (vpage 64) Dynamic EQ Dynamic Volume (vpage 82) (vpage 83) MultEQ ® Panorama Dimension Center Width Center Image (vpage 81) (vpage 81) (vpage 81) (vpage 81) (vpage 84) (vpage 84) (vpage 84) DIRECT (2channel)
  • Page 118 Surround n Types of input signals, and corresponding sound modes This table shows the input signal that can be played in each sound mode. Check the audio signal of the input source then select the sound mode. Symbols in the table F This indicates the default sound mode.

  • Page 119: Relationship Between Video Signals And Monitor Output

    Relationship between video signals and monitor output Output HDMI output Video output Input HDMI VIDEO Video Menu Video Menu Only the menu is displayed S <VIDEO> S <HDMI> S (HDMI) S <VIDEO> S : Video signal input present S < > : The input signal between the < > marks is output. A : No video signal input : No video signal output S ( ) : Superimposed on the picture indicated in ( ).

  • Page 120: Explanation Of Terms

    Explanation of terms Dolby TrueHD DTS-HD High Resolution Audio Dolby TrueHD is a high definition audio technology DTS-HD High Resolution Audio is an improved Deep Color Adobe RGB color, Adobe YCC601 color developed by Dolby Laboratories, using lossless version of the conventional DTS, DTS-ES and An imaging technology supported by HDMI.
  • Page 121 Explanation of terms FLAC HDCP Progressive (sequential scanning) Windows Media DRM FLAC stands for Free lossless Audio Codec, and is a When transmitting digital signals between devices, This is a scanning system of video signal that This is a copyright protection technology developed lossless free audio file format.

  • Page 122: Troubleshooting

    After turning on the • This unit amplifier circuit has failed. Turn off the power and please – power, the power contact the DENON service adviser. indicator is blinking red in intervals of approximately 0.5 seconds. Set does not operate • Reset the microprocessor.
  • Page 123 GAudioH Symptom Cause/Solution Page Symptom Cause/Solution Page • Check that “Speaker Config.” – “Center” or “Surround” is set to Dolby PLg mode or Audio is not output. • Check the connections for all devices. 9, 10, 13, other than “None”. If the speaker system is 2.0/2.1ch, this sound DTS NEO:6 mode mode cannot be selected.
  • Page 124 • A USB memory device that the set cannot recognize is connected. – • If connection is restricted, set audio equipment as the connection – This is not a malfunction. DENON does not guarantee that all USB target. memory devices will operate or receive power. Server is not found, • The computer’s or router’s firewall is activated.
  • Page 125 (Password is not displayed.) • Insert the batteries in the proper direction, checking the q and “Password” is http://www.pandora.com/denon w marks. displayed.) • The set’s remote control sensor is exposed to strong light (direct GAirPlayH sunlight, inverter type fluorescent bulb light, etc.). Move the set...

  • Page 126: Resetting The Microprocessor

    Resetting the microprocessor Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values. SOURCE SELECT 0 SOURCE SELECT 1 Turn off the power using SOURCE SELECT 0 SOURCE SELECT Press...

  • Page 127: Specifications

    Specifications n Audio section n Tuner section [FM] (Note: μV at 75 Ω, 0 dBf = 1 x 10 –15 W) • Power amplifier Rated output: Front: Receiving Range: 87.5 MHz – 107.9 MHz 75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.) Usable Sensitivity: 1.2 μV (12.8 dBf) 120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
  • Page 128 Index Connection Listening position ··············································· 20 Blu-ray Disc player ··········································· 10 Lock ·································································· 105 Edit Name ·························································· 98 Cable TV··························································· 14 Loudness Mngmt ··············································· 81 v Numerics Effect Level ························································ 82 Digital camcorder ············································· 10 Low Frequency ·················································· 81 Error messages (Audyssey ® Setup) ·················· 25 2.1-channel ·························································...
  • Page 129 Preset Memory ·················································· 39 Preset Name ······················································ 40 Text Search ························································ 58 Preset Skip ························································· 41 Tone ··································································· 82 Progressive ······················································ 118 Tone Control ······················································· 82 Protection circuit ·············································· 118 Trademark ························································ 112 Treble ································································· 82 Troubleshooting ··············································· 119 Quick select ······················································· 75 Tune Mode ·························································...
  • Page 130 Dimensions Unit : in. (mm) 17 3/32 (434.0) 2 23/64 (60.0) 1 49/64 1 49/64 (45.0) 13 35/64 (344.0) (45.0) Weight : 18 lbs 1 oz (8.2 kg)
  • Page 131 D&M Holdings Inc. 3520 10066 10AD...

This manual is also suitable for:

Avr-1713

Table of Contents
