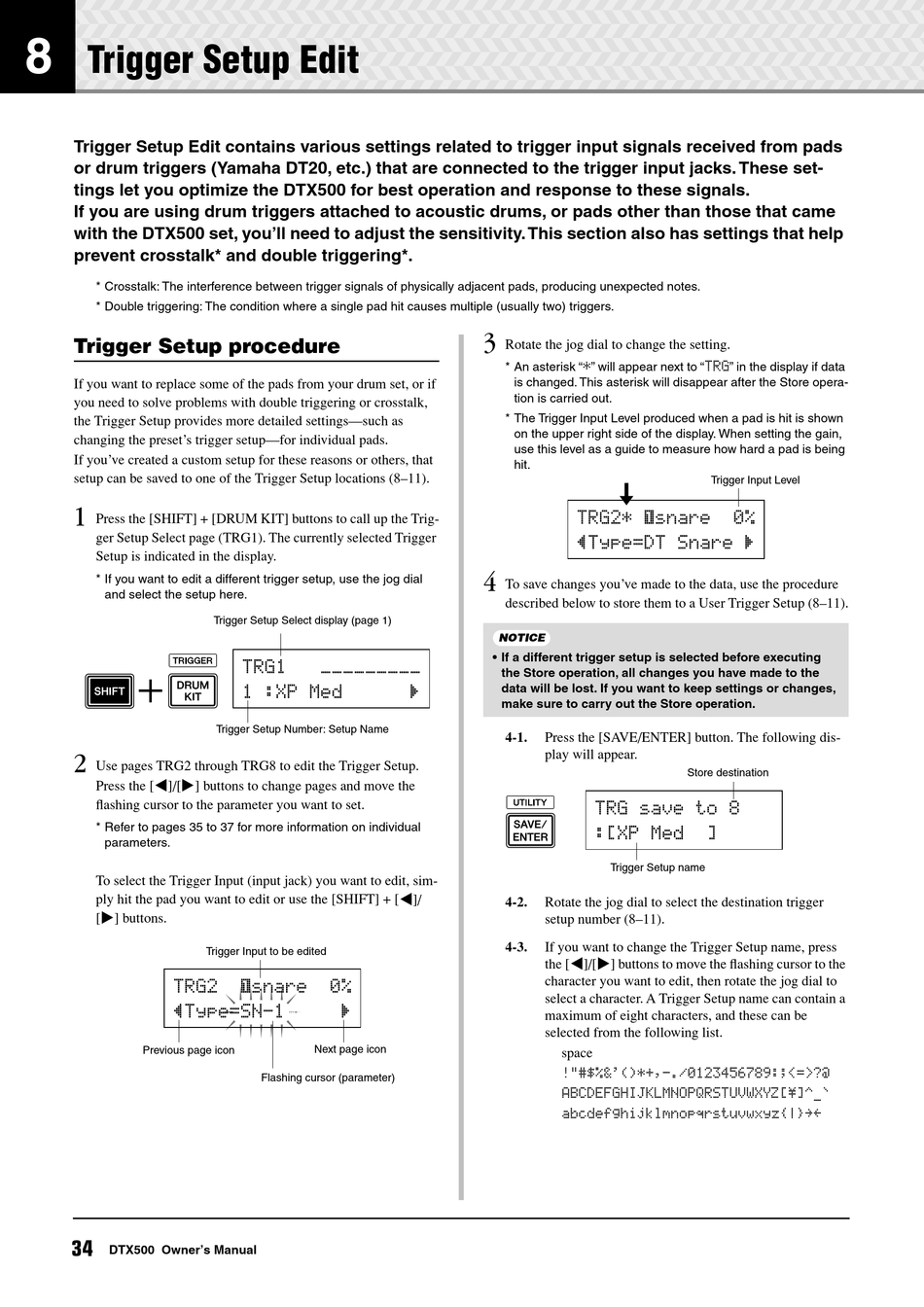

Trigger Setup Edit

Trigger Setup Edit contains various settings related to trigger input signals received from pads
or drum triggers (Yamaha DT20, etc.) that are connected to the trigger input jacks. These set-
tings let you optimize the DTX500 for best operation and response to these signals.
If you are using drum triggers attached to acoustic drums, or pads other than those that came
with the DTX500 set, you'll need to adjust the sensitivity. This section also has settings that help
prevent crosstalk* and double triggering*.
* Crosstalk: The interference between trigger signals of physically adjacent pads, producing unexpected notes.
* Double triggering: The condition where a single pad hit causes multiple (usually two) triggers.

Trigger Setup procedure

If you want to replace some of the pads from your drum set, or if
you need to solve problems with double triggering or crosstalk,
the Trigger Setup provides more detailed settings—such as
changing the preset's trigger setup—for individual pads.
If you've created a custom setup for these reasons or others, that
setup can be saved to one of the Trigger Setup locations (8–11).
1
Press the [SHIFT] + [DRUM KIT] buttons to call up the Trig-
ger Setup Select page (TRG1). The currently selected Trigger
Setup is indicated in the display.
* If you want to edit a different trigger setup, use the jog dial
and select the setup here.
2
Use pages TRG2 through TRG8 to edit the Trigger Setup.
< >
Press the [ ]/[ ] buttons to change pages and move the
flashing cursor to the parameter you want to set.
* Refer to pages 35 to 37 for more information on individual
parameters.
To select the Trigger Input (input jack) you want to edit, sim-
ply hit the pad you want to edit or use the [SHIFT] + [
>
[ ] buttons.
TRG2~
"Type=SN-1~~~~~‚
Previous page icon
34
DTX500 Owner's Manual
Trigger Setup Select display (page 1)
TRG1~~~ååååååååå
1~:XP~Med~~~~~~‚
Trigger Setup Number: Setup Name
Trigger Input to be edited
ƒsnare~~0%
Next page icon
Flashing cursor (parameter)
3
Rotate the jog dial to change the setting.
* An asterisk "
is changed. This asterisk will disappear after the Store opera-
tion is carried out.
* The Trigger Input Level produced when a pad is hit is shown
on the upper right side of the display. When setting the gain,
use this level as a guide to measure how hard a pad is being
hit.
4
To save changes you've made to the data, use the procedure
described below to store them to a User Trigger Setup (8–11).
NOTICE
• If a different trigger setup is selected before executing
the Store operation, all changes you have made to the
data will be lost. If you want to keep settings or changes,
make sure to carry out the Store operation.
4-1. Press the [SAVE/ENTER] button. The following dis-
play will appear.
<
]/
4-2. Rotate the jog dial to select the destination trigger
setup number (8–11).
4-3. If you want to change the Trigger Setup name, press
<
the [
character you want to edit, then rotate the jog dial to
select a character. A Trigger Setup name can contain a
maximum of eight characters, and these can be
selected from the following list.
space
!"#$%&'()*+,-./0123456789:;<=>?@
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
* TRG
" will appear next to " " in the display if data
Trigger Input Level
TRG2* ƒsnare~~0%
"Type=DT~Snare~‚
Store destination
TRG~save~to~8
:[XP~Med~~]
Trigger Setup name
>
]/[ ] buttons to move the flashing cursor to the
