Summary of Contents for KitchenAid KUDS40FVBL - 24" Dishwasher
Page 1

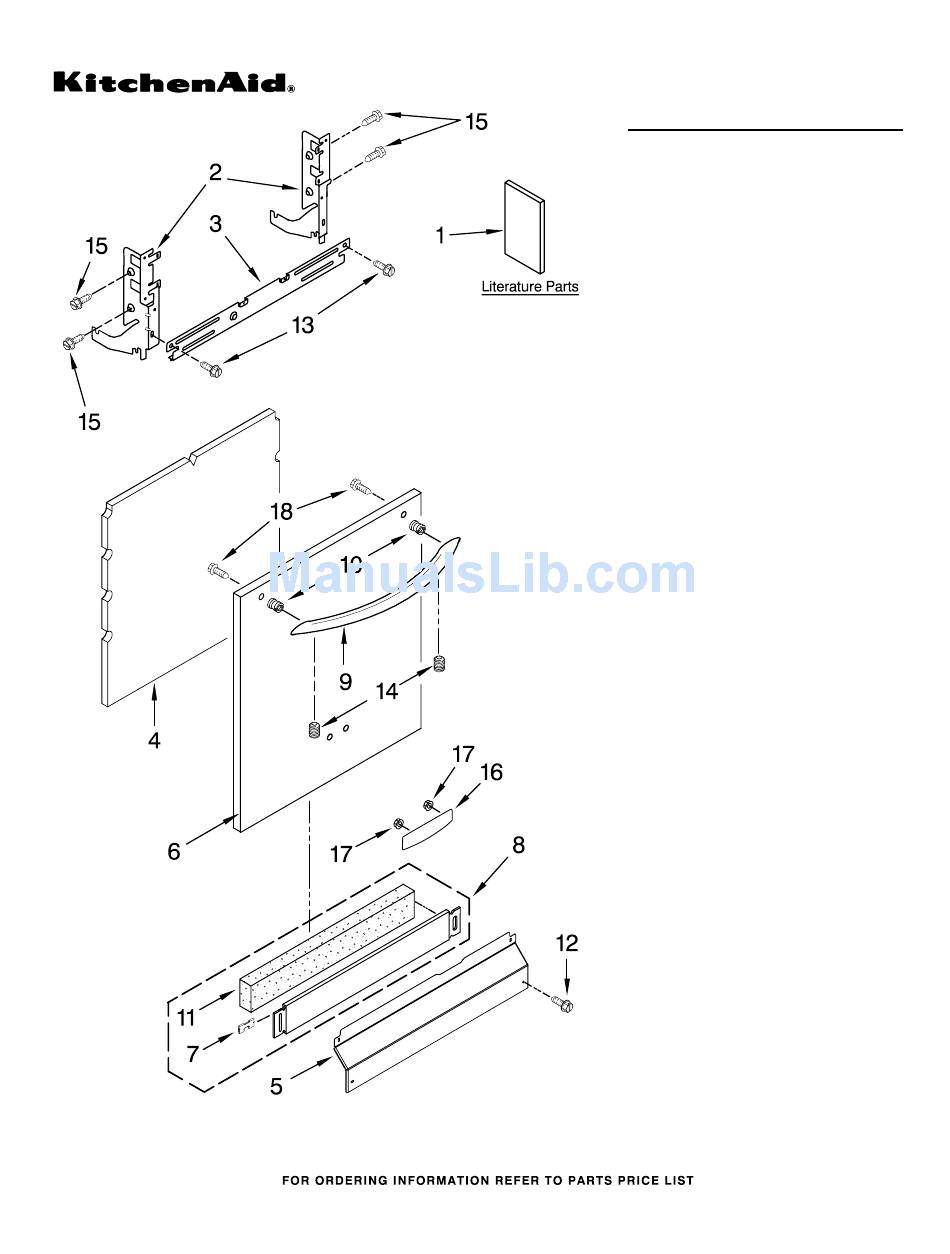

DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION Literature Parts W10056407 Instructions, Installation W10247455 Energy Guide W10300233 Guide, Use & Care Spanish W10300234 Guide, Use & Care English/French W10142800 Tech Sheet Arm, Hinge 8534854 Left 8534853 Right...
Page 2
CONTROL PANEL AND LATCH PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION Console Assembly W10249994 Black W10249995 White W10249996 Biscuit W10249997 Midnight Grey 2 W10077360 Latch Assembly 8546546 Clip, BI−Metal 4 W10208674 Control, Electronic 661663 BI−Metal 6 W10255029 Switch, Door 3369051 Screw...
Page 3
INNER DOOR PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8269259 Gasket, Vent 3369051 Screw, Door 11 W10224470 Wiring Harness 7 W10077877 Deflector, Vent 8281217 Screw 12 W10177098 Screw (Also Order 3 W10056249 Inner Door 8535660 Seal,...
Page 4
FILL, DRAIN AND OVERFILL PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 8268892 Lever, Overflow Switch 8531412 Hose, Inlet 3 W10195536 Water Inlet (Also Order Items 4) 8531323 Gasket 5 W10213826 Nut, Inlet (Also Order Item 4) 371505 Clamp, Hose 7 W10195049 Fill Valve...
Page 5
TUB AND FRAME PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) W10328278...
Page 6
TUB AND FRAME PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10213822 Tub Assembly (Includes Heater Assembly) 8573061 Strain Relief 3 W10112096 Door Seal 4 W10082838 Plug Tub 5 W10266857 Insulator, Sound 8269110 Seal, Cabinet 7 W10084568 Absorber, Sound 8 W10084086 Door Balance Assembly...
Page 7
PUMP AND MOTOR PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) W10328278...
Page 8
PUMP AND MOTOR PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield 3400069 Screw 8572618 Sump with Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 9 W10239404 Motor Assembly 3400217 Screw 11 W10084567 Screen, Separation...
Page 9
UPPER WASH AND RINSE PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold 7 W10082832 Hanger 8268433 Seal, Sprayarm...
Page 10
HEATER PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10082892 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced.
Page 11
UPPER RACK AND TRACK PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) W10328278...
Page 12
UPPER RACK AND TRACK PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268654 Adjuster Assembly 3385088 Wheel 8268703 Axel, Adjuster 8281156 Screw 8562030 Tine Row 9 W10082853 Clip, Pivot...
Page 13
LOWER RACK PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10056271 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10261335 Wheel & Transport Assembly 8531233 Basket, Silverware 5 W10078215 Retainer, Combo 6 W10056272 Tine Row 7 W10175279 Retainer, Tine Row 8519702 Basket, Utensil...
Page 14
LOWER WASHARM AND STRAINER PARTS For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal Rear Feed (Also Order Item 3) 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower Sprayarm (Also Order Item 3)
Page 15
OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS40FVBL4, KUDS40FVWH4, KUDS40FVBT4, KUDS40FVSS4 (Black) (White) (Biscuit) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION OPTIONAL PARTS NOT INCLUDED ACCESSORIES POWER CORD KIT Side Panel Kits 4317824 Power Cord Kit PAINT, TOUCH−UP (1/2oz.) 8171656 White (Includes Power 8171657 Black...
