Page 1

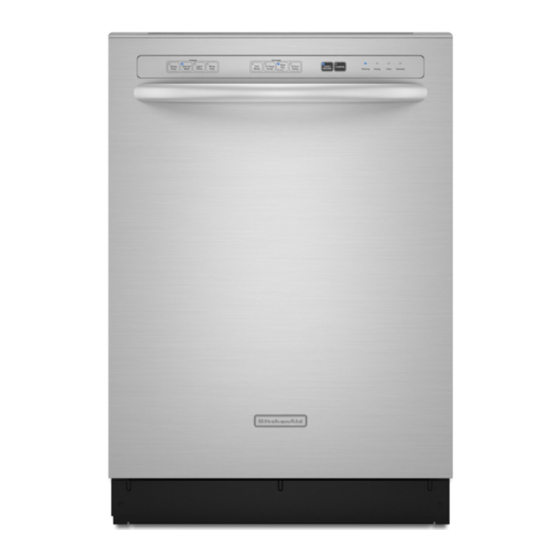

DOOR AND PANEL PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 01−09 Litho In U.S.A. (els)(bay) (Black) (White) (Stainless) Illus. UNDERCOUNTER DISHWASHER Part DESCRIPTION Literature Parts W10056407 Instructions, Installation W10056439 Energy Guide W10205938 Guide, Use & Care Spanish W10205937 Guide, Use & Care...
CONTROL PANEL PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) Illus. Part DESCRIPTION Console Assembly W10056500 Black W10056501 White W10056502 Midnight Grey 8531877 Cable, Ribbon 8546546 Clip, BI−Metal 8531873 Board, Interconnect 661663 BI−Metal 6 W10134019 Switch, Door 3369051 Screw 8 W10077360 Latch Assembly...
Page 3
DOOR AND LATCH PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 Illus. Part DESCRIPTION 3369051 Screw, Door 8281217 Screw 3 W10056249 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 8572611 Vent Assembly (Also Order Item 6) W10249222 (Black) (White) Illus.
Page 4
FILL, DRAIN AND OVERFILL PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) (Stainless) Illus. Part 8268892 Lever, Overflow 2 W10041920 Hose, Inlet 3 W10041900 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 7 W10219505 Fill Valve 304392 Screw...
Page 5
TUB AND FRAME PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) (Stainless) W10249222...
Page 6
TUB AND FRAME PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) Illus. Part DESCRIPTION 1 W10164353 Tub Assembly (Includes Heater Assembly) 8573061 Strain Relief 3 W10112096 Door Seal 4 W10082838 Plug Tub 8268582 Insulator, Sound 8269110 Seal, Cabinet 3400924 Retainer, Push...
Page 7
PUMP AND MOTOR PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) (Stainless) W10249222...
Page 8
PUMP AND MOTOR PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield 3400069 Screw 8572618 Sump with Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 8535760 Motor Assembly...
Page 9
UPPER WASH AND RINSE PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 W10249222 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold...
HEATER PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced.
Page 11
UPPER RACK AND TRACK PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) (White) (Stainless) W10249222...
Page 12
UPPER RACK AND TRACK PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268654 Adjuster Assembly 3385088 Wheel 8268703 Axel, Adjuster 8281156 Screw...
Page 13
For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 W10249222 LOWER RACK PARTS (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10056271 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10082868 Wheel & Transport Assembly 8531233 Basket, Silverware 5 W10078215 Retainer, Combo...
Page 14
LOWER WASHARM AND STRAINER PARTS For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 (Black) Illus. Part 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower (White) (Stainless) DESCRIPTION Rear Feed (Also Order Item 3) Sprayarm (Also Order...
Page 15
OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS40CVBL0, KUDS40CVWH0, KUDS40CVSS0 Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 8212489 Black Towel Bar Handle Kit 8573938 Stainless Steel Drain Hose...
