2.2.2.5 Front Panel USB Headers

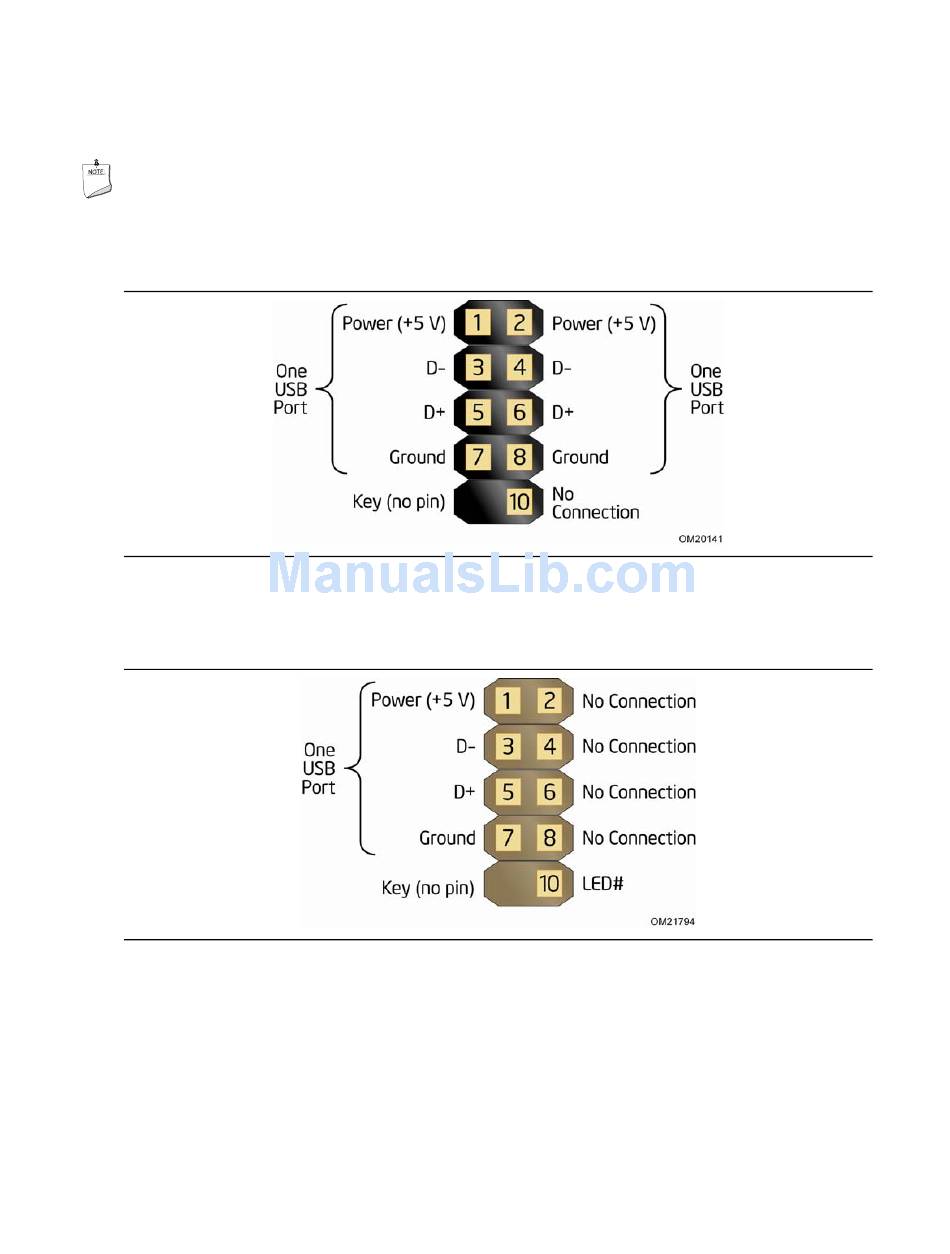

Figure 13 and Figure 14 are connection diagrams for the front panel USB headers.
NOTE
• The +5 VDC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0
specification for high-speed USB devices.
Figure 13. Connection Diagram for Front Panel USB Header
Figure 14. Connection Diagram for Front Panel USB Header
with Intel Z-USB Solid-State Drive or Compatible Device Support
