Edelbrock 15018 Installation Instructions

Edelbrock corporation replacement o-ring kit installation instructions

Download this manual

PLEASE study these instructions carefully before installing your new Edelbrock Oil Supply Adapter. If you have any questions or problems, do not

hesitate to contact our Technical Hotline at: 1-800-416-8628, from 7am-5pm, Monday-Friday, Pacific Standard Time or via e-mail at:

Edelbrock@Edelbrock.com. Please fill out and mail your warranty card.

•

DESCRIPTION:

This kit includes three (3) replacement o-rings for oil supply adapter #15010 (Adapter #15010 is also used in Edelbrock Turbo Kits #1500,

1501, 1502, 1503, & 1504).

•

KIT CONTENTS:

1 - Oil Adapter to Engine Block O-Ring

1 - Insert to Adapter Housing O-Ring

1 - Supply Fitting to Adapter Housing O-Ring

1. Disconnect your supply line from the adapter, remove oil filter (replace), and remove Oil Supply Sandwich Adapter using a 1/2" Allen wrench.

2. Dissasemble the adapter and replace o-rings (See Figure 1).

3. When reinstalling the adapter, make sure the adapter to engine block o-ring is facing toward the engine block, and the threaded stud with ½"

hex opening is facing out.

4. Tighten with a ½" Allen wrench. Make sure the blue fitting is facing toward the driver's side, pointing upward slightly, about the 10 o'clock

position.

5. Install a new oil filter.

6. Reattach your supply line.

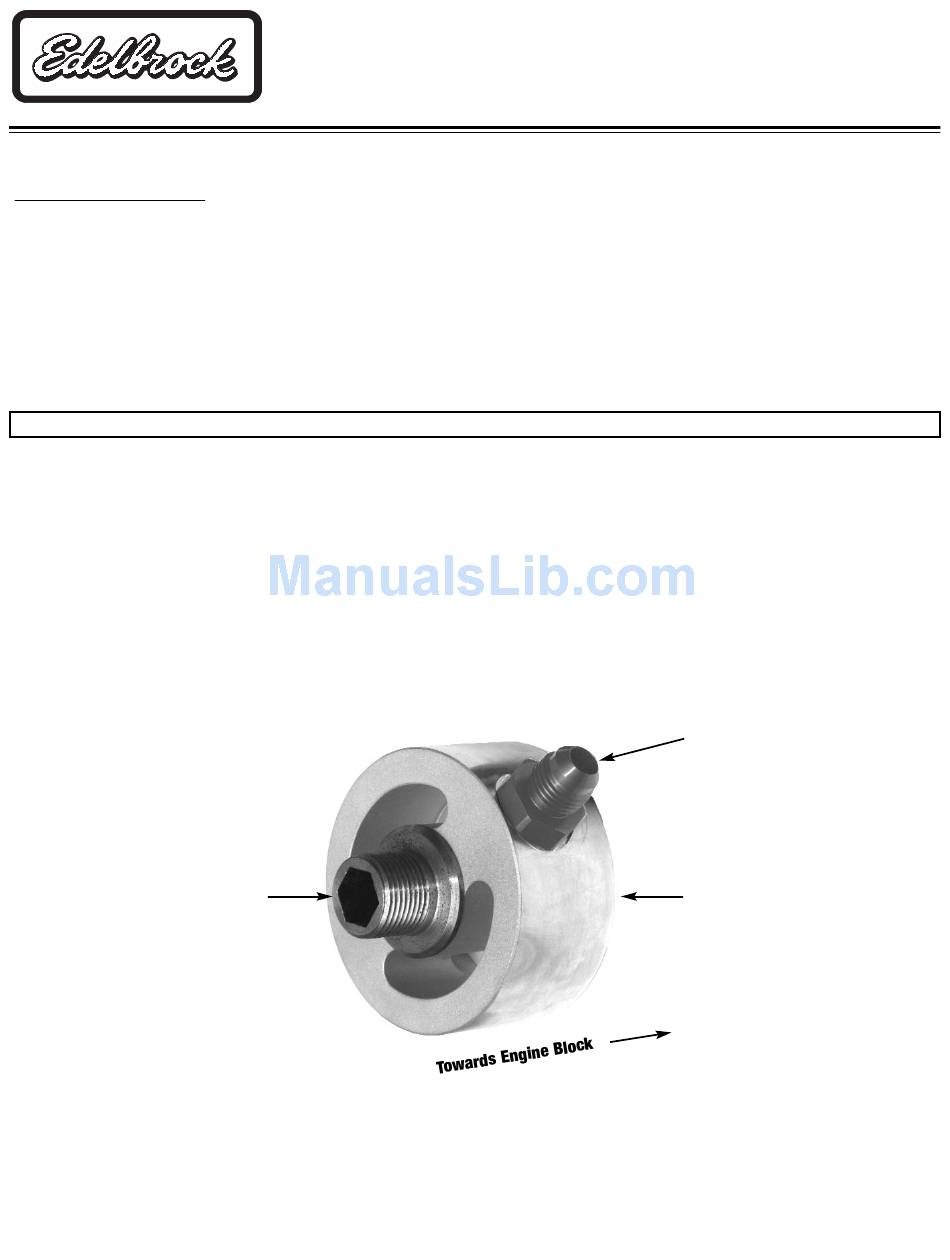

FIGURE 1 - Oil Supply Adapter

Carefully Press Out the

Threaded Center of Supply

Adapter and Replace O-Ring

Catalog #15018

Edelbrock Corporation • 2700 California St. • Torrance, CA 90503

Tech Line: 1-800-416-8628 • E-Mail: Edelbrock@Edelbrock.com

Installation Procedure

REPLACEMENT O-RING KIT

For Oil Supply Adapter #15010

Catalog #15018

INSTALLATION INSTRUCTIONS

Replace O-Ring Under -6AN Fitting

Replace Large O-Ring On Engine

Block Side of Adapter

Brochure #63-0344, Rev. 3/05
