Memory Configurations

The Intel 82865G GMCH component provides two features for enhancing memory
throughput:
• Dual Channel memory interface. The board has two memory channels, each with a
single DIMM socket, as shown in Figure 3
• Dynamic Addressing Mode. Dynamic mode minimizes overhead by reducing
memory accesses
Table 5 summarizes the characteristics of Dual and Single Channel configurations with
and without the use of Dynamic Mode.
Table 5. Characteristics of Dual/Single Channel Configuration with/without

Dynamic Mode

Throughput
Level Configuration
Highest Dual Channel with Dynamic Mode
Single Channel with Dynamic Mode
Single Channel without Dynamic Mode
Lowest
Channel A, DIMM 0
Channel B, DIMM 0
18

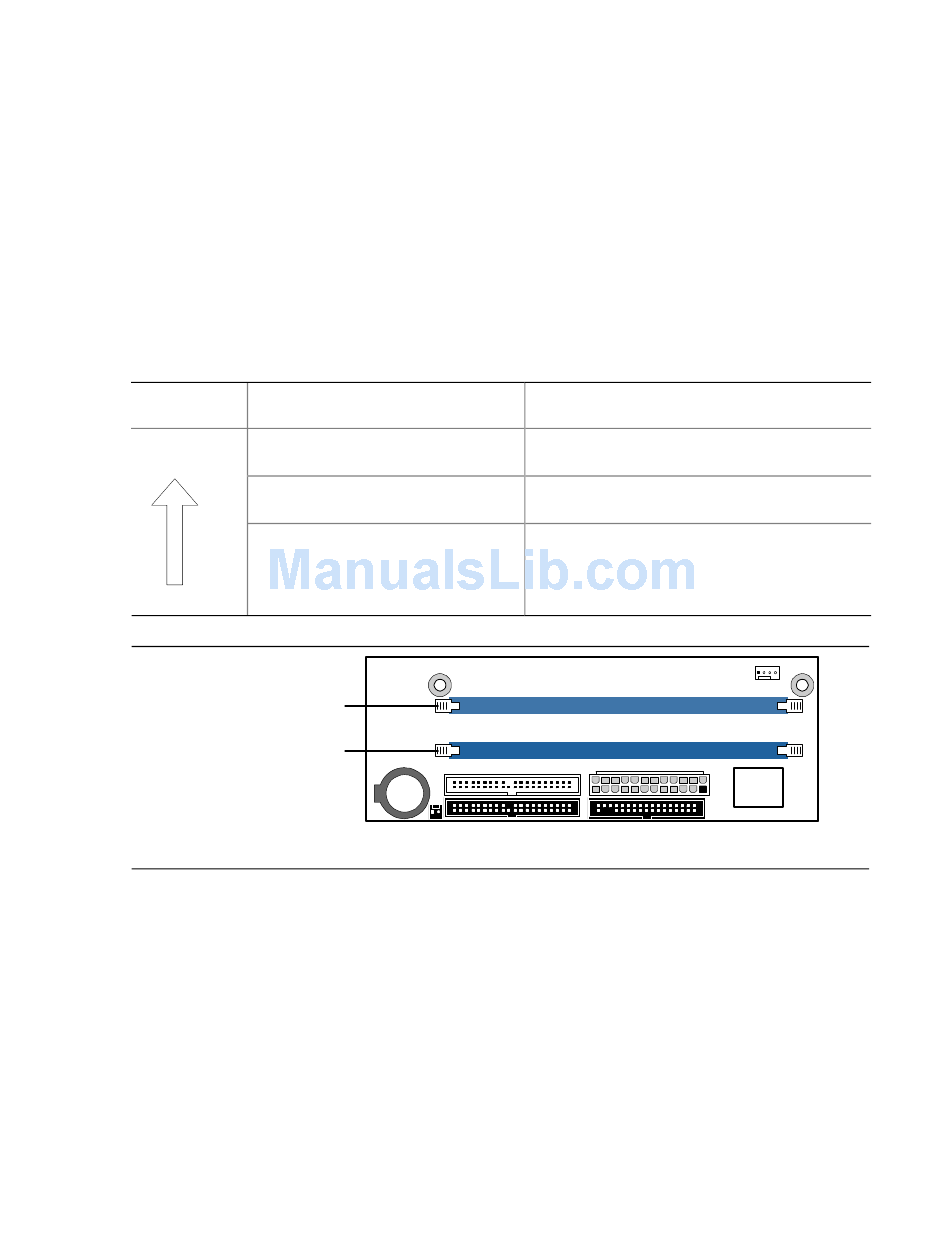

Figure 3. Memory Channel Configuration
Characteristics
DIMMs matched
(Example configuration shown in Figure 4)
Single DIMM
(Example configuration shown in Figure 5)
DIMMs not matched
(Example configuration shown in Figure 6)
OM18296
