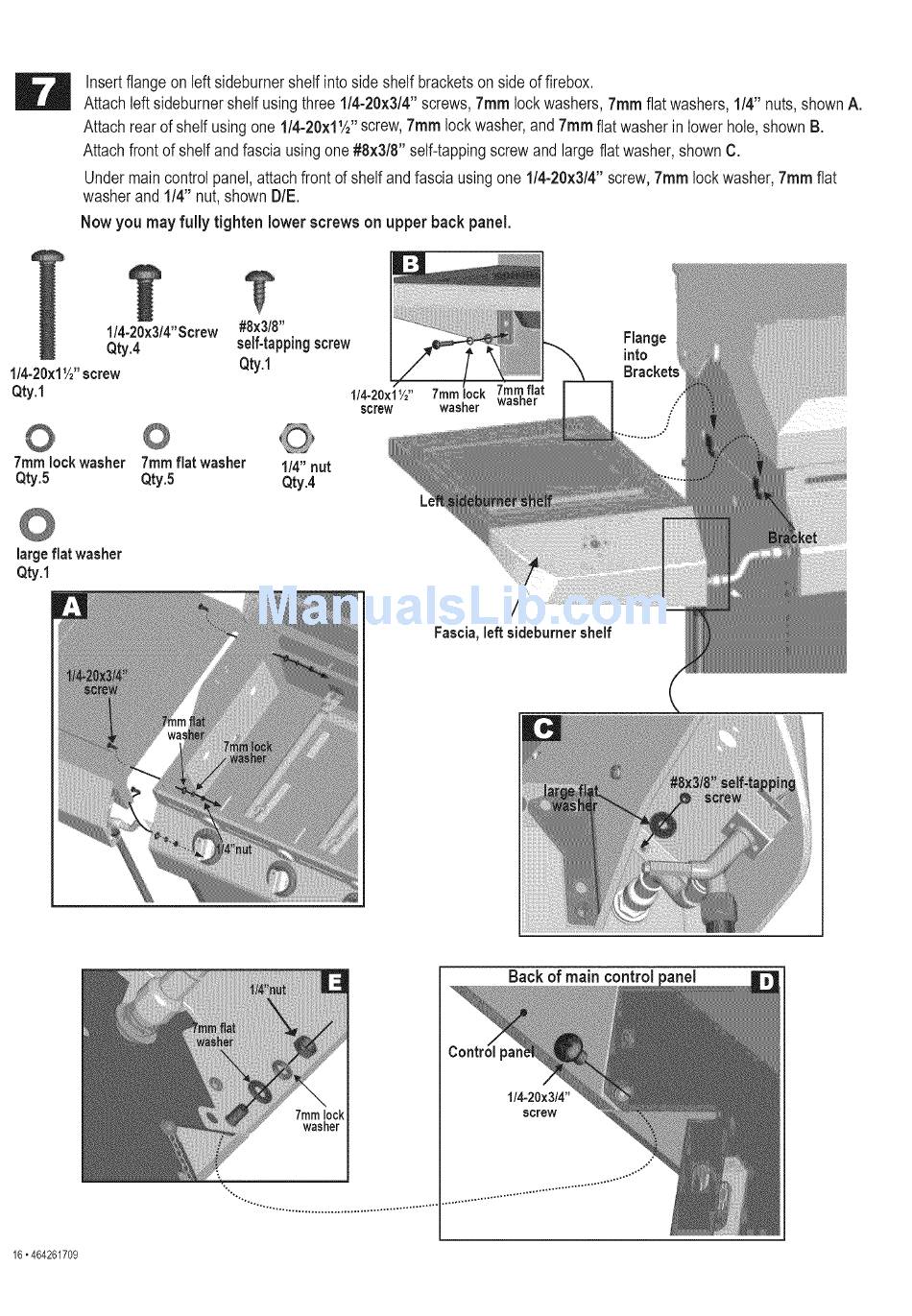

Insert flange on left sideburner shelf into side shelf brackets on side of firebox.
Attach left sideburner shelf using three 1/4-20x3/4" screws, 7ram lock washers, 7ram flat washers, 1/4" nuts, shown A.
Attach rear of shelf using one l/4-20xllA '' screw, 7ram lock washer, and 7ram flat washer in lower hole, shown D.
Attach front of shelf and fascia using one #8x3/8" self-tapping screw and large flat washer, shown C.
Under main control panel, attach front of shelf and fascia using one 1/4-20x3/4" screw, 7ram lock washer, 7ram flat
washer and 1/4" nut, shown DIE.
Now you may fully tighten lower screws on upper back panel.
l/4-20x3/4"Screw #8×3/8"
Qty.4 self-tappingscrew Flange
into
1/4-20x1W' s crew _'Y"
Qty. 1 1/4-20xlI/2"
screw
7ram lock washer 7ram flat washer 1/4" nut
Qty.5 Qty.5 Qty.4
large flat washer
Qty.1
Fascia, left sideburnershelf
7mmlock
washer
Back of main control
1/4-20x3/4"
screw
