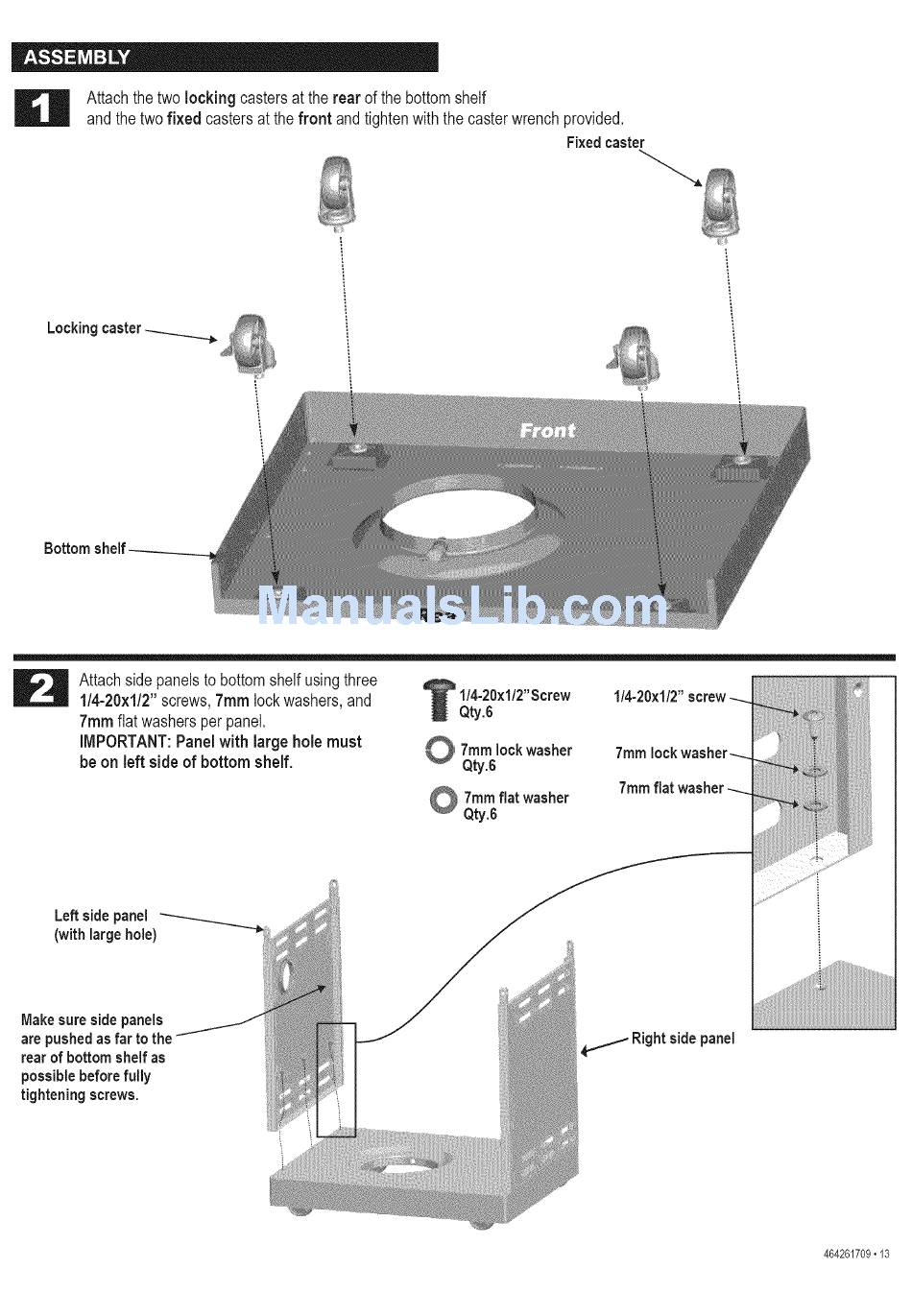

Assembly - Kenmore 16657 - 3 Burner Grill Use And Care Manual

Attach the two locking casters at the rear of the bottom shelf
and the two fixed casters at the front and tighten with the caster wrench provided.
Fixed caster
Lockingcaster--______
Bottom
Attach side panels to bottom shelf using three
1/4-20x1/2" screws, 7ram lock washers, and
7ram flat washers per panel.
IMPORTANT: Panel with large hole must
be on left side of bottom shelf.
l/4-20xl/2"Screw 1/4-20x1/2"screw
Qty.6
O7mm lock washer 7ram
Qty.6
7ram
7mm fiat washer
Qty.6
Leftside panel
(with largehole)
Makesureside panels
are pushedas far to the
rear of bottom shelfas
possiblebefore fully
tightening screws.
Right side panel
464261709.13
