Connecting the transmitter and receiver
To connect the transmitter and receiver:

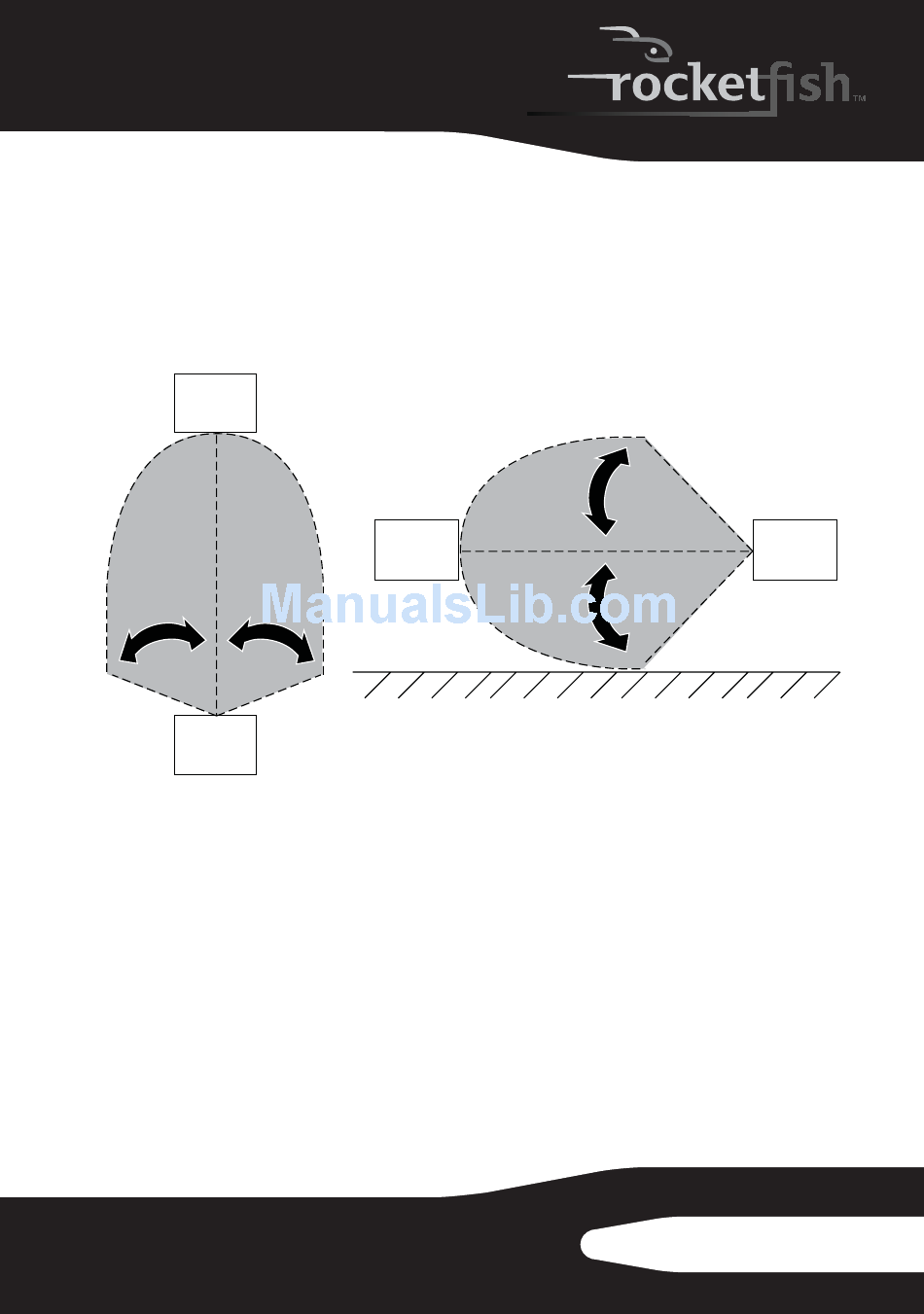

Set up the transmitter and receiver. Refer to the following setup
1
diagrams to arrange your transmitter and receiver. We recommend that
the transmitter and receiver face each other for the best performance.
Top view
Transmitter
Side view
16.4 ft. (5 m)
47°
32.8 ft. (10 m)
Receiver
Transmitter
32.8 ft. (10 m)
47°
16.4 ft. (5 m)
Floor
82° 82°
16.4 ft. (5 m)
16.4 ft. (5 m)
Receiver
