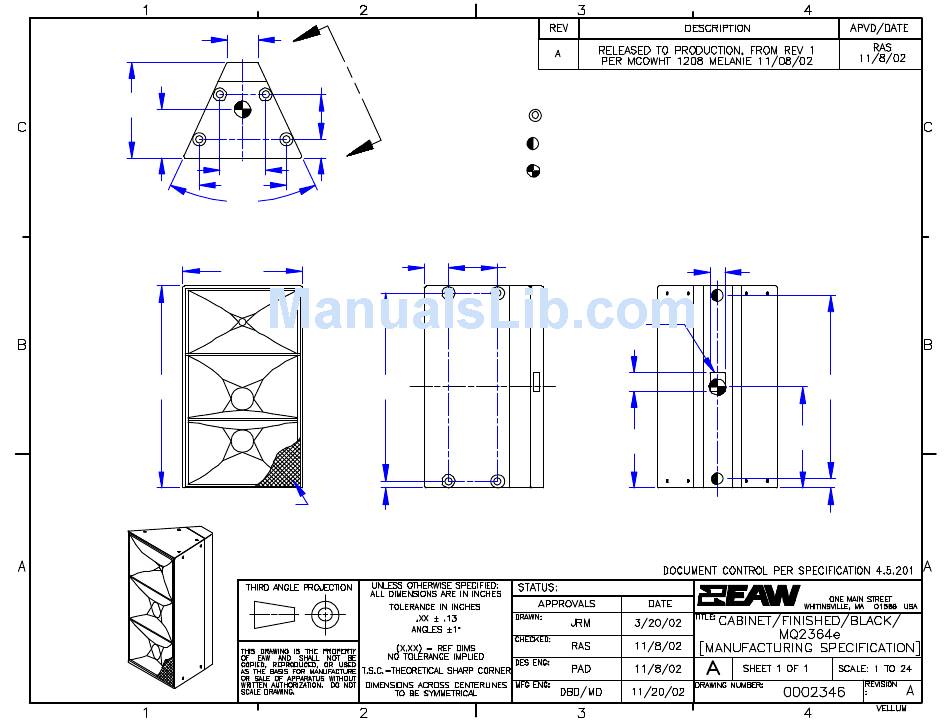

EAW MQ2364e Dimensions

(8.12)
25.61
13.00
DIMENSIONS APPLY TO
TOP AND BOTTOM
54.00
GRILL PARTIALLY SHOWN
FRONT
MQ2364e
C L
A
11.91
5.00
A
12.16
23.28
50°
TOP
6.37
32.00
50.10
(1.95)
NOTES:
1. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (PI ANGLE).
2. SYMBOL INDICATES NON LOAD BEARING MOUNTING POINT,
3/8-16 THREADED HOLE (PI ANGLE).
3. SYMBOL INDICATES CENTER OF BALANCE.
4. WEIGHT APPROX. 217 LBS.
5. SHIPPING WEIGHT APPROX. 241 LBS.
13.15
L C
VIEW A-A
DIMENSIONS APPLY TO
BOTH SIDES
4.00
INPUT
5.00
25.88
L C
BACK
PRODUCTION
48.93
27.00
2.54
EASTERN ACOUSTICWORKS
