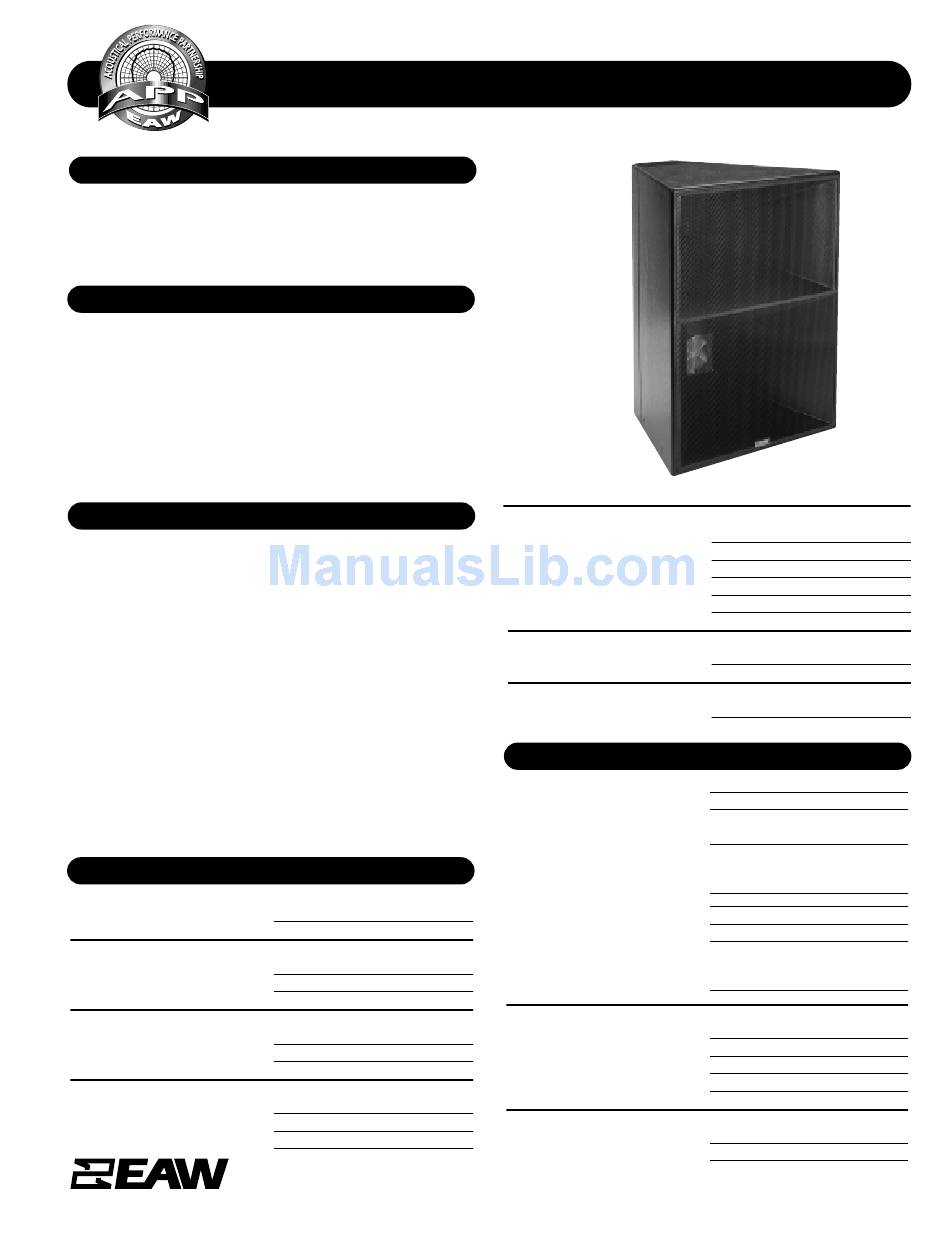

EAW MQ1394e Specifications

FEATURES
• Dedicated horn loaded MF/HF array module
• 10-in MF w/ Radial Phase Plug™; 2-in exit
Neodymium HF
• 90° x 40° beamwidth
• Vertically configured to create horizontal arrays
DESCRIPTION
A dedicated mid/high system in a vented trapezoidal enclo-
sure. Includes a horn-loaded 10-in MF cone with Radial Phase
Plug™ and a 2-in exit/3-in diaphragm Neodymium compres-
sion driver. The MF and HF horns provide a nominal 90° x 40°
beamwidth. An internal passive crossover with jumpers on the
input panel allows user selection of either bi-amplified or
passive operation. In either case digital signal processing is
required to achieve specified performance.
features a comprehensive system of 3/8"-16 threaded sus-
pension points.
APPLICATION
The MQ1394e employs a no-compromise design where the mid
and high frequency horns are truly large enough to provide
optimal pattern control throughout each passband. The horns
feature a rigid but well-damped construction using wood
veneer backed by structural foam. The MQ1394e has been
designed to work with a complementary MQ1300 Series LF
loudspeaker to create a full-range audio system, but may also
be used without a LF complement for voice-only applications.
The enclosure is vertically configured for arraying in horizon-
tal rows. Horizontal arrays are typically used in venues, such
as houses of worship, where the array must address wide, fan-
shaped audiences.
Application Usage: Install
Houses of Worship
Theatres
Performing Arts Centers
PERFORMANCE
Frequency Response (1 W @ 1m)
±3 dB
-10 dB
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive
MF
HF
Impedance (Ohms)
Passive
MF
HF
Power Handling, AES Standard (Watts)
Passive
MF
HF
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
The enclosure
Auditoriums
Arenas
Stadiums
250 Hz to 15 kHz
200 Hz
109
112
109
8
8
8
325
400
150
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS MQ1394e
Calculated Maximum Output (dB SPL)
Passive Peak140
MF Peak 144
HF Peak 137
Passive Long Term 134
MF Long Term 138
HF Long Term 131
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal 90
Vertical 40
Recommended High-Pass Frequency
24 dB/Octave 200 Hz
PHYSICAL
Configuration
Powering
MF Subsystem
HF Subsystem
Enclosure Materials
Finish
Connectors
Suspension Hardware
Grille
Dimensions
Height
Width (front)
Width (rear)
Depth
Trapezoid Angle
Weights
Net Weight
Shipping Weight
FAX 508 234 8251
MQ1394e/0002680/2 pp April 2002
Mid/High
Passive or Bi-amplified
1 x 10-in horn-loaded cone,
Radial Phase Plug™
1x 2-in exit/3-in voice coil com-
pression driver on constant
directivity horn
Exterior grade Baltic birch plywood
Wear resistant textured black paint
Terminal barrier strip
16x 3/8"-16 threaded mounting
suspension points (4 each top,
bottom and sides)
Powder coated perforated steel
inches millimeters
40.00 1016
32.00 813
8.12 206
25.61 650
25° per side
pounds kilograms
148 67.3
156 70.9
info@eaw.com www.eaw.com
Printed in USA
