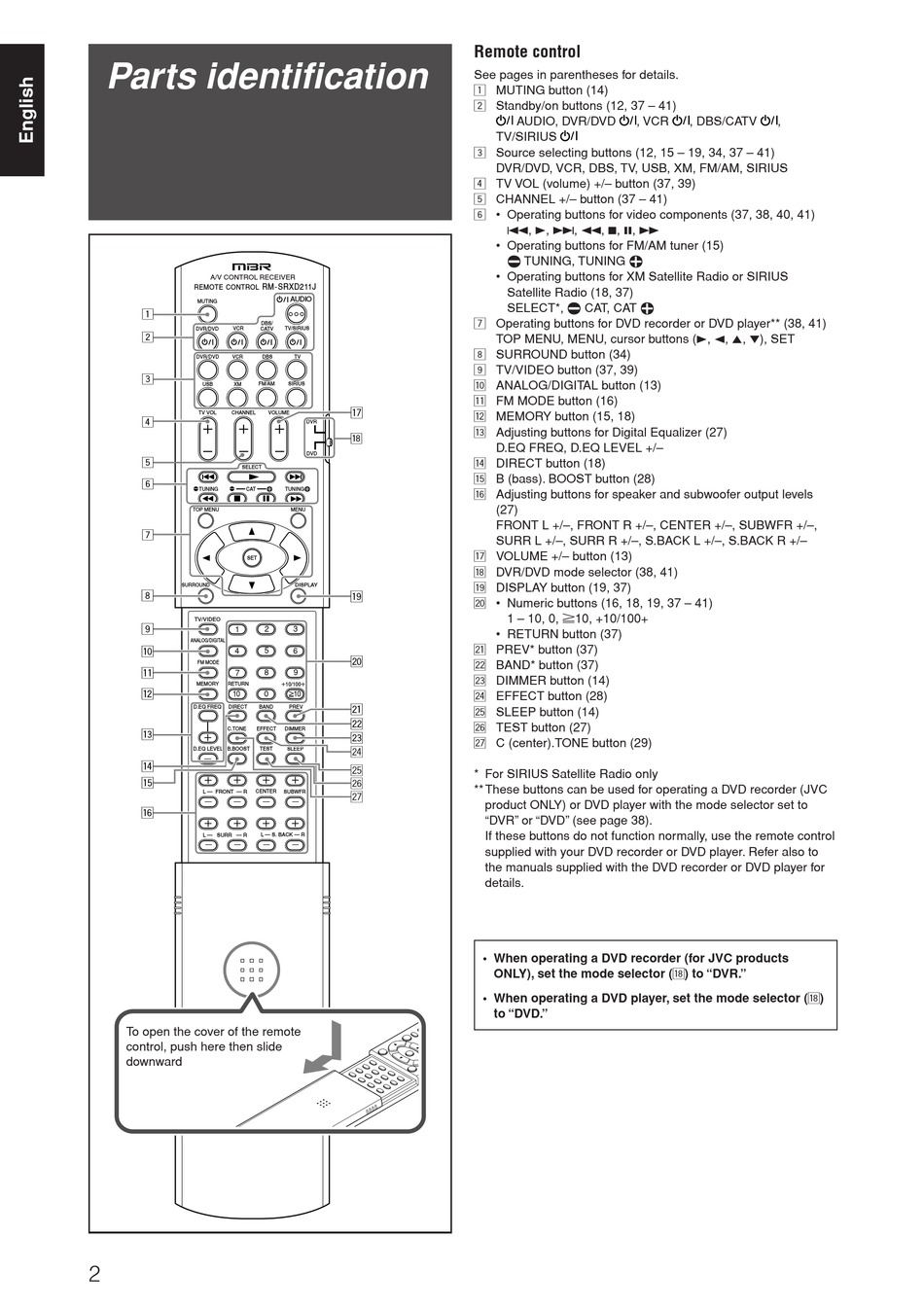

Parts identification

A/V CONTROL RECEIVER
RM-SRXD211J
REMOTE CONTROL
MUTING
1
DBS/
DVR/DVD VCR CATV
2
DVR/DVD VCR DBS
3
USB XM FM/AM
CHANNEL
TV VOL
4
5
SELECT
6
TUNING CAT
TOP MENU
7
SET
SURROUND
8
TV/VIDEO
9
1
ANALOG/DIGITAL
p
4
FM MODE
q
7
MEMORY RETURN
w
10
D.EQ FREQ DIRECT BAND
C.TONE EFFECT
e
D.EQ LEVEL TEST
B.BOOST
r
t
L — FRONT — R CENTER
y
L — SURR — R L — S. BACK — R
To open the cover of the remote
control, push here then slide
downward
2
AUDIO
TV/SIRIUS
TV
SIRIUS
u
VOLUME
DVR
i
DVD
TUNING
MENU
DISPLAY
o
2
3
5 6
;
8 9
10/100
0 10
a
PREV
s
DIMMER
d
f
SLEEP
g
h
SUBWFR
j
Remote control
See pages in parentheses for details.
1 MUTING button (14)
2 Standby/on buttons (12, 37 – 41)
AUDIO, DVR/DVD , VCR
TV/SIRIUS
3 Source selecting buttons (12, 15 – 19, 34, 37 – 41)
DVR/DVD, VCR, DBS, TV, USB, XM, FM/AM, SIRIUS
4 TV VOL (volume) +/– button (37, 39)
5 CHANNEL +/– button (37 – 41)
6 • Operating buttons for video components (37, 38, 40, 41)
4, 3, ¢, 1, 7, 8, ¡
• Operating buttons for FM/AM tuner (15)
( TUNING, TUNING 9
• Operating buttons for XM Satellite Radio or SIRIUS
Satellite Radio (18, 37)
SELECT*, ( CAT, CAT 9
7 Operating buttons for DVD recorder or DVD player** (38, 41)
TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), SET
8 SURROUND button (34)
9 TV/VIDEO button (37, 39)
p ANALOG/DIGITAL button (13)
q FM MODE button (16)
w MEMORY button (15, 18)
e Adjusting buttons for Digital Equalizer (27)
D.EQ FREQ, D.EQ LEVEL +/–
r DIRECT button (18)
t B (bass). BOOST button (28)
y Adjusting buttons for speaker and subwoofer output levels
(27)
FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–,
SURR L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–
u VOLUME +/– button (13)
i DVR/DVD mode selector (38, 41)
o DISPLAY button (19, 37)
; • Numeric buttons (16, 18, 19, 37 – 41)
1 – 10, 0, h10, +10/100+
• RETURN button (37)
a PREV* button (37)
s BAND* button (37)
d DIMMER button (14)
f EFFECT button (28)
g SLEEP button (14)
h TEST button (27)
j C (center).TONE button (29)
* For SIRIUS Satellite Radio only
** These buttons can be used for operating a DVD recorder (JVC
product ONLY) or DVD player with the mode selector set to
"DVR" or "DVD" (see page 38).
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
the manuals supplied with the DVD recorder or DVD player for
details.
• When operating a DVD recorder (for JVC products
ONLY), set the mode selector (i) to "DVR."
• When operating a DVD player, set the mode selector (i)
to "DVD."
, DBS/CATV ,
