Handling rolls

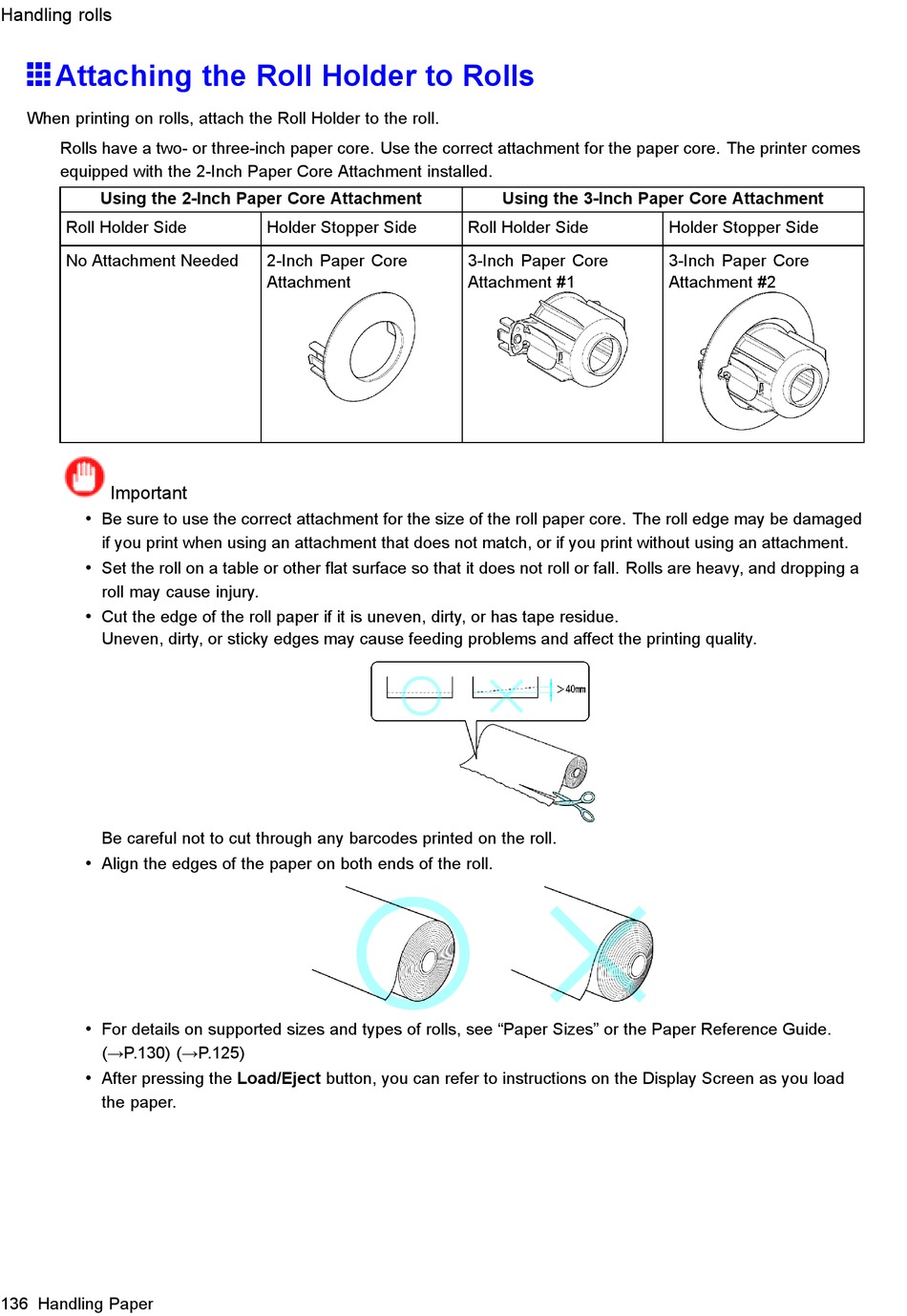

Attaching the Roll Holder to Rolls

When printing on rolls, attach the Roll Holder to the roll.
Rolls have a two- or three-inch paper core. Use the correct attachment for the paper core. The printer comes
equipped with the 2-Inch Paper Core Attachment installed.
Using the 2-Inch Paper Core Attachment
Roll Holder Side
No Attachment Needed
Important
•
Be sure to use the correct attachment for the size of the roll paper core. The roll edge may be damaged
if you print when using an attachment that does not match, or if you print without using an attachment.
•
Set the roll on a table or other at surface so that it does not roll or fall. Rolls are heavy, and dropping a
roll may cause injury.
•
Cut the edge of the roll paper if it is uneven, dirty, or has tape residue.
Uneven, dirty, or sticky edges may cause feeding problems and affect the printing quality.
Be careful not to cut through any barcodes printed on the roll.
•
Align the edges of the paper on both ends of the roll.
•
For details on supported sizes and types of rolls, see "Paper Sizes" or the Paper Reference Guide.
(→P.130) (→P.125)
•
After pressing the Load/Eject button, you can refer to instructions on the Display Screen as you load
the paper.
136 Handling Paper
Holder Stopper Side
2-Inch Paper Core
Attachment
Using the 3-Inch Paper Core Attachment
Roll Holder Side
3-Inch Paper Core
Attachment #1
Holder Stopper Side
3-Inch Paper Core
Attachment #2
