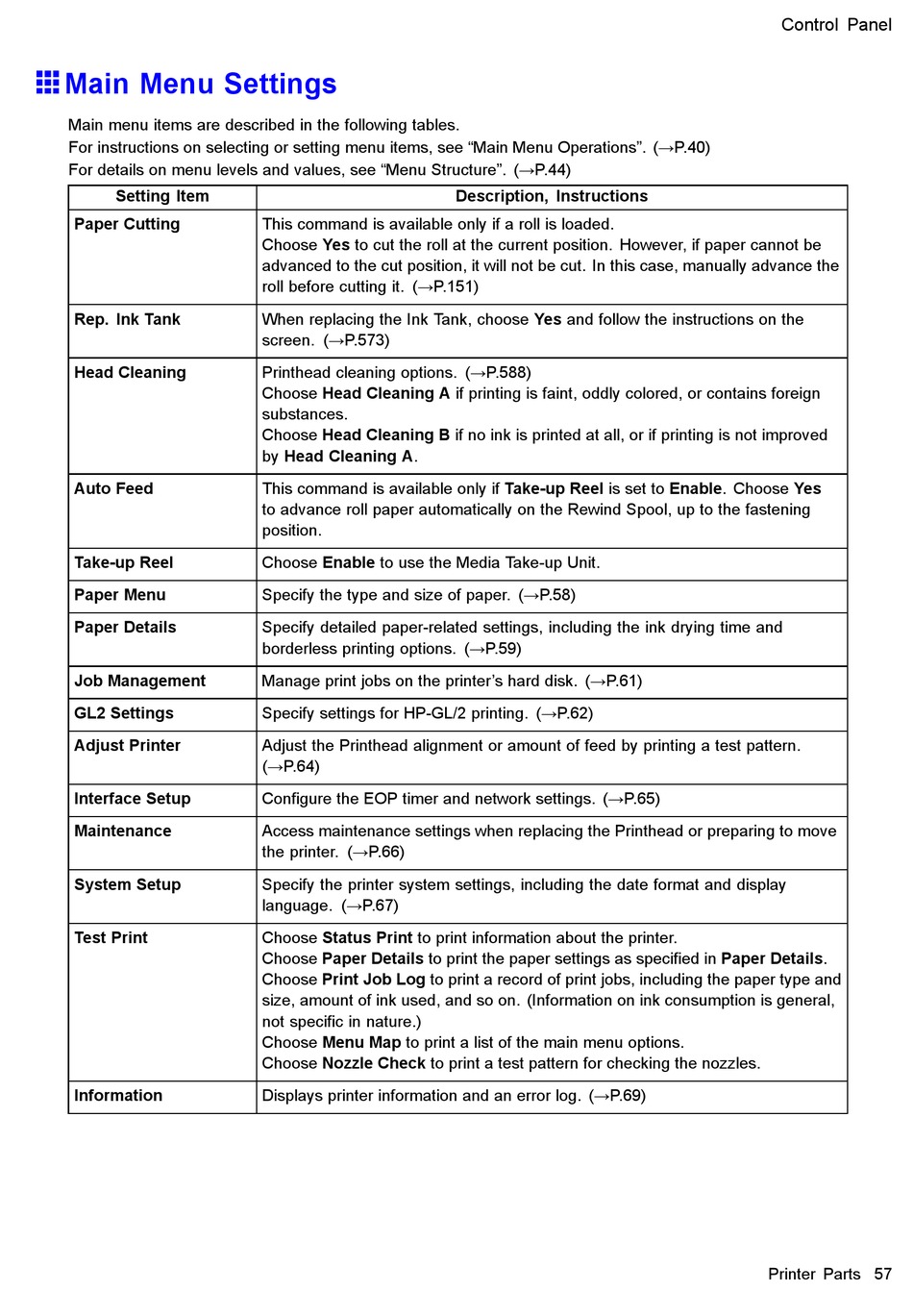

Main Menu Settings

Main menu items are described in the following tables.
For instructions on selecting or setting menu items, see "Main Menu Operations". (→P.40)
For details on menu levels and values, see "Menu Structure". (→P.44)
Setting Item
Paper Cutting
Rep. Ink Tank
Head Cleaning
Auto Feed
Take-up Reel
Paper Menu
Paper Details
Job Management
GL2 Settings
Adjust Printer
Interface Setup
Maintenance
System Setup
Test Print
Information
This command is available only if a roll is loaded.
Choose Yes to cut the roll at the current position. However, if paper cannot be
advanced to the cut position, it will not be cut. In this case, manually advance the
roll before cutting it. (→P.151)
When replacing the Ink Tank, choose Yes and follow the instructions on the
screen. (→P.573)
Printhead cleaning options. (→P.588)
Choose Head Cleaning A if printing is faint, oddly colored, or contains foreign
substances.
Choose Head Cleaning B if no ink is printed at all, or if printing is not improved
by Head Cleaning A.
This command is available only if Take-up Reel is set to Enable. Choose Yes
to advance roll paper automatically on the Rewind Spool, up to the fastening
position.
Choose Enable to use the Media Take-up Unit.
Specify the type and size of paper. (→P.58)
Specify detailed paper-related settings, including the ink drying time and
borderless printing options. (→P.59)
Manage print jobs on the printer's hard disk. (→P.61)
Specify settings for HP-GL/2 printing. (→P.62)
Adjust the Printhead alignment or amount of feed by printing a test pattern.
(→P.64)
Congure the EOP timer and network settings. (→P.65)
Access maintenance settings when replacing the Printhead or preparing to move
the printer. (→P.66)
Specify the printer system settings, including the date format and display
language. (→P.67)
Choose Status Print to print information about the printer.
Choose Paper Details to print the paper settings as specied in Paper Details.
Choose Print Job Log to print a record of print jobs, including the paper type and
size, amount of ink used, and so on. (Information on ink consumption is general,
not specic in nature.)
Choose Menu Map to print a list of the main menu options.
Choose Nozzle Check to print a test pattern for checking the nozzles.
Displays printer information and an error log. (→P.69)
