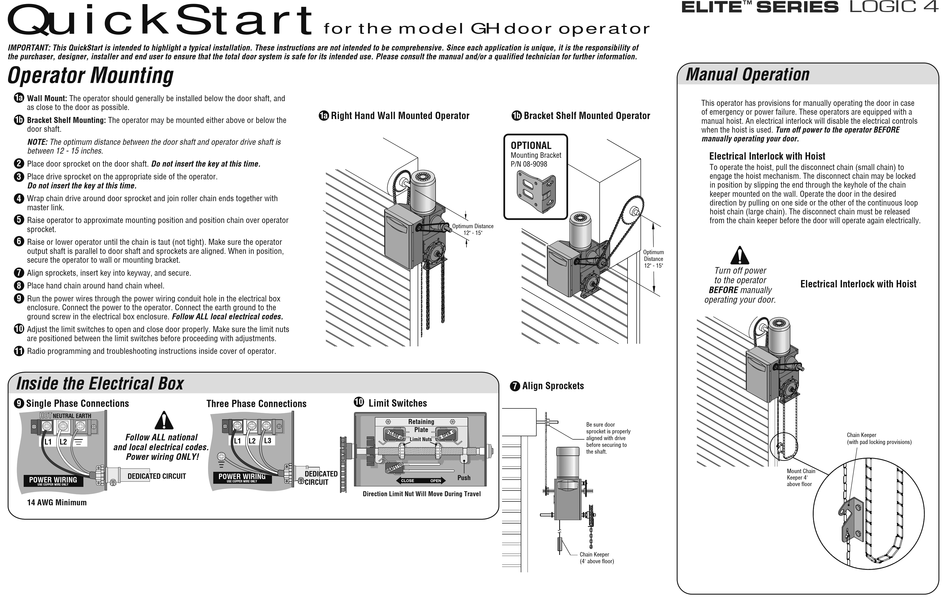

QuickStart
IMPORTANT: This QuickStart is intended to highlight a typical installation. These instructions are not intended to be comprehensive. Since each application is unique, it is the responsibility of
the purchaser, designer, installer and end user to ensure that the total door system is safe for its intended use. Please consult the manual and/or a qualified technician for further information.

Operator Mounting

1a
Wall Mount: The operator should generally be installed below the door shaft, and
as close to the door as possible.
1b
Bracket Shelf Mounting: The operator may be mounted either above or below the
door shaft.
NOTE: The optimum distance between the door shaft and operator drive shaft is
between 12 - 15 inches.
2 Place door sprocket on the door shaft. Do not insert the key at this time.
3 Place drive sprocket on the appropriate side of the operator.
Do not insert the key at this time.
4 Wrap chain drive around door sprocket and join roller chain ends together with
master link.
5
Raise operator to approximate mounting position and position chain over operator
sprocket.
6
Raise or lower operator until the chain is taut (not tight). Make sure the operator
output shaft is parallel to door shaft and sprockets are aligned. When in position,
secure the operator to wall or mounting bracket.
7 Align sprockets, insert key into keyway, and secure.
8 Place hand chain around hand chain wheel.
9 Run the power wires through the power wiring conduit hole in the electrical box
enclosure. Connect the power to the operator. Connect the earth ground to the
ground screw in the electrical box enclosure. Follow ALL local electrical codes.
10
Adjust the limit switches to open and close door properly. Make sure the limit nuts
are positioned between the limit switches before proceeding with adjustments.
11
Radio programming and troubleshooting instructions inside cover of operator.
Inside the Electrical Box
9 Single Phase Connections
HOT HOT
NEUTRAL EARTH
Follow ALL national
L1 L2
and local electrical codes.
Power wiring ONLY!
DEDICATED CIRCUIT
POWER WIRING
USE COPPER WIRE ONLY
14 AWG Minimum
for the model GH door operator
1a Right Hand Wall Mounted Operator
10
Limit Switches
Three Phase Connections
L1 L2 L3
DEDICATED
POWER WIRING
CIRCUIT
USE COPPER WIRE ONLY
Direction Limit Nut Will Move During Travel
1b Bracket Shelf Mounted Operator
OPTIONAL
Mounting Bracket
P/N 08-9098
Optimum Distance
12" - 15"
7 Align Sprockets
Retaining
Be sure door
Plate
sprocket is properly
aligned with drive
Limit Nuts
before securing to
the shaft.
Push
Chain Keeper
(4' above floor)

Manual Operation

This operator has provisions for manually operating the door in case
of emergency or power failure. These operators are equipped with a
manual hoist. An electrical interlock will disable the electrical controls
when the hoist is used. Turn off power to the operator BEFORE
manually operating your door.
Electrical Interlock with Hoist
To operate the hoist, pull the disconnect chain (small chain) to
engage the hoist mechanism. The disconnect chain may be locked
in position by slipping the end through the keyhole of the chain
keeper mounted on the wall. Operate the door in the desired
direction by pulling on one side or the other of the continuous loop
hoist chain (large chain). The disconnect chain must be released
from the chain keeper before the door will operate again electrically.
Optimum
Distance
12" - 15"
Turn off power
to the operator
Electrical Interlock with Hoist
BEFORE manually
operating your door.
Mount Chain
Keeper 4'
above floor
LOGIC 4
Chain Keeper
(with pad locking provisions)
