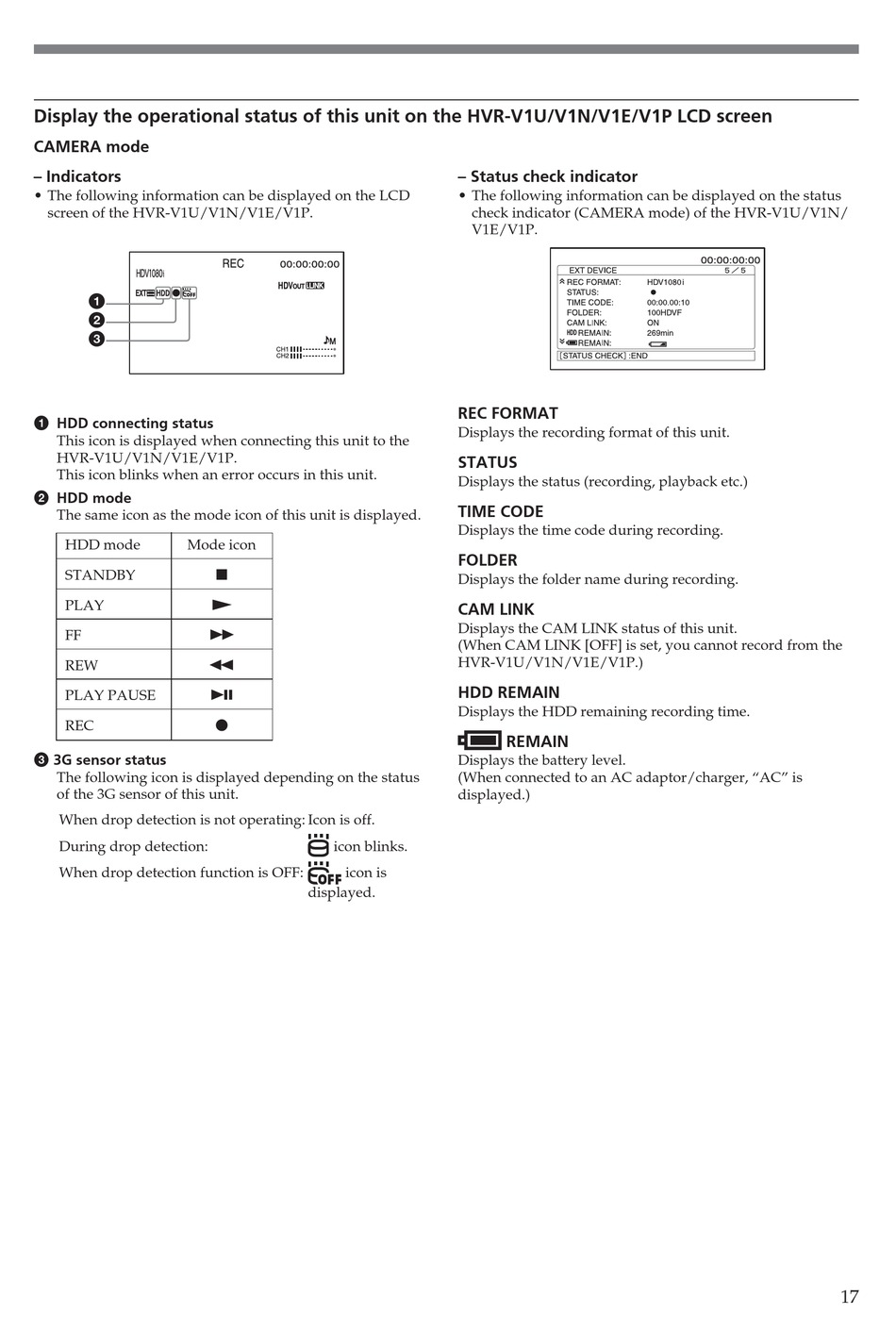

Sony HVR-DR60 - 60GB Hard Disk Recorder Operating Instructions Manual page 17

Display the operational status of this unit on the HVR-V1U/V1N/V1E/V1P LCD screen
CAMERA mode
– Indicators
• The following information can be displayed on the LCD
screen of the HVR-V1U/V1N/V1E/V1P.
1
2
3
1 HDD connecting status
This icon is displayed when connecting this unit to the
HVR-V1U/V1N/V1E/V1P.
This icon blinks when an error occurs in this unit.
2 HDD mode
The same icon as the mode icon of this unit is displayed.
HDD mode Mode icon
STANDBY
PLAY
FF
REW
PLAY PAUSE
REC
3 3G sensor status
The following icon is displayed depending on the status
of the 3G sensor of this unit.
When drop detection is not operating: Icon is off.
During drop detection:
When drop detection function is OFF:
x
N
M
m
u
z
icon blinks.
icon is
displayed.
– Status check indicator
• The following information can be displayed on the status
check indicator (CAMERA mode) of the HVR-V1U/V1N/
V1E/V1P.
REC FORMAT
Displays the recording format of this unit.
STATUS
Displays the status (recording, playback etc.)
TIME CODE
Displays the time code during recording.
FOLDER
Displays the folder name during recording.
CAM LINK
Displays the CAM LINK status of this unit.
(When CAM LINK [OFF] is set, you cannot record from the
HVR-V1U/V1N/V1E/V1P.)
HDD REMAIN
Displays the HDD remaining recording time.
REMAIN
Displays the battery level.
(When connected to an AC adaptor/charger, "AC" is
displayed.)
17
