Dremel 1453 Owner's Manual

Chain Saw Sharpening Attachment Kit
Owner's Manual - Model 1453
CHAIN SAW SHARPENING WARNINGS
Read and understand these instructions and the chain saw manual for complete details for sharpening and use of the chain saw. Failure to follow all
! WARNING
instructions and warnings may lead to injury.
Disconnect electrical plug or
! WARNING ! WARNING
spark plug lead from the power
source. Accidental start up could cause serious per- dust and sparks.
sonal injury.
Your new chain saw sharpening attachment kit will fit on Dremel rotary tool
models 275, 285, 395, 398, 850 and 780. When attached to a Dremel rotary
tool, the Chain Saw Sharpening attachment will sharpen nearly all popular
sizes of chain if you follow these simple instructions.
ASSEMBLY OF CHAIN SAW SHARPENING ATTACHMENT
Because there are different sizes and types of chains used on different saws,
your new sharpener must be assembled to suit your particular chain. To do
this:
1. First determine the size and pitch of your saw chain. Refer to your chain
saw owner's manual, your chain saw instruction manual or contact the chain
manufacturer for this information.
2. Refer to the chart below for the correct grinding stone.
Grinding Grinding Grinding
Chain Wheel Size Wheel Wheel
Size / Pitch (Diameter) Color Catalog No.
1/4" PITCH 5/32" Blue 453
3/8" PITCH 7/32" Pink 455
3/8" PITCH LOW PROFILE (LP) 5/32" Blue 453
.325" PITCH 3/16" Orange 454
3. When you have determined the correct grinding stone for your chain from
the chart, assemble attachment by screwing the guide (B) and appropriate
number of spacers (C) to the clamp (D) using the two screws (A), as shown
in figure 1.
• If using the 7/32" diameter (pink) grinding stone, assemble both spacers
between the guide and the clamp.
• If using the 3/16" diameter (orange) grinding stone, assemble with only one
spacer between the guide and the clamp.
• If using the 5/32" diameter (blue) grinding stone, no spacers are needed.
4. Securely mount the correct grinding stone in your tool with approximately
1/4" of the shank exposed between the chuck cap and the stone (Figure 2).
Use the rotary tool wrench to securely tighten the chuck cap.
5. Remove the housing cap from your rotary tool and screw on the chain saw
sharpening attachment (Figure 3).
6. Using the appropriate side of the gauge (E) (see above chart), check to see
if the guide (B) is properly positioned in respect to the grinding stone (F). The
gauge must be flush with the corner (G) of the guide while making contact with
the grinding stone (Figure 4).
If the guide is not properly positioned, use a screwdriver (the end of the gauge
has a screwdriver (H) on it) to loosen the two guide mounting screws (A)
enough so the guide can be moved (I). It has elongated holes to allow for
adjustment. Using the appropriate side of the gauge, adjust the guide so it is
properly positioned in respect to the grinding stone and tighten the screws.
SHARPENING THE CHAIN
1. Set your saw on a flat, solid surface so it will not slip while you are sharp-
ening the chain. The chain tension should be adjusted as specified in the
Chain Saw Owner's Manual. If it is too loose, the teeth will move, resulting in
a poor sharpening job.
Sharpening will be best accomplished if done on the flat of the saw bar –
somewhere near the middle of the bar.
2610913947 5/01
Wear eye protection and dust Teeth of chain must be sharpened
! WARNING
mask. Grinding action will cause equally and evenly. Uneven teeth
can cause the saw to kickback and excessive wear to
the bar.
2. The saw should first be positioned so that you are looking at the side of the
chain bar with the motor to your right. Cutter teeth on the far side of the chain
are sharpened, from inside to outside, or away from you, as shown in Figure
5. The guide (B) should be laid flat on the tooth with the 30º index line (L) par-
allel with the chain. This index line should be aligned by eye with the chain.
Two or three light strokes are usually enough unless the cutters have been
damaged. Sharpen all cutters equal. Start with the cutter with the most visual
damage (i.e. nicks or gouges) and sharpen all cutters back equally. Do not
remove excessive material as this only shortens the life of the chain.
Note: Sharpen cutter teeth (J) only, not the depth gauge (K).
3. When all of the teeth on the top of the bar have been sharpened, advance
the chain using a glove or a rag to protect your hand, by pulling the chain
toward the end of the bar. Repeat until all the teeth on the far side of the chain
have been sharpened.
Guide
4. Turn the saw around so that you are looking at the side of the chain bar with
Gauge
the motor to your left. Sharpen the cutter teeth on the far side of the chain,
Side 1 from inside to outside, or away from you, as shown in Figure 6. The guide
should be laid flat on the tooth with the 30º index line parallel with the chain.
Side 1
Repeat the process above to sharpen all of the cutter teeth on the far side of
Side 1
the chain.
Side 1
5. After your chain has been sharpened a number of times, you may find that
it does not cut as fast as you feel it should. Each cutter on your chain has a
depth gauge (K) just ahead of the cutting edge (J) that determines how big a
bite it can take. To check for proper depth of the cut, lay a metal straight edge
across the tops of the cutting edges, as shown in Figure 7, and check the
dimension indicated. This dimension should be approximately equal to the
thickness of the gauge furnished with your chain saw sharpening kit. If it is
not, file or grind the chain depth gauge until the clearance is approximately
equal to the thickness of the sharpening kit gauge. Be careful to maintain its
shape. Do not remove more material than necessary or you will overload your
saw. Also, be careful to keep this depth gauge setting uniform on all cutter
teeth or you will not be able to make a straight cut.

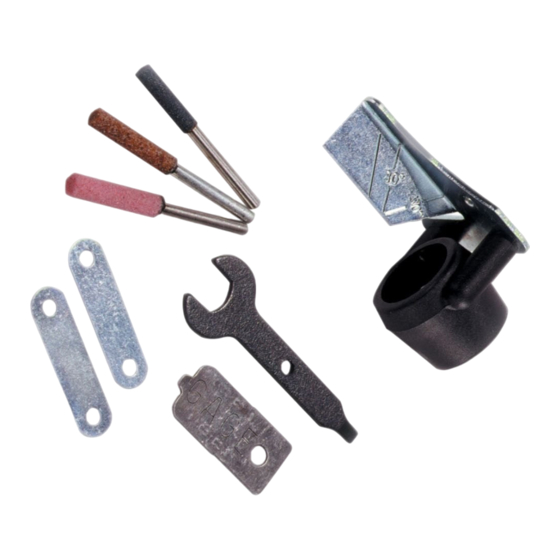

ORDERING INFORMATION - refer to figure 8.
CODE NO. PART NO. DESCRIPTION
1 1453 Sharpening Attachment, Complete
2 990869 Gauge & 2 Spacers
3 453 5/32" Grinding Wheel, Blue
4 454 3/16" Grinding Wheel, Orange
5 455 7/32" Grinding Wheel, Pink
WRITE FOR CURRENT PRICES - NO C.O.D.'S
UNITED STATES OUTSIDE OF
Dremel Service Center CONTINENTAL UNITED STATES
4915 Twenty-First Street See your local distributor or write
Racine, WI 53406 to: Dremel,
4915 Twenty-First Street,
Dremel Service Center
Racine, WI 53406
4631 E. Sunny Dunes
Palm Springs, CA 92264
Fig. 1
A
B
C
D
30º
Fig. 5
Disconnect electrical plug or
! WARNING
spark plug lead from the power
source. Accidental start up could cause serious per-
sonal injury.
Fig. 7
CHECK THIS DIMENSION
CONTRÔLEZ CETTE COTE
COMPRUEBE ESTA DIMENSIÓN
J
PRINTED IN U.S.A.
Fig. 2
1/4"
Fig. 3
HOUSING CAP
CAPUCHON DU BOÎTIER
TAPA DE LA CARCASA
K J
J
B
L
SAW MOTOR
SAW MOTOR
MOTEUR DE LA MOTEUR DE LA
TRONÇONNEUSE TRONÇONNEUSE
MOTOR DE LA
MOTOR DE LA
SIERRA
SIERRA
Fig. 6
Débranchez la prise ou le fil
! AVERTISSEMENT
de bougie. Tout démarrage
intempestif risque de causer des blessures corporelles
graves.
2
K
1
3
4
5
Fig. 8
B
A
E
Side 1
H
I
F
G
A
Fig. 4
VIEW: looking down at the tip of the tool with guide
mounting screws to the left.
VUE vers la pointe de l'outil avec les vis de montage
du guide à gauche
VISTA: Mirando hacia abajo, hacia la punta de la her-
ramienta, con los tornillos de montaje de la guía ubi-
cados a la izquierda.
K
30º
L
B
Desconecte de la fuente de ali-
! ADVERTENCIA
mentación el enchufe eléctrico
o el hilo de conexión de la bujía. Un arranque acci-
dental podría causar lesiones personales graves.
